Simpson Strong-Tie THA422-2 (22-11/16 in.) Adjustable Truss Hanger for Double 4x Floor Truss
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie THA422-2 (22-11/16 in.) Adjustable Truss Hanger ...
Key Specifications
Description
Description
Simpson Strong-Tie THA422-2 Description

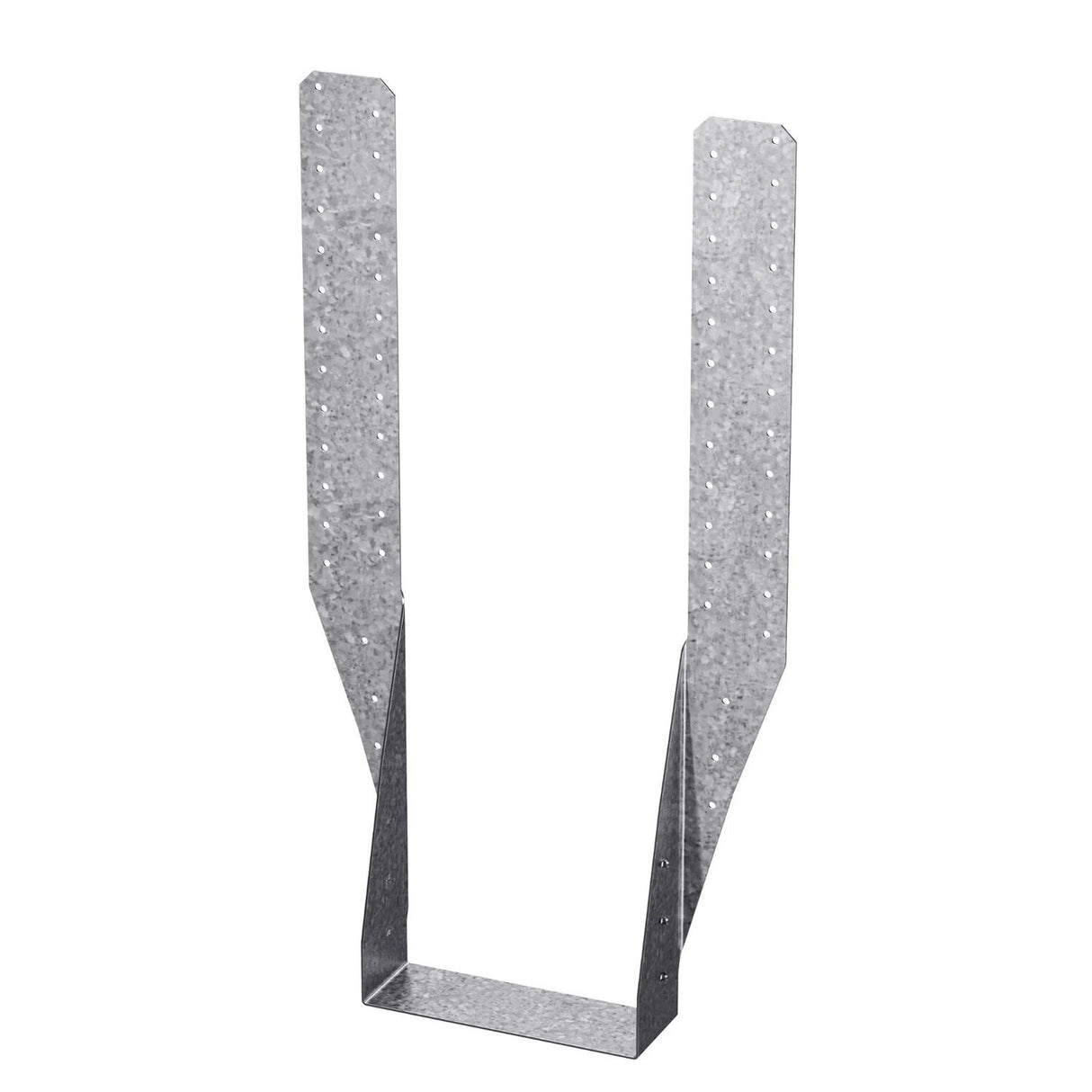

The Simpson Strong-Tie THA422-2 Adjustable Truss Hanger is designed for double 4x floor trusses, featuring a G90 galvanized finish for durability and corrosion resistance.
Simpson Strong-Tie THA422-2 Includes
- (1) THA422-2 Adjustable Truss Hanger
Simpson Strong-Tie THA422-2 Features
- Extra-long straps for height adjustability and top-flange installation convenience
- Min./max. nailing installation options
- Dense nail pattern in the straps for more installation options and easy top-flange installation
Simpson Strong-Tie THA422-2 Applications
- Solid sawn lumber connections
- Double 4x floor truss support

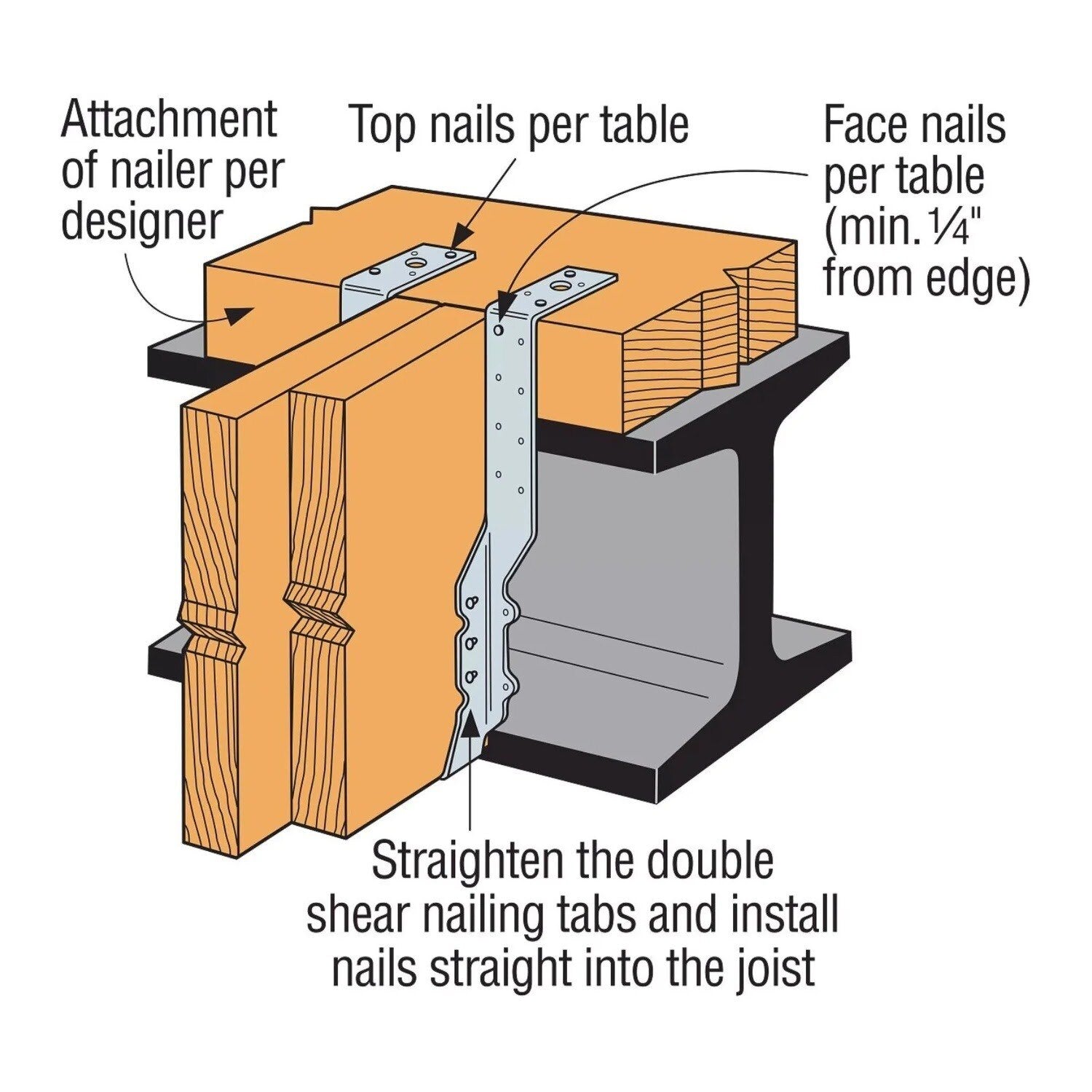

Simpson Strong-Tie THA422-2 Installation Overview
- Use all specified fasteners as per guidelines.
- For top flange installation, straps must be field-formed over the header.
- Install top and face nails according to the table, ensuring proper alignment.
- For face mount installation, fill the lowest four face holes and distribute nails as specified.
- Ensure nails penetrate through the joist into the header for secure attachment.
Simpson Strong-Tie THA422-2 Specifications
| Material | G90 Galvanized |
| Height | 22-11/16" |
| Width | 7-1/4" |
| Gauge | 14 |
| Fasteners required | Top - (4) 0.162" x 3-1/2" Nails, Face - (4) 0.162" x 3-1/2" Nails, Carried Member - (6) 0.162" x 3-1/2" Nails |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
