Simpson Strong-Tie THA422Z Adjustable Truss Hanger for 4x Floor Truss
Key Specifications
Description
Description
Simpson Strong-Tie THA422Z Description

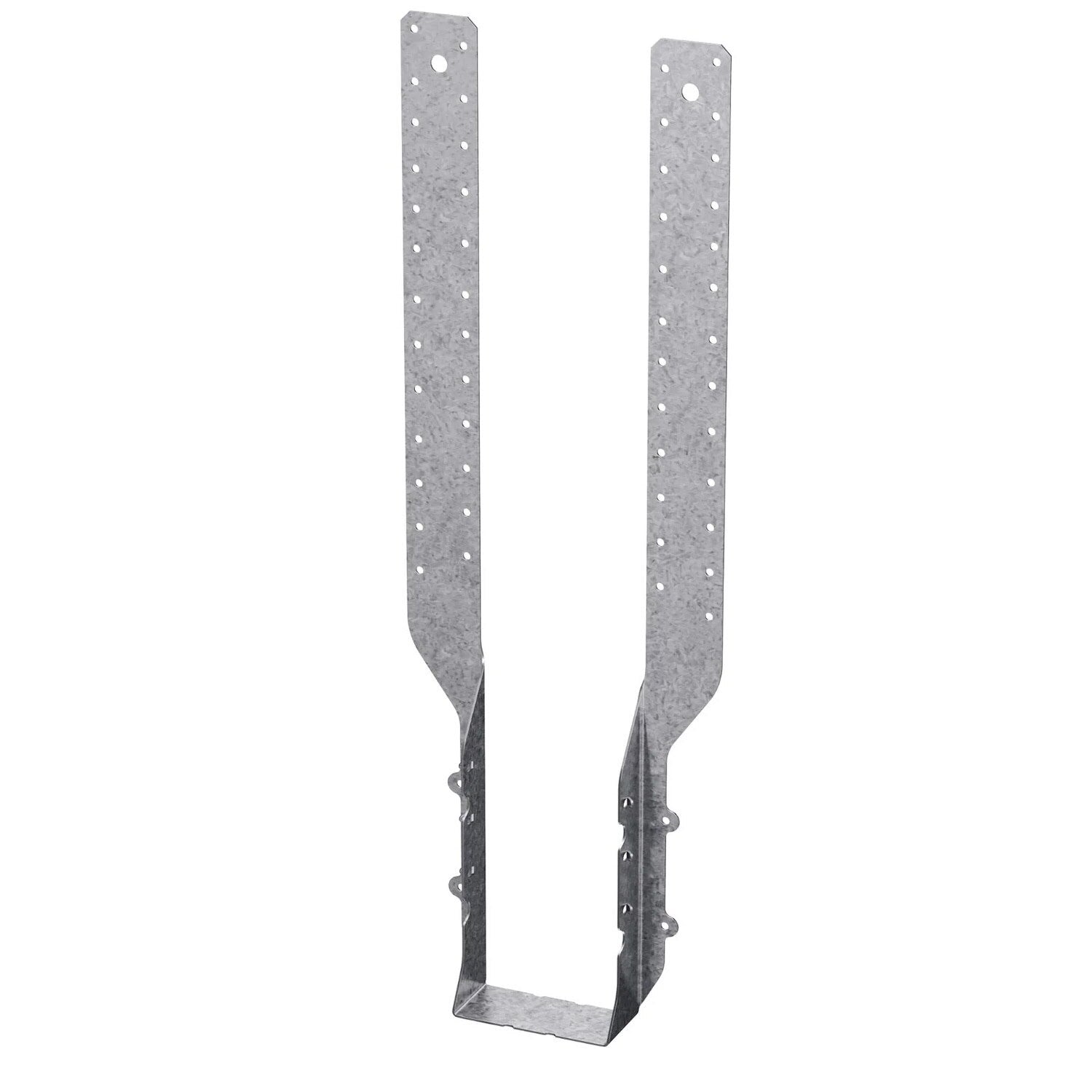

The Simpson Strong-Tie THA422Z Adjustable Truss Hanger is designed for 4x floor trusses, featuring a ZMAX finish for enhanced corrosion resistance and adjustable straps for versatile installation.
Simpson Strong-Tie THA422Z Includes
- (1) Adjustable Truss Hanger
Simpson Strong-Tie THA422Z Features
- Extra-long straps for height adjustability and top-flange installation convenience
- Min./max. nailing installation options
- Dense nail pattern in the straps for more installation options and easy top-flange installation
Simpson Strong-Tie THA422Z Applications
- Solid Sawn Lumber
- Adjustable truss hanger for 4x floor trusses
Simpson Strong-Tie THA422Z Installation Overview
- Use all specified fasteners as per guidelines.
- For top-flange installation, straps must be field-formed over the header.
- Install top and face nails according to the table.
- For face-mount installation, install all face nails as per the table, ensuring the lowest four face holes are filled.
- Alternate installation allows top flange configuration using tabulated fasteners for face mount installation.
Simpson Strong-Tie THA422Z Specifications
| Material | See table |
| Finish | ZMAX Galvanized |
| Height | 22" |
| Width | 3-5/8" |
| Gauge | 16 |
| Fasteners required | Top - (4) 0.162" x 3-1/2" Nails, Face - (2) 0.162" x 3-1/2" Nails, Carried Member - (6) 0.148" x 3" Nails |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
