Simpson Strong-Tie THAC426 (4" x 26") Adjustable Truss Hanger with G90 Galvanized Finish
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie THAC426 (4" x 26") Adjustable Truss Ha...
Key Specifications
Description
Description

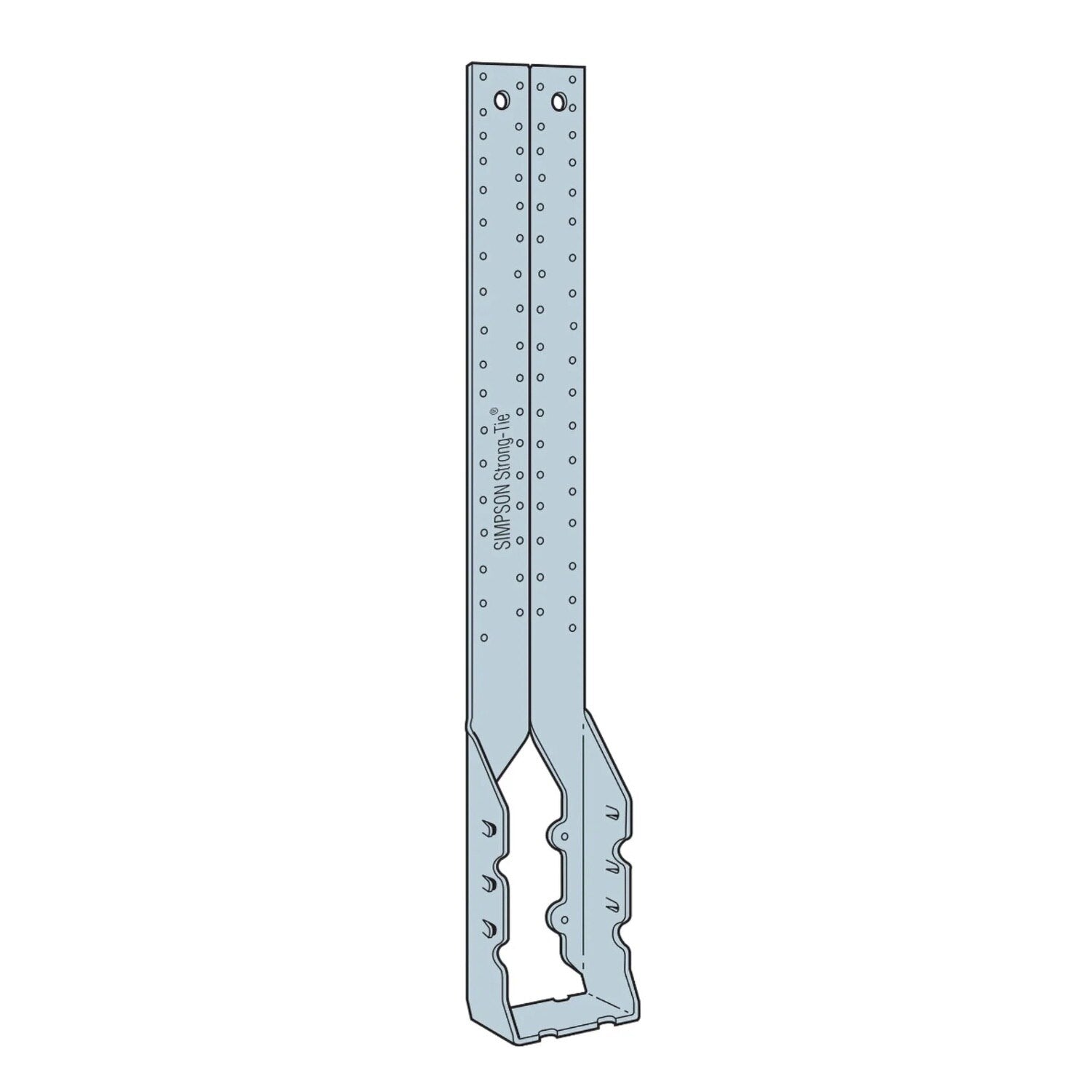

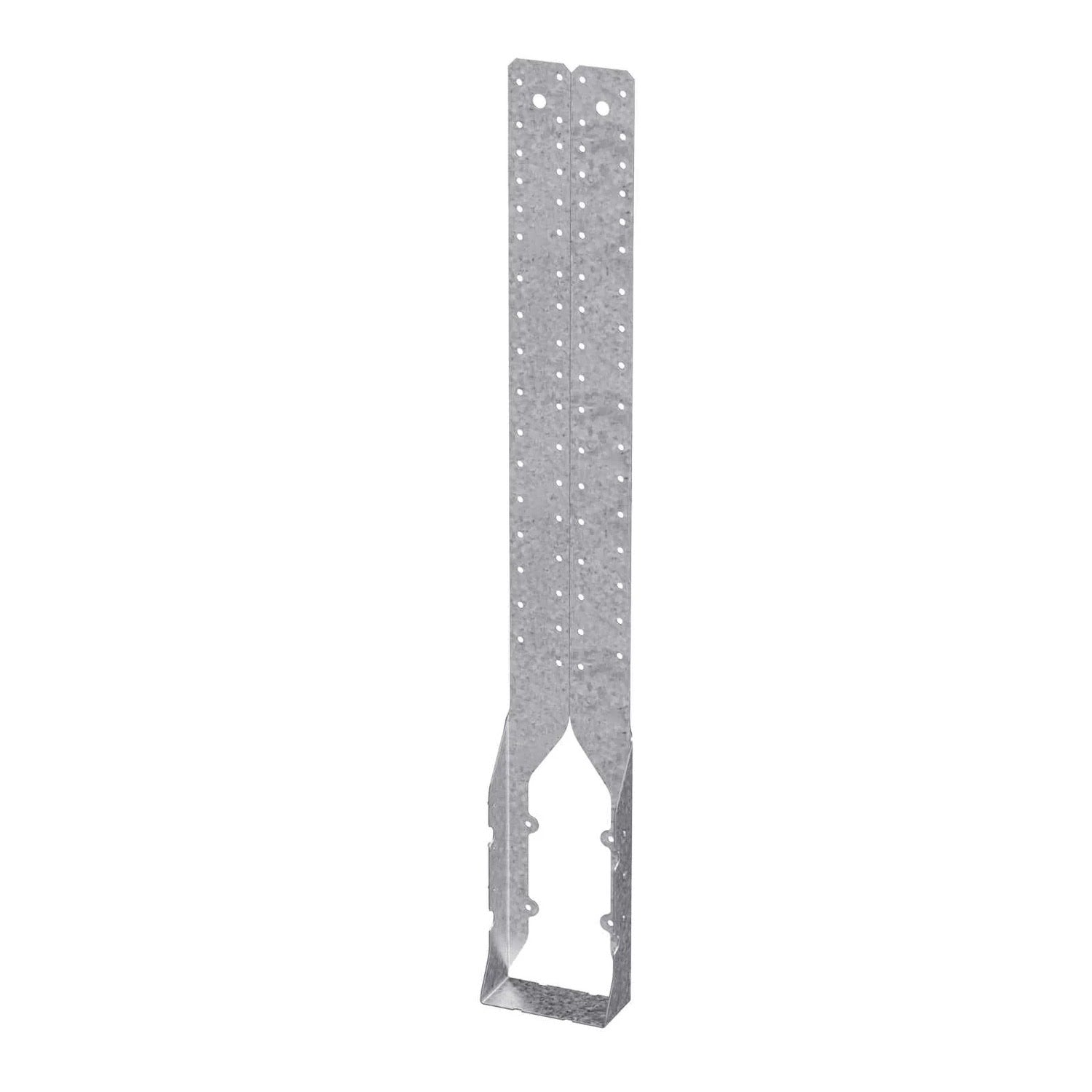

Simpson Strong-Tie THAC426 Description
The Simpson Strong-Tie THAC426 Adjustable Truss Hanger features a G90 Galvanized coating and is designed for 4x26 trusses, offering a clean finished look with concealed flanges.
Simpson Strong-Tie THAC426 Includes
- (1) Adjustable Truss Hanger
Simpson Strong-Tie THAC426 Features
- Extra long straps for full code nailing
- Concealed flanges for a clean finished look
- G90 Galvanized coating for durability
- Compatible with hot-dip galvanized fasteners meeting ASTM A153
Simpson Strong-Tie THAC426 Applications
- Truss support for 4x26 configurations
- Residential and commercial framing requiring concealed flange hangers
Simpson Strong-Tie THAC426 Installation Overview
- Use all specified fasteners
- For top flange installation, field form straps over the header
- Install top and face nails according to the table
- For face mount installation, fill the lowest 4 face holes
- Ensure nails penetrate through the corner of the joist into the header
Simpson Strong-Tie THAC426 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Height | 26" |
| Width | 3-5/8" |
| Fasteners required | Top - (4) 0.162" x 3-1/2" Nails, Face - (4) 0.162" x 3-1/2" Nails, Carried Member - (6) 0.162" x 3-1/2" Nails |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
