Simpson Strong-Tie W1-R100 (14-Gauge) Galvanized Wedge for Form Ties (100 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie W1-R100 (14-Gauge) Galvanized Wedge for Form Tie...
Key Specifications
Description
Description
Simpson Strong-Tie W1-R100 Description

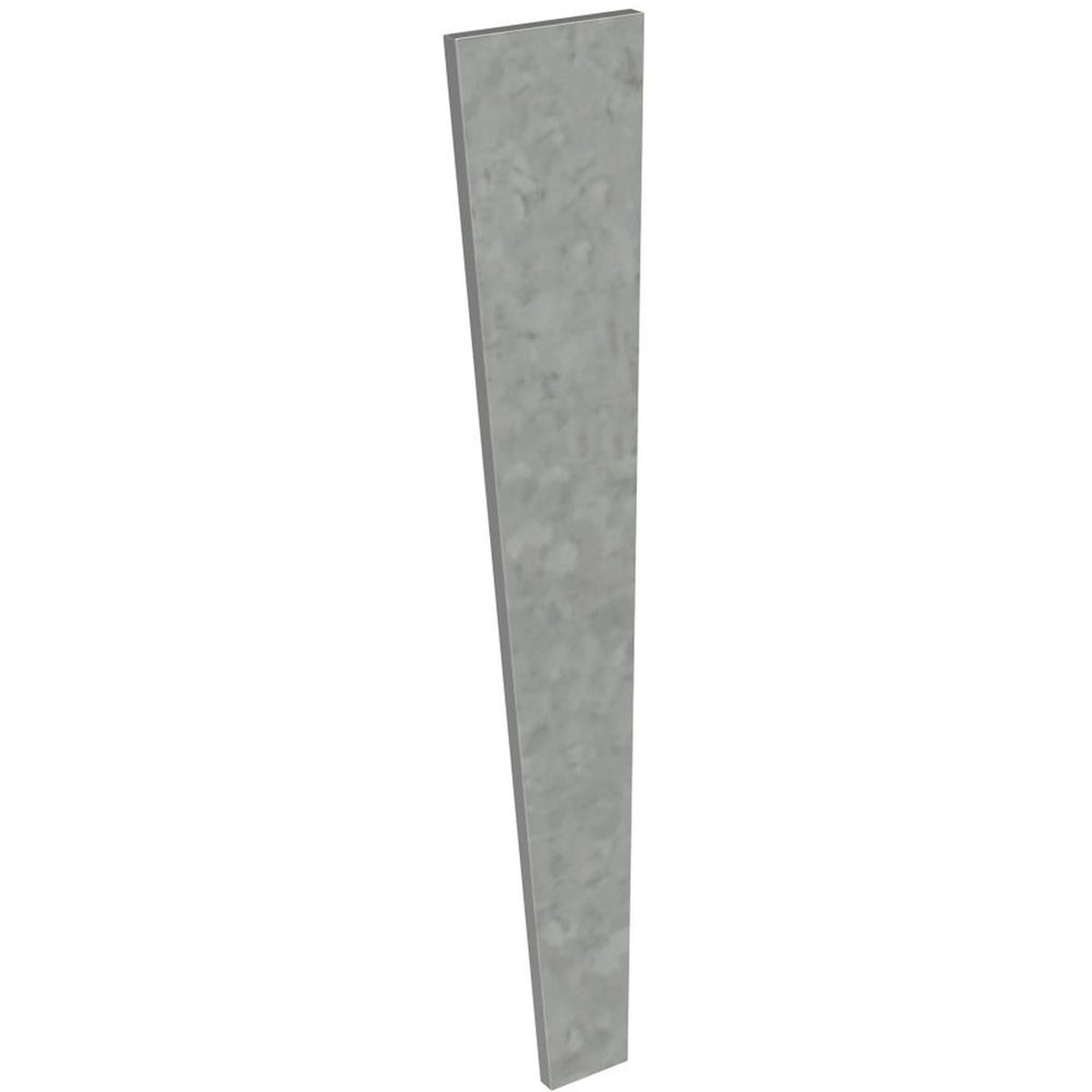

The W1-R100 14-Gauge Galvanized Wedge is designed for use with WT form ties, providing reliable performance in concrete applications.
Simpson Strong-Tie W1-R100 Includes
- (100) 14-Gauge Galvanized Wedge
Simpson Strong-Tie W1-R100 Features
- Designed and manufactured to work specifically with the WT
- Tapered design accommodates expansion and contraction of wood as a result of moisture content
- One size of W1 fits both composite and lumber WT models
- The WT's 5/8" wide formed "V" design for rigidity allows accurate form spacing and support
- Use two of these 3 1/2" long wedges for each WT tie
Simpson Strong-Tie W1-R100 Applications

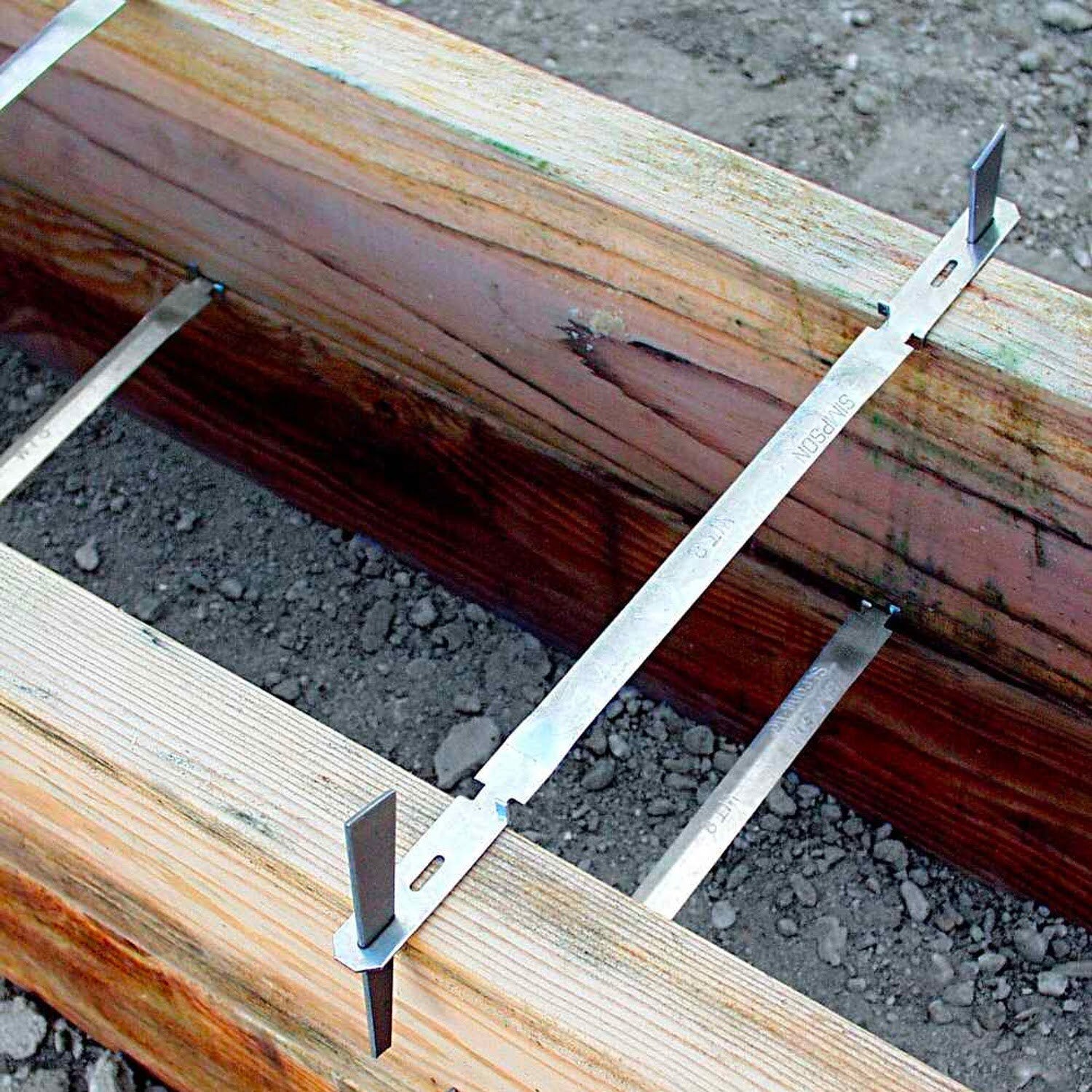

- Concrete formwork: Securely fastens WT form ties for stable and accurate form spacing
Simpson Strong-Tie W1-R100 Installation Overview
- Two W1 wedges are required for each WT tie
- Not recommended for wall pours greater than 4' high
- Wall thickness from 6" to 12"
Simpson Strong-Tie W1-R100 Specifications
| Material | 14 gauge |
| Finish | Galvanized |
| Application | Concrete |
| API Approval | Approved - Full |
