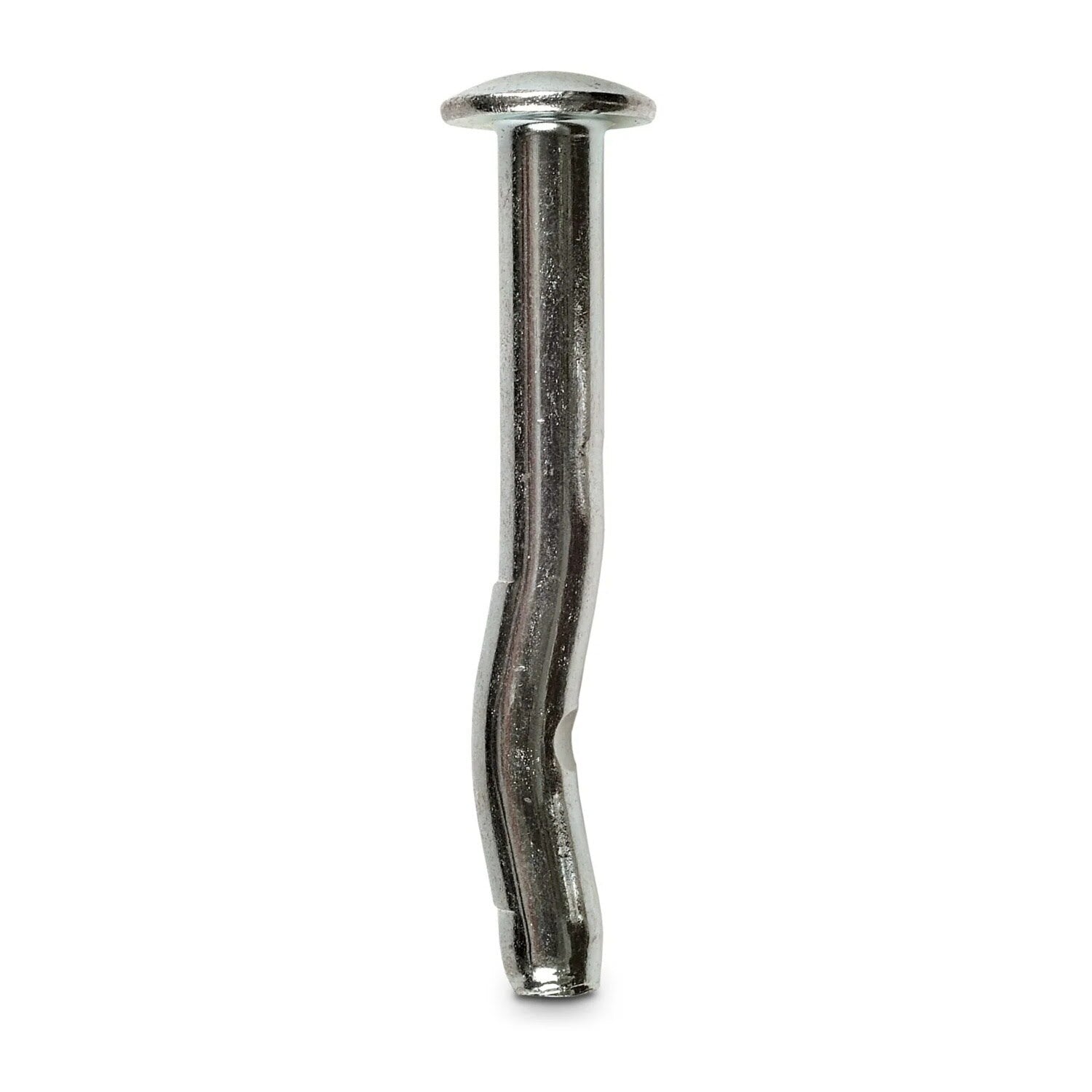

Simpson Strong-Tie CD18114M (3/16" x 1-1/4") Crimp Drive Anchor Zinc-Plated Mushroom Head (100 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CD18114M (3/16" x 1-1/4") Crimp Drive ...
Key Specifications
Description
Description
Simpson Strong-Tie CD18114M Description
The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. The pre-formed curvature along the shaft creates an expansion mechanism that secures the anchor in place and eliminates the need for a secondary tightening procedure.
Simpson Strong-Tie CD18114M Includes
- (100) Crimp Drive Anchor Zinc-Plated Mushroom Head
Simpson Strong-Tie CD18114M Features
- Unique curved shaft design that speeds up anchor installation and reduces overall project cost
- Ideal for a variety of applications
- Available in five different head styles
Simpson Strong-Tie CD18114M Applications
- Attaching wood or light-gauge steel to concrete and grout-filled block
- Providing tamper-proof solutions with mushroom head
- Offering zero-profile solutions with countersunk head
- Threaded rod attachments with rod-coupler head
- Suspended ceiling applications with tie-wire head
- Temporary applications with duplex head for easy removal
Simpson Strong-Tie CD18114M Installation Overview
- Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
- Blow the hole clean of dust and debris using compressed air.
- Drive the anchor through the fixture into the hole until the head sits flush against the fixture.
- Ensure the anchor is driven to the required embedment depth.
- For rod coupler and tie-wire models, drive in until the head is seated against the surface of the base material.
Simpson Strong-Tie CD18114M Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Diameter | 3/16" |
| Length | 1-1/4" |
| Drill Bit Size | 3/16" |
| Fixture Hole Size | 1/4" |
| Minimum Embedment Depth | 7/8" |
| Head Type | Mushroom Head |
| Quantity | 100 |
NOTE: Industry studies show that hardened fasteners can experience performance problems in wet or corrosive environments. Accordingly, with the exception of the duplex anchor, use these products in dry, interior and non-corrosive environments only.
