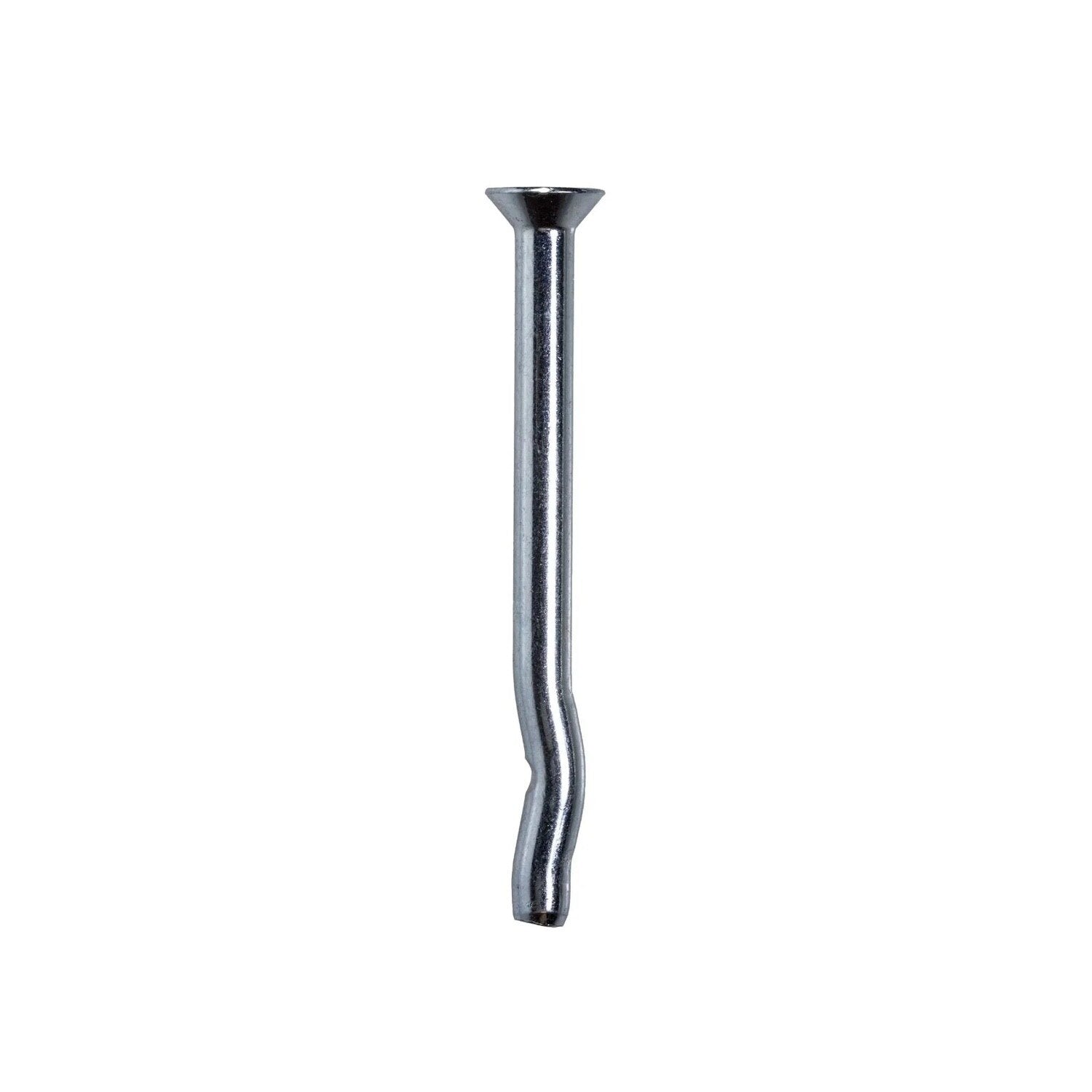

Simpson Strong-Tie CD18212C (3/16" x 2-1/2") Crimp Drive Anchor Zinc-Plated Countersunk Head (100 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CD18212C (3/16" x 2-1/2") Crimp Drive ...
Key Specifications
Description
Description
Simpson Strong-Tie CD18212C Description
The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor designed for concrete and grout-filled block applications. Its countersunk head ensures a smooth surface for attaching wood or light gauge steel.
Simpson Strong-Tie CD18212C Includes
- (100) Crimp Drive Anchor Zinc-Plated Countersunk Head 3/16" x 2-1/2"
Simpson Strong-Tie CD18212C Features
- Easy-to-install expansion anchor for concrete and grout-filled block
- Pre-formed curvature along the shaft for secure anchoring
- Countersunk head for a smooth surface
- Eliminates the need for secondary tightening
- Reduces installation time and cost
Simpson Strong-Tie CD18212C Applications
- Attaching wood to concrete or grout-filled block
- Securing light gauge steel to concrete surfaces
- General construction requiring expansion anchors
Simpson Strong-Tie CD18212C Installation Overview
- Drill a hole using a 3/16" diameter carbide bit to a depth of at least 1/2" deeper than the required embedment.
- Blow the hole clean of dust and debris using compressed air.
- Drive the anchor through the fixture into the hole until the head sits flush against the fixture.
- Ensure the anchor is driven to the required embedment depth.
Simpson Strong-Tie CD18212C Specifications
| Diameter | 3/16" |
| Length | 2-1/2" |
| Material | Carbon Steel |
| Drill bit size | 3/16" |
| Fixture hole size | 1/4" |
| Head type | Countersunk Head |
| Minimum embedment depth | 1-1/2" |
| Quantity | 100 |
NOTE: Use these products in dry, interior, and non-corrosive environments only.
