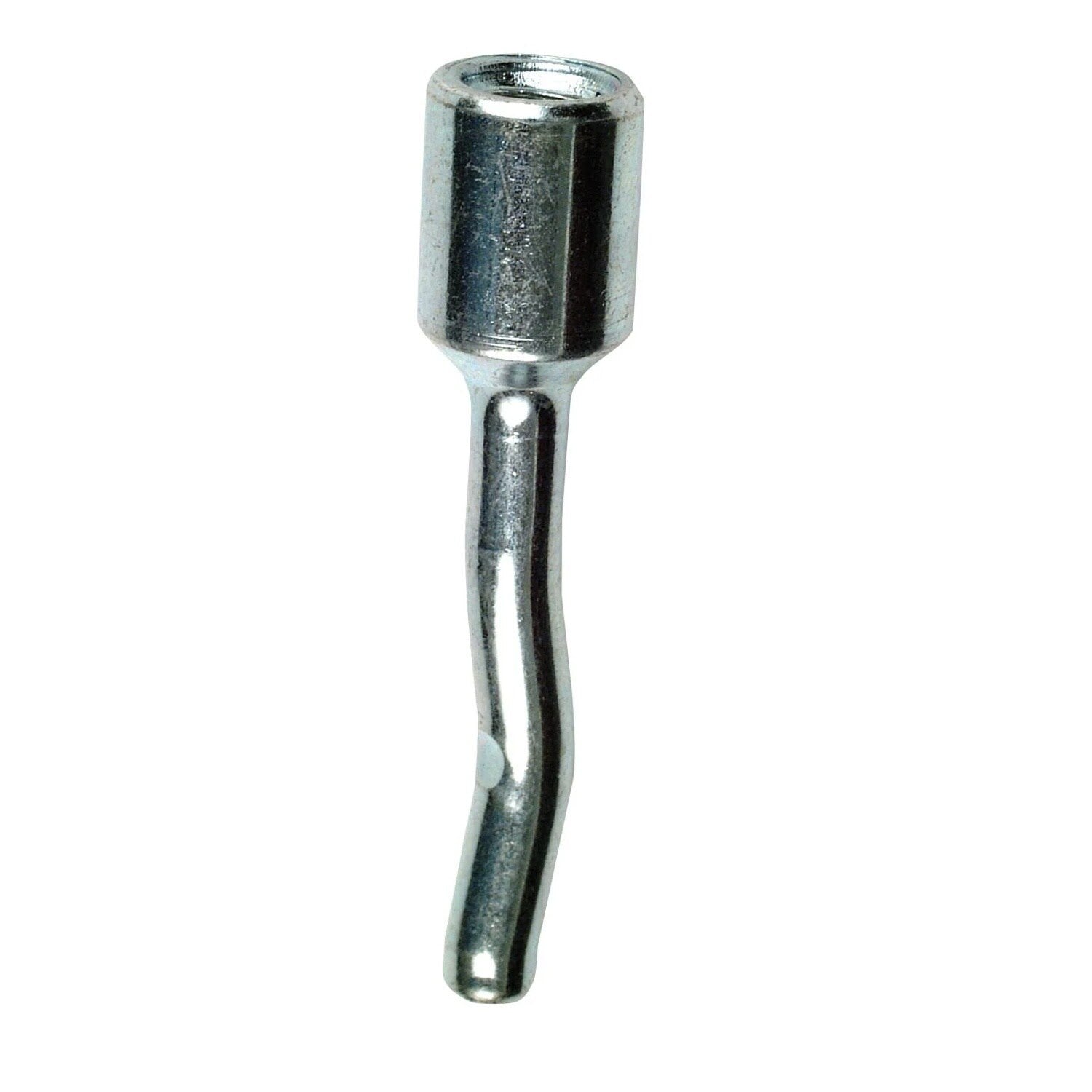

Simpson Strong-Tie CD25114RC (1/4 in.) Crimp Drive Anchor Zinc-Plated Rod-Coupler Head (100 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CD25114RC (1/4 in.) Crimp Drive Anchor Zinc-Plat...
Key Specifications
Description
Description
Simpson Strong-Tie CD25114RC Description
The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. The pre-formed curvature along the shaft creates an expansion mechanism that secures the anchor in place and eliminates the need for a secondary tightening procedure.
Simpson Strong-Tie CD25114RC Includes
- (100) Crimp Drive Anchor Zinc-Plated Rod-Coupler Head
Simpson Strong-Tie CD25114RC Features
- Unique curved shaft design that speeds up anchor installation and reduces overall project cost
- Ideal for a variety of applications
- Available in five different head styles
Simpson Strong-Tie CD25114RC Applications
- Brick — Solid
- Mushroom head provides a tamper-proof solution
- Countersunk head provides a zero-profile solution
- Rod-coupler head allows for threaded rod attachments
- Tie-wire head for suspended ceiling applications
- Duplex head allows for easy removal in temporary applications
Simpson Strong-Tie CD25114RC Installation Overview
- Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
- Blow the hole clean of dust and debris using compressed air. Overhead application need not be blown clean.
- Where a fixture is used, drive the anchor through the fixture into the hole until the head sits flush against the fixture.
- Be sure the anchor is driven to the required embedment depth. The rod coupler and tie-wire models should be driven in until the head is seated against the surface of the base material.
Simpson Strong-Tie CD25114RC Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Diameter | 3/16" |
| Length | 1-1/4" |
| Accepts rod size | 1/4" |
| Drill bit size | 3/16" |
| Head type | Rod Coupler |
| Minimum embedment depth | 1-1/4" |
| Quantity | 100 |
NOTE: Industry studies show that hardened fasteners can experience performance problems in wet or corrosive environments. Accordingly, with the exception of the duplex anchor, use these products in dry, interior and non-corrosive environments only.
