Simpson Strong-Tie CD25300MG (1/4" x 3") Crimp Drive Anchor Mechanically Galvanized Mushroom Head (100 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CD25300MG (1/4" x 3") Crimp Drive Anch...
Key Specifications
Description
Description
Simpson Strong-Tie CD25300MG Description

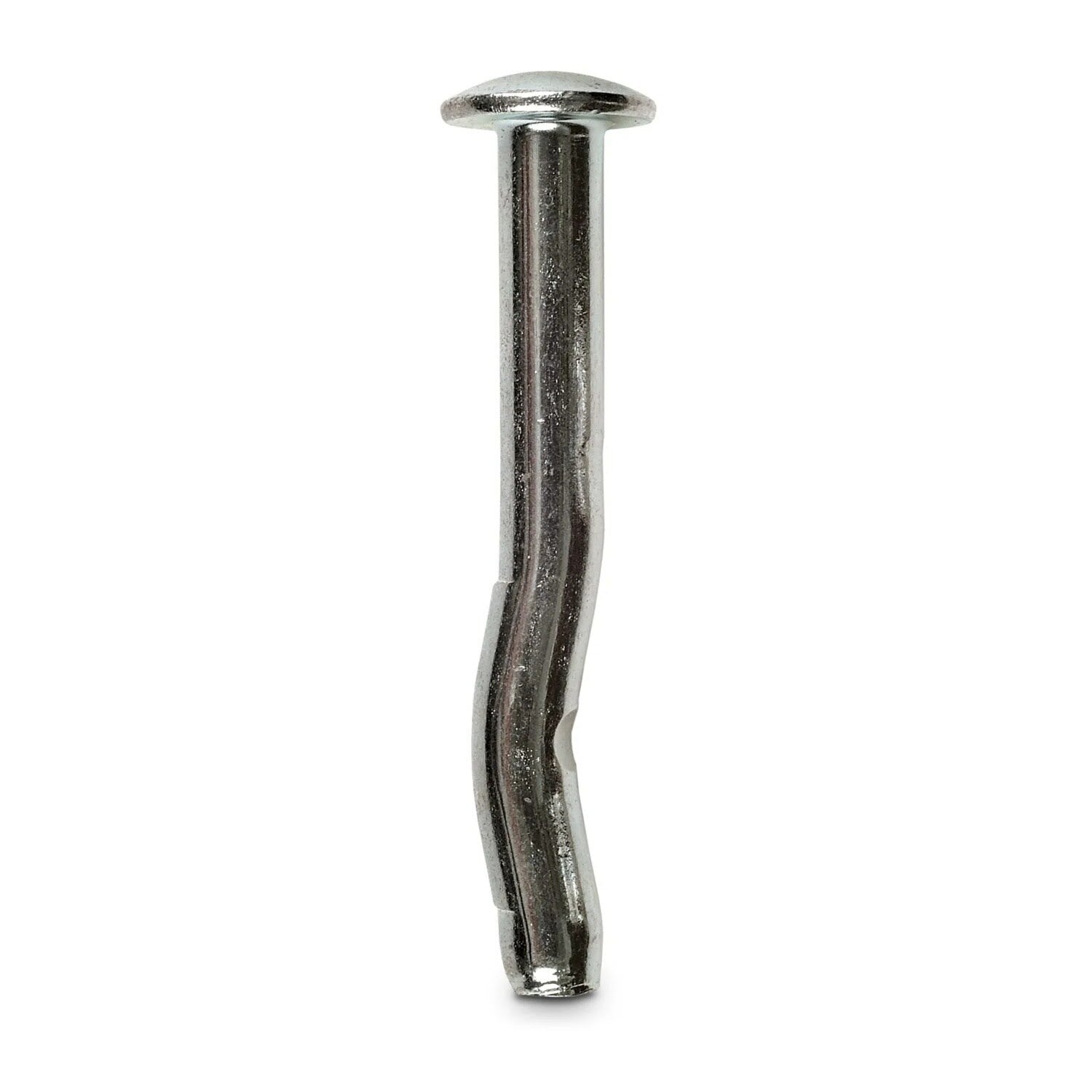

The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. It features a pre-formed curvature along the shaft for secure placement and a low-profile mushroom head for versatile attachment.
Simpson Strong-Tie CD25300MG Includes
- (100) 1/4 in. x 3 in. Mechanically Galvanized Mushroom Head Crimp Drive Anchors
Simpson Strong-Tie CD25300MG Features
- Unique curved shaft design for faster installation
- Low-profile mushroom head for versatile attachment
- Mechanically galvanized for durability
- Made from carbon steel
- Available in multiple head styles
Simpson Strong-Tie CD25300MG Applications
- Attaching wood or light-gauge steel to concrete and grout-filled block
- Tamper-proof solutions with mushroom head
- Zero-profile solutions with countersunk head
- Threaded rod attachments with rod-coupler head
- Suspended ceiling applications with tie-wire head
- Temporary applications with duplex head
Simpson Strong-Tie CD25300MG Installation Overview
- Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
- Blow the hole clean of dust and debris using compressed air.
- Drive the anchor through the fixture into the hole until the head sits flush against the fixture.
- Ensure the anchor is driven to the required embedment depth.
Simpson Strong-Tie CD25300MG Specifications
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Diameter | 1/4 in. |
| Length | 3 in. |
| Drill Bit Size | 1/4 in. |
| Fixture Hole Size | 5/16 in. |
| Minimum Embedment Depth | 1-1/4 in. |
| Head Type | Mushroom Head |
| Quantity | 100 |
NOTE: Mechanical galvanizing meets ASTM B695, Class 55, Type 1. Intended for some pressure-treated wood sill plate applications. Not for use in other corrosive or outdoor environments.
