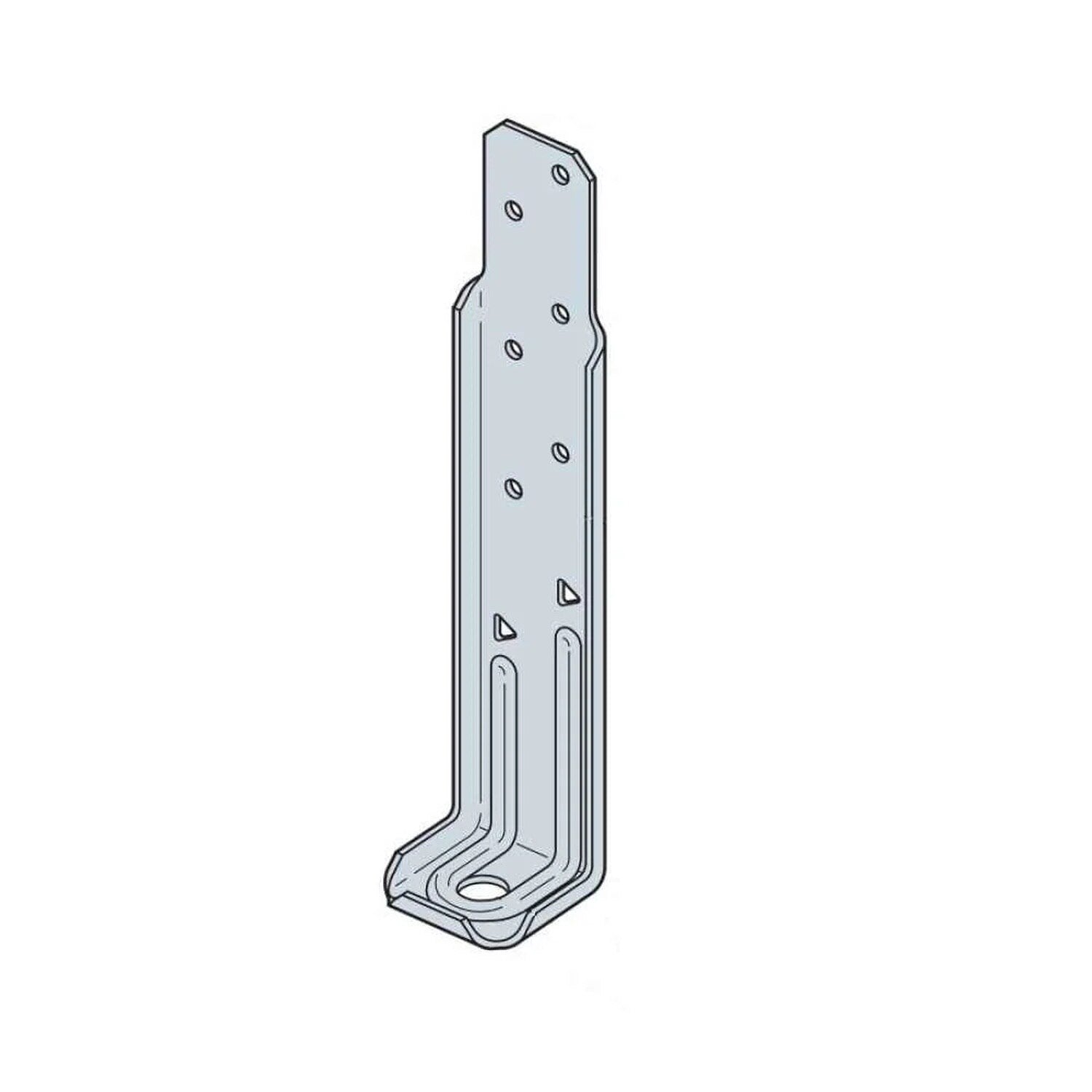

Simpson Strong-Tie DTT1Z (1-1/2" x 7-1/8") 14 Gauge Deck Tension Tie - ZMAX Finish
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie DTT1Z (1-1/2" x 7-1/8") 14 Gauge Deck ...
Key Specifications
Description
Description
Simpson DTT1Z Description
The Simpson DTT1Z Deck Tension Tie features a ZMAX galvanized finish for corrosion resistance and is designed for safe and cost-effective deck construction.
Simpson DTT1Z Includes
- (1) Deck Tension Tie
Simpson DTT1Z Features
- ZMAX galvanized finish for corrosion resistance
- Safe and cost-effective connector
- Meets or exceeds code requirements for deck construction
- Load rated for light-duty shearwalls and braced wall panel applications
Simpson DTT1Z Applications
- Deck construction
- Light-duty shearwalls
- Braced wall panel applications
Simpson DTT1Z Installation Overview
- Use all specified fasteners
- Install a standard cut washer between the nut and the seat
- Use a low speed high torque drill with a 3/8" hex head driver for SDS screws
- Use a 1/4" hex head driver for SD screws
- Use a 3/8" hex head driver for SDWH screws
Simpson DTT1Z Specifications
| Weight | 0.3 lb |
| Fasteners required | Anchor - (1) 3/8" Anchor, Post - (6) 0.148" x 1-1/2" or SD9112 Screws |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
