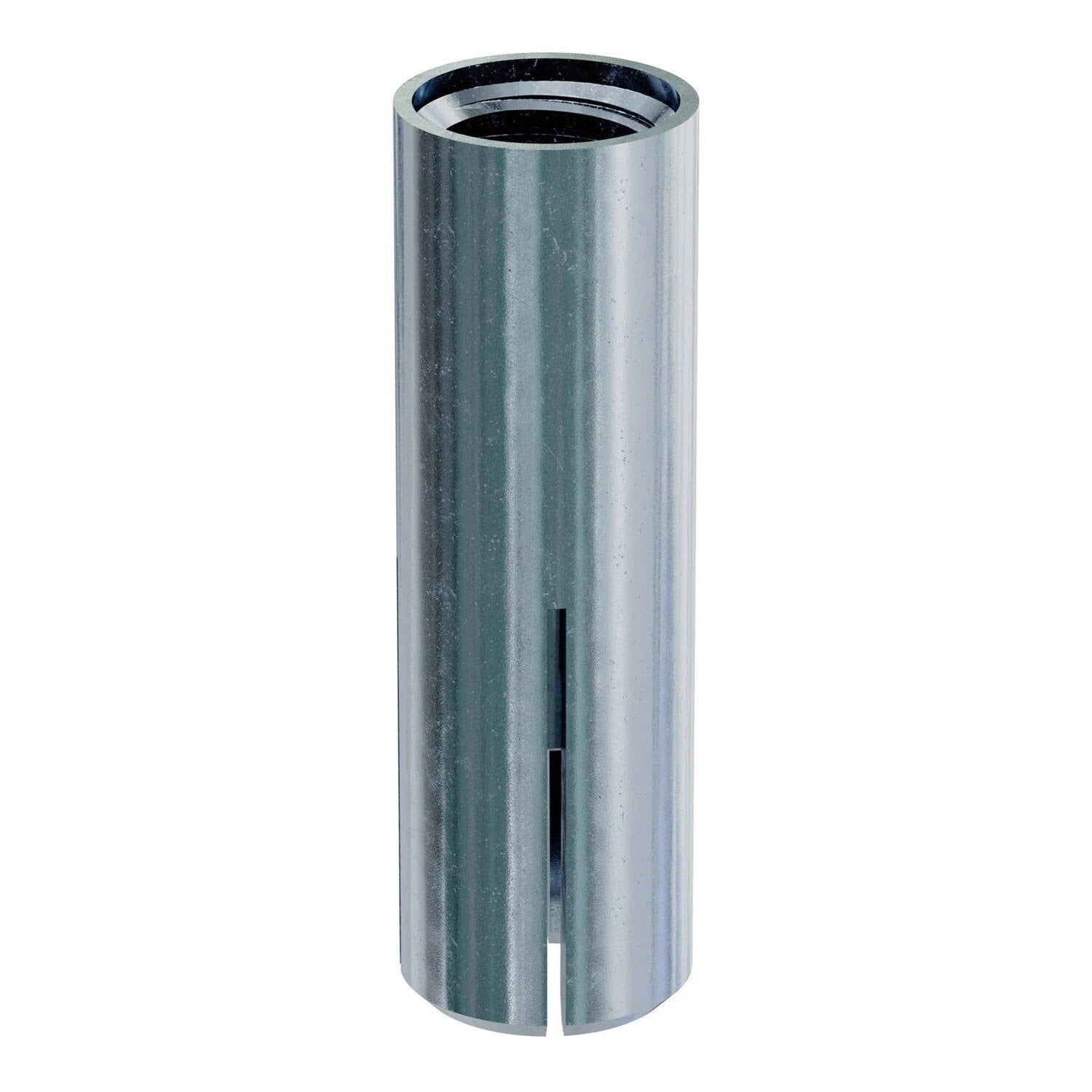

Simpson Strong-Tie DIAB50C (1/2") Drop-In Internally Threaded Coil-Thread Anchor Zinc Plated (50 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie DIAB50C (1/2") Drop-In Internally Threaded ...
Key Specifications
Description
Description
Simpson DIAB50C Description
The Simpson DIAB50C Drop-In Anchor is designed for 1/2-inch rod applications, featuring a zinc-plated finish for durability and corrosion resistance.
Simpson DIAB50C Includes
- (50) Drop-In Anchor for 1/2-inch Rod
Simpson DIAB50C Features
- Positive-set marking system indicates when anchor is properly set
- Lipped drop-in version available for flush installation
- Hand- and power-setting tools available for fast, easy and economical installation
- Fixed-depth stop bit helps you drill to the correct depth every time
- Available in coil-thread version for 1/2" and 3/4" coil-thread rod
Simpson DIAB50C Applications
- Mechanical applications requiring secure anchoring
- Electrical installations needing reliable anchor points
- Plumbing setups requiring durable and corrosion-resistant anchors
Simpson DIAB50C Installation Overview
- Drill a hole in the base material using the appropriate diameter carbide drill bit or fixed-depth bit as specified.
- Insert the anchor into the hole and tap with a hammer until flush against the surface.
- Using the designated Drop-In setting tool, drive the expander plug towards the bottom of the anchor until the shoulder of the setting tool makes contact with the top of the anchor.
- Insert bolt or threaded rod ensuring minimum thread engagement equal to the nominal diameter of the threaded insert.
Simpson DIAB50C Specifications
| Material | Carbon steel |
| Finish | Zinc plated |
| Length | 2" |
| Rod Diameter | 1/2" |
| Drill Bit Diameter | 5/8" |
| Quantity | 50 |
NOTE: Oversized holes will reduce the anchor's load capacity.
