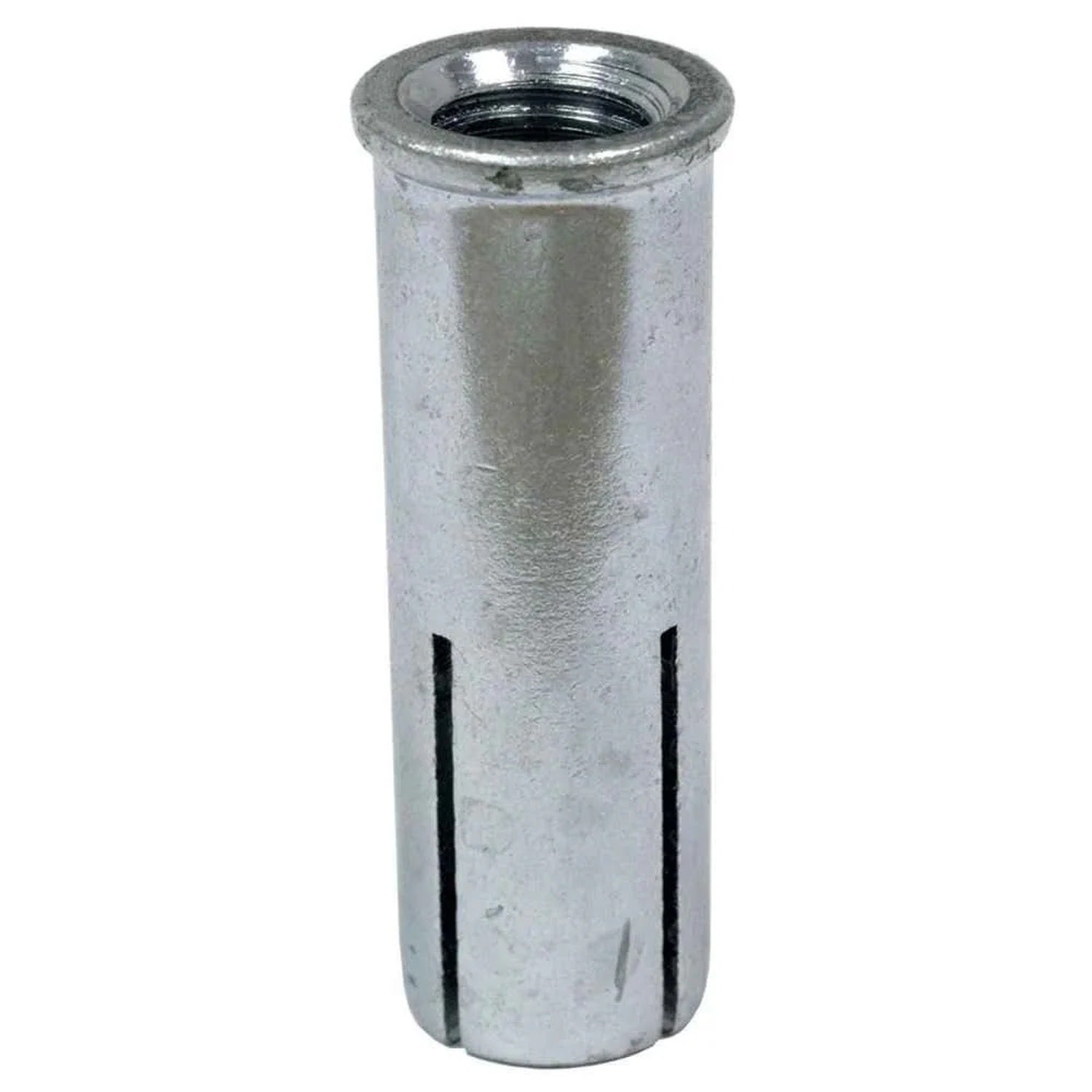

Simpson Strong-Tie DIABL25 (1") Lipped Drop-In (DIAB) Carbon Steel Internally Threaded Anchor (100 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie DIABL25 (1") Lipped Drop-In (DIAB) Carbon S...
Key Specifications
Description
Description
Simpson Strong-Tie DIABL25 Description
The DIABL25 Lipped Drop-In Anchor is designed for secure and flush installation, featuring a positive-set marking system and compatibility with 1/4-inch rods.
Simpson Strong-Tie DIABL25 Includes
- (100) Lipped Drop-In Anchor
Simpson Strong-Tie DIABL25 Features
- Positive-set marking system indicates when anchor is properly set
- Lipped drop-in version available for flush installation
- Hand- and power-setting tools available for fast, easy and economical installation
- Fixed-depth stop bit helps you drill to the correct depth every time
- Available in coil-thread version for 1/2" and 3/4" coil-thread rod
Simpson Strong-Tie DIABL25 Applications
- Mechanical installations
- Electrical setups
- Plumbing applications
Simpson Strong-Tie DIABL25 Installation Overview
- Drill a hole in the base material using the appropriate diameter carbide drill bit or fixed-depth bit as specified.
- Insert the anchor into the hole and tap with a hammer until flush against the surface.
- Using the designated Drop-In setting tool, drive the expander plug towards the bottom of the anchor until the shoulder of the setting tool makes contact with the top of the anchor.
- Insert bolt or threaded rod ensuring minimum thread engagement equal to the nominal diameter of the threaded insert.
Simpson Strong-Tie DIABL25 Specifications
| Material | Carbon steel |
| Finish | Zinc plated |
| Rod Diameter | 1/4 in. |
| Drill Bit Diameter | 3/8 in. |
| Length | 1 in. |
NOTE: Oversized holes will reduce the anchor's load capacity.
