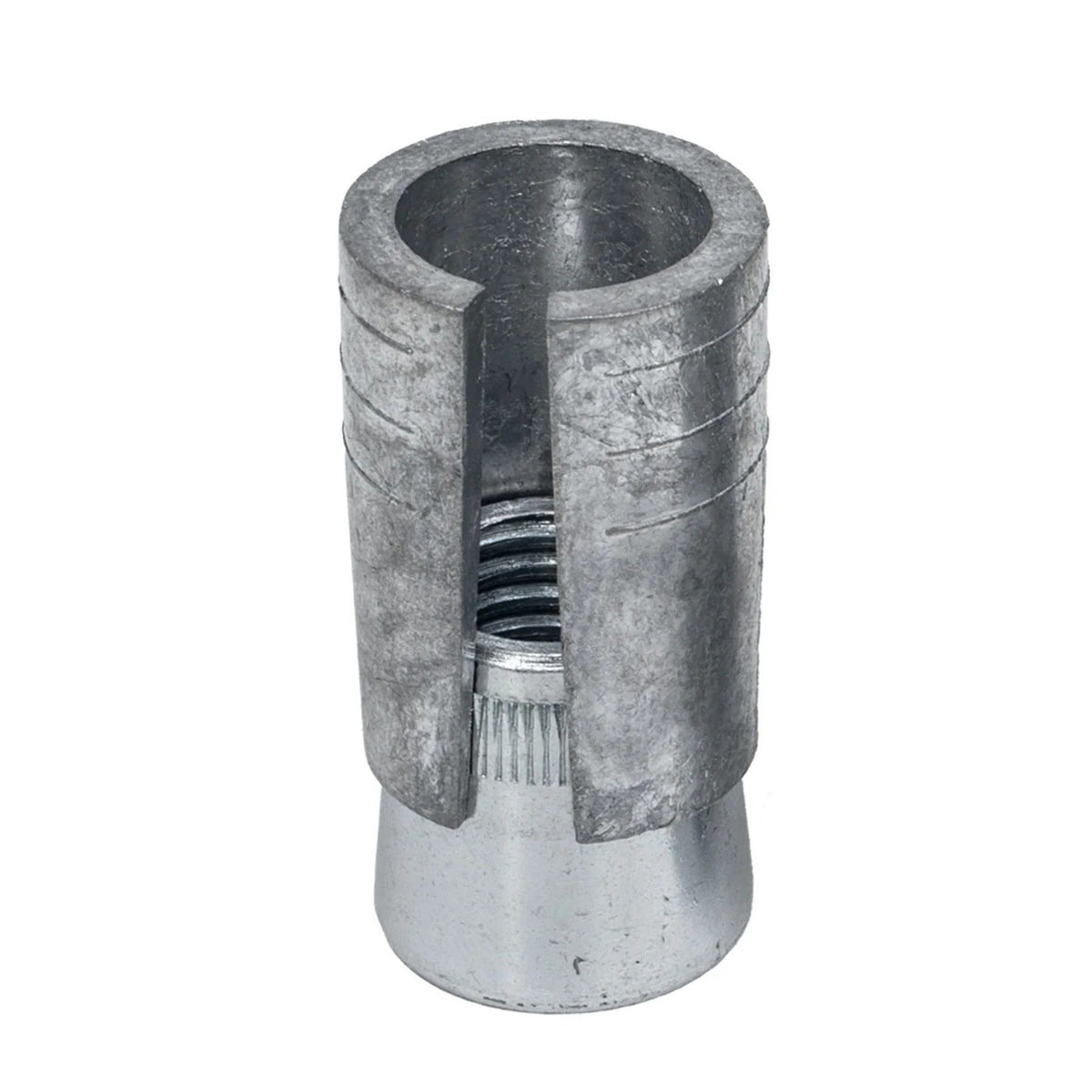

Simpson Strong-Tie HDIA62 (5/8") Hollow Drop-In Internally Threaded Anchor (25 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HDIA62 (5/8") Hollow Drop-In Internally Thr...
Key Specifications
Description
Description
Simpson Strong-Tie HDIA62 Description
The HDIA Hollow Drop-In Anchor is designed for suspending conduit, cable trays, pipe supports, fire sprinklers, and suspended lighting into concrete. Its expansion design ensures secure anchoring in various materials.
Simpson Strong-Tie HDIA62 Includes
- (25) Hollow Drop-In Internally Threaded Anchor for 5/8-in. Rod
Simpson Strong-Tie HDIA62 Features
- Suitable for suspending conduit, cable trays, pipe supports, fire sprinklers, and suspended lighting into concrete
- Expansion design allows anchoring into CMU, hollow-core plank, brick, normal-weight concrete, and lightweight concrete
- Internally threaded anchor allows for easy bolt removal
Simpson Strong-Tie HDIA62 Applications
- Suspending conduit and cable trays
- Pipe supports and fire sprinklers
- Suspended lighting installations
Simpson Strong-Tie HDIA62 Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit.
- Blow the hole clean using compressed air.
- Insert the HDIA into the hole and tap with a hammer until flush against the surface.
- Using the designated setting tool, drive the anchor to the bottom of the drilled hole.
- Position the fixture, insert the fastener, and tighten.
Simpson Strong-Tie HDIA62 Specifications
| Material | Die-cast Zamac 3 alloy shell with carbon-steel cone or Type 304 stainless-steel cone |
| Rod Diameter | 5/8 in. |
| Length | 2 in. |
| Drill Bit Diameter | 1 in. |
| Threads per Inch | 11 |
| Package Quantity | 25 |
| Carton Quantity | 125 |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
