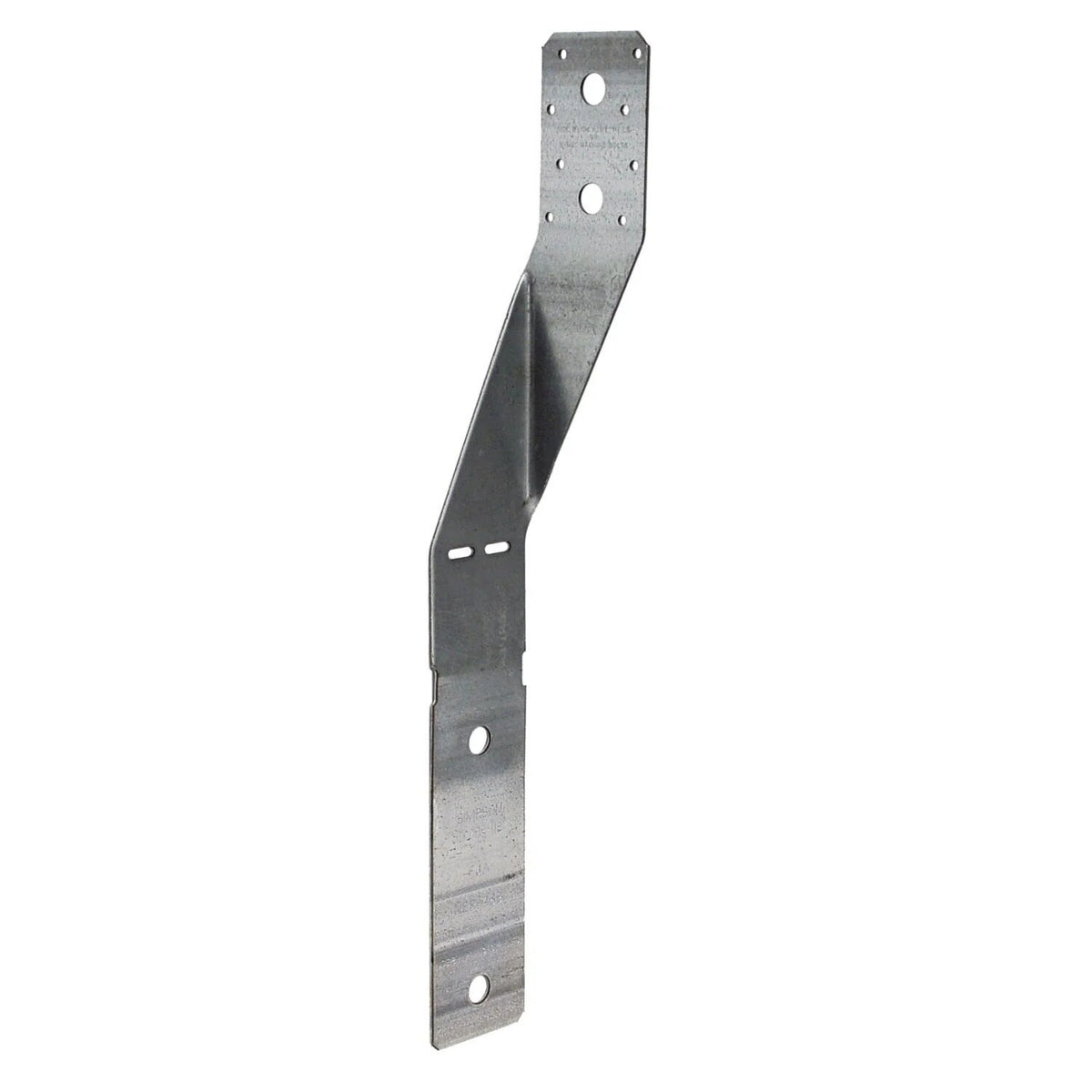

Simpson Strong-Tie FJA (19-1/2" x 2-1/2") Foundation Joist Anchor - G90 Galvanized
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie FJA (19-1/2" x 2-1/2") Foundation Jois...
Key Specifications
Description
Description
Simpson Strong-Tie FJA Description

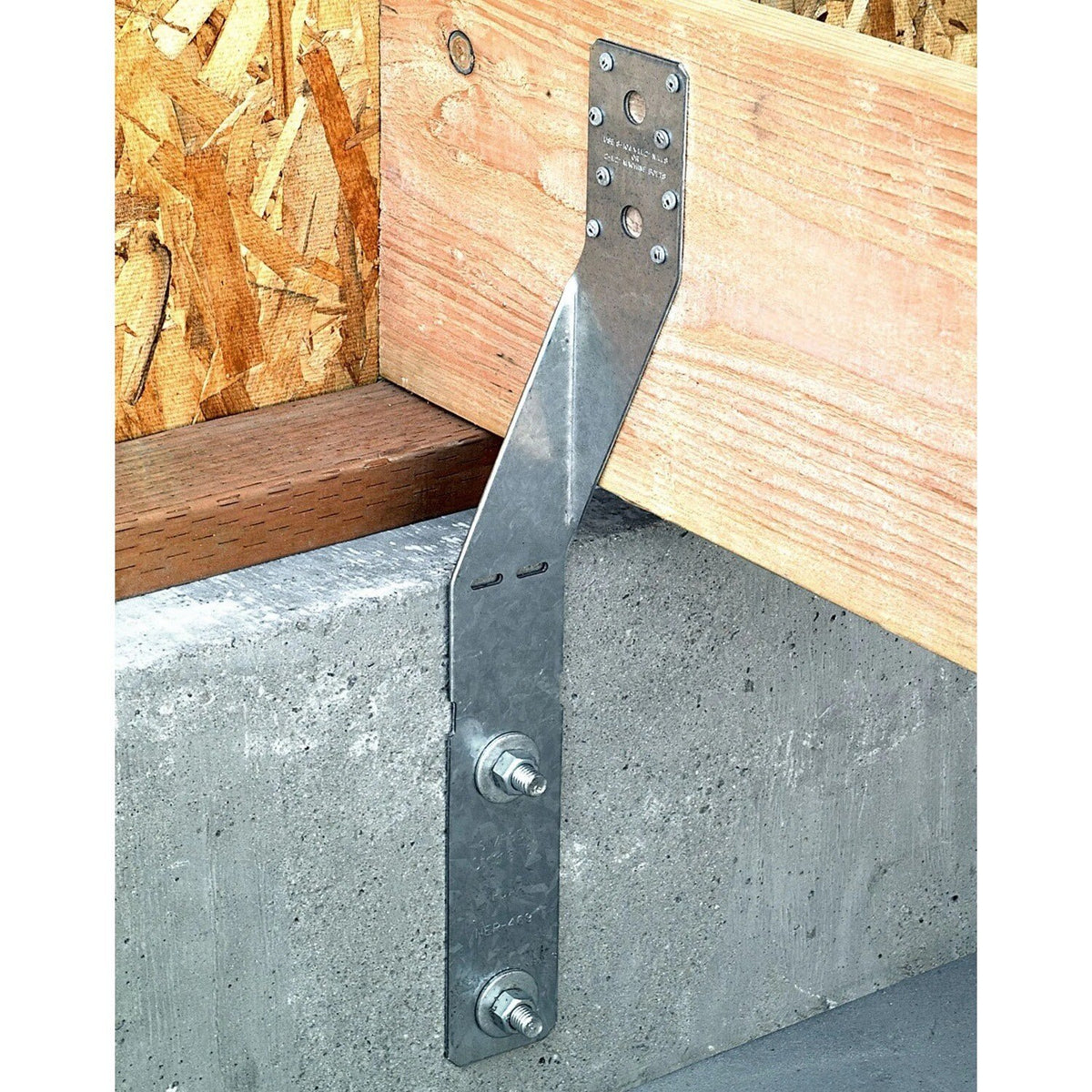

The FJA Foundation Joist Anchor provides a direct connection between the foundation and a joist, designed to resist uplift and lateral forces. It is suitable for both new and retrofit projects.
Simpson Strong-Tie FJA Includes
- (1) Foundation Joist Anchor
Simpson Strong-Tie FJA Features
- Connects a joist to a foundation
- May be bent, one time only, along bend line up to 20° to accommodate installation
- Increased loads for wind or seismic forces
- Install with 0.148 x 1 1/2" nails or 1/2"-diameter anchor bolts
Simpson Strong-Tie FJA Applications
- Foundation to joist connections in construction
- Projects requiring resistance to uplift and lateral forces
- New construction and retrofit applications
Simpson Strong-Tie FJA Installation Overview
- Position the anchor to align with the joist and foundation.
- Secure the anchor using specified nails or bolts.
- Ensure proper alignment and secure fastening for optimal performance.
Simpson Strong-Tie FJA Specifications
| Finish | G90 Galvanized |
| Length | 19-1/2" |
| Fasteners required | See Spec Sheet |
| Manufacturer name | Simpson Strong-Tie |
| Thickness | 12 Gauge |
| Width | 2-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
