Simpson Strong-Tie STB2-25314MGR100 Strong Bolt (1/4" x 3-1/4") Mechanically Galvanized Wedge Anchor (100 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie STB2-25314MGR100 Strong Bolt (1/4" x 3-1/4&...
Key Specifications
Description
Description
Simpson Strong-Tie STB2-25314MGR100 Description

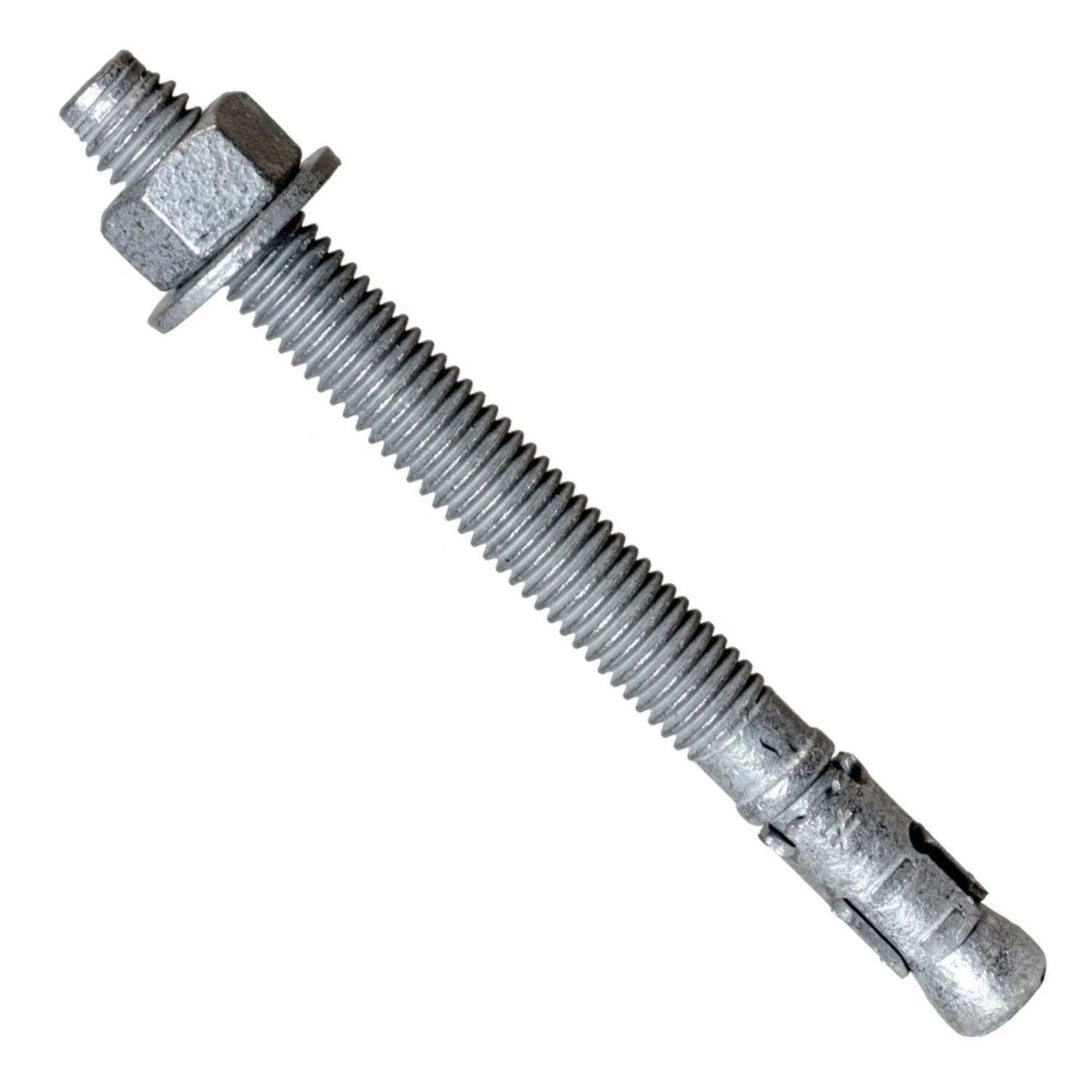

The Simpson Strong-Bolt 2 Wedge Anchor is a mechanically galvanized anchor designed for cracked and uncracked concrete, suitable for static and seismic loading.
Simpson Strong-Tie STB2-25314MGR100 Includes
- (100) 1/4 in. x 3-1/4 in. Wedge Anchor
Simpson Strong-Tie STB2-25314MGR100 Features

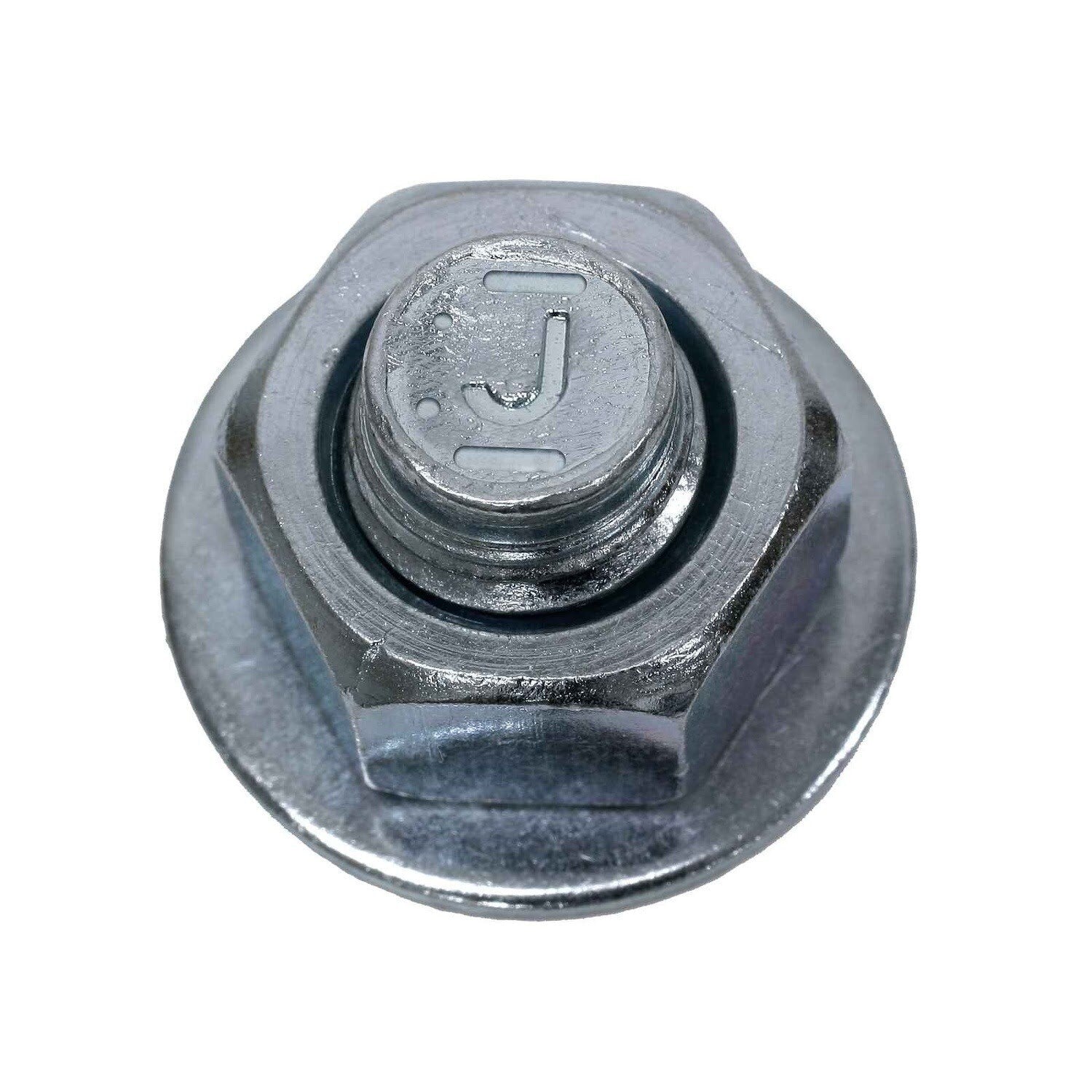

- Chamfered top designed to prevent mushrooming during installation
- Suitable for horizontal, vertical, and overhead applications
- Tested for minimum concrete thickness of 3-1/4 in.
- Standard ANSI fractional sizes for compatibility with common tools
- Tested in uncracked concrete per ACI355.2 and AC193
Simpson Strong-Tie STB2-25314MGR100 Applications
- Concrete anchoring for static and seismic loads
- Horizontal, vertical, and overhead applications

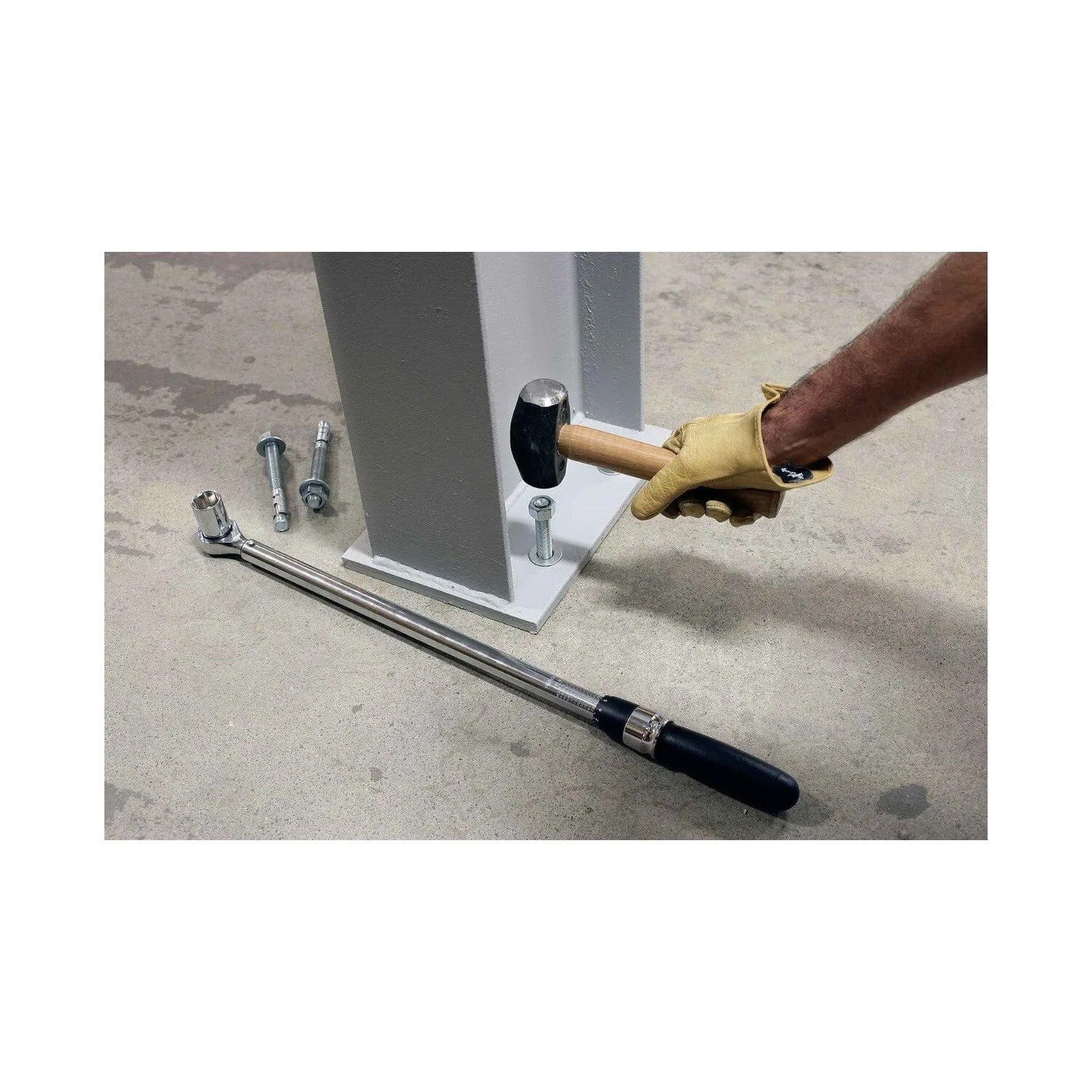

Simpson Strong-Tie STB2-25314MGR100 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Assemble the anchor with nut and washer, ensuring the nut is flush with the anchor top.

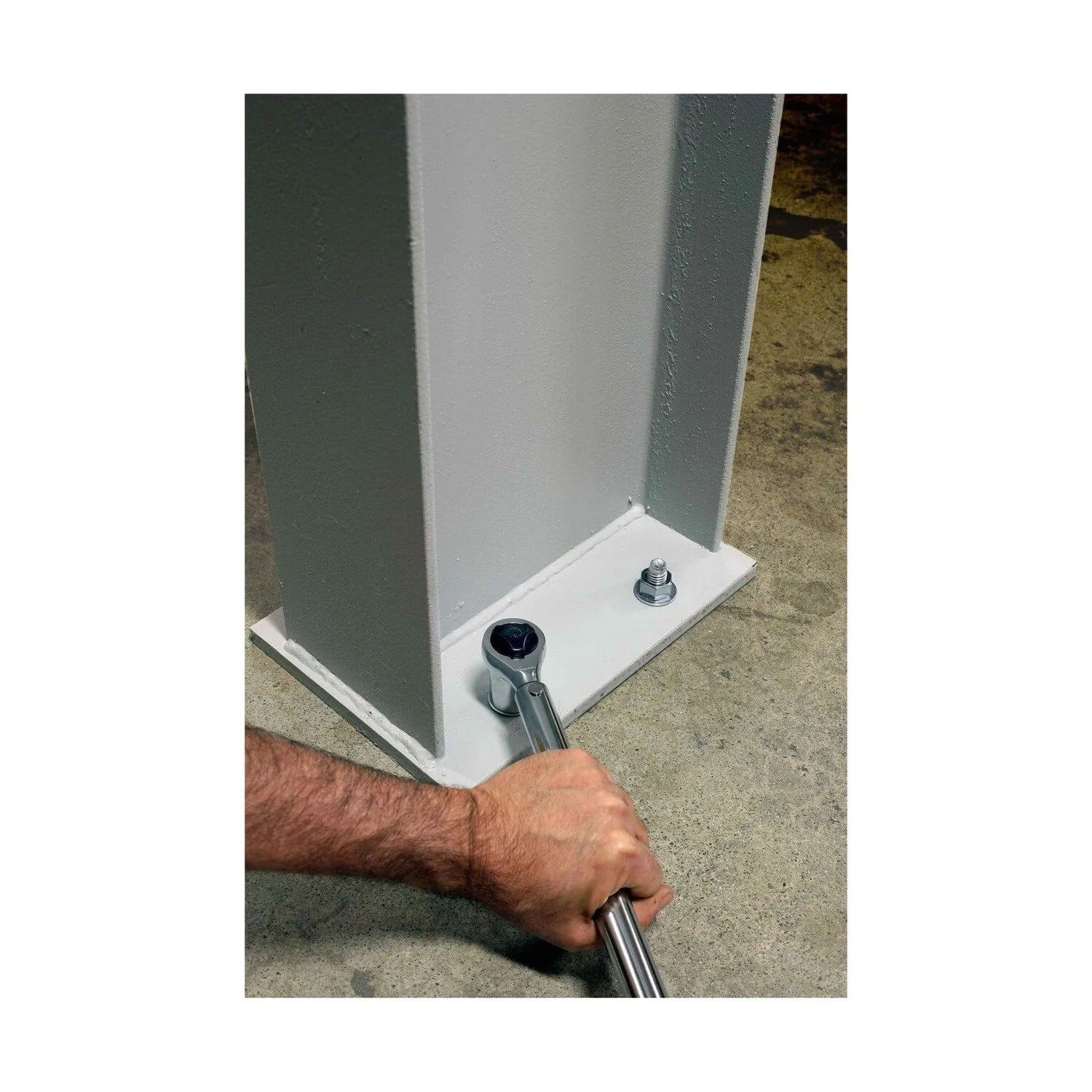

- Insert the anchor into the hole and tighten to the required torque.
Simpson Strong-Tie STB2-25314MGR100 Specifications
| Material | Carbon steel |
| Finish | Mechanically galvanized |
| Diameter | 1/4 in. |
| Length | 3-1/4 in. |
| Thread Length | 2-7/16 in. |
| Drill Bit Size | 1/4 in. |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
