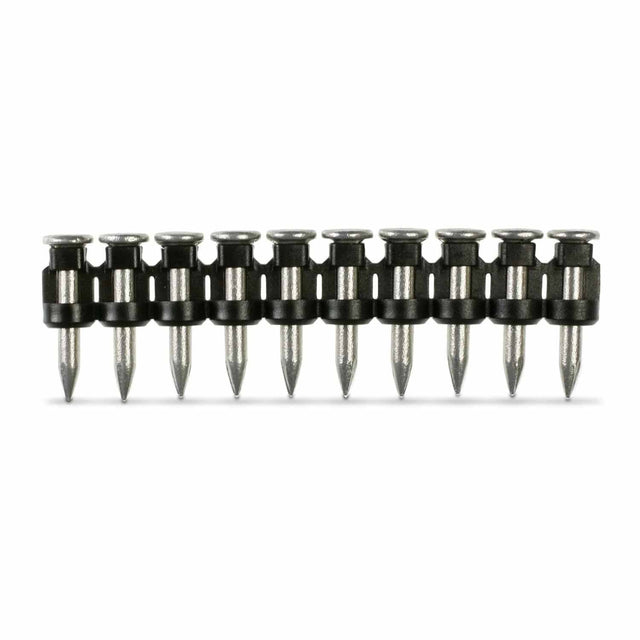

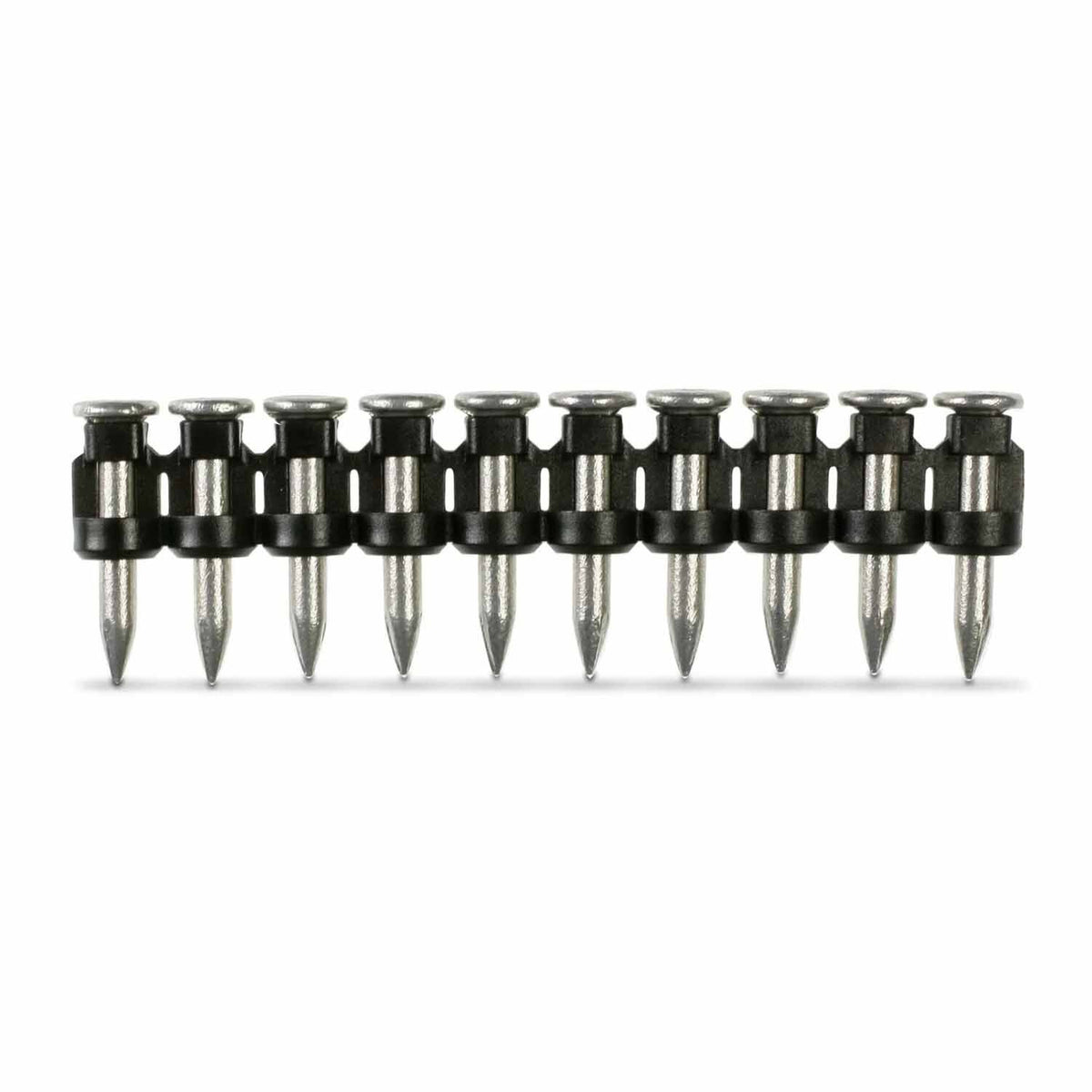

Simpson Strong-Tie GDP-75KT (3/4") Concrete Pin for Gas-Actuated Nailers (1000 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie GDP-75KT (3/4") Concrete Pin for Gas-Actuat...
Key Specifications
Description
Description
Simpson GDP-75KT Description
Simpson GDP concrete pins are designed for use with gas-actuated concrete nailers, providing reliable fastening in steel, concrete, and CMU block.
Simpson GDP-75KT Includes
- (1000) 3/4 in. Concrete Pin
- (1) GFC34 Fuel Cell
Simpson GDP-75KT Features
- Designed for use with gas-actuated concrete nailers
- Compatible with GCN-MEPMAG gas-actuated concrete nailer
- Patented 10-fastener strip with break-away plastic
- Suitable for A36 and A572 steel, concrete, CMU block, and sand-lightweight concrete over metal deck
- Includes 1 GFC34 Fuel Cell
Simpson GDP-75KT Applications
- Fastening to structural steel
- Securing materials to concrete surfaces
- Attaching components to CMU block
- Fastening in sand-lightweight concrete over metal deck
Simpson GDP-75KT Installation Overview
- Prepare the surface for fastening
- Load the pins into the gas-actuated concrete nailer
- Align the nailer to the desired fastening point
- Activate the nailer to drive the pin into the material
- Ensure the pin is securely fastened
Simpson GDP-75KT Specifications
| Length | 3/4 in. |
| Head Diameter | 0.240 in. |
| Shank Diameter | 0.106 in. |
| Material | Carbon Steel |
| Finish | Zinc |
| Packaging Quantity | 1000 |
| Weight | 2.8 lb |
NOTE: Ensure the correct fasteners are used in the specified positions to achieve published load values
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
