Simpson Strong-Tie HELIST254000 Description

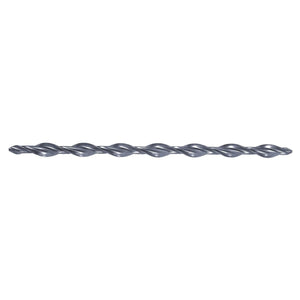

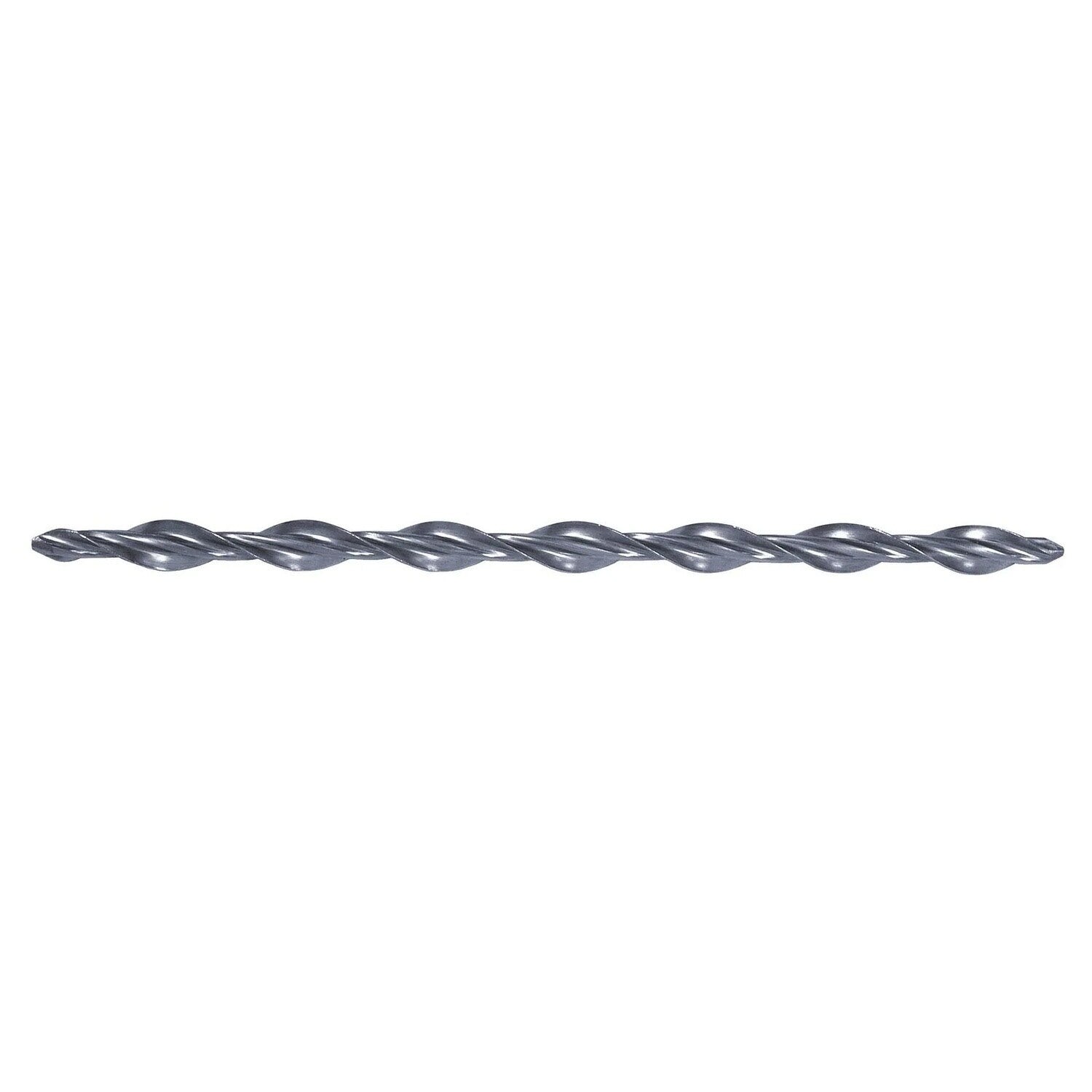

The Simpson Strong-Tie Heli-Tie helical stitching tie provides a unique solution to the preservation and repair of damaged brick and masonry structures. Made of Type 304 stainless steel, it features radial fins formed on the steel wire via a cold rolling process, increasing the tensile strength of the tie.
Simpson Strong-Tie HELIST254000 Includes
- (10) Heli-Tie Helical Stitching Ties
Simpson Strong-Tie HELIST254000 Features
- Helical design distributes loads uniformly over a large surface area
- Installs into the mortar joint to provide an inconspicuous repair and preserve the appearance of the structure
- Type 304 stainless steel offers superior corrosion resistance to mild steel reinforcement
- Consistent, uniform helix configuration
- Batch number printed on each tie for easy identification and inspection
Simpson Strong-Tie HELIST254000 Applications
- Brick and masonry structure repair
- Crack reinforcement in masonry walls
- Preservation of historical brickwork

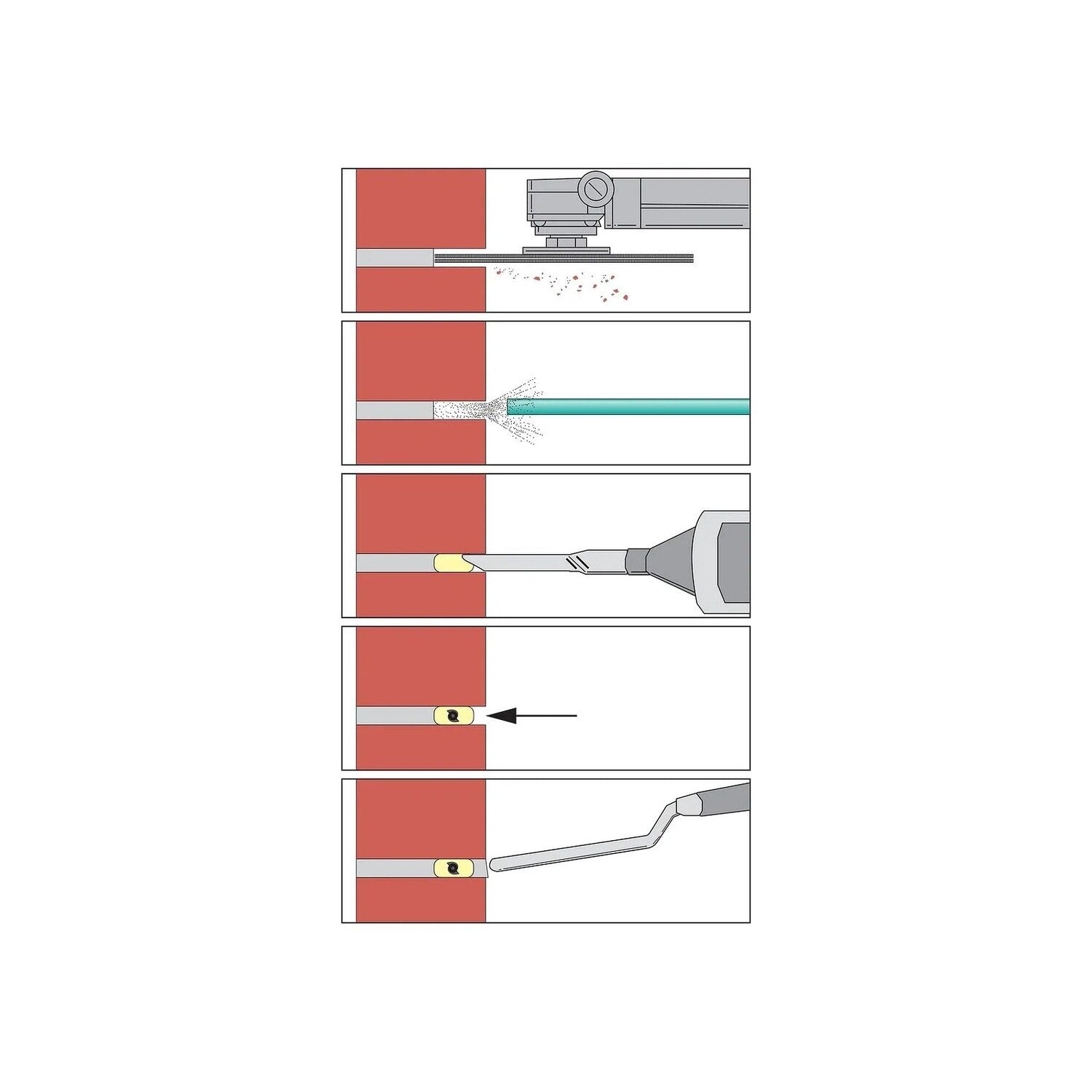

Simpson Strong-Tie HELIST254000 Installation Overview

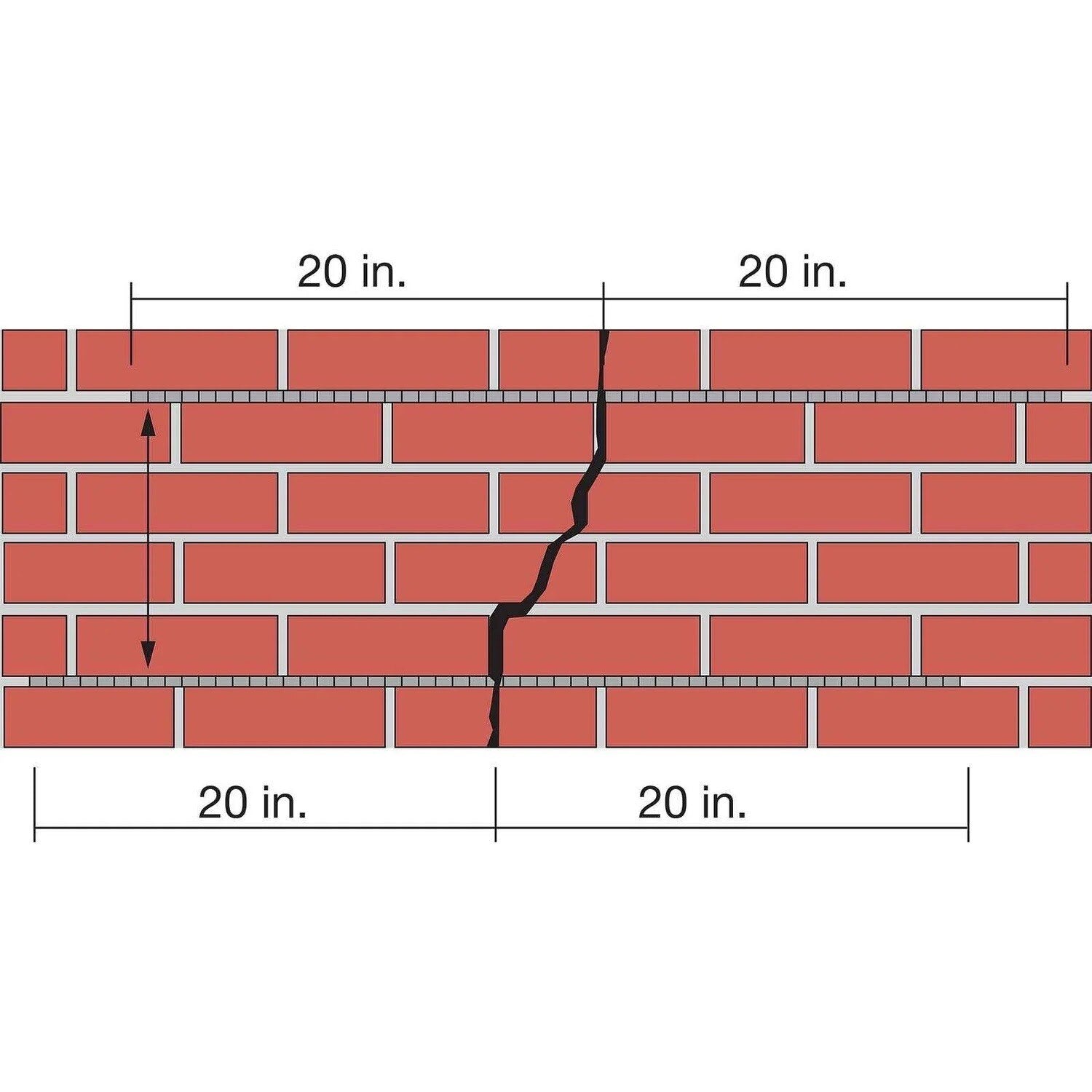

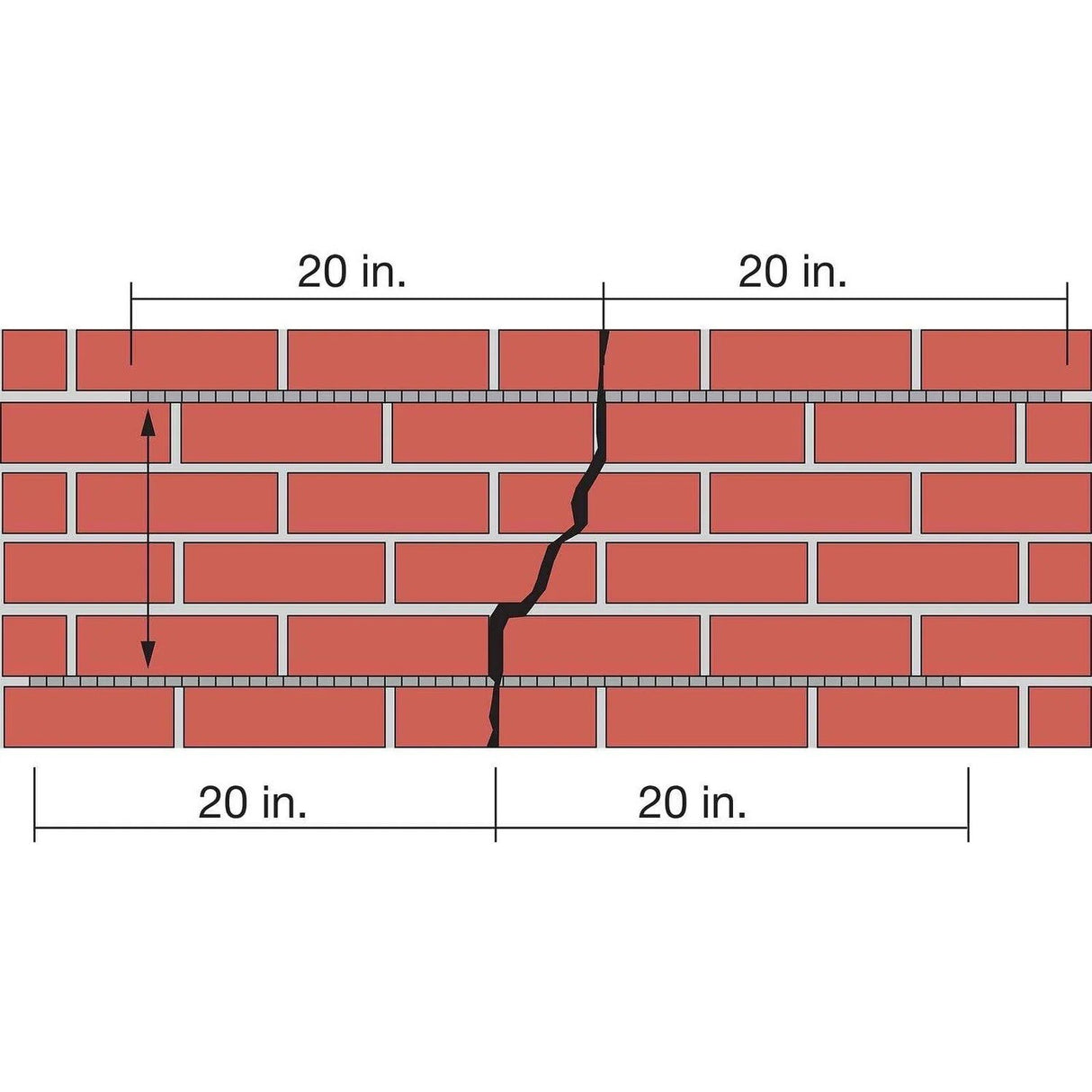

- Chase bed joint 20 inches on either side of the affected area to a depth of approximately 1 1/4 inches with a rotary grinding wheel.
- Clear bed joint of all loose debris.
- Mix non-shrink repair grout or mortar per product instructions and place into the prepared bed joint, filling the void to approximately two-thirds of its depth.
- Embed the tie at one-half the depth of the void. Trowel displaced grout to fully encapsulate the tie.
- Fill any remaining voids and vertical cracks with non-shrink repair grout or other repair mortar to conceal repair site.
Simpson Strong-Tie HELIST254000 Specifications
| Material | Type 304 Stainless Steel |
| Diameter | 1/4 in. |
| Length | 40 in. |
| Weight | 0.6 lb |
