Simpson HDQ8-SDS3 Description

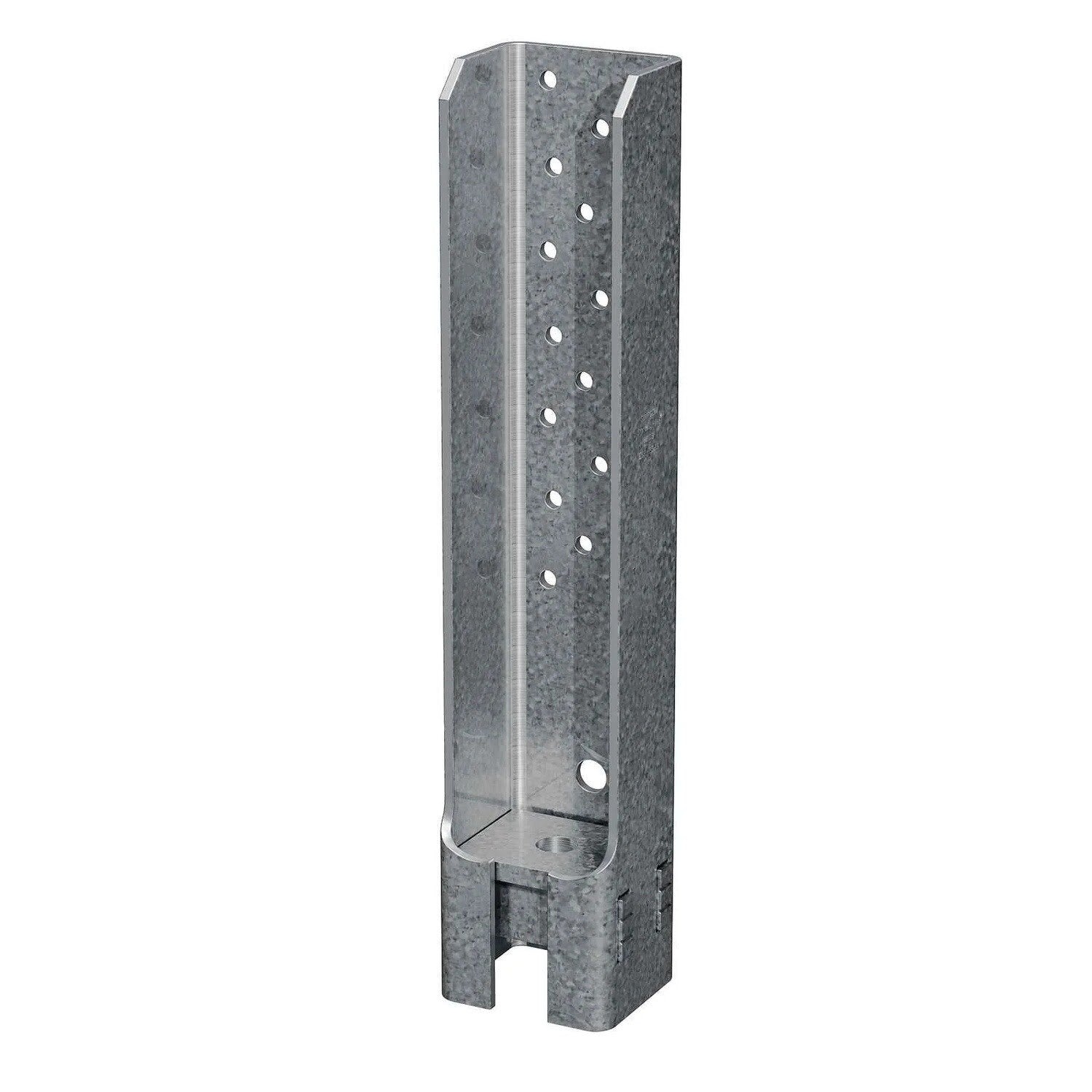

The Simpson HDQ8-SDS3 14" Quick-Install Holdown is designed for high loads and ease of installation, featuring a unique seat design and included heavy-duty connector screws.
Simpson HDQ8-SDS3 Includes
- (1) 14" Quick-Install Holdown
- (20) 1/4" x 3" SDS Screws
Simpson HDQ8-SDS3 Features
- Strong-Drive SDS Heavy-Duty Connector screws included for proper installation
- Screws can be installed flush or raised off the mudsill without load reduction
- No stud bolts to countersink at openings
- Minimized deflection under load
- Ease of installation with low-speed, high-torque drill
Simpson HDQ8-SDS3 Applications
- High-load anchoring applications
- Structural reinforcement in construction
- Securing raised installations above sill plates
Simpson HDQ8-SDS3 Installation Overview
- No additional washer required
- Use a low-speed, high-torque drill with a 3/8" hex-head driver for screw installation
- Adjustability of 5/8" perpendicular to the wall
Simpson HDQ8-SDS3 Specifications
| Finish | G90 Galvanized |
| Fasteners required | (20) - 1/4" x 3" SDS Screws |
| For Treated Lumber | No |
| Height | 14" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
