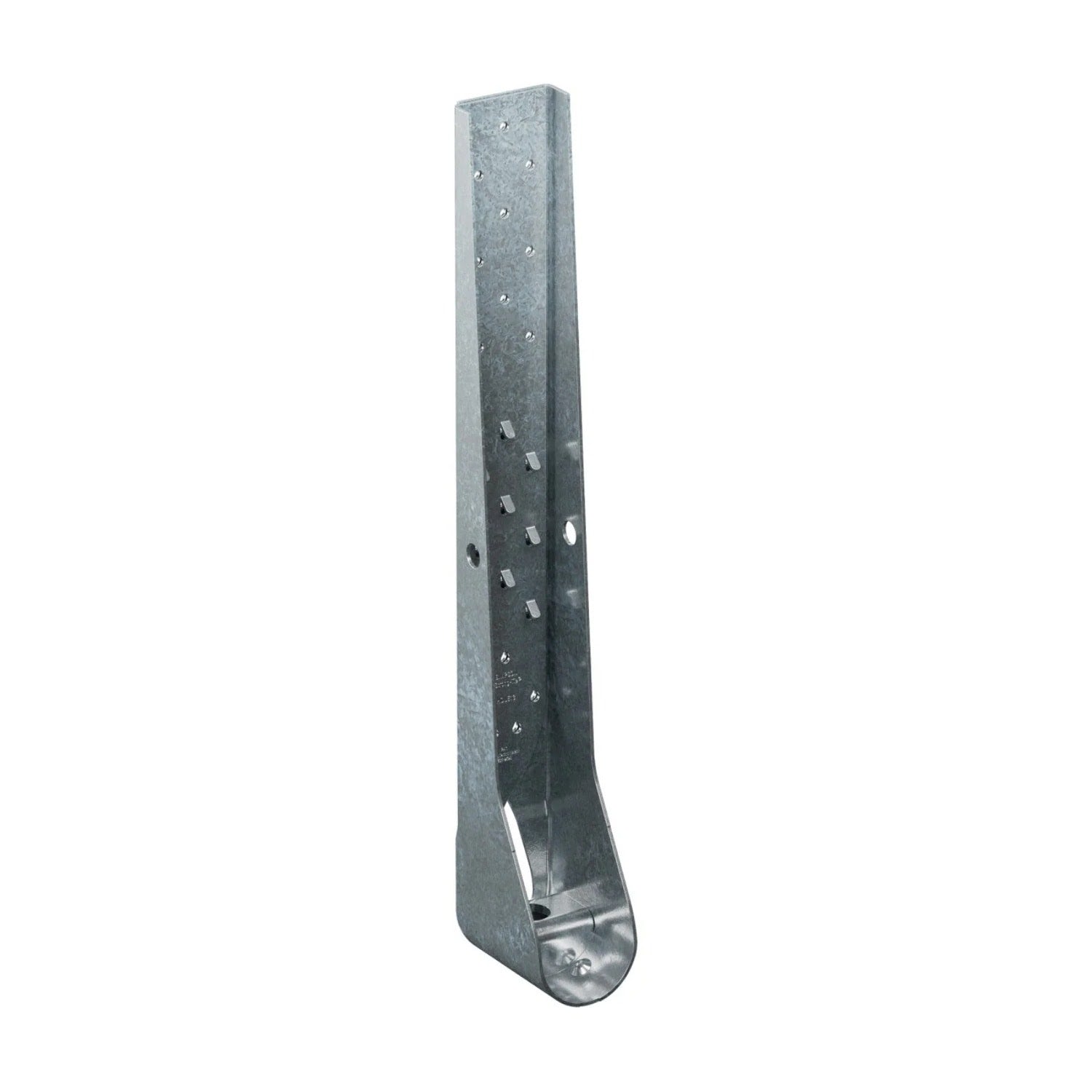

Simpson Strong-Tie HDUE13-SDS3.5HDG Description
The Simpson Strong-Tie HDUE Holdown series delivers exceptional lateral-load resistance for demanding residential and multi-story applications.

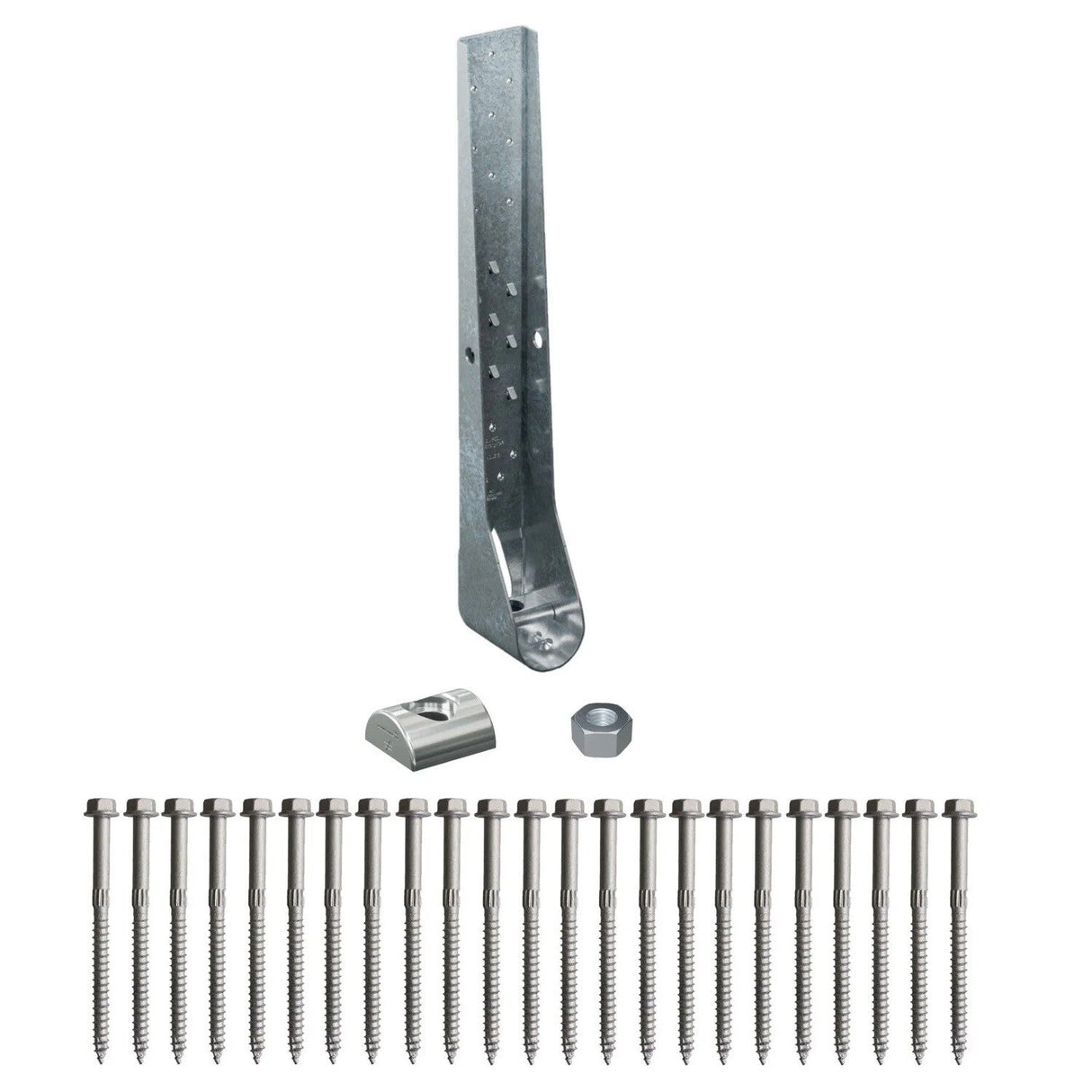

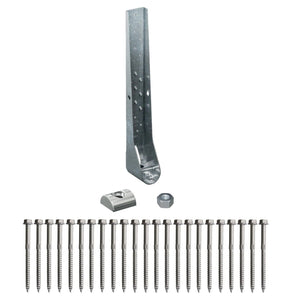

Simpson Strong-Tie HDUE13-SDS3.5HDG Includes
- (23) 1/4 in. x 3-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
- (1) Crescent Washer
- (1) Heavy-Hex Anchor Nut
Simpson Strong-Tie HDUE13-SDS3.5HDG Features
- Hot Dip Galvanized Finish: Superior corrosion resistance for exterior and treated wood applications.
- Enhanced Load Capacity: Engineered to meet increased demands in residential construction, especially for large openings and taller walls.
- Innovative Angled Fastening: Larger models feature screw placement that engages both tension and shear for higher allowable loads with fewer fasteners.
- Predeflected Seat Design: Rounded seat minimizes deflection under load, improving structural stability.
- Overlapping Back Plate: Reinforces steel strength while helping prevent post splitting.
- Optimized Screw Patterns: Designed to reduce wood splitting and maximize fastener performance at the post end.
Simpson Strong-Tie HDUE13-SDS3.5HDG Applications
- Shearwalls: Provides strong connections for lateral-load resistance.
- Braced wall panels: Ensures stability in multi-story applications.
- Structural elements: Enhances reliability in demanding residential construction.

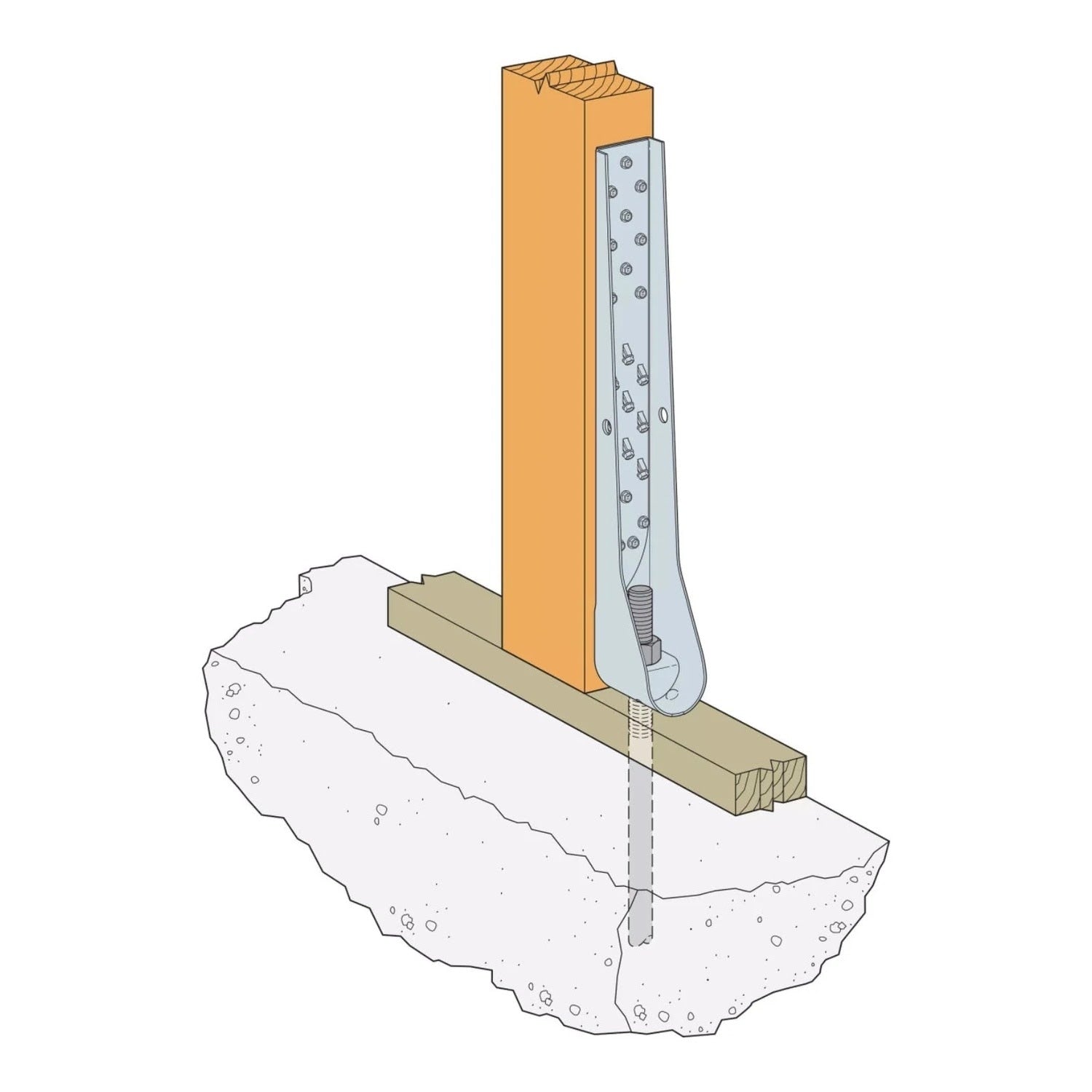

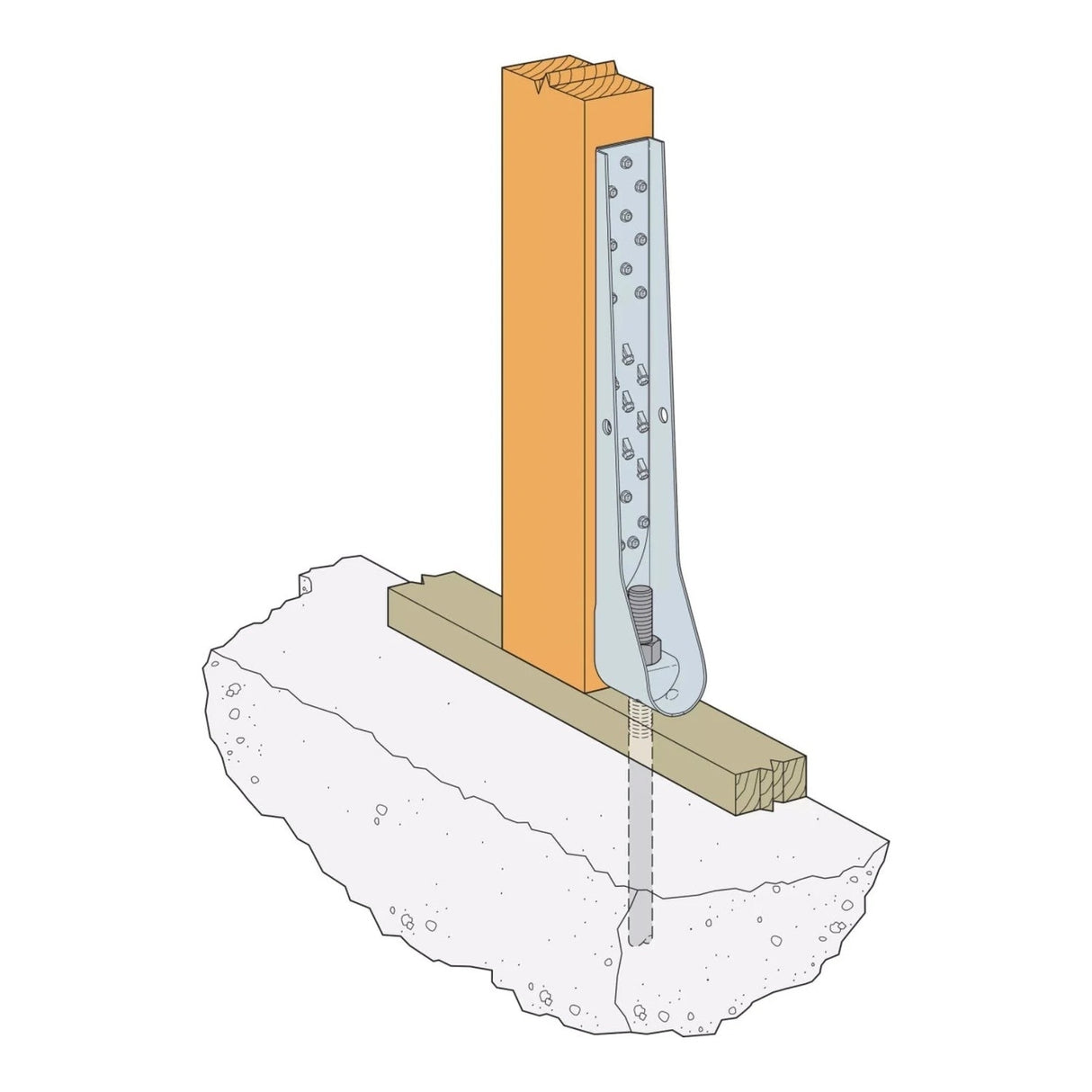

Simpson Strong-Tie HDUE13-SDS3.5HDG Installation Overview
- Install using the included Strong-Tie SDS Heavy Duty Connector Screws.
- Ensure correct fasteners are installed in the correct position to achieve published load values.

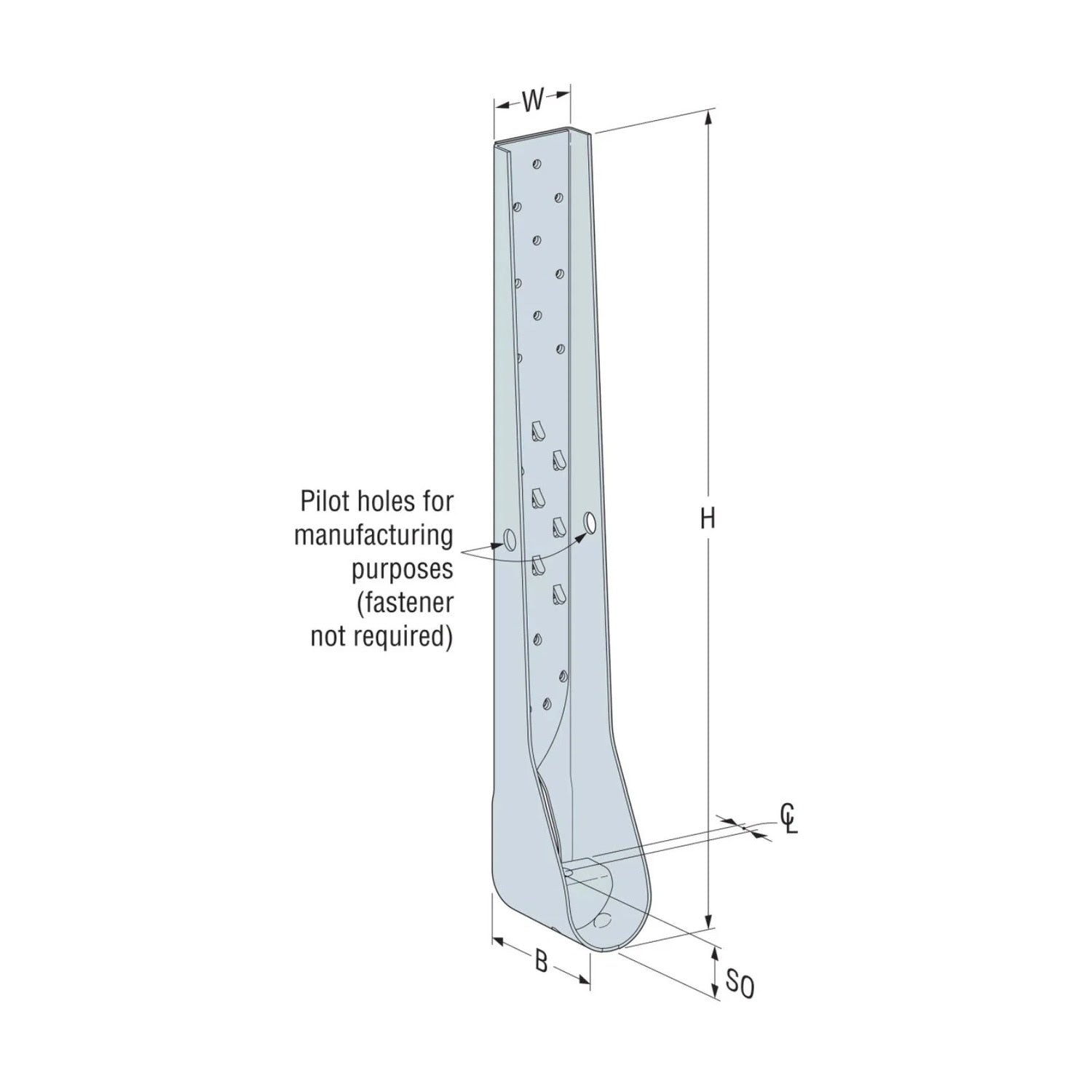

Simpson Strong-Tie HDUE13-SDS3.5HDG Specifications
| Finish | Hot Dip Galvanized |
| Material | Carbon Steel |
| Base width | 4-5/16" |
| Fasteners required | ALL FASTENERS INCLUDED: (23) 1/4 in. x 3-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws, (1) crescent washer, (1) heavy-hex anchor nut |
| For Treated Lumber | Yes |
| Height | 23-1/16" |
| Thickness | 12 Gauge |
| Width | 3" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
