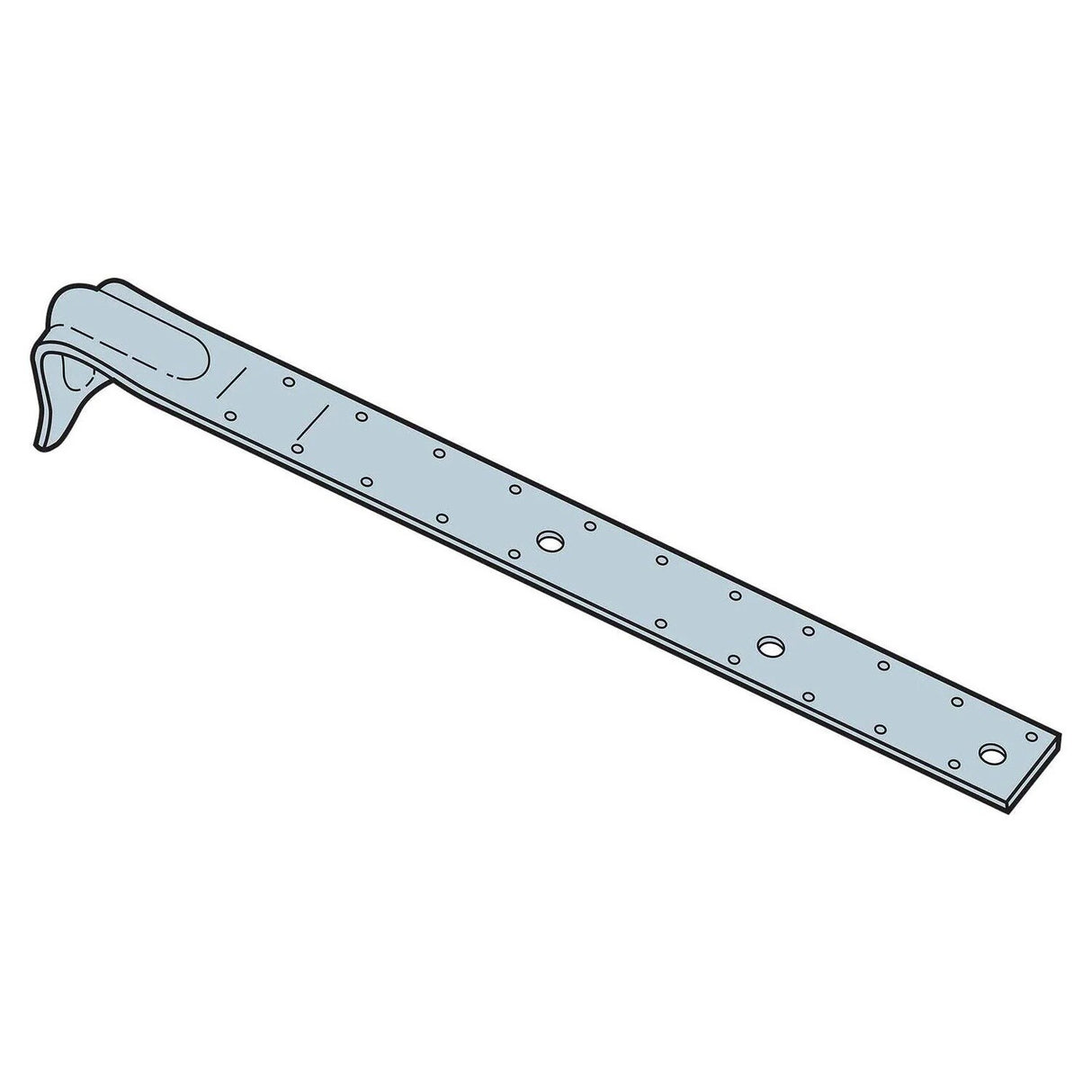

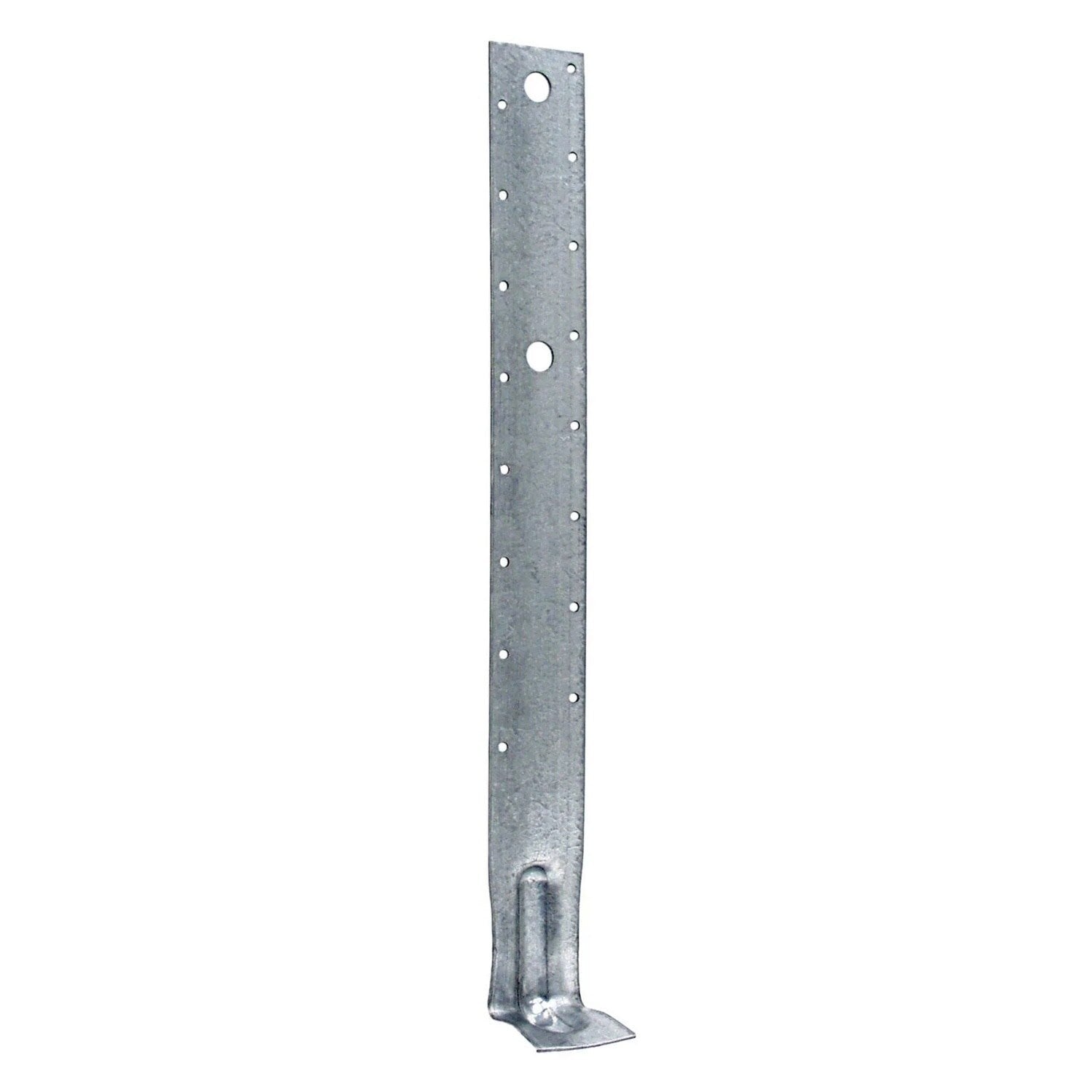

Simpson Strong-Tie PA23HDG (23-3/4") 12 Gauge Purlin Anchor and Strap-Tie Holdown, Hot-Dip Galvanized
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie PA23HDG (23-3/4") 12 Gauge Purlin Anchor an...
Key Specifications
Description
Description
Simpson Strong-Tie PA23HDG Description
The Simpson Strong-Tie PA23HDG Purlin Anchor is designed for wood-to-concrete and masonry connections, featuring a 12-gauge hot-dip galvanized construction for durability and code compliance.
Simpson Strong-Tie PA23HDG Includes
- (1) Purlin Anchor
Simpson Strong-Tie PA23HDG Features
- Minimum embedment line indicators for both concrete and masonry installations
- Nailing pattern optimized for narrow face of nominal 3x or double 2x wood member
- Low design profile minimizes visibility
Simpson Strong-Tie PA23HDG Applications
- Wood-to-concrete connections
- Wood-to-masonry connections
- Structural anchoring in construction projects
Simpson Strong-Tie PA23HDG Installation Overview
- Use all specified fasteners; some models have extra fastener holes.
- Purlin anchor must hook around rebar.
- Allowable loads are for a horizontal installation into the side of a concrete or masonry wall.
- For vertical installation in the top of GFCMU, refer to engineering guidelines.
- Ensure minimum concrete edge distance is 5 inches.
Simpson Strong-Tie PA23HDG Specifications
| Material | Galvanized Steel |
| Finish | Hot Dip Galvanized |
| Thickness | 12 Gauge |
| Width | 2-1/16" |
| Length | 23-3/4" |
| Weight | 1.5 lb |
