Simpson Strong-Tie STHD14RJ (39-5/8 in.) Rim-Joist Strap-Tie Holdown, Galvanized
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie STHD14RJ (39-5/8 in.) Rim-Joist Strap-Tie Holdow...
Key Specifications
Description
Description
Simpson STHD14RJ Description
The STHD14RJ Rim Joist Strap-Tie Holdown offers high load capacity and features a staggered nail pattern to minimize splitting. Designed for accurate positioning and enhanced stability during installation.
Simpson STHD14RJ Includes

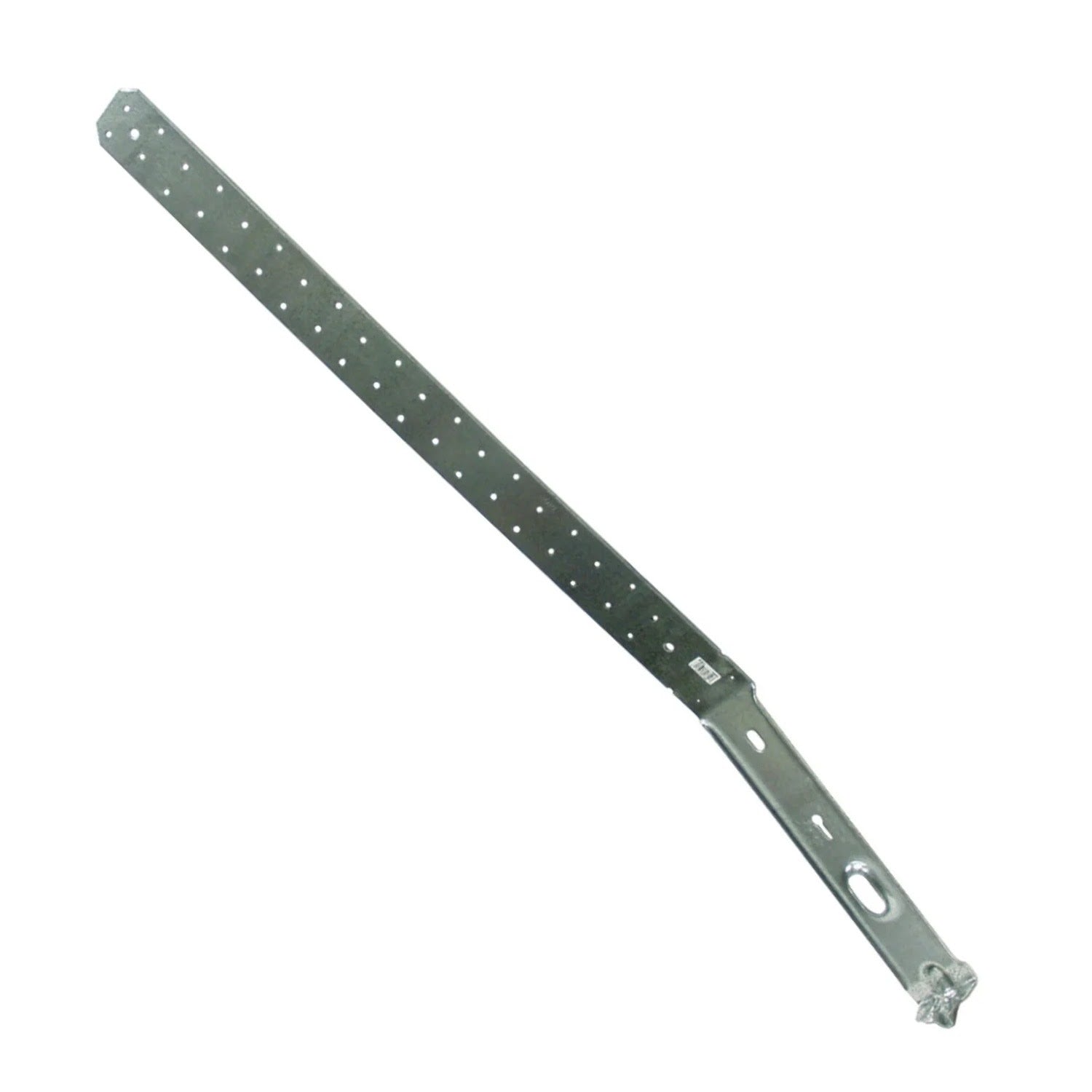

- (1) Rim Joist Strap-Tie Holdown
Simpson STHD14RJ Features
- High load capacity
- Staggered nail pattern minimizes splitting
- Enhanced stability during installation
- Accurate positioning of the strap
- Slots below embedment line strengthen concrete bond

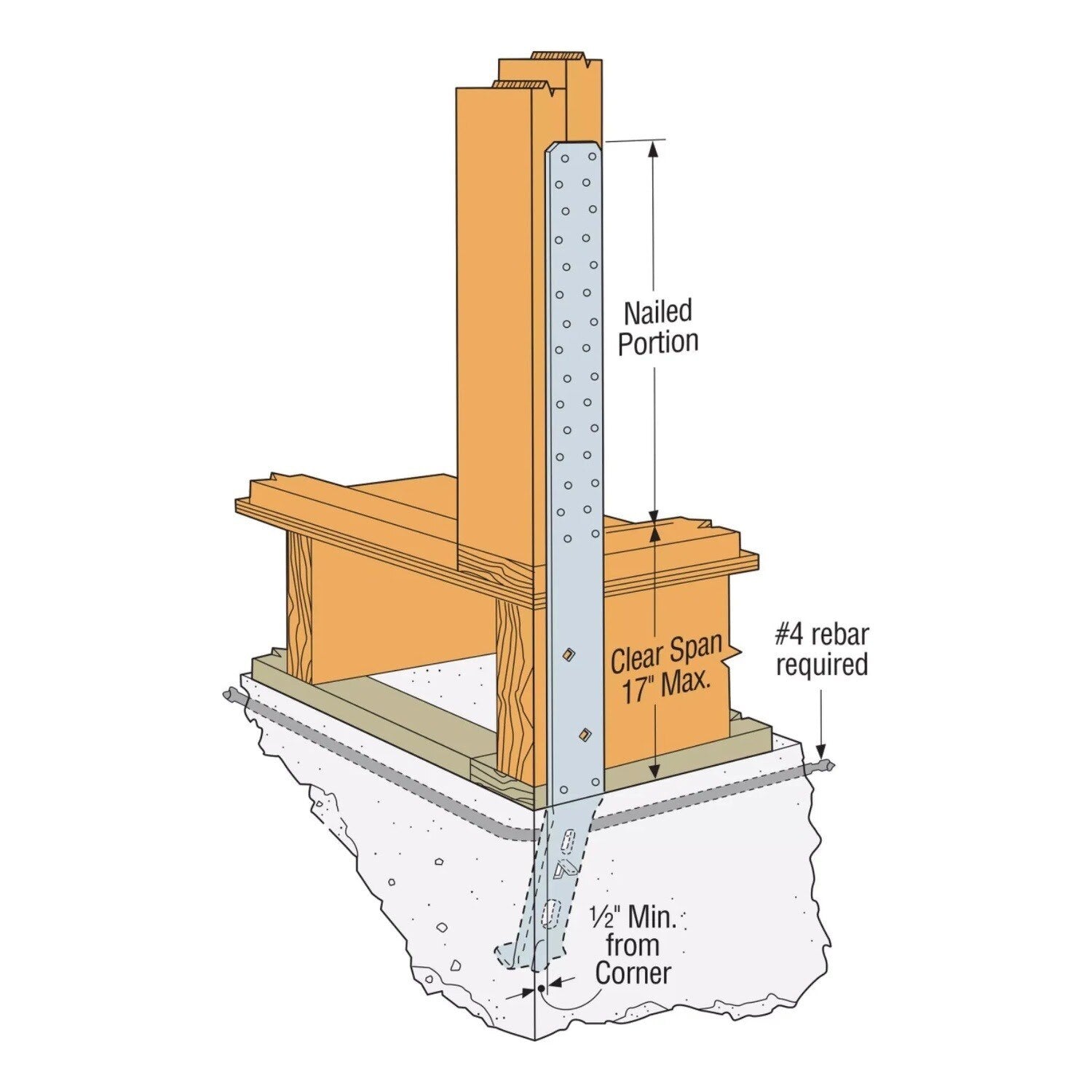

- Fits up to a 17" clear span without loss of strap nailing
- Made from galvanized carbon steel for durability
Simpson STHD14RJ Applications
- Securing rim joists in wood-framed structures
- Providing structural support in residential and commercial buildings
- Use in standard concrete and post-tension slab installations
Simpson STHD14RJ Installation Overview
- Verify dimensions and alignment of the strap and supporting members.

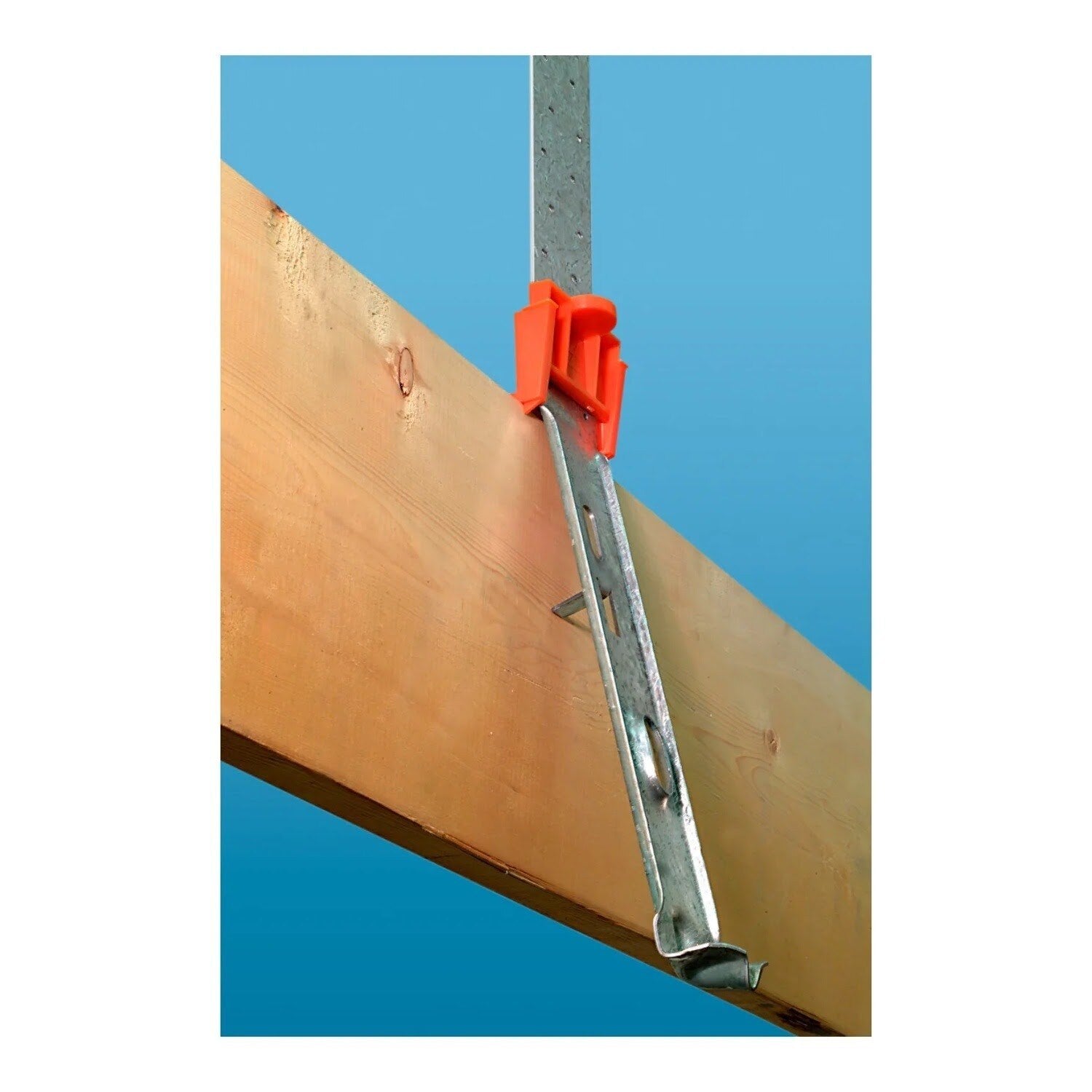

- Install before concrete pour using a StrapMate or similar holding device.
- Nail strap from the bottom up and ensure it is plumb.
- Strap may be bent one full cycle to aid wall placement.
- Protect any exposed strap portions against corrosion.
- Avoid installation where horizontal cold joints exist within embedment depth.
- Ensure additional studs are attached to shearwall studs or posts as required.
- Consider wood shrinkage effects after installation.
- Refer to General Corrosion Risks for severe environments.
Simpson STHD14RJ Specifications
| Length | 39-5/8" |
| Material | Carbon Steel |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | Yes |
| Width | 3" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
