Simpson Strong-Tie HU48 Heavy-Duty Face-Mount Joist Hanger for 4x8 Nominal Lumber
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HU48 Heavy-Duty Face-Mount Joist Hanger for 4x8 ...
Key Specifications
Description
Description

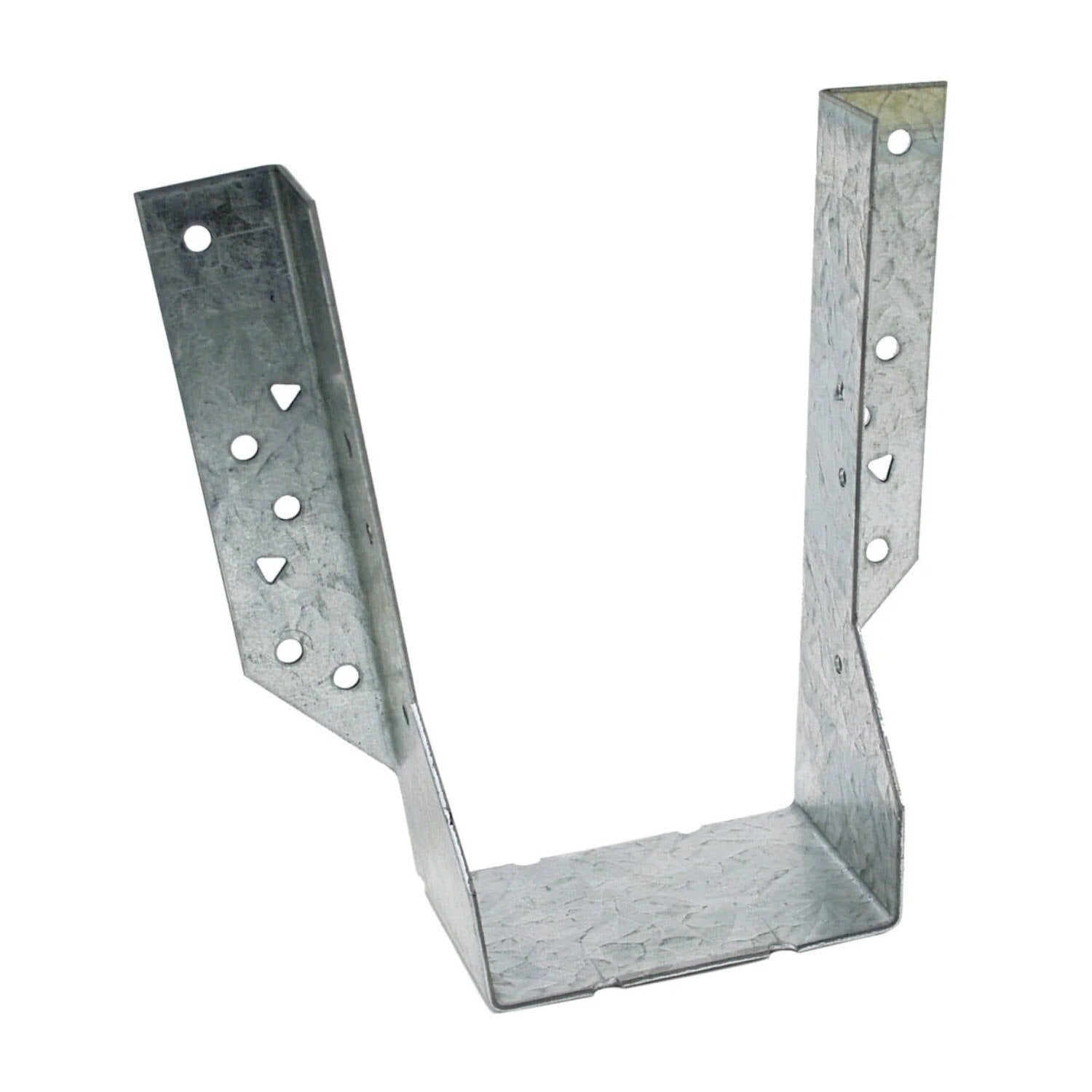

Simpson HU48 Description
The Simpson HU48 Heavy-Duty Face-Mount Joist Hanger is designed for robust support in construction applications, crafted from 14-gauge steel with a G90 galvanized finish for durability.
Simpson HU48 Includes
- (1) Heavy-Duty Face-Mount Joist Hanger for 4x8 Nominal Lumber
Simpson HU48 Features
- G90 Galvanized Finish for corrosion resistance
- Crafted from 14-gauge steel for durability
- Tested and code compliant for structural applications
- Versatile design for various joist sizes
Simpson HU48 Applications
- Deck Framing: Securely fastens joists to beams for added structural support.
- Floor Systems: Provides strong joist support in residential and commercial flooring structures.
- Roof Framing: Used in truss and rafter connections for enhanced stability.
- Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
- Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
- Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.
Simpson HU48 Installation Overview
- Use all specified fasteners as per guidelines.
- Can be installed filling round holes only, or filling round and triangle holes for maximum values.
- Joists sloped up to 1/4:12 achieve table loads.
- For installations to masonry or concrete, use specified fasteners.
- Can be welded to a steel member with load considerations.
- When nailing into solid sawn carrying member's end grain, adjust allowable load by a factor of 0.67.
- Web stiffeners required for I-joist applications.
Simpson HU48 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (14) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 6-13/16" |
| Joist size | 4" X 8" |
| Thickness | 14 Gauge |
| Width | 3-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
