Simpson Strong-Tie HUC5.125/12 Face-Mount Concealed-Flange Joist Hanger (5-1/8") for Glulam
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HUC5.125/12 Face-Mount Concealed-Flange Joist Ha...
Key Specifications
Description
Description
Simpson Strong-Tie HUC5.125/12 Description

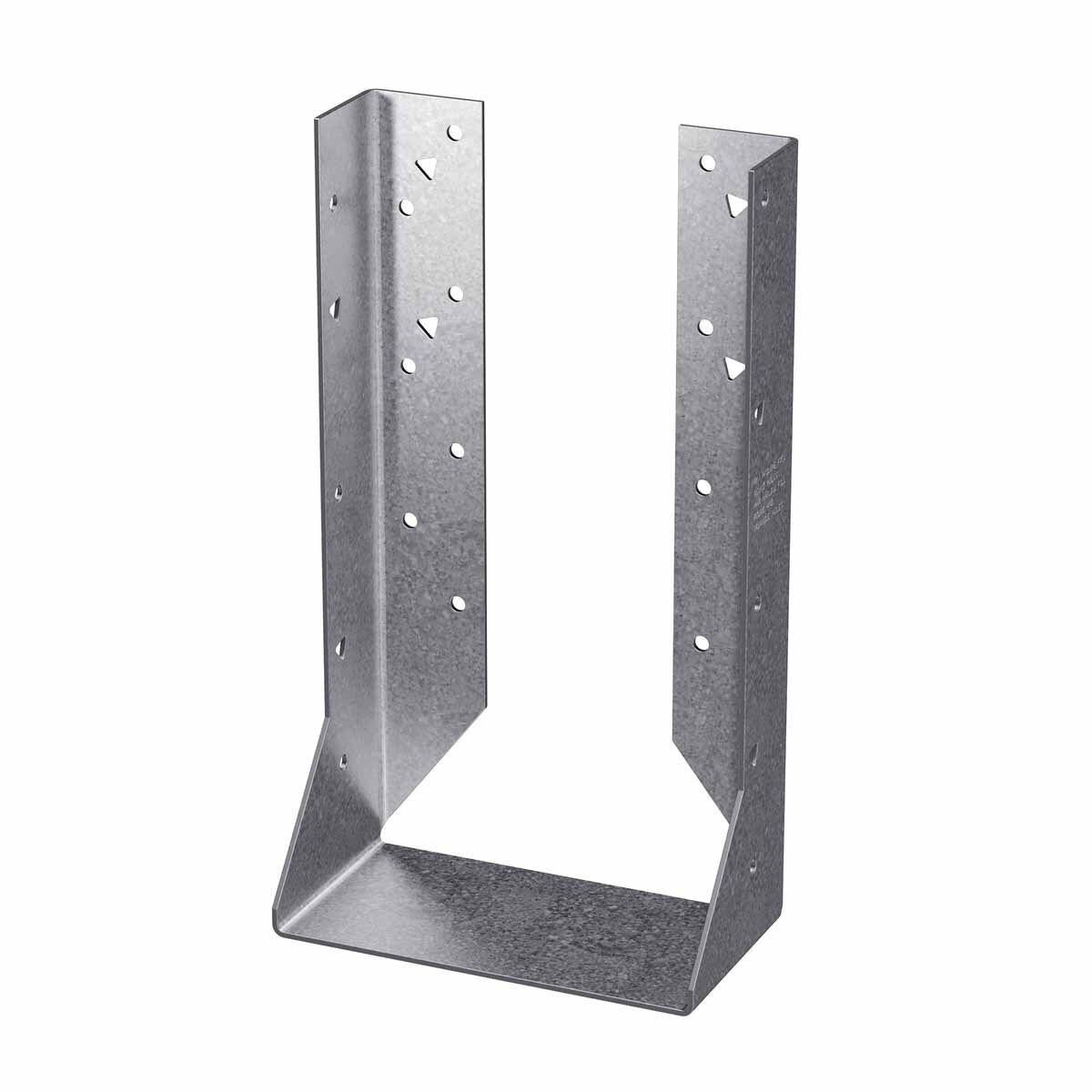

The Simpson Strong-Tie HUC5.125/12 is a heavy-duty face-mount concealed-flange joist hanger designed for 5-1/8" glulam beams, offering strength and durability for engineered wood applications.
Simpson Strong-Tie HUC5.125/12 Includes
- (1) HUC5.125/12 Joist Hanger
Simpson Strong-Tie HUC5.125/12 Features
- Extra optional triangle holes for additional load
- HUC-series hangers are tested, load rated and code compliant
- Heavy-duty connectors designed for schools and other structures requiring additional strength
- G90 galvanized finish for corrosion resistance
- Requires the use of hot-dip galvanized fasteners meeting ASTM A153 specifications
Simpson Strong-Tie HUC5.125/12 Applications
- Engineered wood construction requiring concealed flange joist hangers

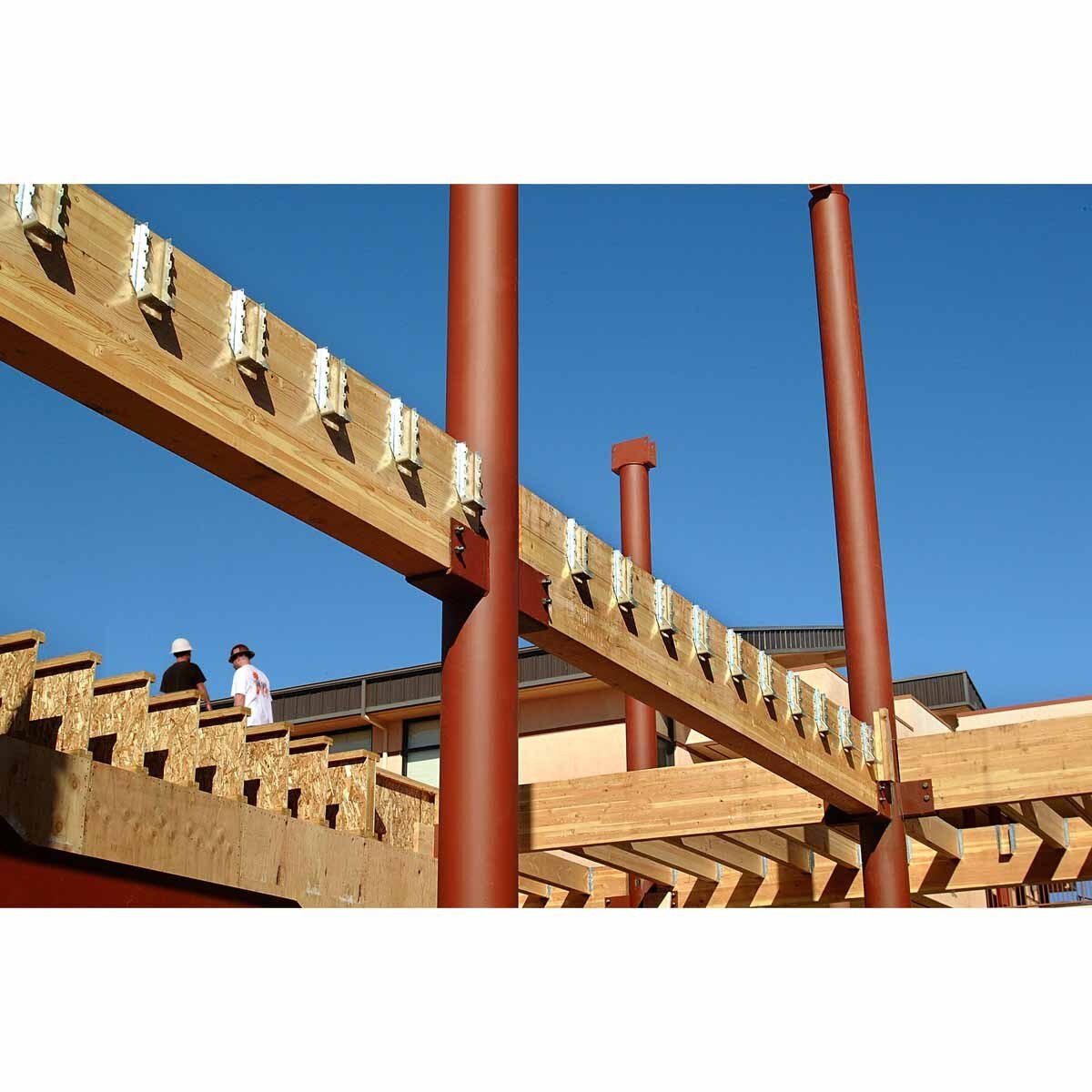

- Schools and structures demanding additional strength and safety factors
- General framing applications for glulam beams

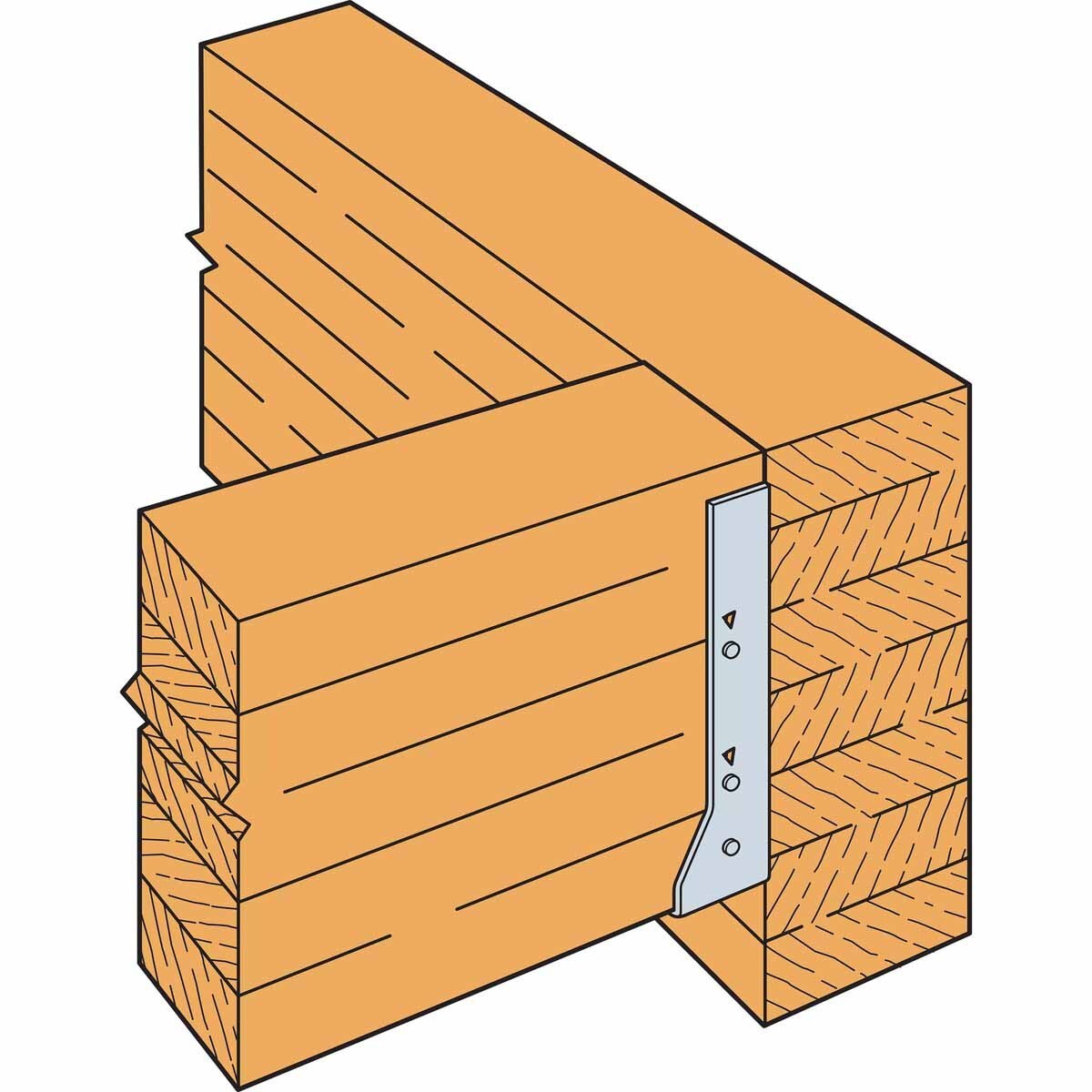

Simpson Strong-Tie HUC5.125/12 Installation Overview
- Use all specified fasteners as per guidelines
- Can be installed filling round holes only, or filling round and triangle holes for maximum values
- Joists sloped up to 1/4:12 achieve table loads
- For installations to masonry or concrete, refer to specific guidelines
- Can be welded to a steel member following technical bulletin instructions
- Adjust allowable load by a factor of 0.67 when nailing into solid sawn carrying member's end grain
- Web stiffeners required for I-joist applications
Simpson Strong-Tie HUC5.125/12 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Height | 10-1/4" |
| Joist size | 5-1/4" X 12" |
| For Treated Lumber | No |
| Fasteners required | Face - (22) 0.162" x 3-1/2" Nails, Joist - (8) 0.162" x 3-1/2" Nails |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
