Simpson Strong-Tie HB3.56/18 Description

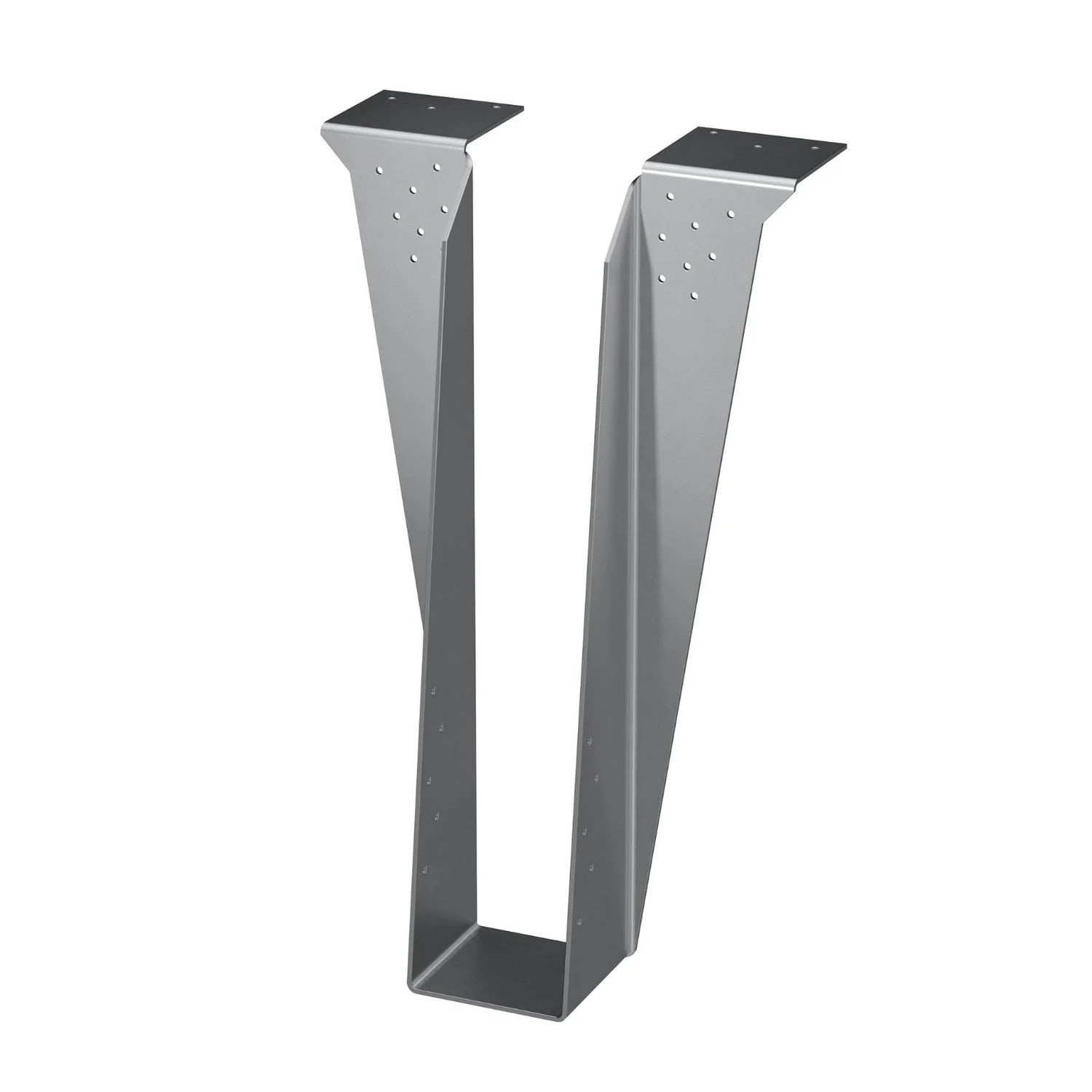

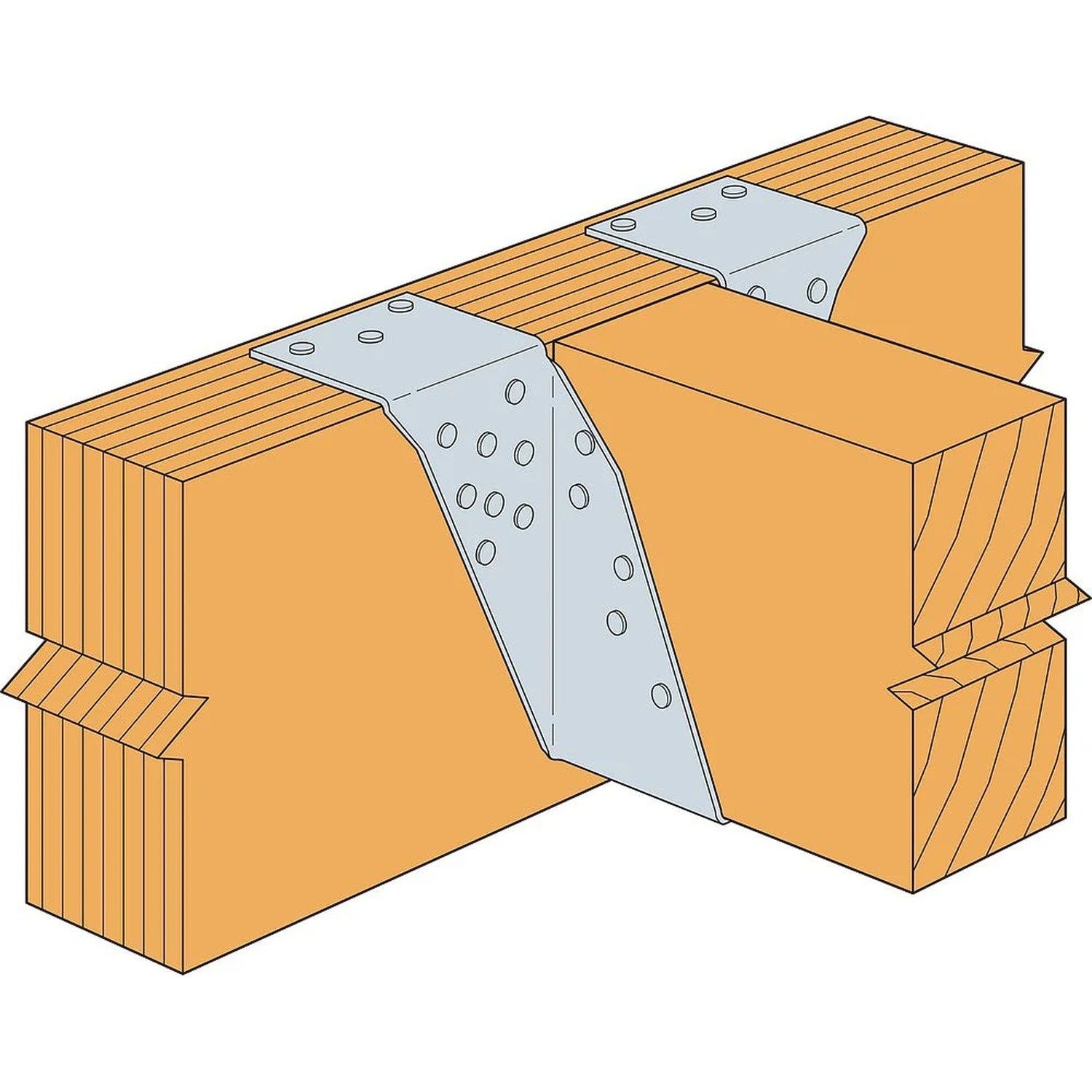

The Simpson Strong-Tie HB3.56/18 is a top-flange hanger designed for maximum load capacity, ideal for connecting beams to supporting members in both residential and commercial applications.
Simpson Strong-Tie HB3.56/18 Includes
- (1) HB3.56/18 Top Flange I-Joist Hanger
Simpson Strong-Tie HB3.56/18 Features
- Heavy-duty load support for high-capacity connections
- Versatile compatibility with solid sawn and engineered wood
- Top-flange design for ease of installation
- Wide bearing surface to distribute load efficiently
- Precision engineering for a tight, accurate fit
Simpson Strong-Tie HB3.56/18 Applications
- Commercial and residential framing for heavy beams
- Deck construction for strong beam-to-post connections
- Timber frame structures for heavy timber and post-and-beam construction
- Multi-story buildings for major load-bearing beams
- Industrial and agricultural buildings for stable high-load connections

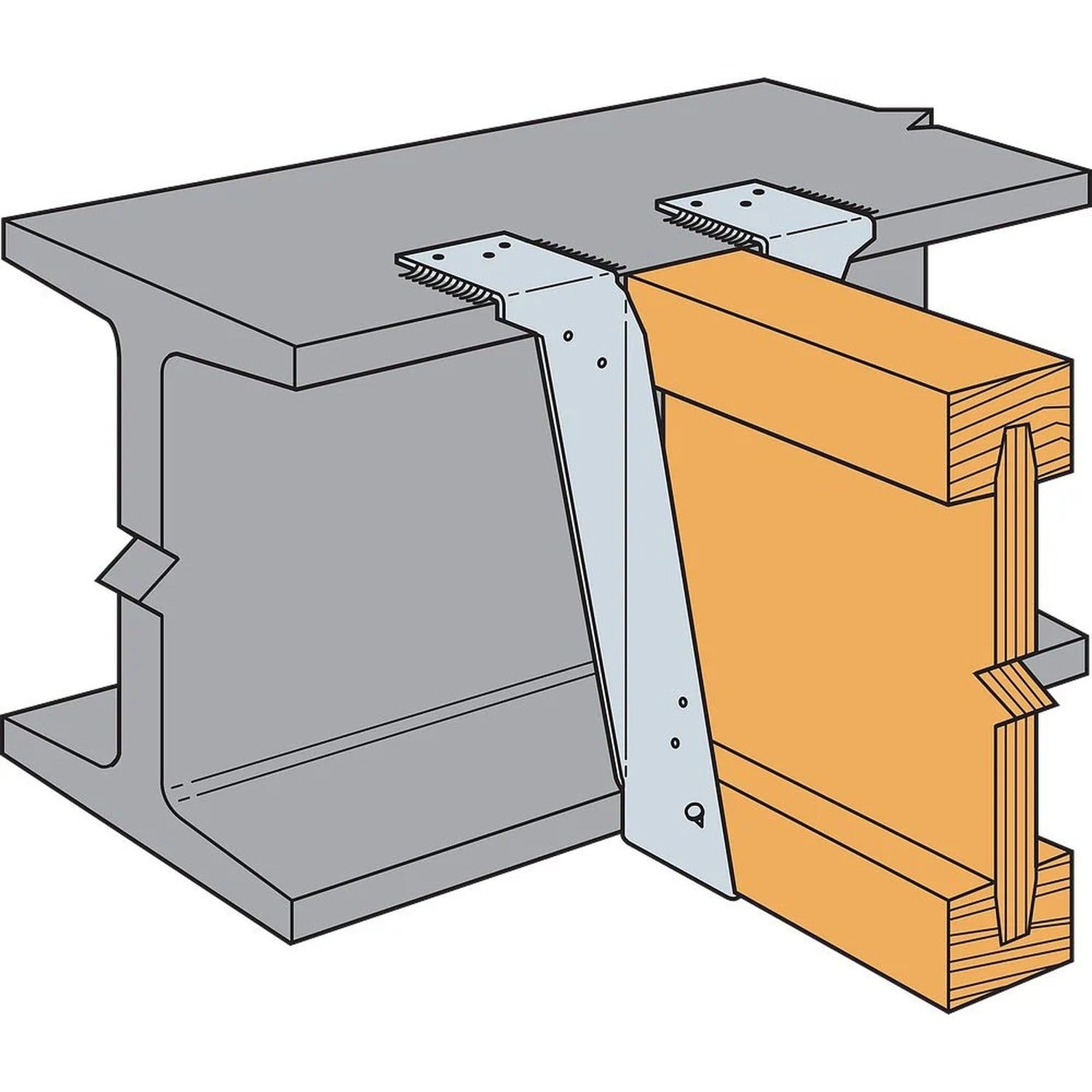

Simpson Strong-Tie HB3.56/18 Installation Overview
- Install with specified nails or screws as recommended
- Ensure the hanger fully bears on the supporting structure
- Check for a snug fit within the hanger seat to prevent movement

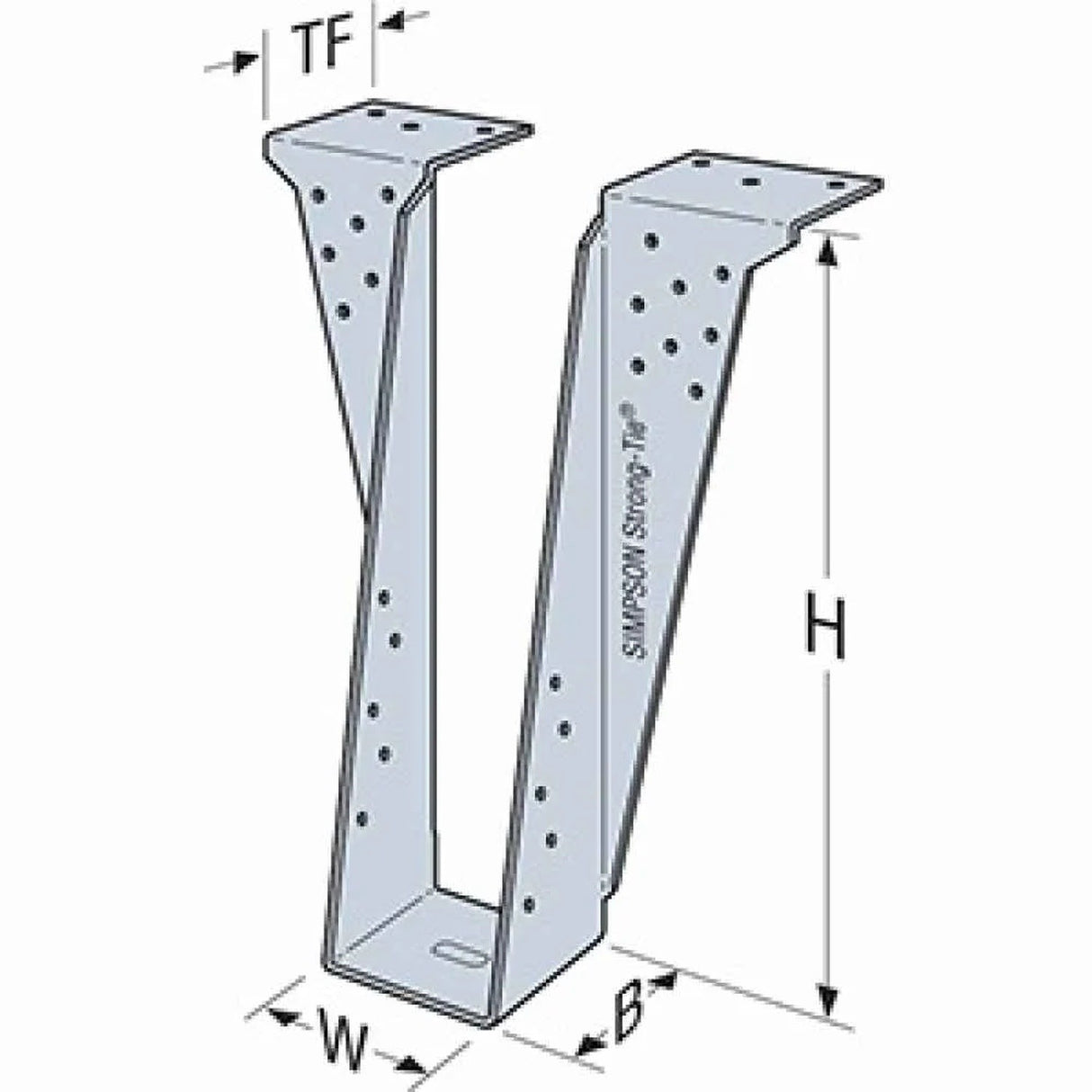

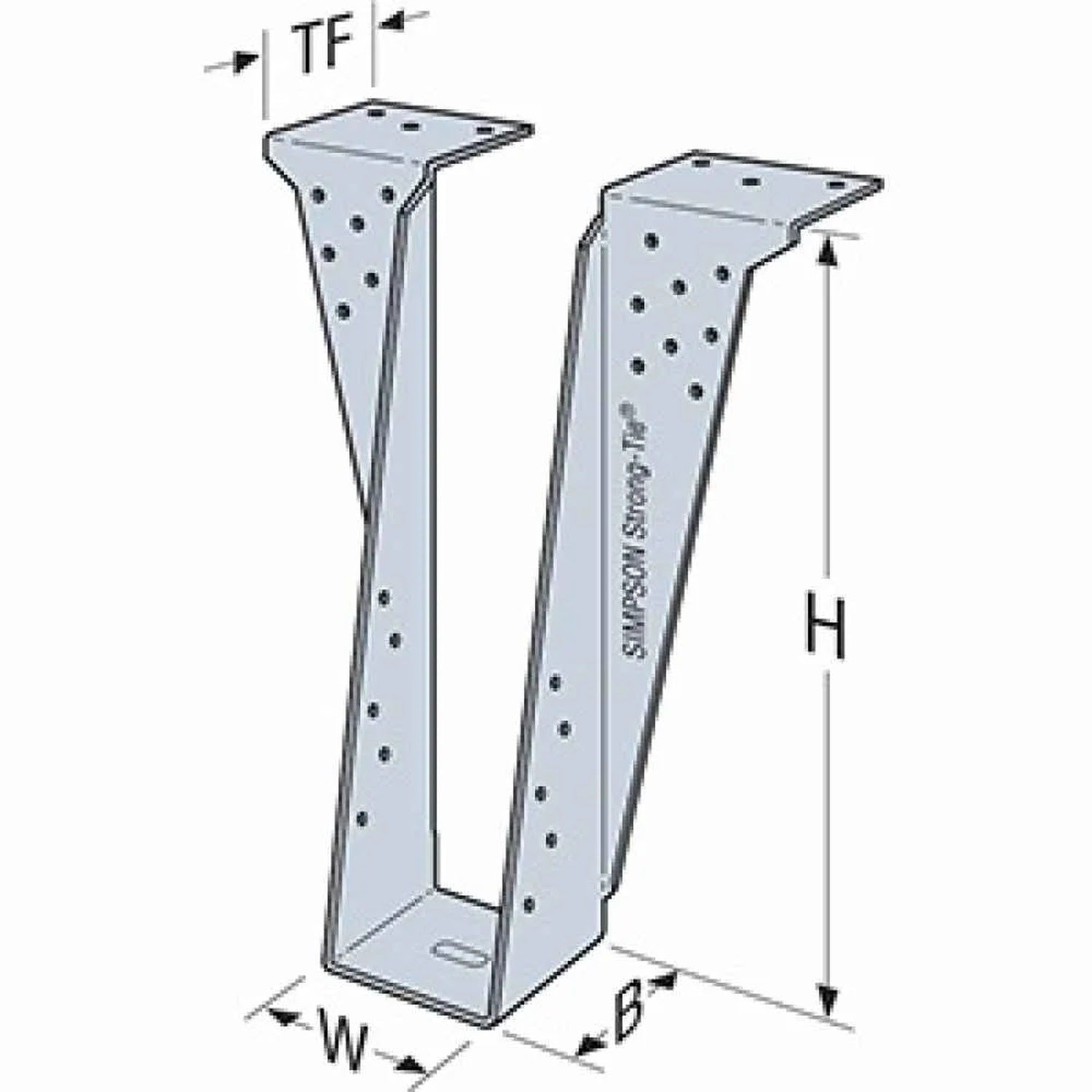

Simpson Strong-Tie HB3.56/18 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (22) 0.162" x 3-1/2" Nails, Joist - (10) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 18" |
| Joist size | 3-9/16" X 18" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 10 Gauge |
| Width | 3-9/16" |
