Simpson Strong-Tie HUC310-2 Concealed Flange Face Mount I-Joist Hanger G90 Galvanized
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HUC310-2 Concealed Flange Face Mount I-Joist Han...
Key Specifications
Description
Description
Simpson Strong-Tie HUC310-2 Description

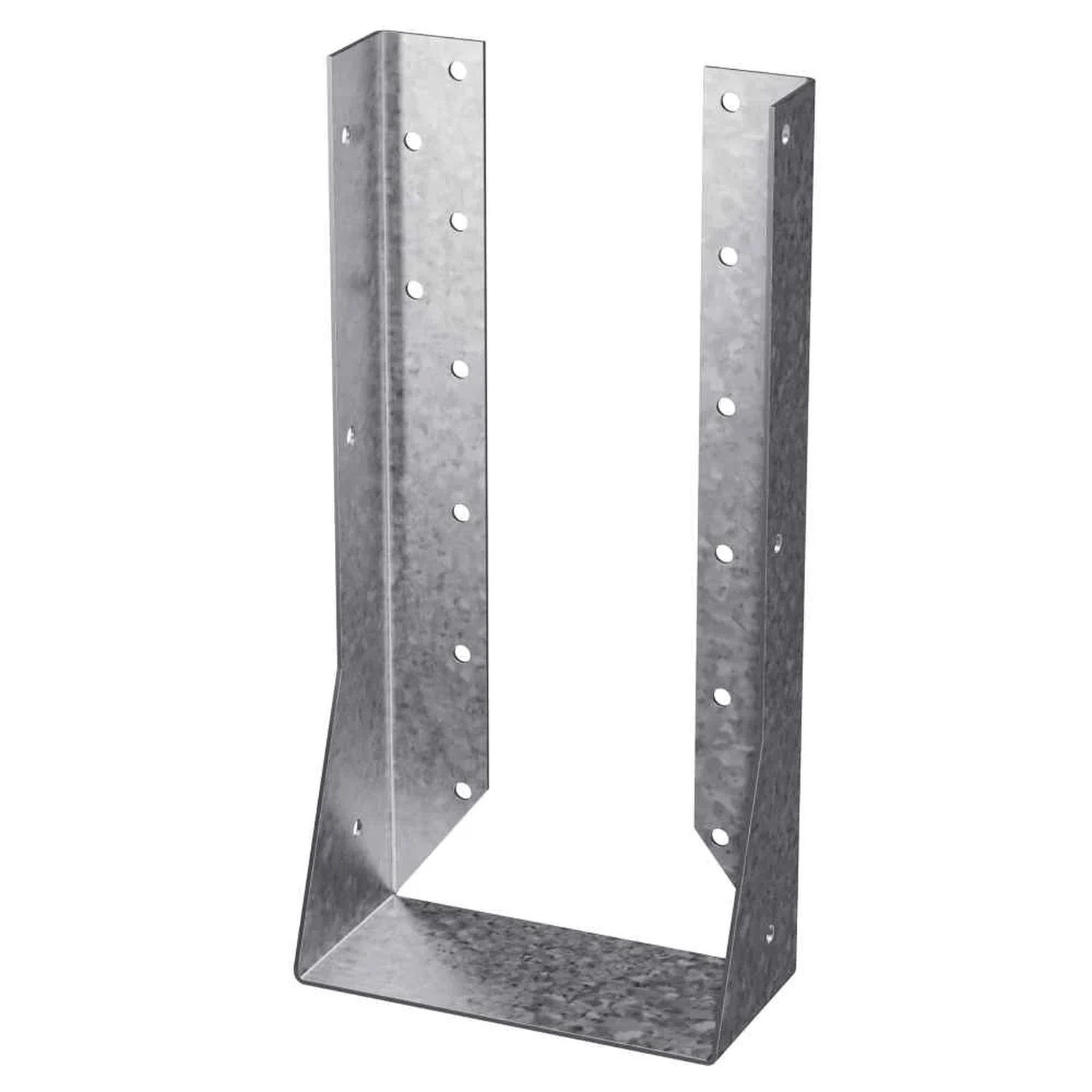

The Simpson Strong-Tie HUC310-2 is a concealed flange face-mount joist hanger designed for robust support in construction applications. Made from 14-gauge steel with a G90 galvanized finish, it ensures durability and corrosion resistance.
Simpson Strong-Tie HUC310-2 Includes
- (1) Concealed Flange Face Mount I-Joist Hanger
Simpson Strong-Tie HUC310-2 Features
- Concealed flange design for clean aesthetics and structural integrity
- G90 galvanized finish for corrosion resistance
- Compatible with solid sawn lumber, engineered wood, and cold-formed steel joists
- Tested and load-rated for code compliance
Simpson Strong-Tie HUC310-2 Applications
- Decks and outdoor structures: Provides strong, concealed connections for deck framing and pergolas
- Floor joists and ceiling framing: Ensures secure joist connections in residential and commercial construction
- Multi-family housing and commercial buildings: Suitable for large-scale framing applications
- Engineered wood and steel framing: Compatible with LVL, PSL, and CFS joists
- Retrofitting and renovation projects: Ideal for reinforcing existing structures

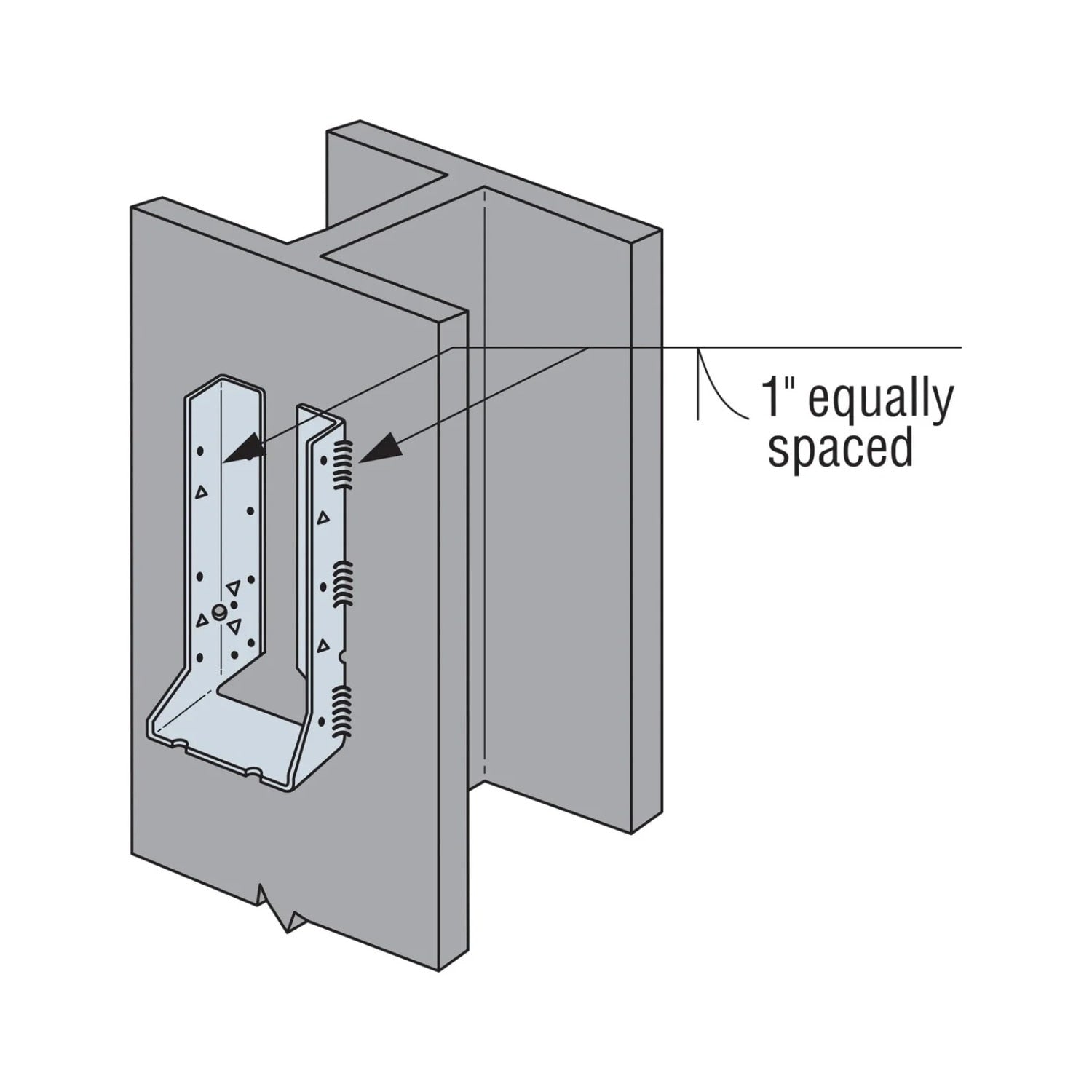

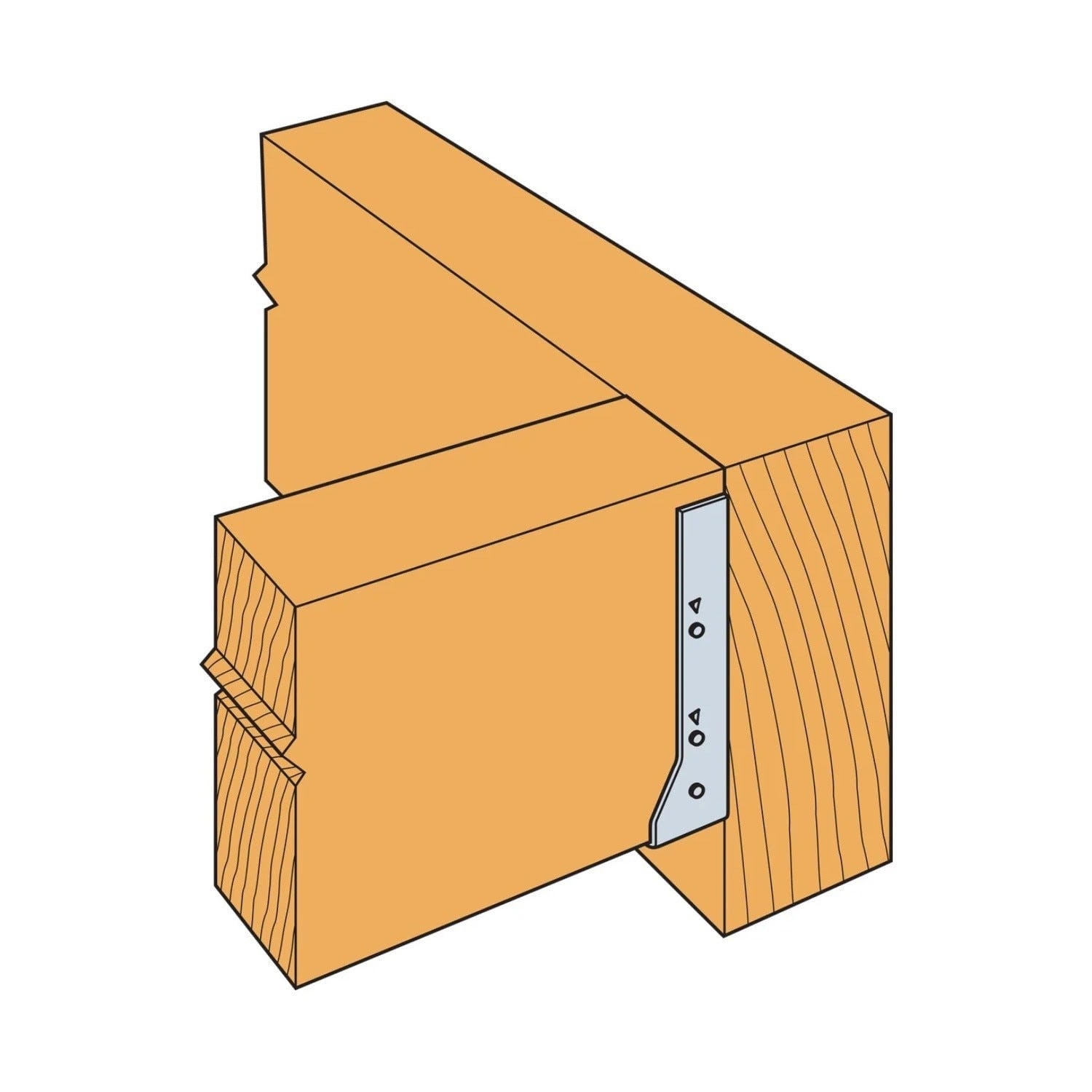

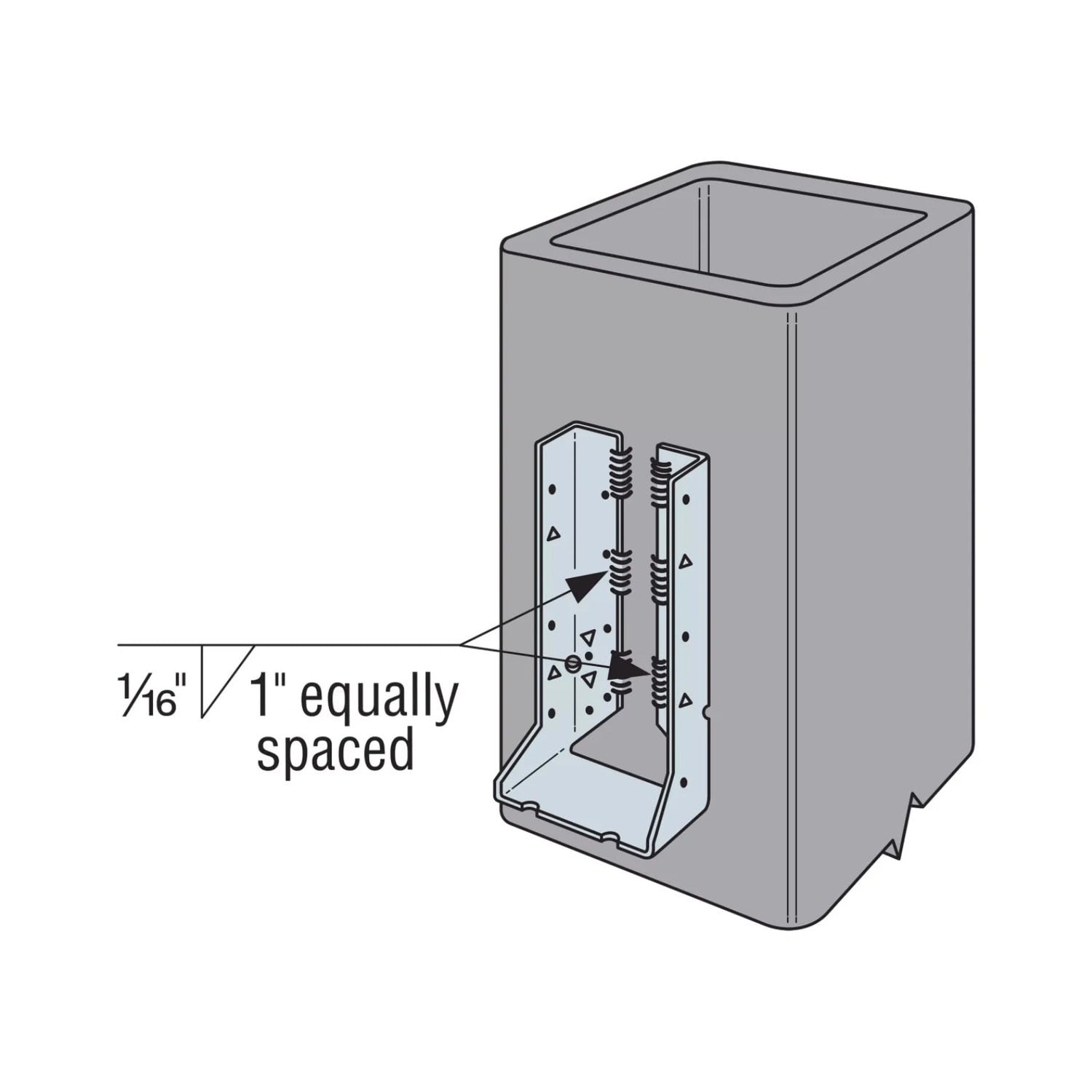

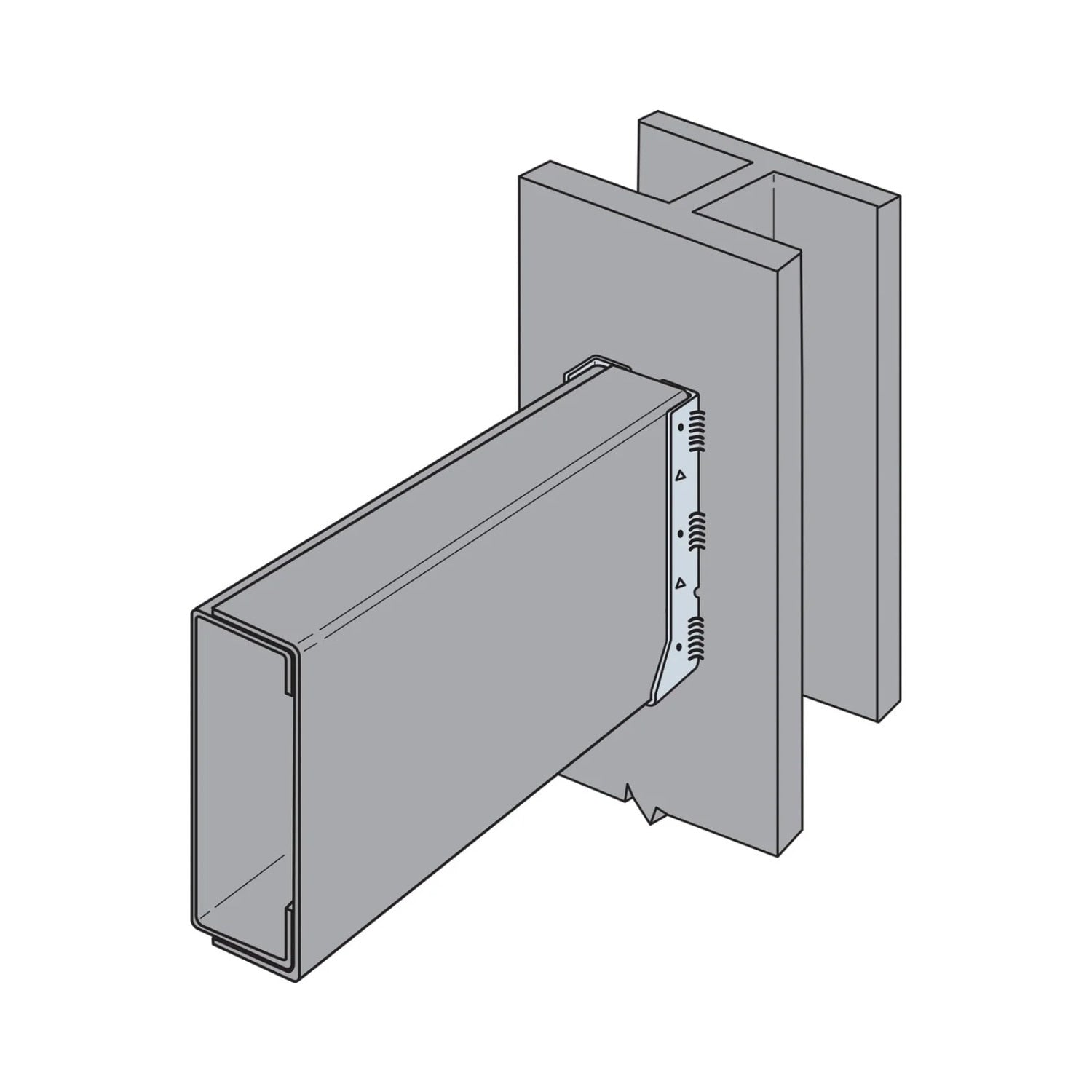

Simpson Strong-Tie HUC310-2 Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance
- Fill both round and optional triangle holes with common nails for maximum load capacity
Simpson Strong-Tie HUC310-2 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (14) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 7-13/16" |
| Joist size | 5" X 9-1/4" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 5-1/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
