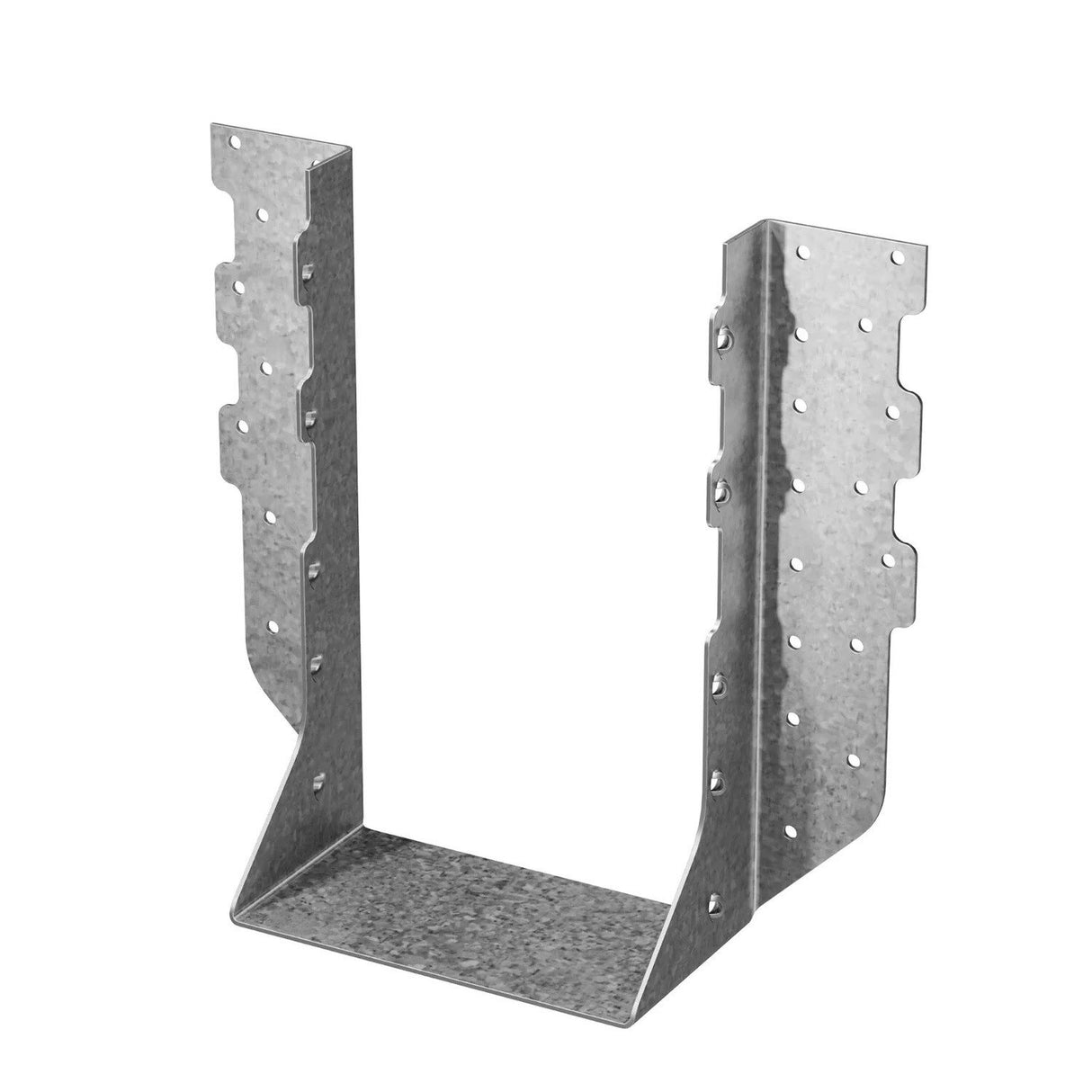

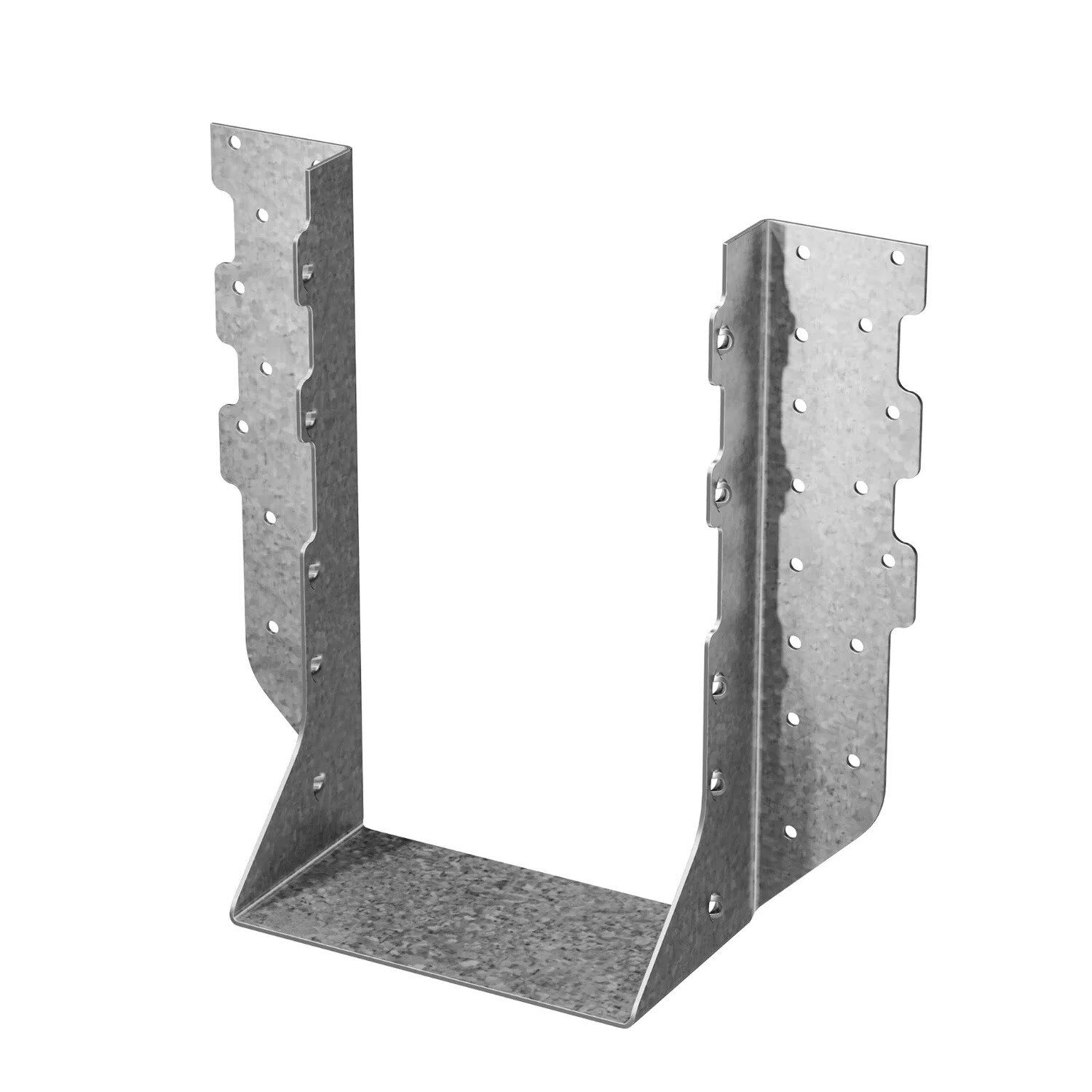

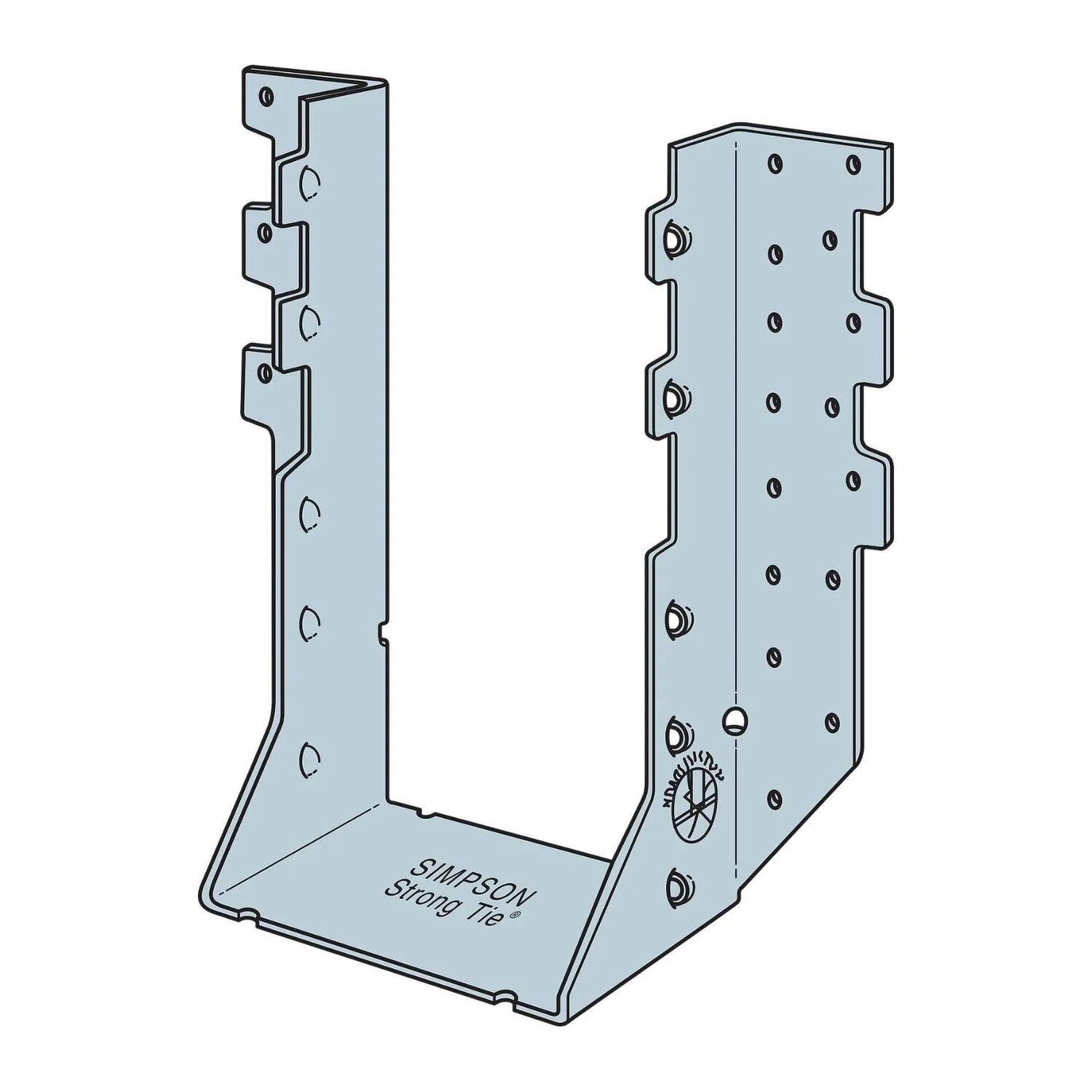

Simpson Strong-Tie HHUS5.50/10 (5-1/4" x 9-1/2") Face Mount I-Joist Hanger for Engineered Wood
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HHUS5.50/10 (5-1/4" x 9-1/2") Face Mou...
Key Specifications
Description
Description
Simpson HHUS5.50/10 Description
The Simpson HHUS5.50/10 Face Mount I-Joist Hanger is designed for engineered wood applications, offering high load capacity and durability.
Simpson HHUS5.50/10 Includes
- (1) Face Mount I-Joist Hanger for Engineered Wood
Simpson HHUS5.50/10 Features
- Can be installed after the beam is secured in place
- Value-engineered hanger designed to carry high loads at an economical price
- Tested, load rated, and code compliant
- G90 Galvanized Coating for corrosion resistance
- Double-Shear Nailing for increased connection strength
Simpson HHUS5.50/10 Applications
- Framing & Structural Support: Provides secure connections for floor and ceiling joists in residential and commercial buildings.
- Deck Construction: Ideal for attaching deck joists to beams in outdoor applications.
- Post & Beam Connections: Ensures reliable fastening of horizontal members to vertical supports.
- Plated Trusses: Designed to connect plated trusses efficiently while maintaining structural integrity.
Simpson HHUS5.50/10 Installation Overview
- Use all specified fasteners as per General Notes.

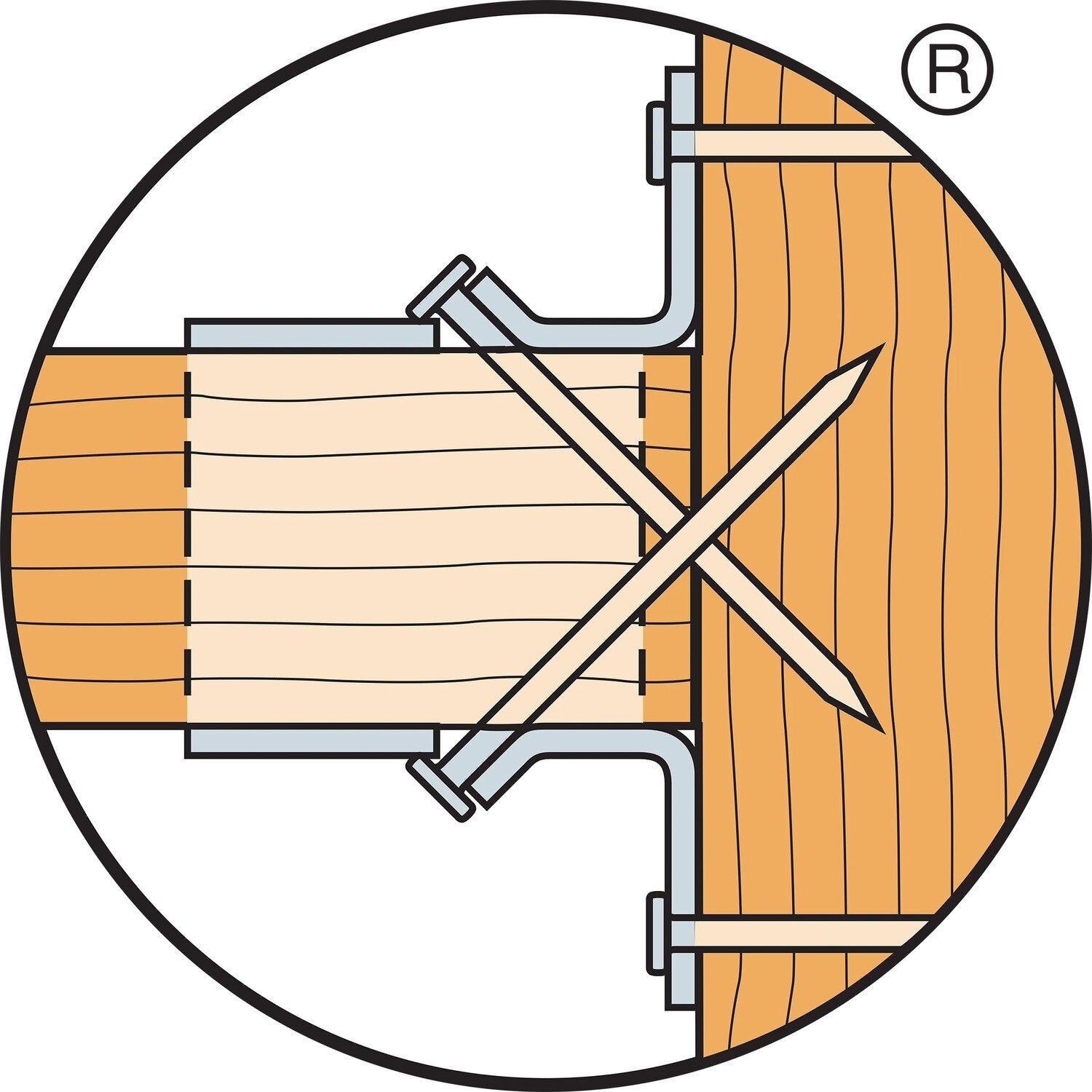

- Joist nails must be driven at an angle through the joist or truss into the header to achieve the table loads.
- Not designed for welded or nailer applications.
- Do not use double-shear hangers with I-joists.
- Follow specific nail specifications for 3x and 2x carrying members to ensure load capacity.
Simpson HHUS5.50/10 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 14 Gauge |
| Width | 5.5" |
| Height | 9" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
