Simpson Strong-Tie BA1.56/11.88 (1-1/2" x 11-7/8") Top-Flange Joist Hanger for Engineered Wood - G90 Galvanized, 12 Gauge
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie BA1.56/11.88 (1-1/2" x 11-7/8") Top-Fl...
Key Specifications
Description
Description
Simpson Strong-Tie BA1.56/11.88 Description
The Simpson Strong-Tie BA Beam Hanger is designed for secure connections in wood framing projects, offering high load capacity and ease of installation.
Simpson Strong-Tie BA1.56/11.88 Includes

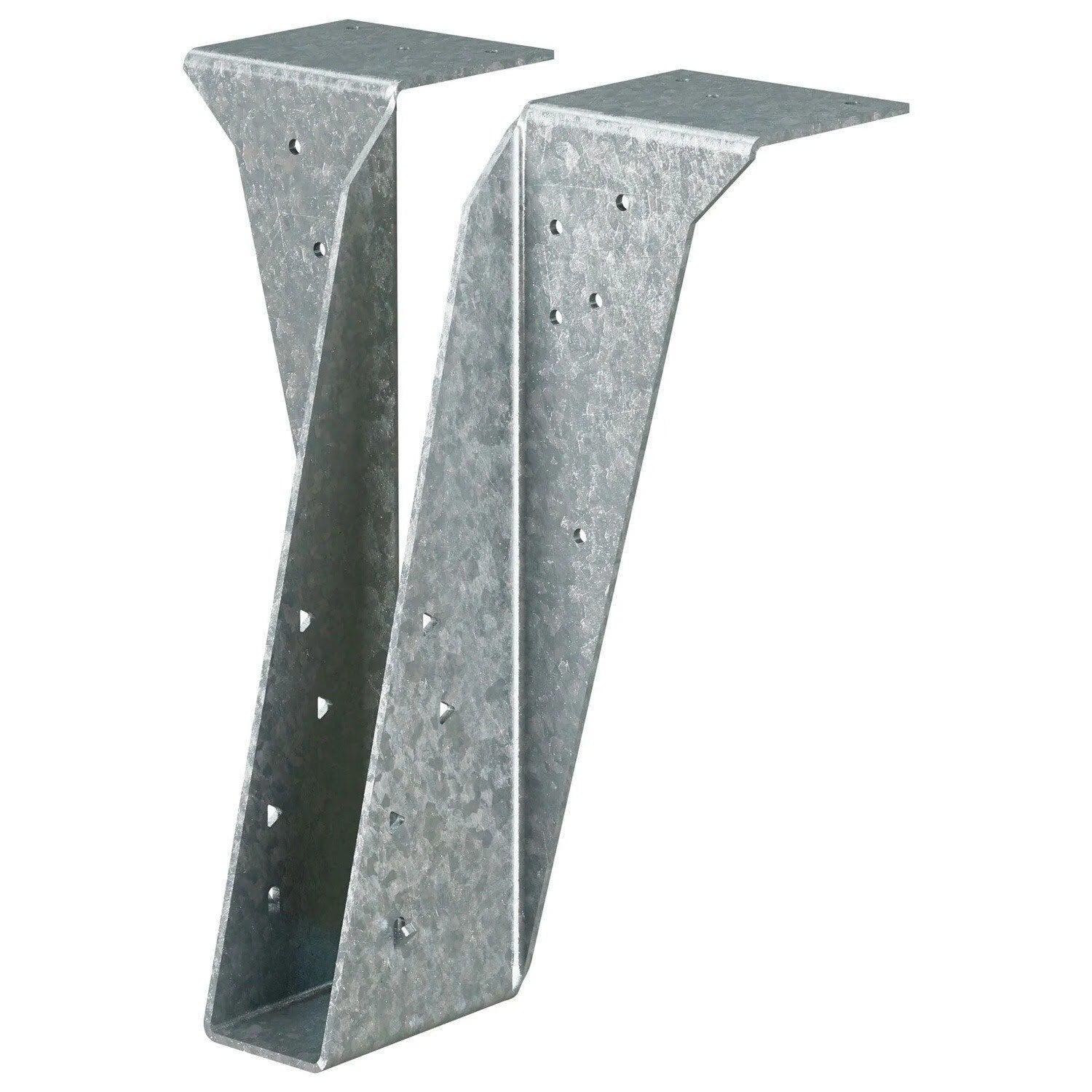

- (1) BA1.56/11.88 Beam Hanger
Simpson Strong-Tie BA1.56/11.88 Features
- Cost-effective one-piece design compared to welded hangers
- Full-height joist flange prevents rotation and eliminates the need for web stiffeners

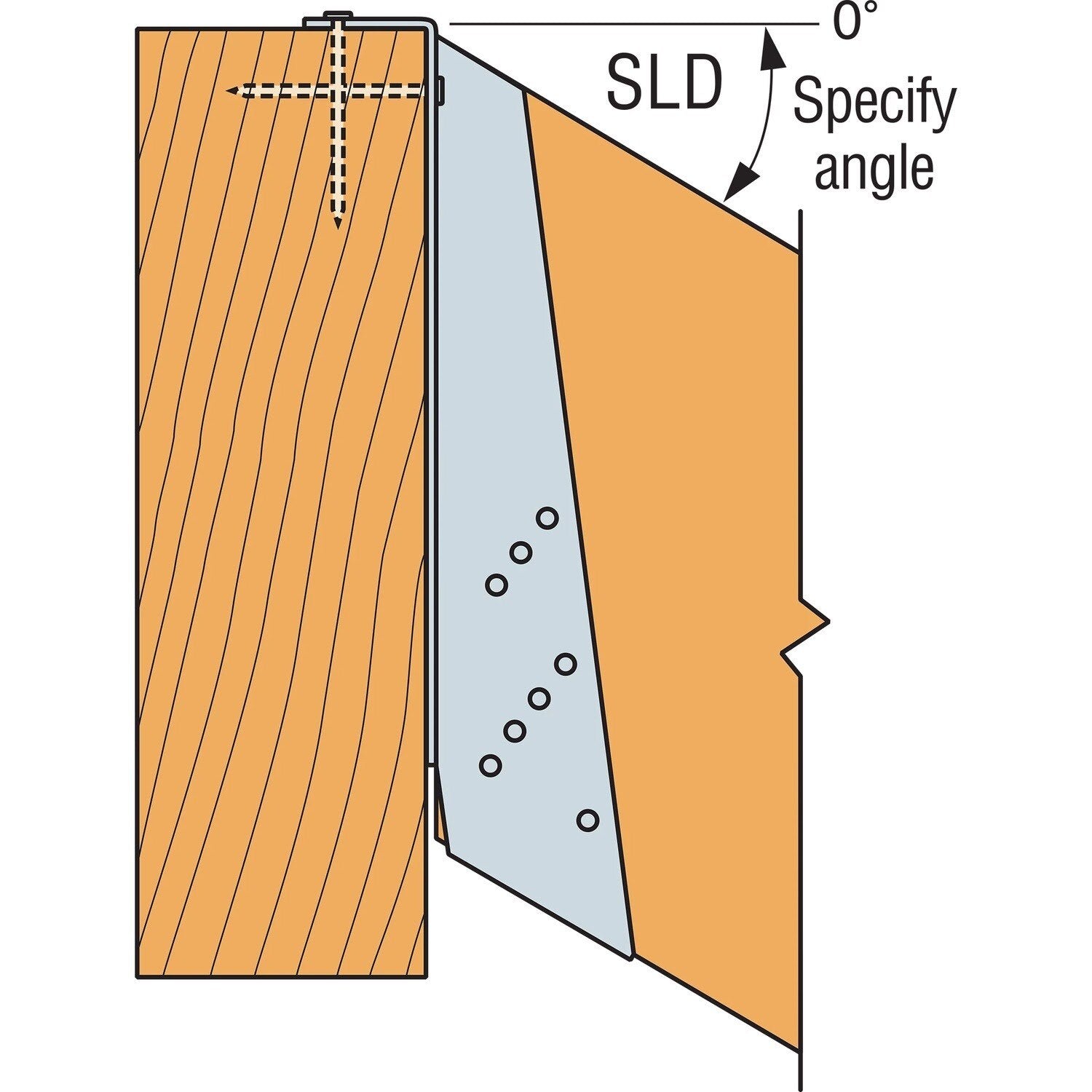

- Available for special order to accommodate sloped and/or skewed members
- Designed for I-Joists and SCL
- Top-Flange Installation for straightforward placement
- High Load Capacity for demanding structural requirements
- Versatile Application for beams, headers, and floor framing systems
Simpson Strong-Tie BA1.56/11.88 Applications
- Floor Framing: Provides secure support for I-joists and SCL in multi-story buildings.
- Roof Framing: Ensures stability in engineered wood roof truss and rafter connections.
- Deck Construction: Ideal for attaching joists in covered outdoor structures.
- Beams & Headers: Strong, load-bearing connection for supporting beams in residential and commercial builds.
- Commercial & Industrial Projects: Suited for large-scale engineered wood framing applications requiring long-term strength and reliability.
Simpson Strong-Tie BA1.56/11.88 Installation Overview
- Use specified fasteners to ensure maximum load capacity and structural integrity.

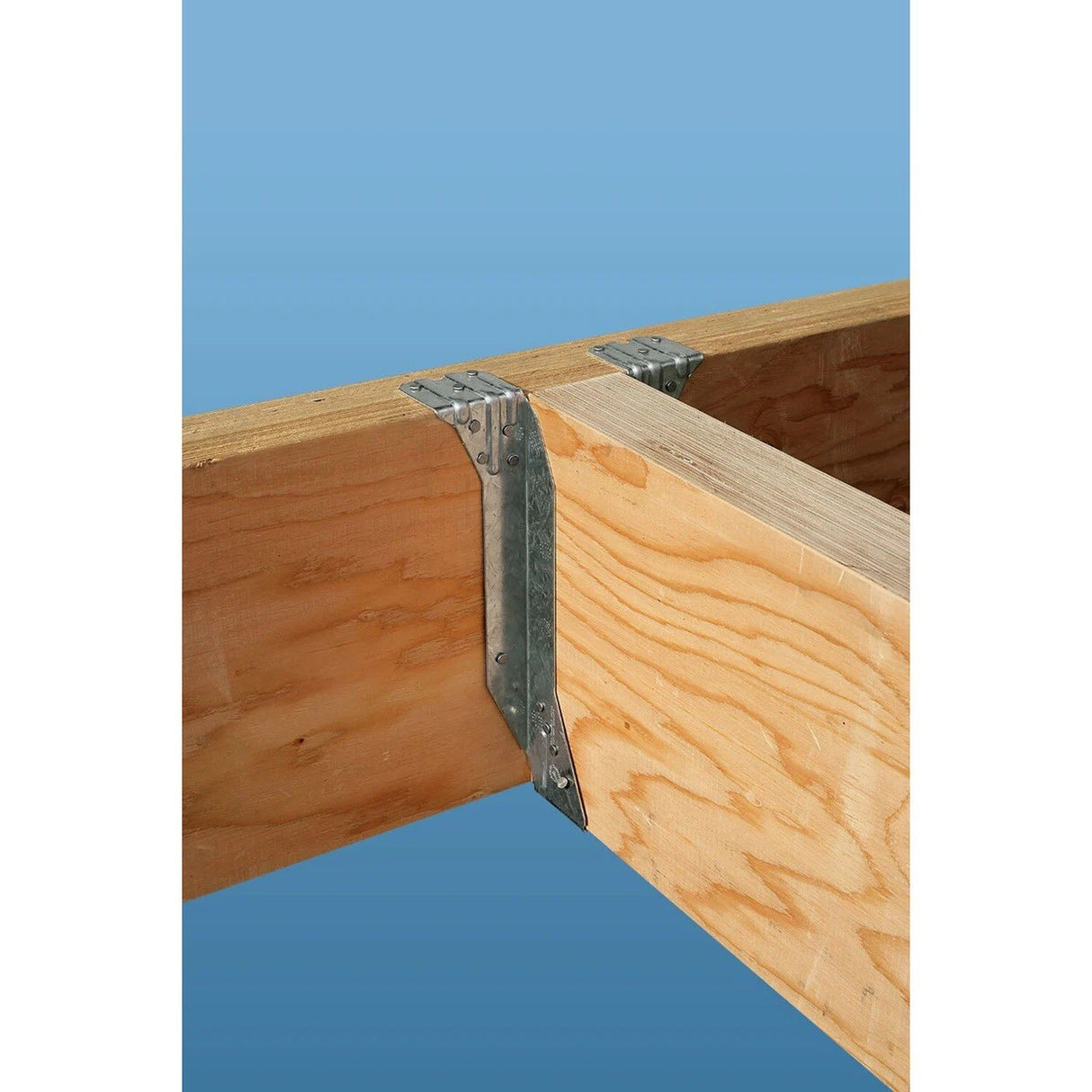

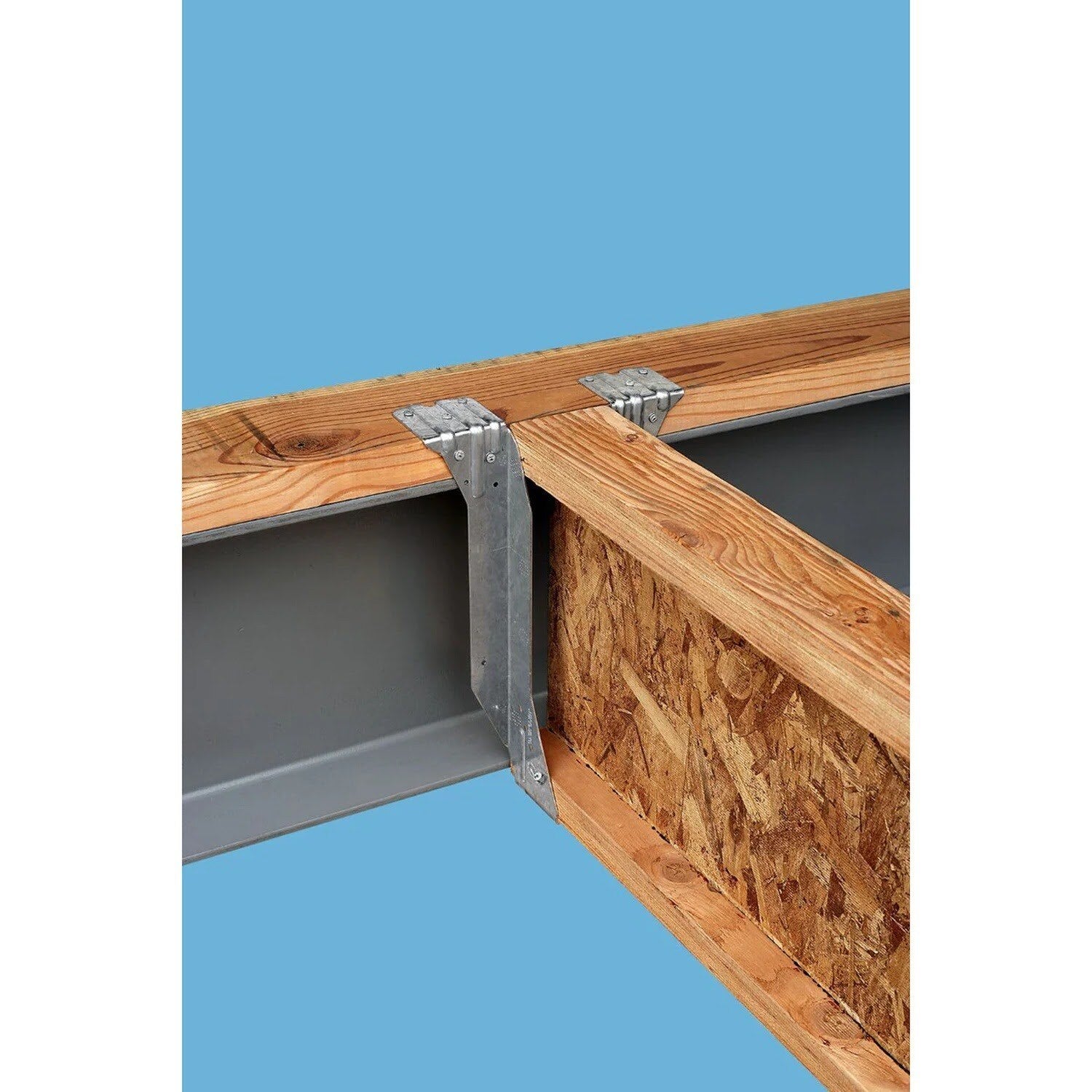

- Secure the hanger over the supporting beam or ledger before setting the I-joist into place.
- Ensure the joist seats fully inside the hanger for proper load transfer.
- Attach fasteners through both the top flange and side flanges as per manufacturer recommendations.
Simpson Strong-Tie BA1.56/11.88 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (16) 0.162 x 3-1/2" Nails Joist - Min: (2) 0.148 x 1-1/2" Nails - Max: (8) 0.148 x 1-1/2" Nails |

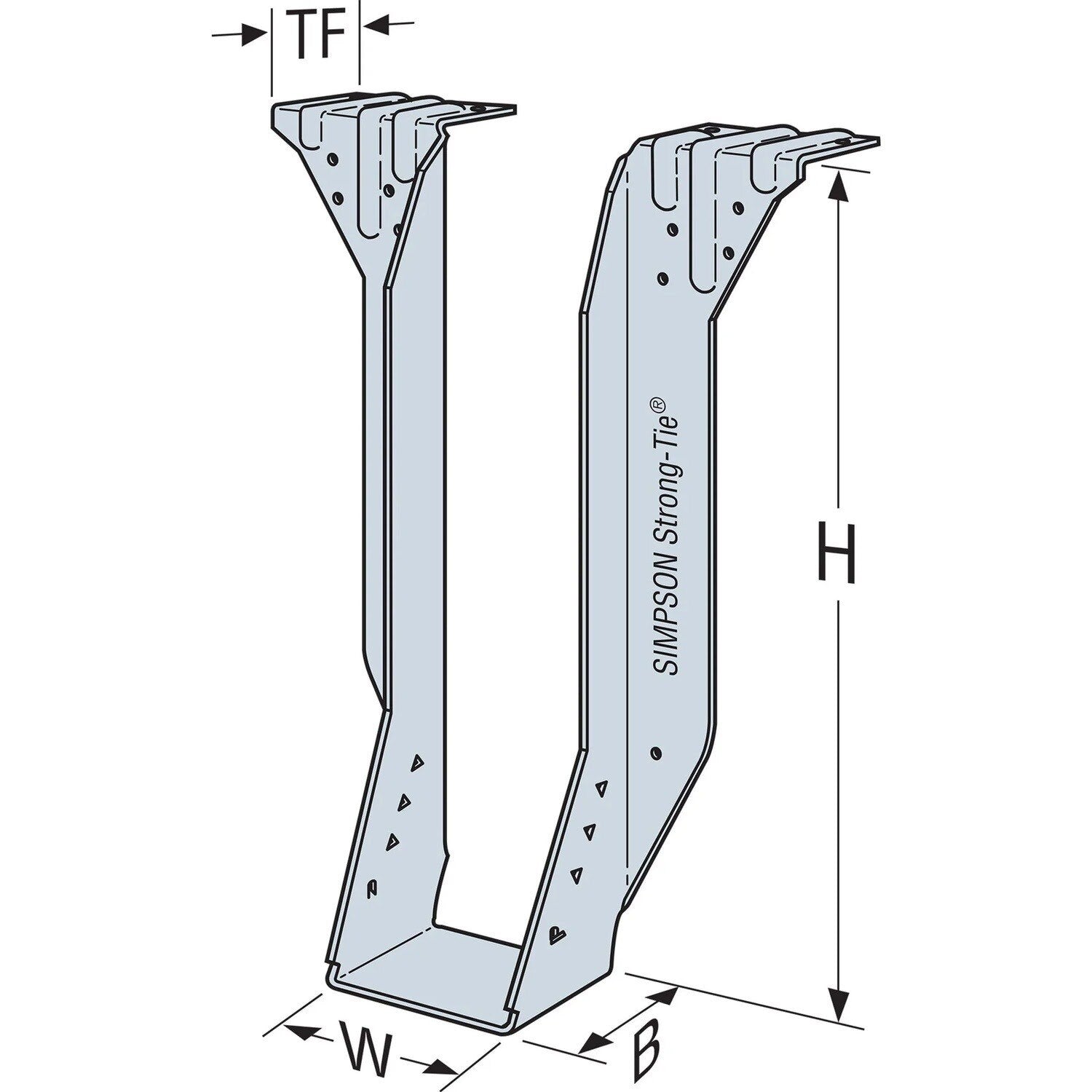

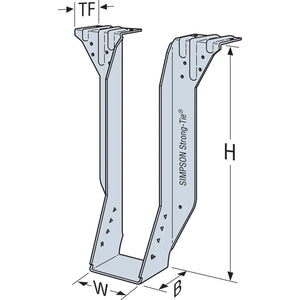

| Height | 11-7/8" |
| Joist size | 1-1/2" X 11-7/8" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 12 Gauge |
| Width | 1-9/16" |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values.
