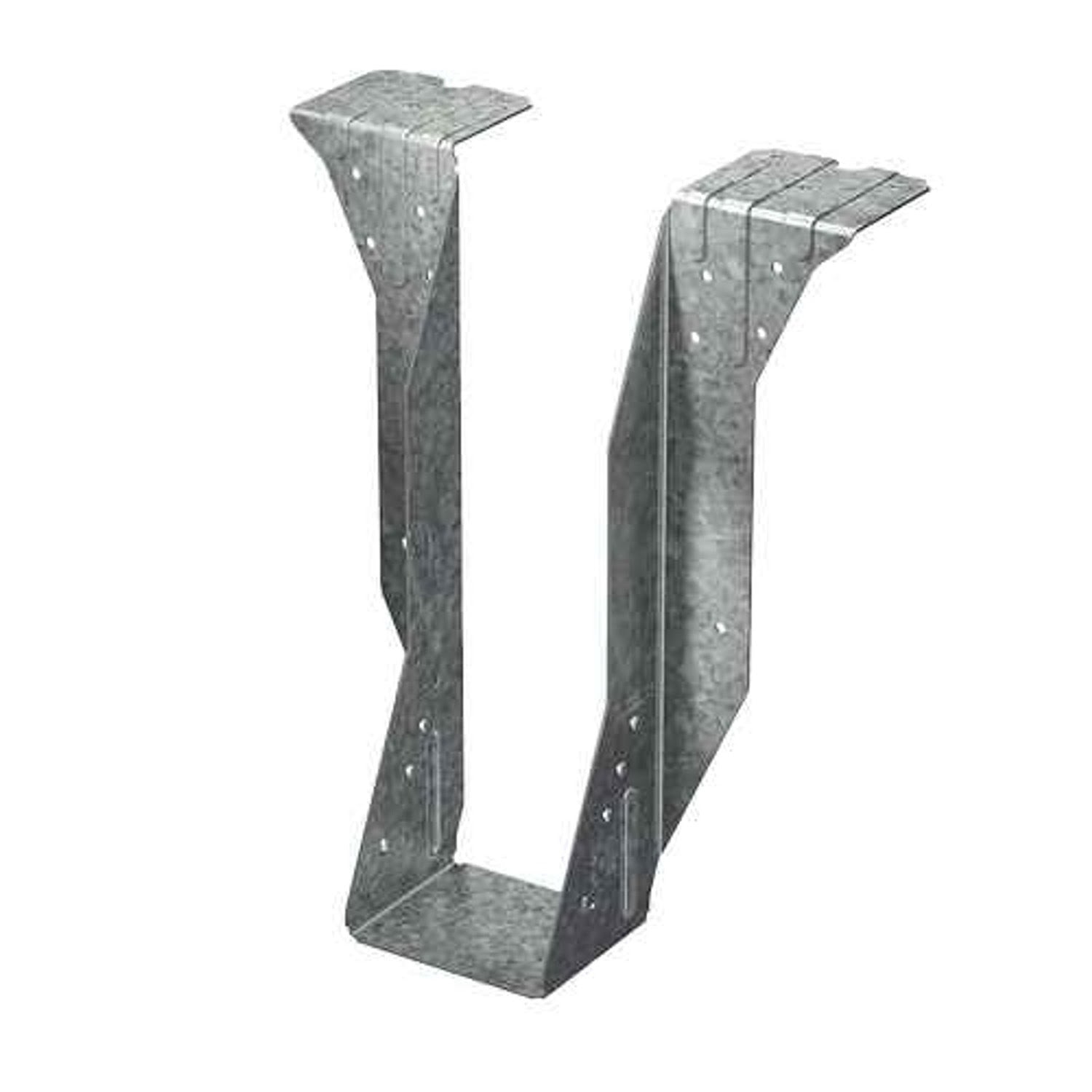

Simpson Strong-Tie BA38 (2-9/16" x 7-1/8") 12Ga Galvanized Top Flange Joist Beam Hanger
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie BA38 (2-9/16" x 7-1/8") 12Ga Galvanize...
Key Specifications
Description
Description
Simpson Strong-Tie BA38 Description
The Simpson BA38 Beam Hanger provides exceptional load-bearing capacity for beam-to-beam and girder-to-girder connections, ensuring superior stability and structural integrity in demanding applications.
Simpson Strong-Tie BA38 Includes
- (1) BA38 Beam Hanger
Simpson Strong-Tie BA38 Features
- Heavy-duty load capacity for beam-to-beam and girder connections
- Top-flange installation for strong, stable connections
- Wide-seat design for even load distribution
- Compatible with solid sawn and engineered wood
- Durable G90 galvanized steel construction
Simpson Strong-Tie BA38 Applications
- Beam-to-beam connections for secure attachment
- Girder-to-girder connections for superior load transfer
- Floor and roof framing in residential, commercial, and industrial buildings
- Deck construction for large outdoor structures
- Engineered wood framing for modern construction needs

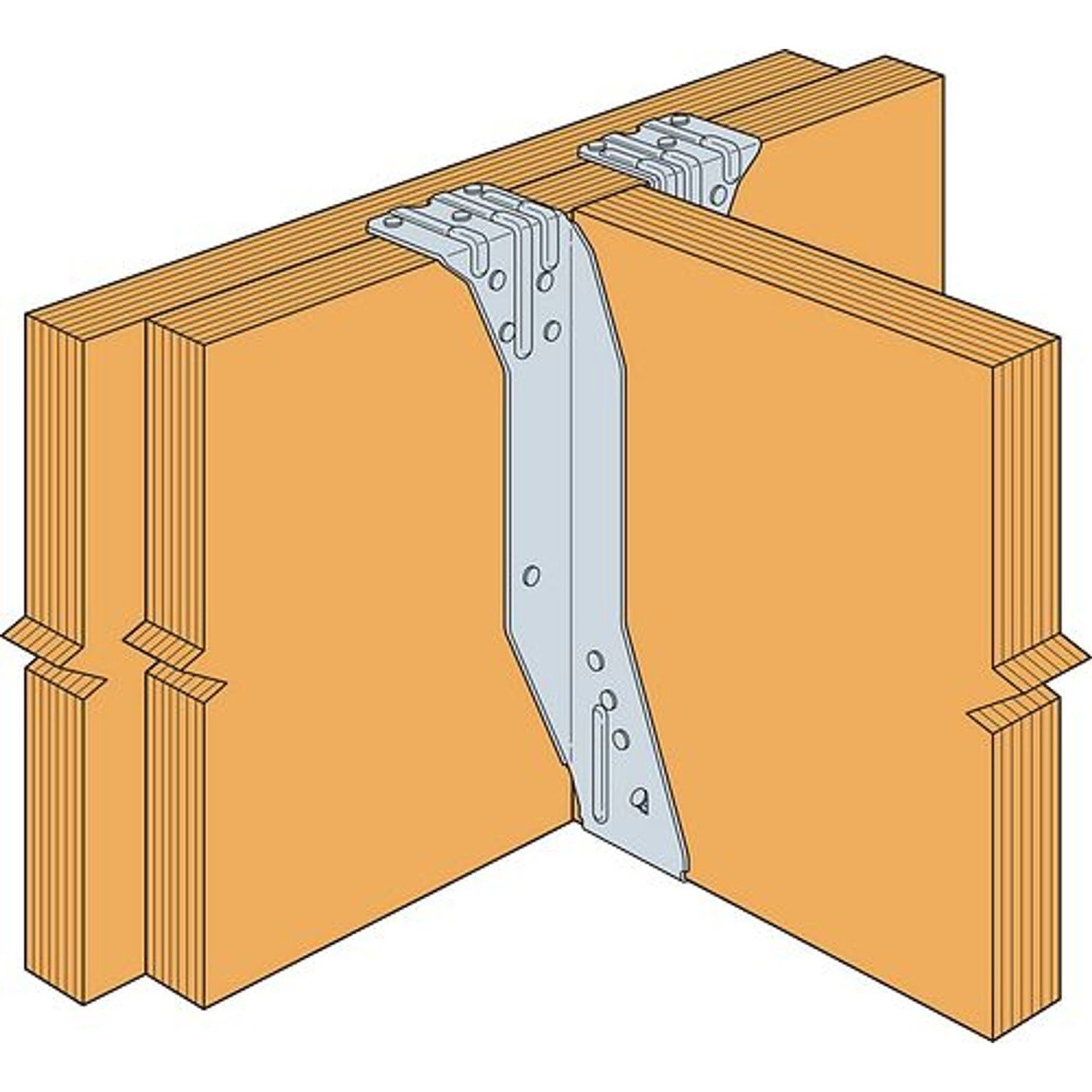

Simpson Strong-Tie BA38 Installation Overview
- Secure the hanger to the support beam using appropriate nails or structural screws
- Ensure the supported beam is properly seated within the hanger
- Install using top-flange mounting for stable connections
- Follow local building codes and manufacturer guidelines for fastener selection and spacing

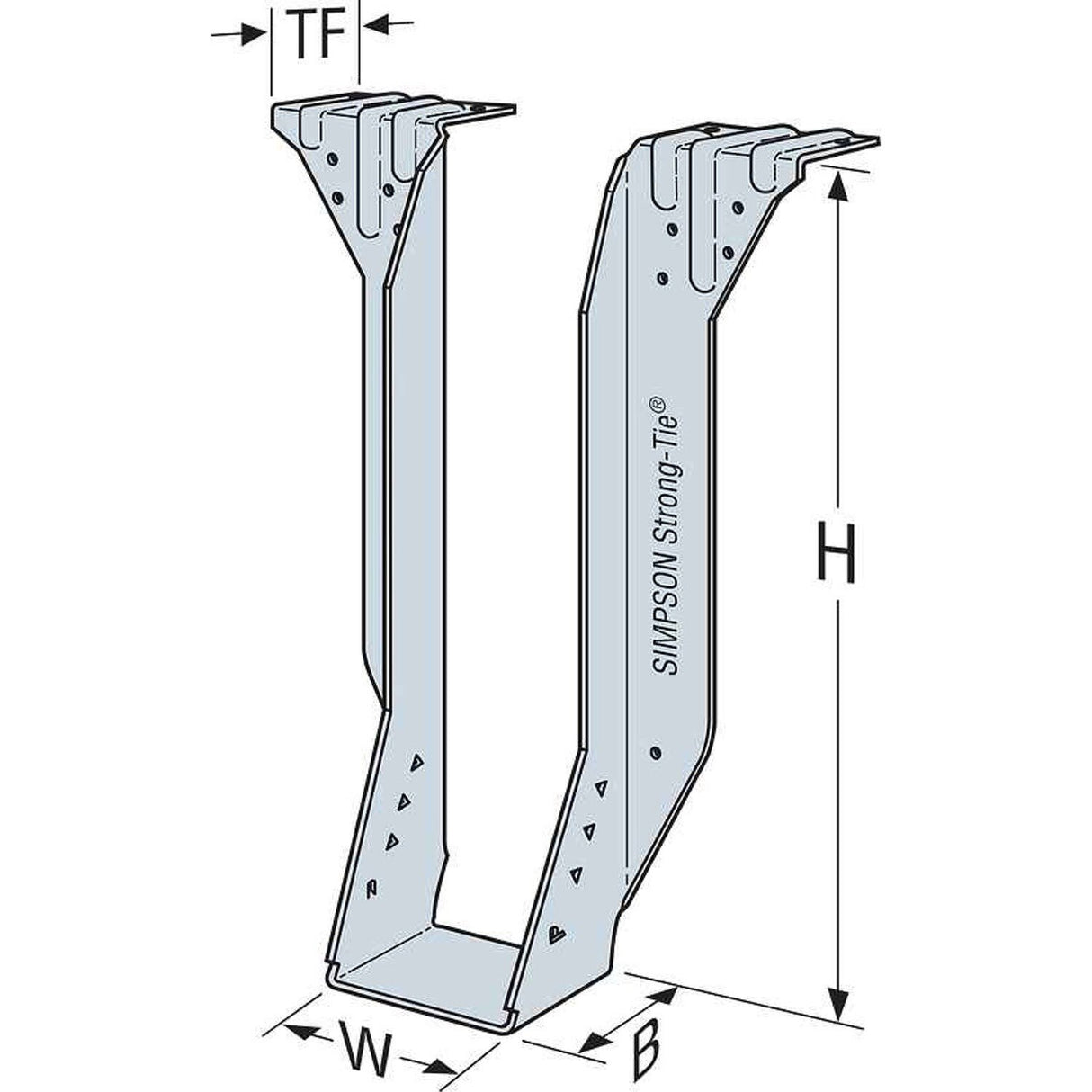

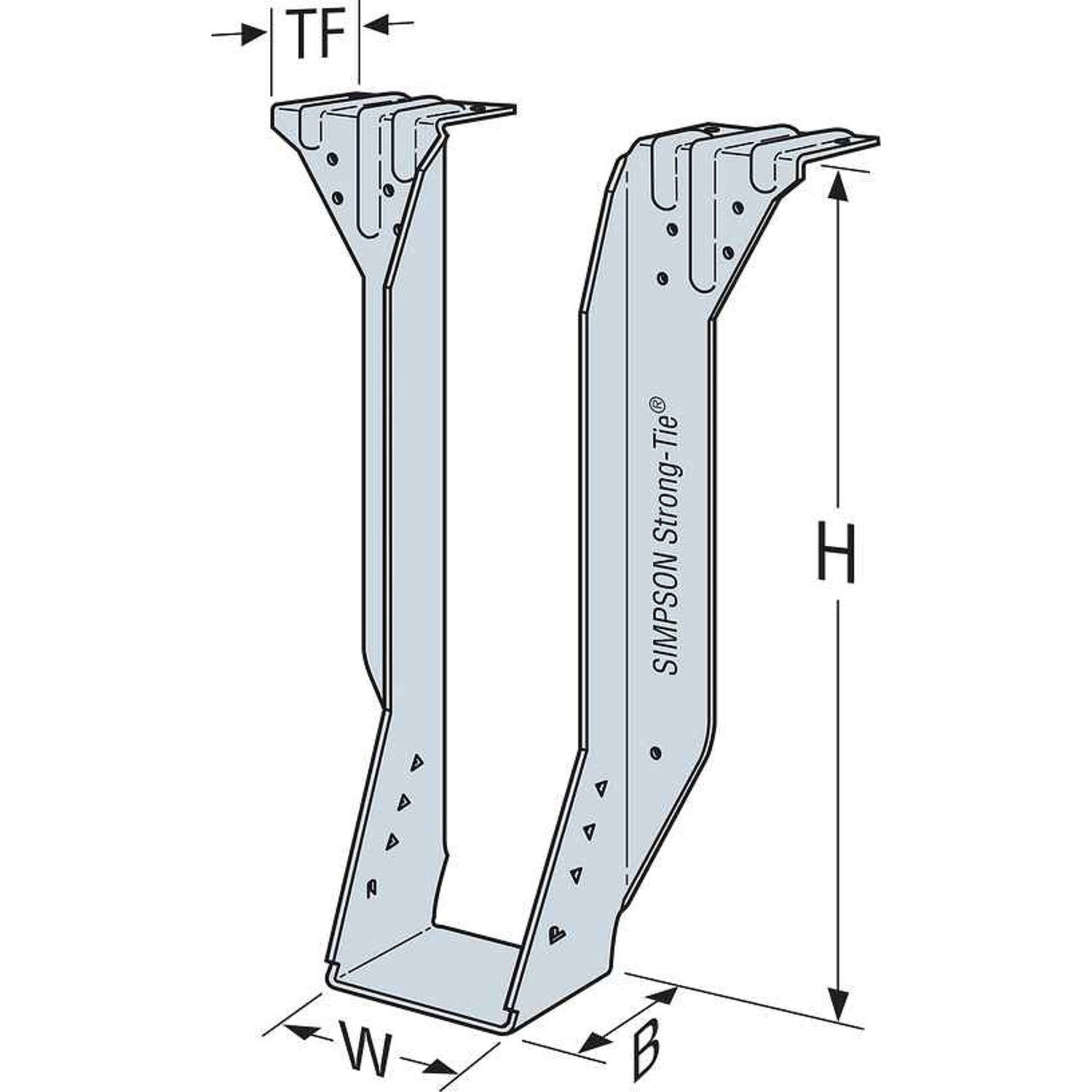

Simpson Strong-Tie BA38 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (16) 0.162 x 3-1/2" Nails Joist - Min: (2) 0.148 x 1-1/2" Nails - Max: (8) 0.148 x 1-1/2" Nails |
| Height | 7-1/8" |
| Joist size | 3" X 8" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 12 Gauge |
| Width | 2-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
