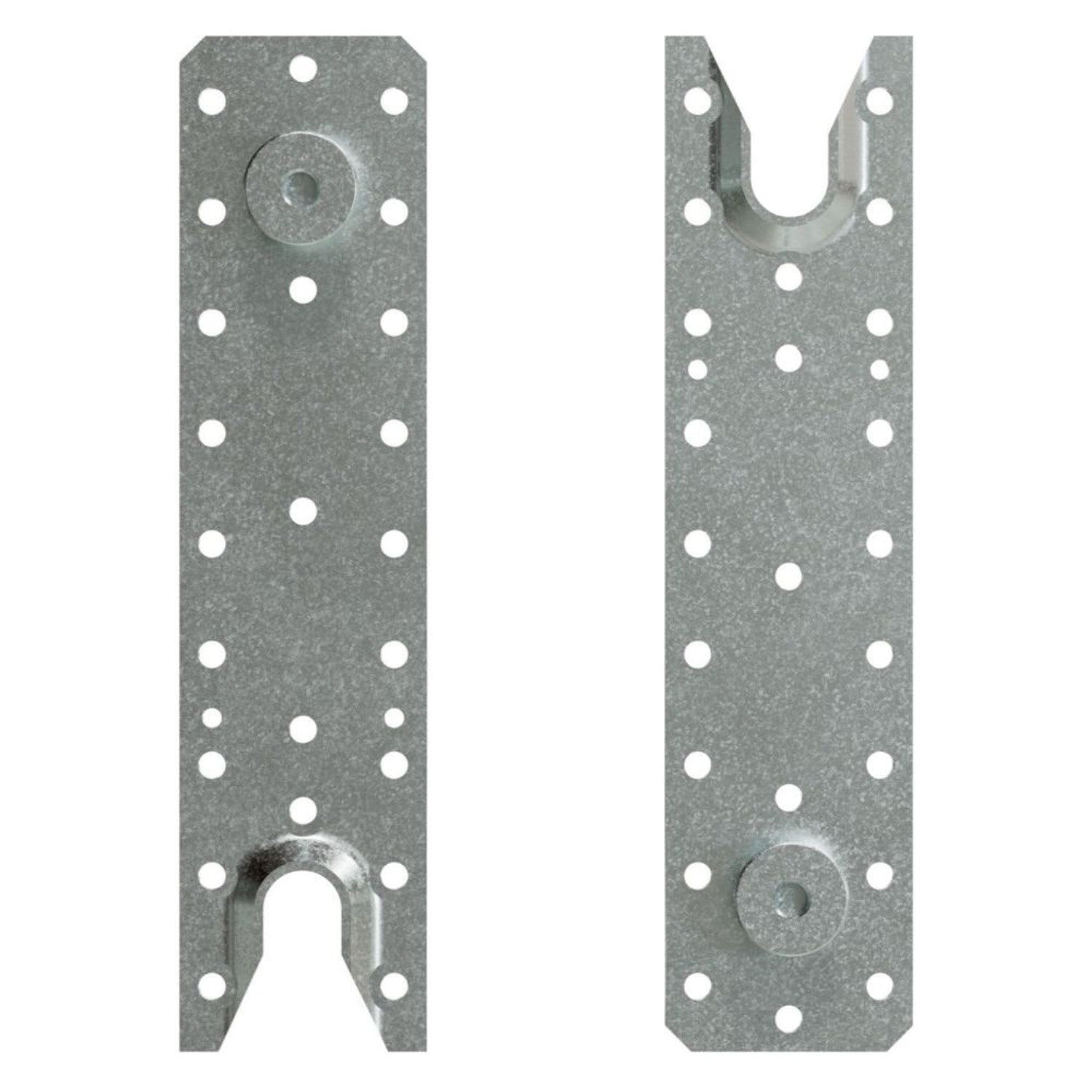

Simpson Strong-Tie CBH2.37X5.5-R10 (2-3/8" x 5-1/2") Concealed Beam Hanger for Joist-to-Beam or Column Connections, Electrogalvanized (10 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CBH2.37X5.5-R10 (2-3/8" x 5-1/2") Conc...
Key Specifications
Description
Description
Simpson Strong-Tie CBH2.37X5.5-R10 Description
The CBH concealed beam hanger is designed for precise glulam applications, offering architectural aesthetics and fire-rated performance.
Simpson Strong-Tie CBH2.37X5.5-R10 Includes
- (10) Concealed Beam Hanger, Electrogalvanized, 2-3/8" x 5-1/2"
Simpson Strong-Tie CBH2.37X5.5-R10 Features
- Code-listed per ICC-ESR-2552
- Concealed for architectural aesthetics and fire-rated performance
- Multiple router options to suit jobsite needs
- +/- 1/32" beam length tolerance on each end enables easier installation
- 1-hr and 2-hr fire resistance ratings per ASTM E119
- Seismic deformation compatibility
Simpson Strong-Tie CBH2.37X5.5-R10 Applications
- Joist-to-beam connections
- Joist-to-column connections
- Engineered wood applications
Simpson Strong-Tie CBH2.37X5.5-R10 Installation Overview
- Ensure a gap of 1/8" to 1/4" between carried and carrying members to prevent wood binding.
- Use fire sealant at the CBH connection location for fire resistance.
- Predrill lead holes for SDS screws if necessary.
- Rout carried and/or carrying member according to application needs.
- Install CBH plates using all specified SDS fasteners.
- Mate carried member to carrying member as per installation illustrations.
- Avoid cambered beams and ensure proper dimensions for glulam members.
Simpson Strong-Tie CBH2.37X5.5-R10 Specifications
| Material | Carbon Steel |
| Finish | Electro-Galvanized |
| Gauge | 3 |
| Width | 2-3/8" |
| Height | 5-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
