Free Shipping Over $199

Simpson Anchors  |  SKU: CBH2.37X9.75H-KT  |  Barcode: 707392014355

Simpson Strong-Tie CBH2.37X9.75H-KT (2-3/8" x 9-3/4") Concealed Beam Hanger Kit - Hot-Dip Galvanized

$175.29
Shipping calculated at checkout.

Bulk Pricing Available

Need to place a large order? Request a quote

Key Specifications

Finish: Hot Dip Galvanized
For treated lumber: No
Length: 9-3/4"
Material: Carbon Steel
Type: Beam Hanger


Description

Simpson Strong-Tie CBH2.37X9.75H-KT Description

The Simpson CBH2.37X9.75H-KT is a high-performance concealed beam hanger kit designed for wood-to-wood connections in mass timber applications.

Simpson Strong-Tie CBH2.37X9.75H-KT Includes

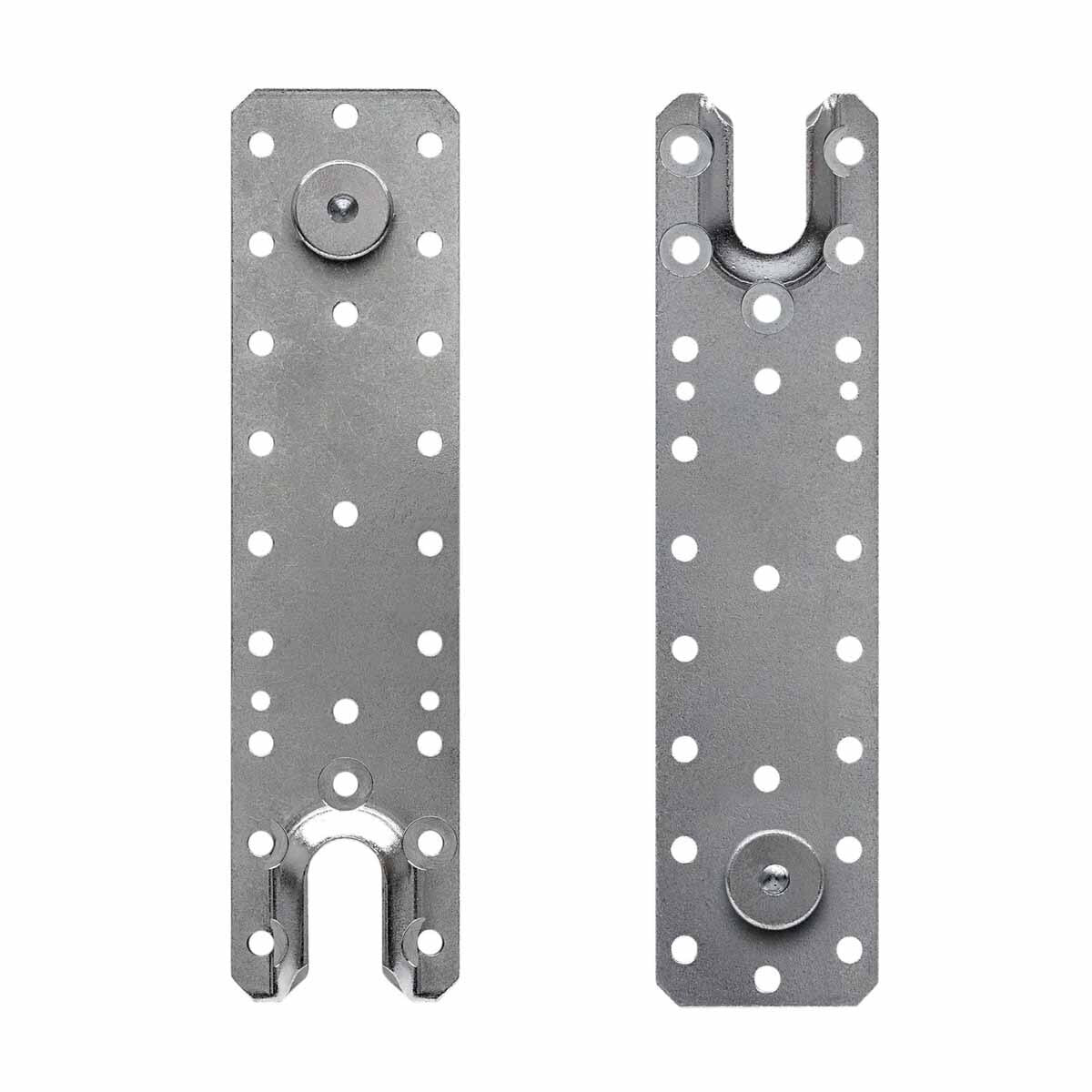

  • (2) CBH2.37X9.75H Concealed Beam Hanger Backplates

Simpson Strong-Tie CBH2.37X9.75H-KT Features

  • Concealed Hardware: Provides hidden wood-to-wood connections for a clean finish
  • High Load Capacity: Engineered for demanding structural requirements
  • Fire-Resistant Configuration: Concealed within timber for enhanced fire resistance
  • Precision Fit: Designed for CNC-machined glulam and other engineered wood members

Simpson Strong-Tie CBH2.37X9.75H-KT Applications

  • Mass timber construction projects requiring concealed connections
  • Architectural builds emphasizing both aesthetics and structural strength

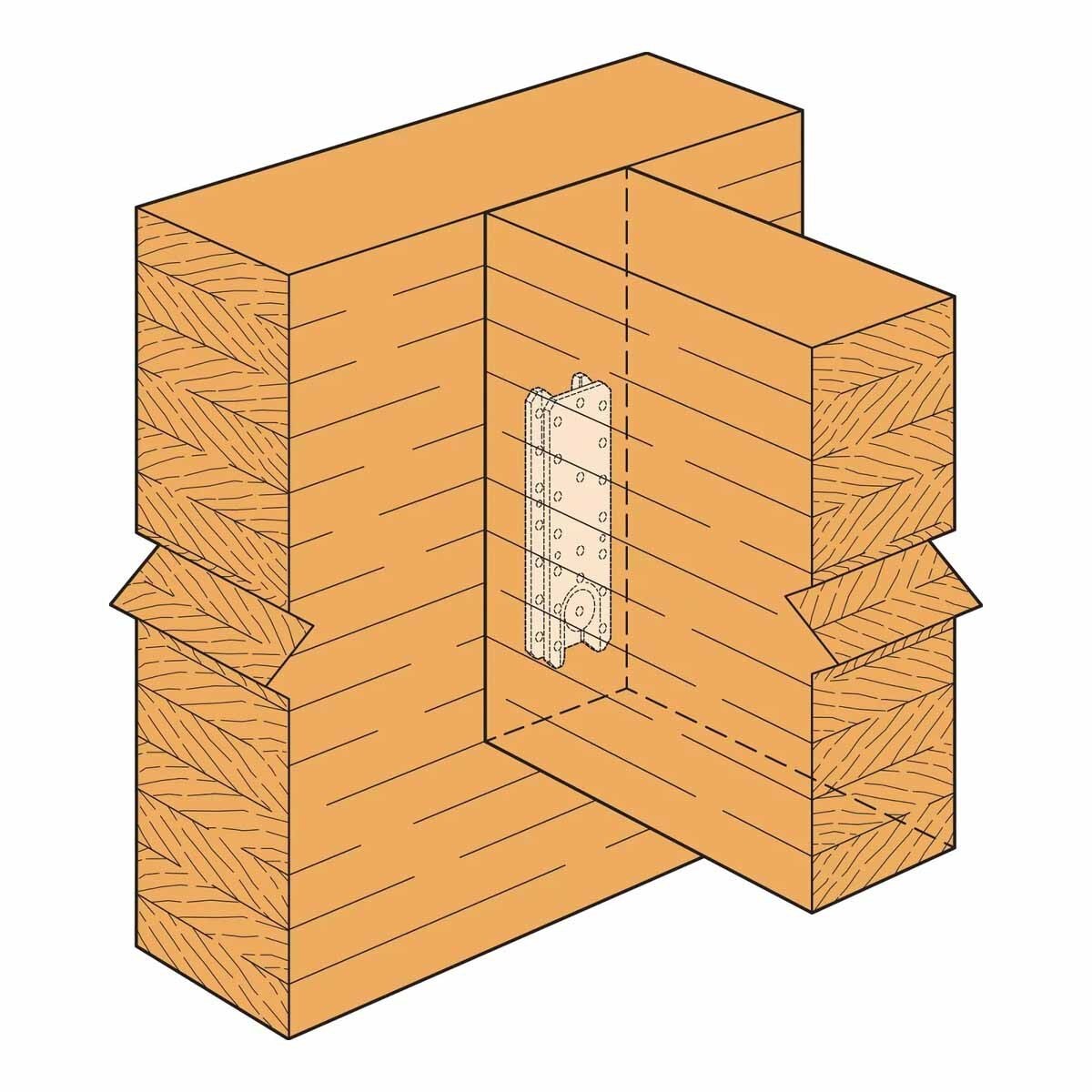

  • Beam-to-column or beam-to-beam concealed joint systems

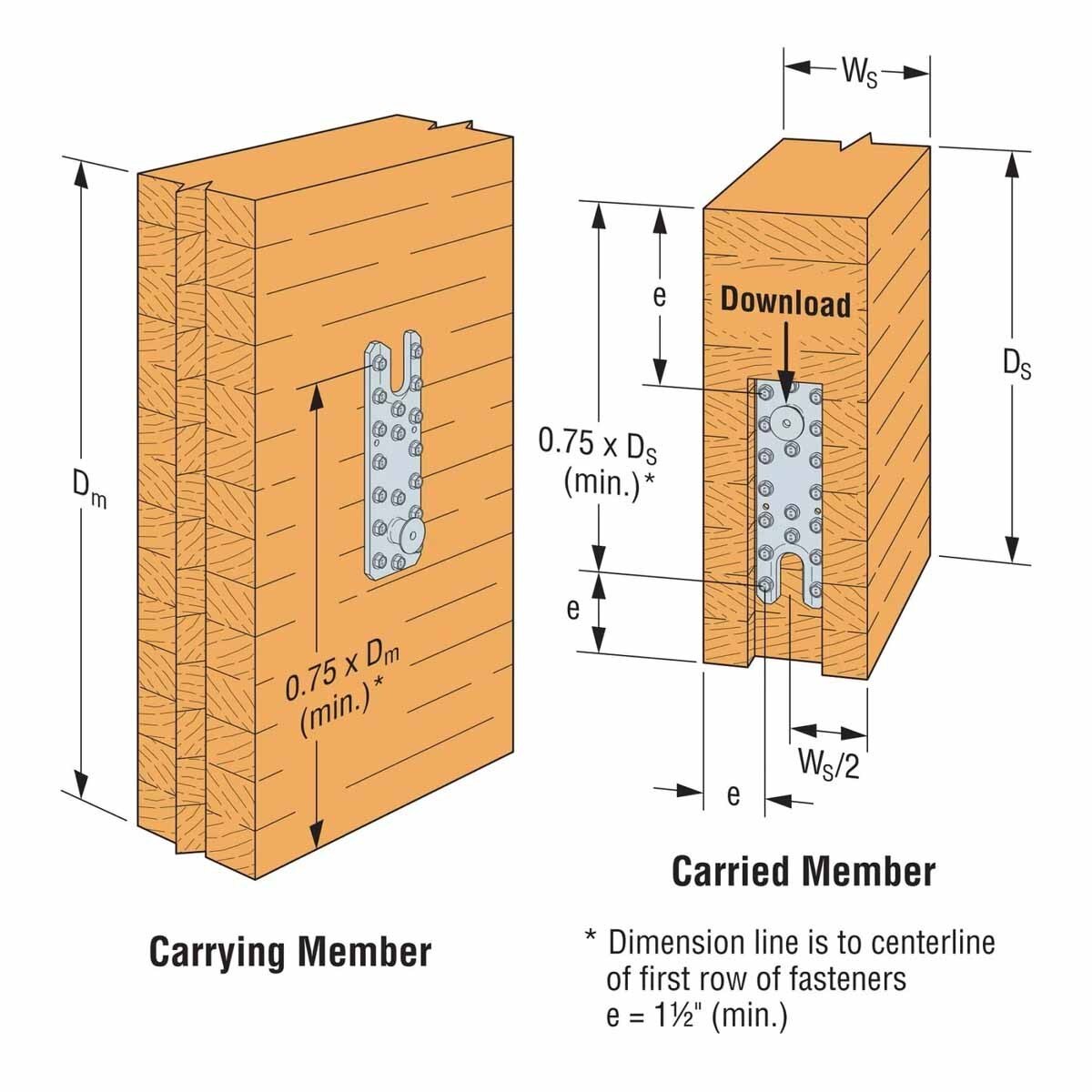

Simpson Strong-Tie CBH2.37X9.75H-KT Installation Overview

  1. Prep the Timber: CNC-machine both beam and column members to fit the CBH hardware.

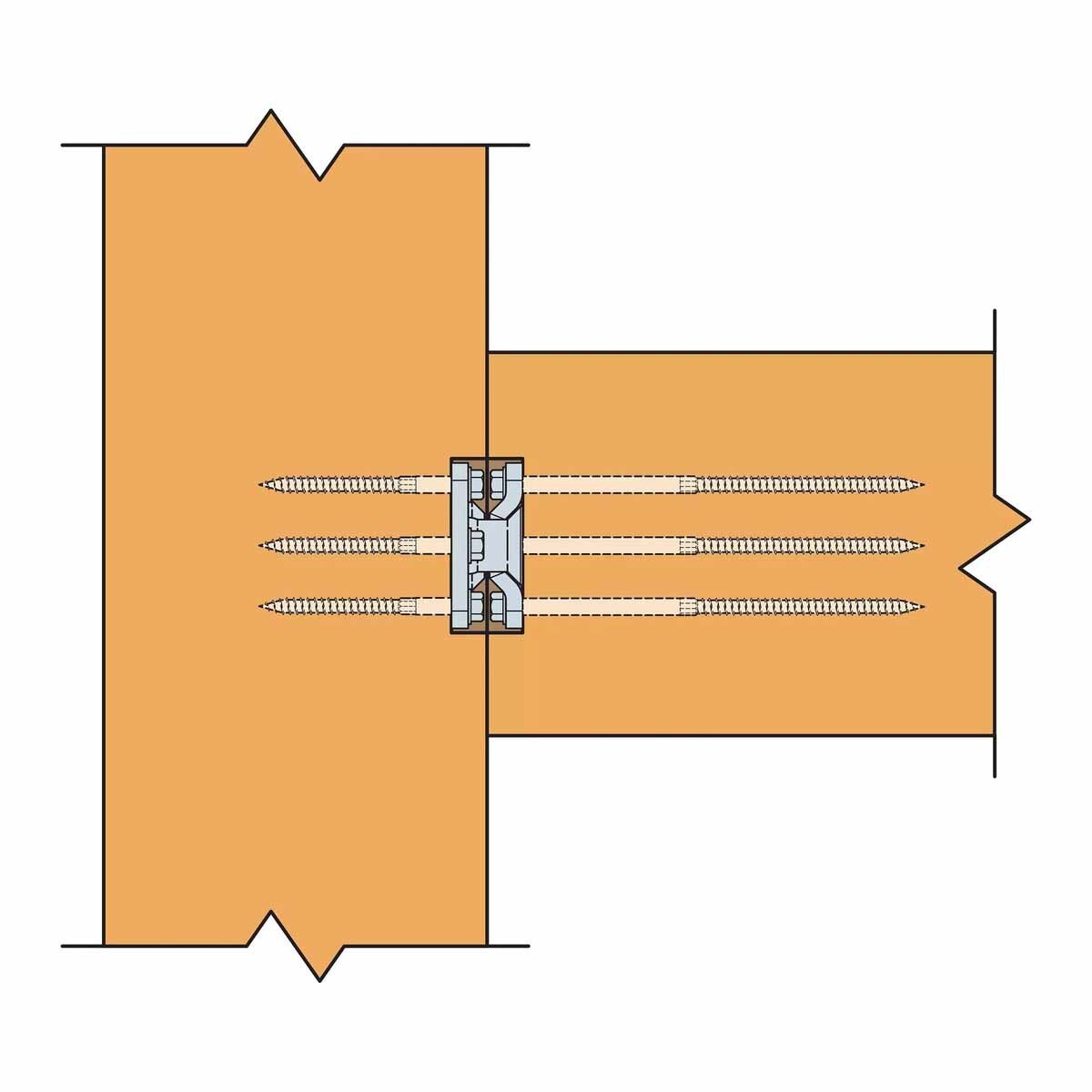

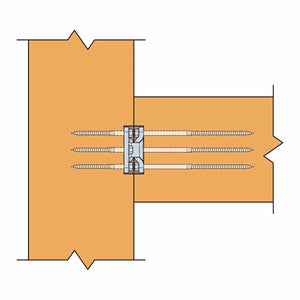

  2. Install Hanger Plates: Fasten each plate to the beam and column using included SDS screws.

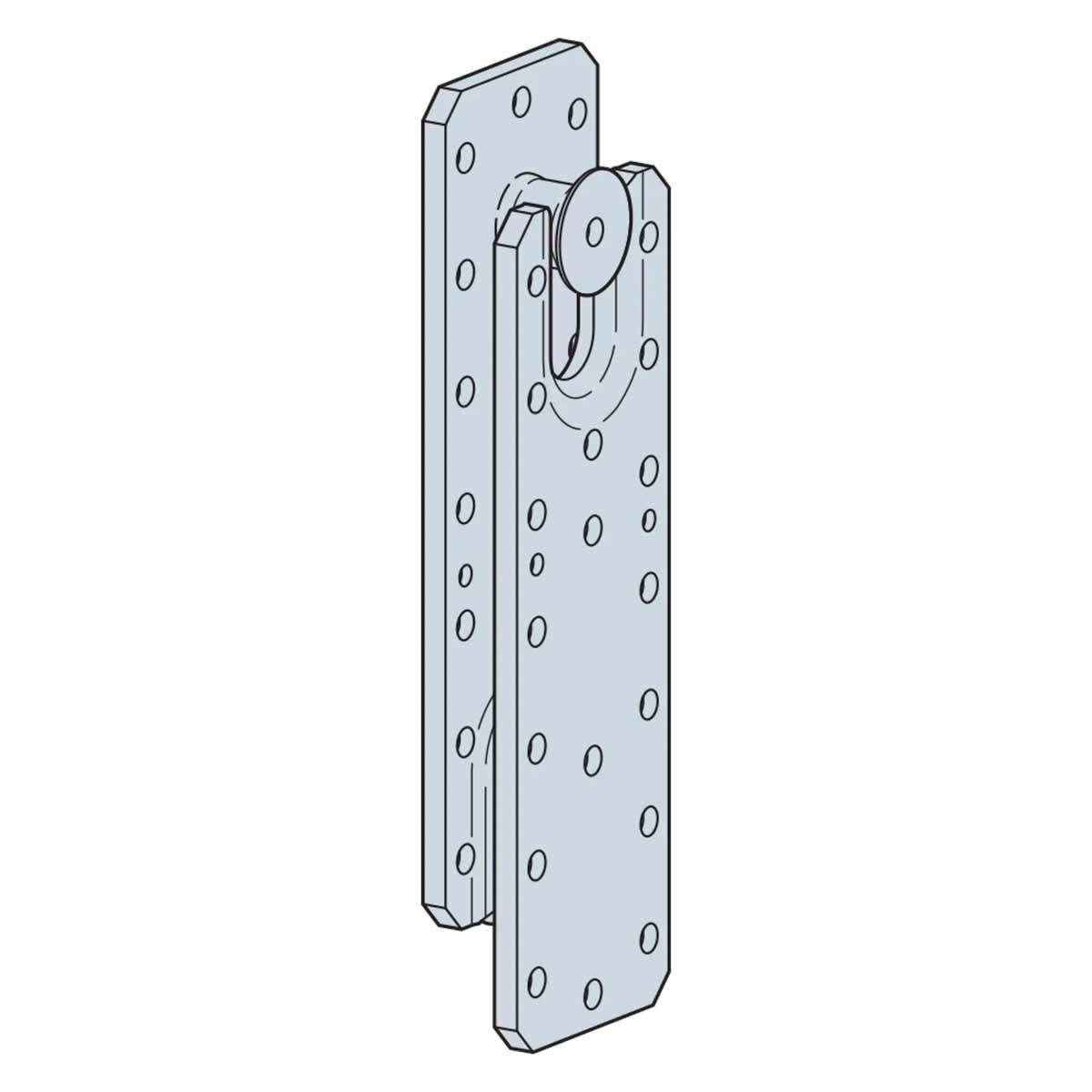

  3. Mate Components: Slide the studded plate into the slotted plate at the jobsite to lock into place.
  4. Check Alignment: Confirm a tight fit and secure connection per engineering specs.

Simpson Strong-Tie CBH2.37X9.75H-KT Specifications

Finish Hot Dip Galvanized
Length 9-3/4"
Material Carbon Steel
Fasteners required Not Included - See Guide Document
For Treated Lumber No
Manufacturer name Simpson Strong-Tie
Width 2-3/8"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
