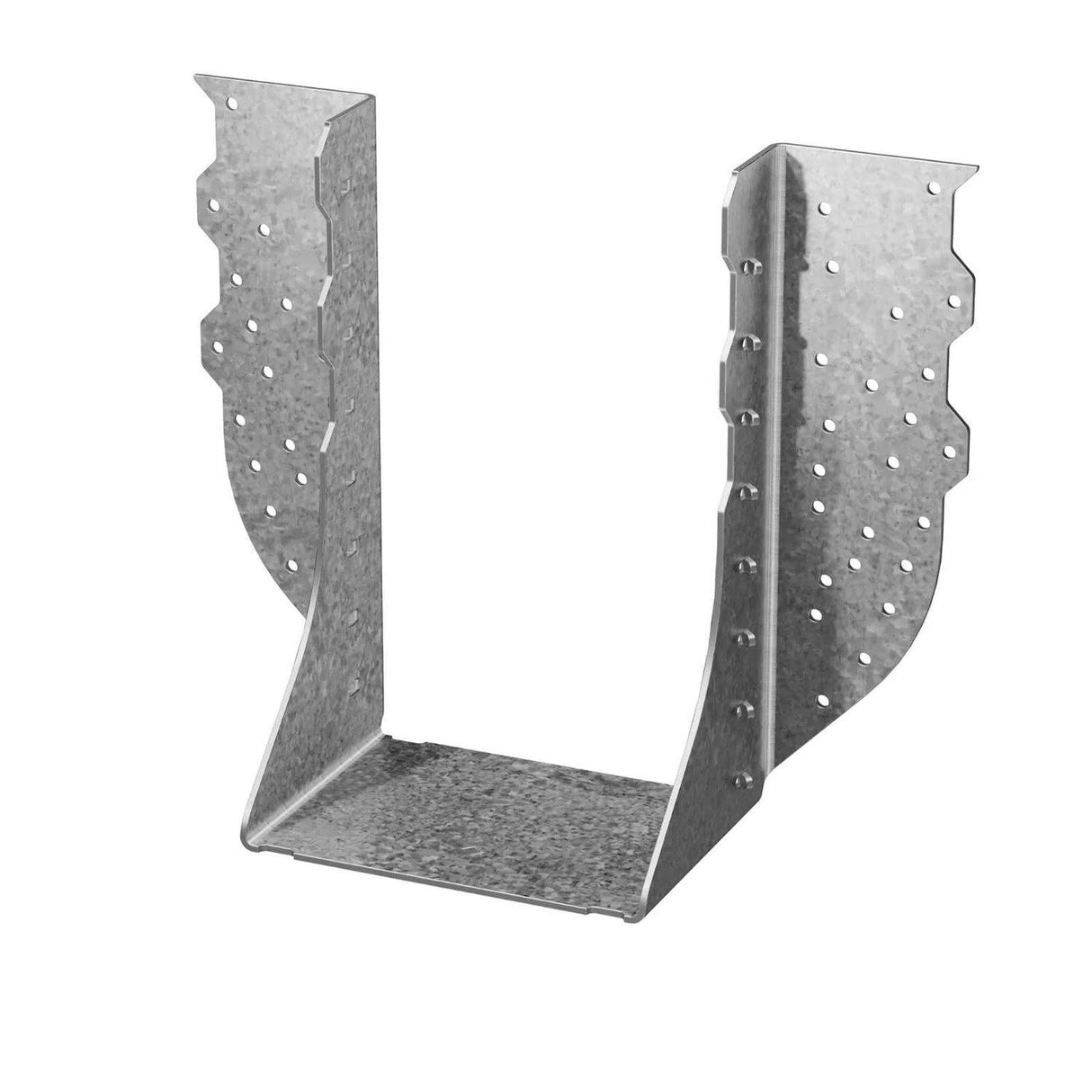

Simpson HGUS5.50/10 Description
The Simpson HGUS5.50/10 is a heavy-duty galvanized face-mount joist hanger designed for engineered wood applications, offering robust support and durability.
Simpson HGUS5.50/10 Includes
- (1) Heavy-Duty Galvanized Face-Mount Joist Hanger for Engineered Wood
Simpson HGUS5.50/10 Features
- Can be installed after the beam is secured in place
- HGUS-series hangers are tested, load rated and code compliant
- High Load Capacity: Crafted to support substantial weights, making it ideal for heavy-duty projects
- Double-Shear Nailing: This design innovation distributes the load through two points on each joist nail, providing greater strength
- Durable Construction: Manufactured from 12-gauge galvanized steel, ensuring durability and corrosion resistance
Simpson HGUS5.50/10 Applications
- Residential Construction: Provides secure connections for beams and girders in homes, enhancing structural integrity
- Commercial Projects: Supports heavy loads in commercial buildings, ensuring compliance with stringent building codes
- Deck Construction: Offers reliable support for deck beams, contributing to the safety and longevity of outdoor structures
- Timber Framing: Ideal for use in timber-framed structures, facilitating strong and stable joints
Simpson HGUS5.50/10 Installation Overview
- Use all specified fasteners; see General Notes
- Joist nails must be driven at an angle through the joist or truss into the header to achieve the table loads
- Not designed for welded or nailer applications
- Do not use double-shear hangers with I-joists
- With 3x carrying members: when 0.162" x 3 1/2" nails are specified, use 0.162" x 2 1/2" nails into the header and 0.162" x 3 1/2" nails into the joist with no load reduction
- With 2x carrying members: when 0.162" x 3 1/2" nails are specified, use 0.148" x 1 1/2" nails into the header and 0.148" x 3" nails into the joist and reduce the load to 0.64 of the table values
Simpson HGUS5.50/10 Specifications
| Material | 12 ga. |
| Finish | G90 Galvanized |
| Height | 8-15/16" |
| Width | 5-1/2" |
| Joist size | 5-1/2" X 10" |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
