Simpson Strong-Tie HSKP5.75X14.5KT (5-3/4" x 14-1/2") Heavy Seated Knife Plate Hanger Kit - Steel
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HSKP5.75X14.5KT (5-3/4" x 14-1/2") Hea...
Key Specifications
Description
Description
Simpson Strong-Tie HSKP5.75X14.5KT Description
The HSKP5.75X14.5KT is a high-capacity, concealed beam hanger kit engineered for mass timber construction, offering superior structural performance and a clean, exposed-wood look.

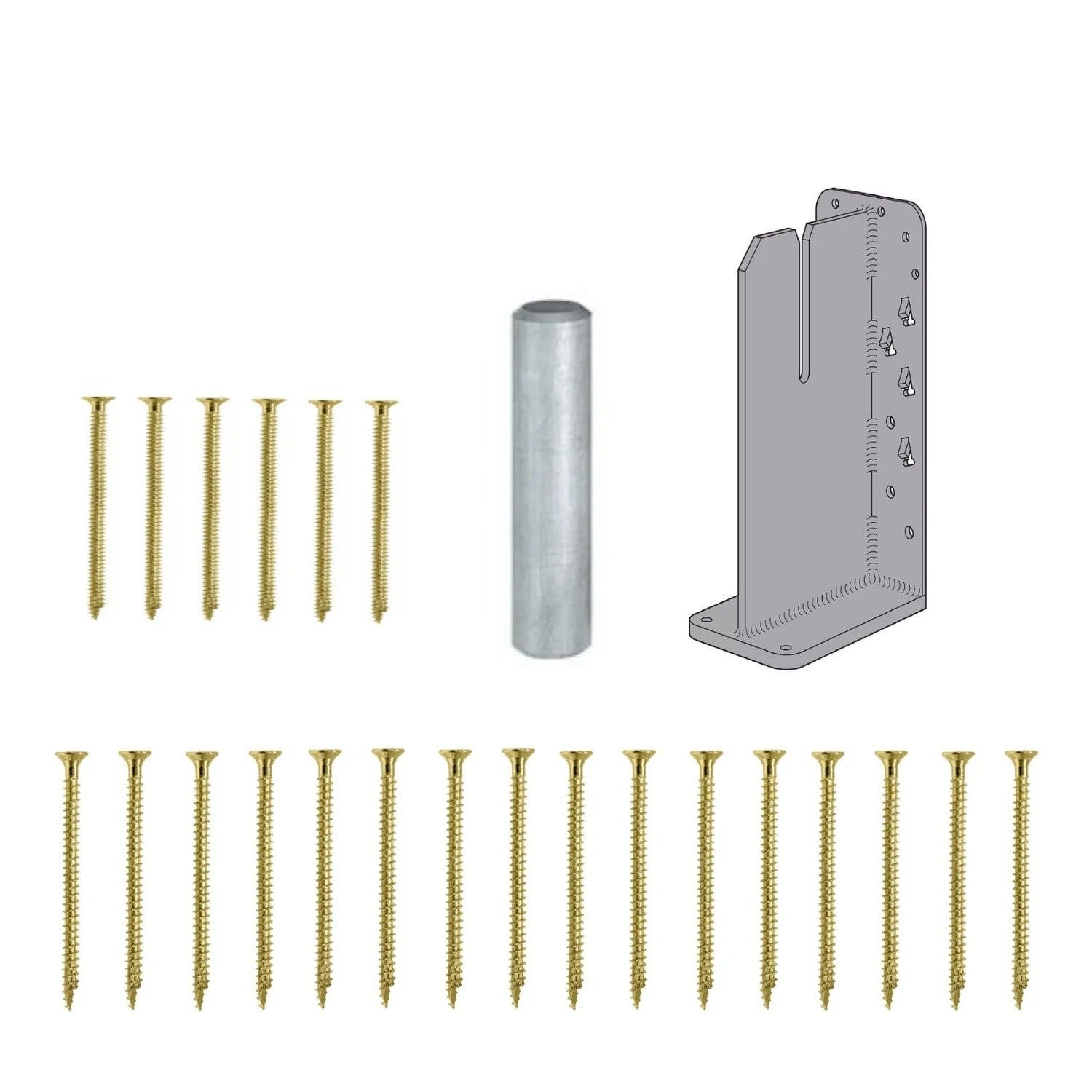

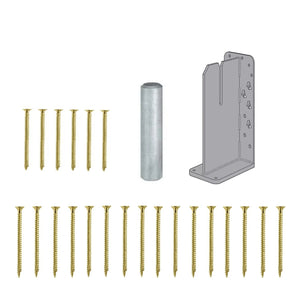

Simpson Strong-Tie HSKP5.75X14.5KT Includes

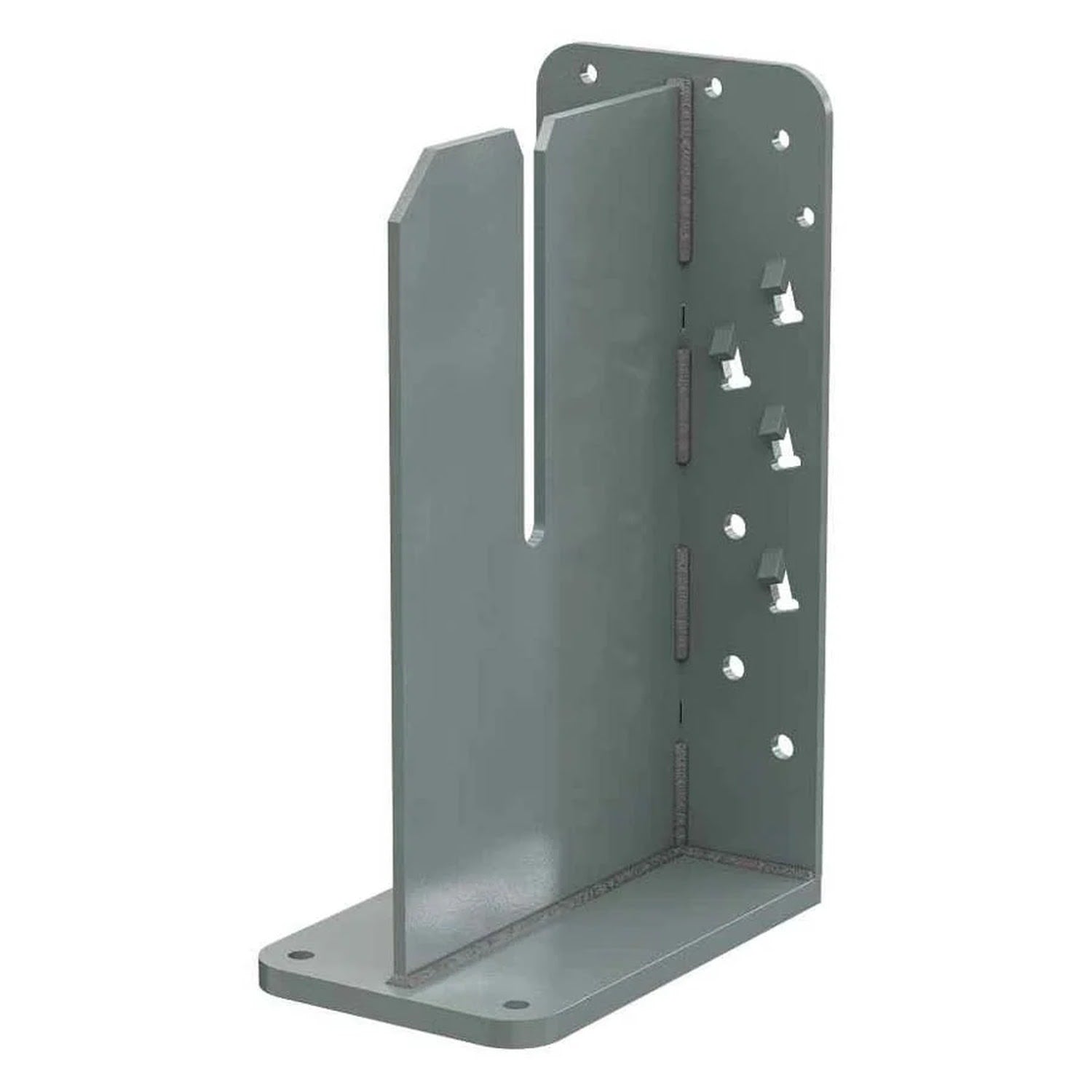

- (1) HSKP5.75X14.5 Heavy Seated Knife Plate
- (1) CJTPL 1/2" Dia. Steel Dowel
- (16) SDCF27614 0.390" x 6-1/4" Strong-Drive SDCF Timber-CF Screws
- (6) SDCF22858 0.315" x 8-5/8" Strong-Drive SDCF Timber-CF Screws
Simpson Strong-Tie HSKP5.75X14.5KT Features
- High load capacity rated up to 32 kips
- Concealed aesthetic for a clean architectural finish
- Two-hour fire resistance rating
- Patented tab design for angled fastener installation
- Factory-ready for offsite fabrication and fast installation
Simpson Strong-Tie HSKP5.75X14.5KT Applications

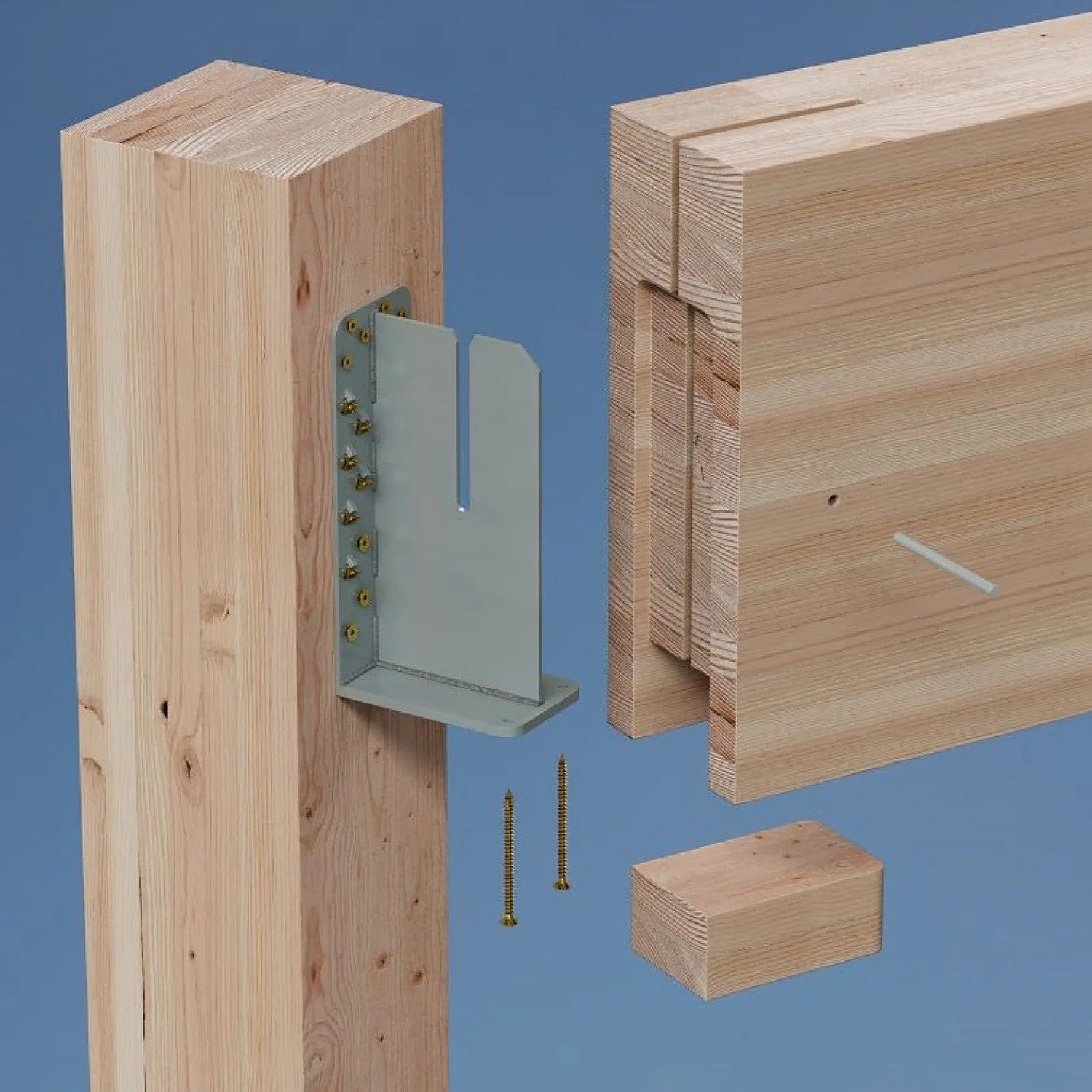

- Concealed beam-to-column connections in exposed timber frames
- Beam splicing and inline joins in engineered wood structures
- Wood-to-steel beam or column interfaces in hybrid builds
Simpson Strong-Tie HSKP5.75X14.5KT Installation Overview
- Position the HSKP knife plate at the beam seat location on the supporting structure
- Secure the knife plate using the provided screws as per the installation guide
- Ensure all connections are tight and aligned for optimal performance
Simpson Strong-Tie HSKP5.75X14.5KT Specifications
| Finish | Gray Paint |
| Material | Painted Steel |
| Weight | 21.4 lb |
NOTE: When installing SDCF screws for the HSKP connection, do not exceed recommended seating torque values.
