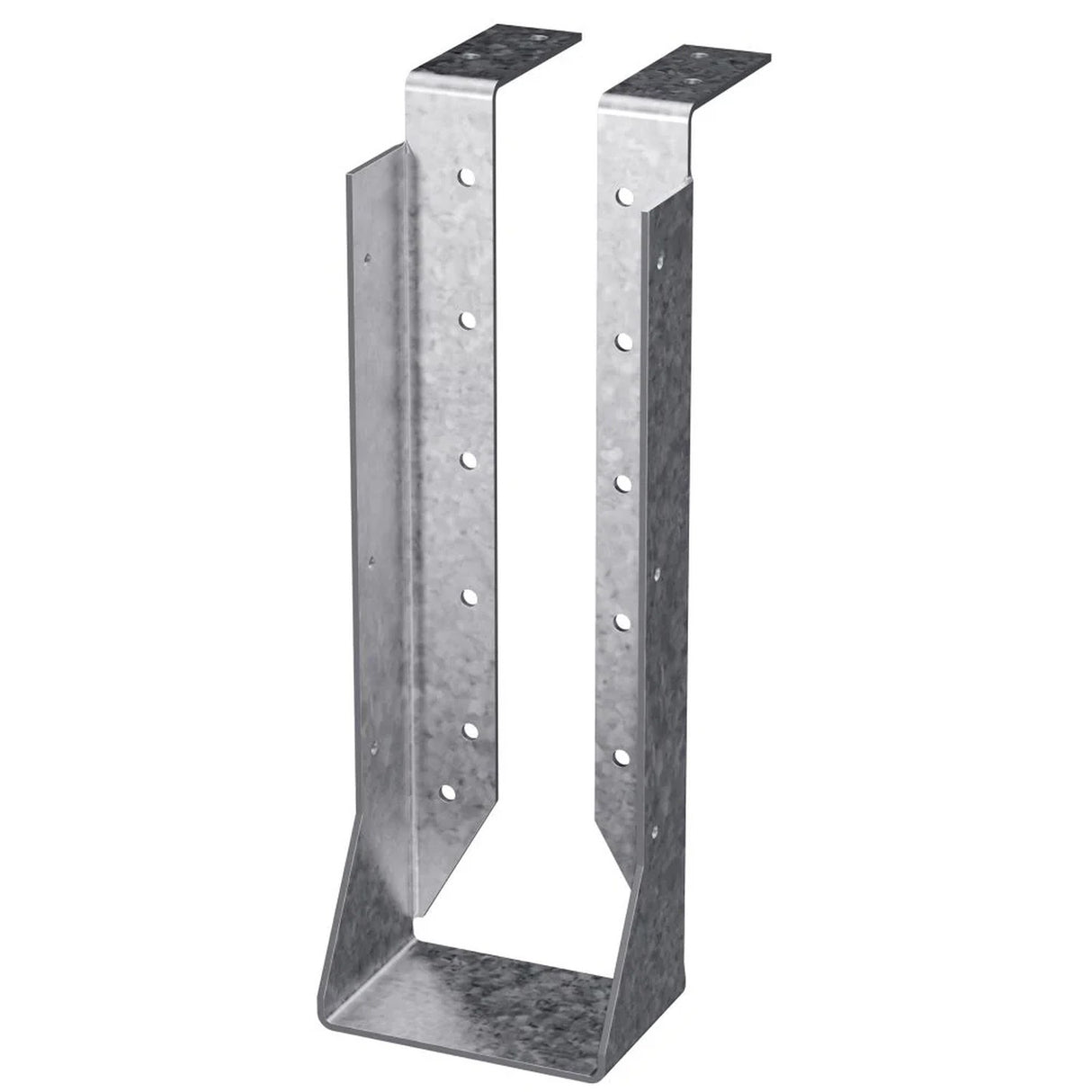

Simpson Strong-Tie HUC412TF (4" x 12") Heavy Top-Flange Hanger with Concealed Flanges
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HUC412TF (4" x 12") Heavy Top-Flange H...
Key Specifications
Description
Description
Simpson Strong-Tie HUC412TF Description
The HUC412TF Concealed Top-Flange Joist Hanger is designed for securely attaching joists to beams or ledgers, offering a clean aesthetic and robust support.
Simpson Strong-Tie HUC412TF Includes
- (1) Concealed Top-Flange Joist Hanger
Simpson Strong-Tie HUC412TF Features
- Concealed Flange Design for seamless aesthetic
- Heavy-Duty Construction with 12-gauge steel
- G90 Galvanized Finish for corrosion resistance
Simpson Strong-Tie HUC412TF Applications
- Residential and Commercial Use: Suitable for floors, ceilings, and roofs
- End-of-Wall Installations: Maintains strong concealed connections
- Corner Joist Connections: Ensures stability with a clean look
Simpson Strong-Tie HUC412TF Installation Overview
- Use all specified fasteners according to manufacturer guidelines
- Minimum recommended header or ledger size is 3 1/2 inches
- Cannot be modified for sloped or skewed seat applications
Simpson Strong-Tie HUC412TF Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (16) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 11" |
| Joist size | 4" X 12" |
| Thickness | 12 Gauge |
| Width | 3 9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
