Simpson Hangers  |  SKU: HWPH3.56/11.88  |  Barcode: 707392008583

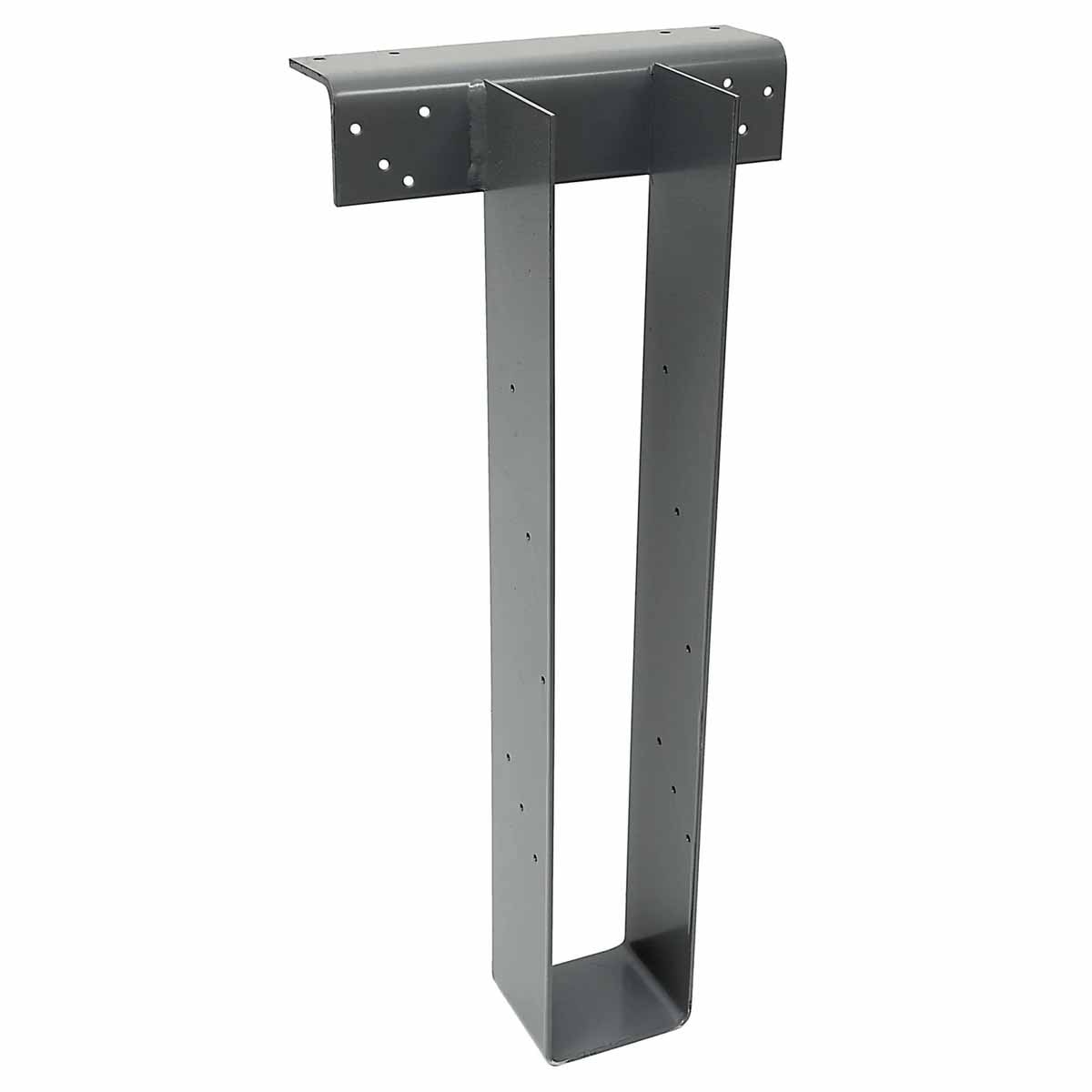

Simpson Strong-Tie HWPH3.56/11.88 High Wind Uplift Purlin Heavy Hanger for Joist-to-Purlin Connections

$47.07
Shipping calculated at checkout.

Bulk Pricing Available

Need to place a large order? Request a quote

Key Specifications

Finish: Gray Paint
For treated lumber: No
Material: Carbon Steel
Type: Purlin Hanger

Description

Simpson Strong-Tie HWPH3.56/11.88 Description

The Simpson Strong-Tie HWPH Heavy High-Wind Purlin Hangers provide exceptional support for joist-to-purlin and joist-to-beam connections in wood and cold-formed steel construction. Designed to withstand high-wind forces, these heavy-duty top-flange hangers enhance structural integrity, making them ideal for demanding environments.

Simpson Strong-Tie HWPH3.56/11.88 Includes

  • (1) Simpson HWPH3.56/11.88 High Wind Uplift Purlin Heavy Hanger

Simpson Strong-Tie HWPH3.56/11.88 Features

  • Enhanced Uplift Capacity: Designed to provide superior resistance to high-wind uplift forces.
  • Customizable Flange Options: Available with open, closed, or offset top flange configurations for flexibility in design.
  • Sloped and Skewed Configurations: Can accommodate sloped headers up to 35° and skewed or sloped seats up to 45° for complex framing needs.
  • Heavy-Duty Steel Construction: Built with a solid one-piece top flange made from 3-gauge steel and a 7-gauge stirrup for maximum durability.

Simpson Strong-Tie HWPH3.56/11.88 Applications

  • High-Wind Zones: Ideal for regions prone to strong winds where added uplift resistance is critical.
  • Wood and Cold-Formed Steel Construction: Supports joist connections in both wood and steel frameworks.
  • Panelized Roof Systems: Ensures secure, stable connections in large-scale roofing projects.

Simpson Strong-Tie HWPH3.56/11.88 Installation Overview

  1. Joist Accommodation: Designed to account for natural joist shrinkage, maintaining a secure fit over time.
  2. Weld-On Applications: Can be welded onto steel members with a minimum 1 1/2-inch-long fillet weld on each side of the top flange, matching the hanger material thickness. Note: Uplift loads do not apply to welded installations.
  3. Multi-Ply Member Support: Compatible with multi-ply carried members, provided they are secured together before installation.

Simpson Strong-Tie HWPH3.56/11.88 Specifications

Finish Gray Paint
Material Carbon Steel
Fasteners required Hanger Heights From 6 to 15 - Top: (4) 0.162 x 3 ½ Face: (8) 0.162 x 3 ½ Joist: (10) 0.148 x 1 ½ Hanger Heights From 15 ¾ to 32 - Top: (4) 0.162 x 3 ½ Face: (8) 0.162 x 3 ½ Joist: (12) 0.148 x 1 ½
For Treated Lumber No

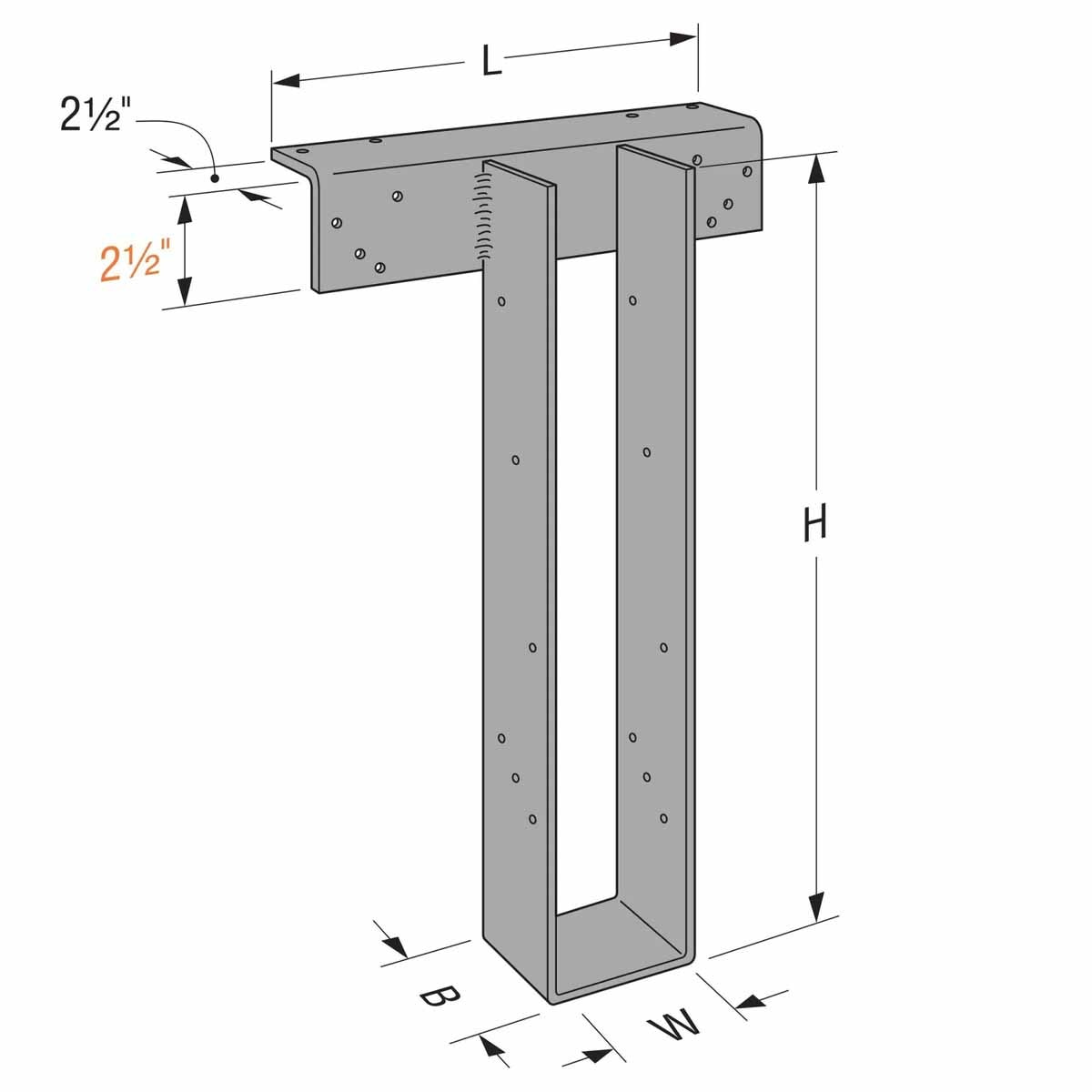

Height 11-7/8"
Width 3-9/16"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
