Simpson Strong-Tie LSSR210-2Z (3") 18Ga Light Slopeable/Skewable Rafter Hanger - ZMAX Finish
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie LSSR210-2Z (3") 18Ga Light Slopeable/Skewab...
Key Specifications
Description
Description
Simpson Strong-Tie LSSR210-2Z Description

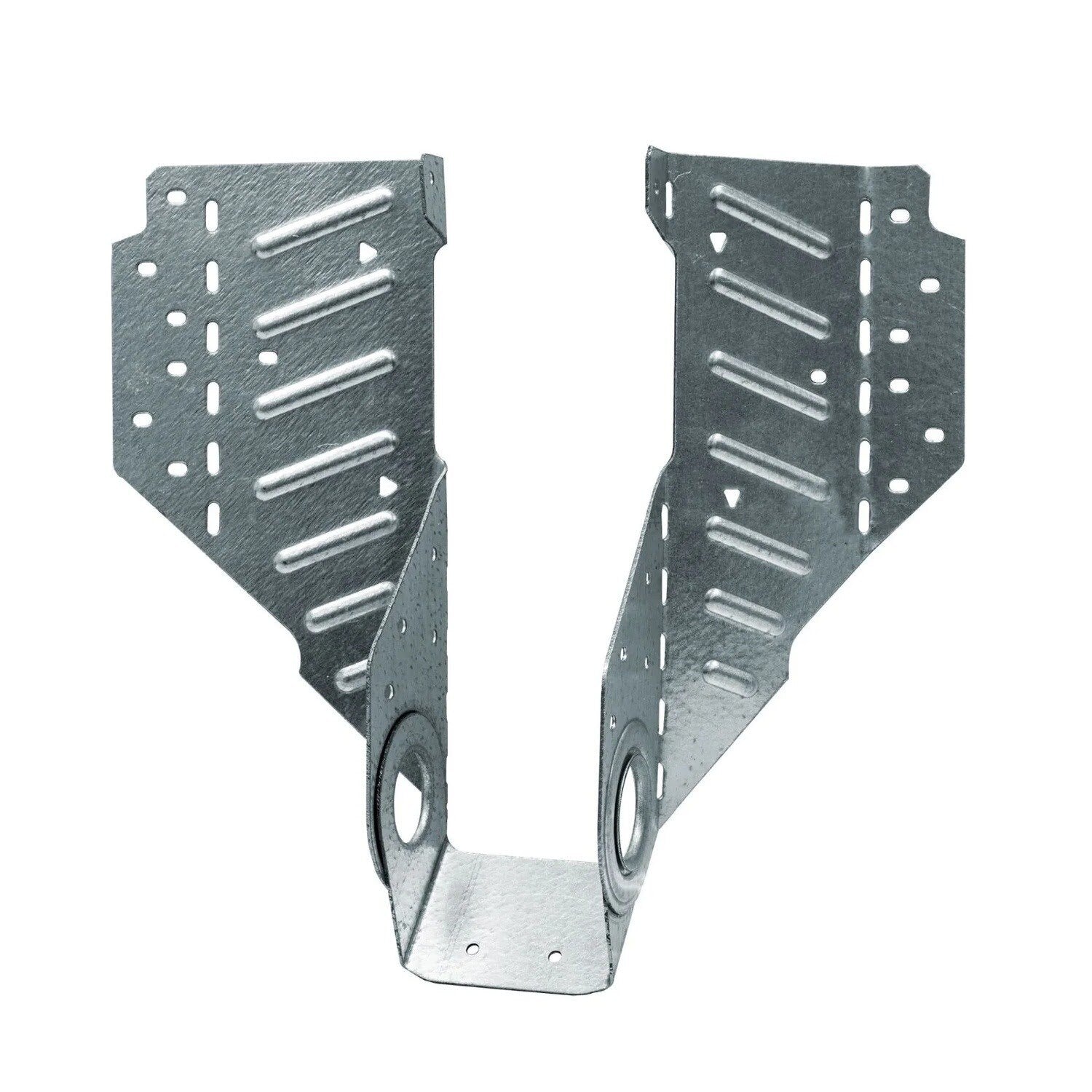

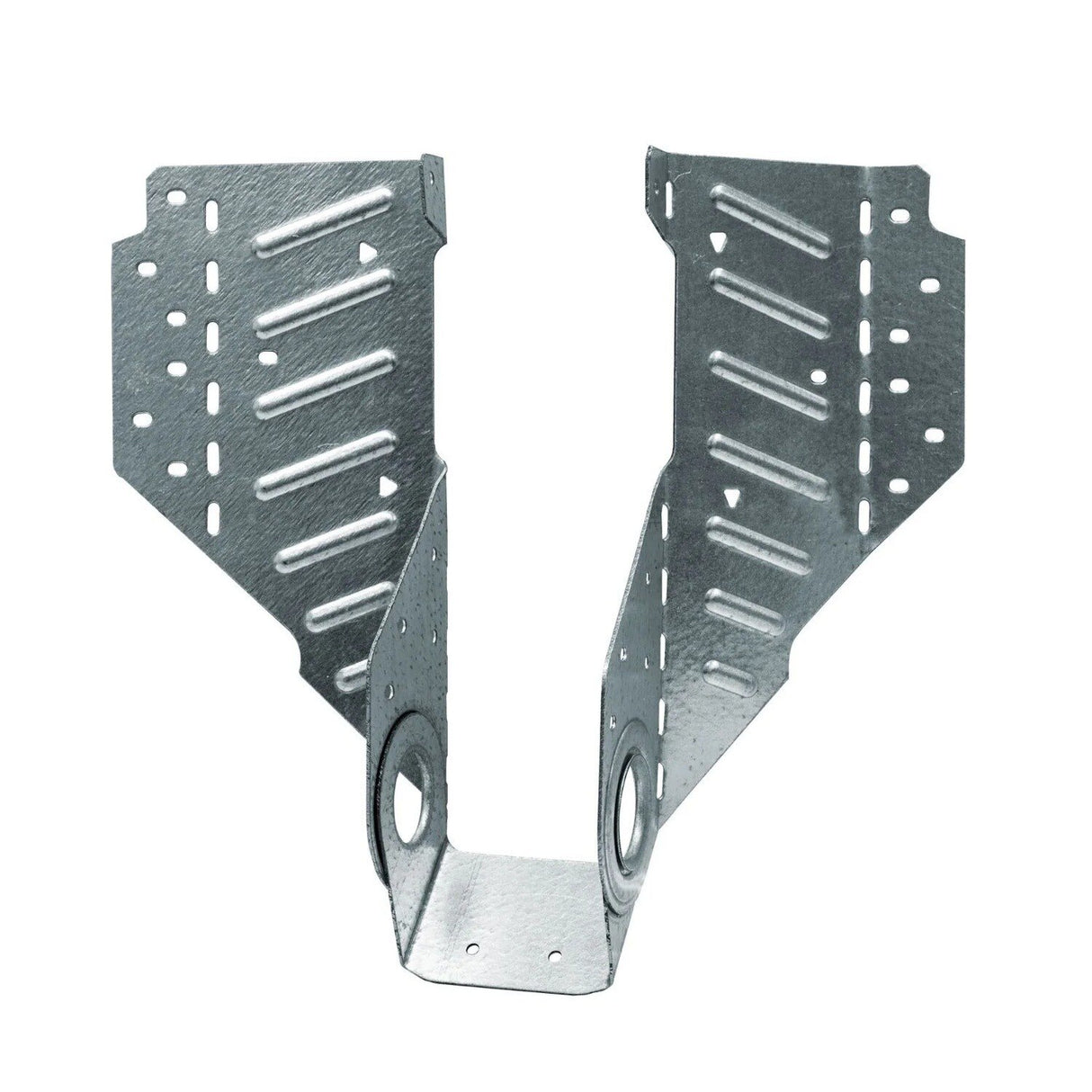

The Simpson LSSR210-2Z Field-Adjustable Rafter Hanger is designed for secure and flexible rafter connections, accommodating sloped and skewed applications with ease.
Simpson Strong-Tie LSSR210-2Z Includes
- (1) Field-Adjustable Rafter Hanger
Simpson Strong-Tie LSSR210-2Z Features

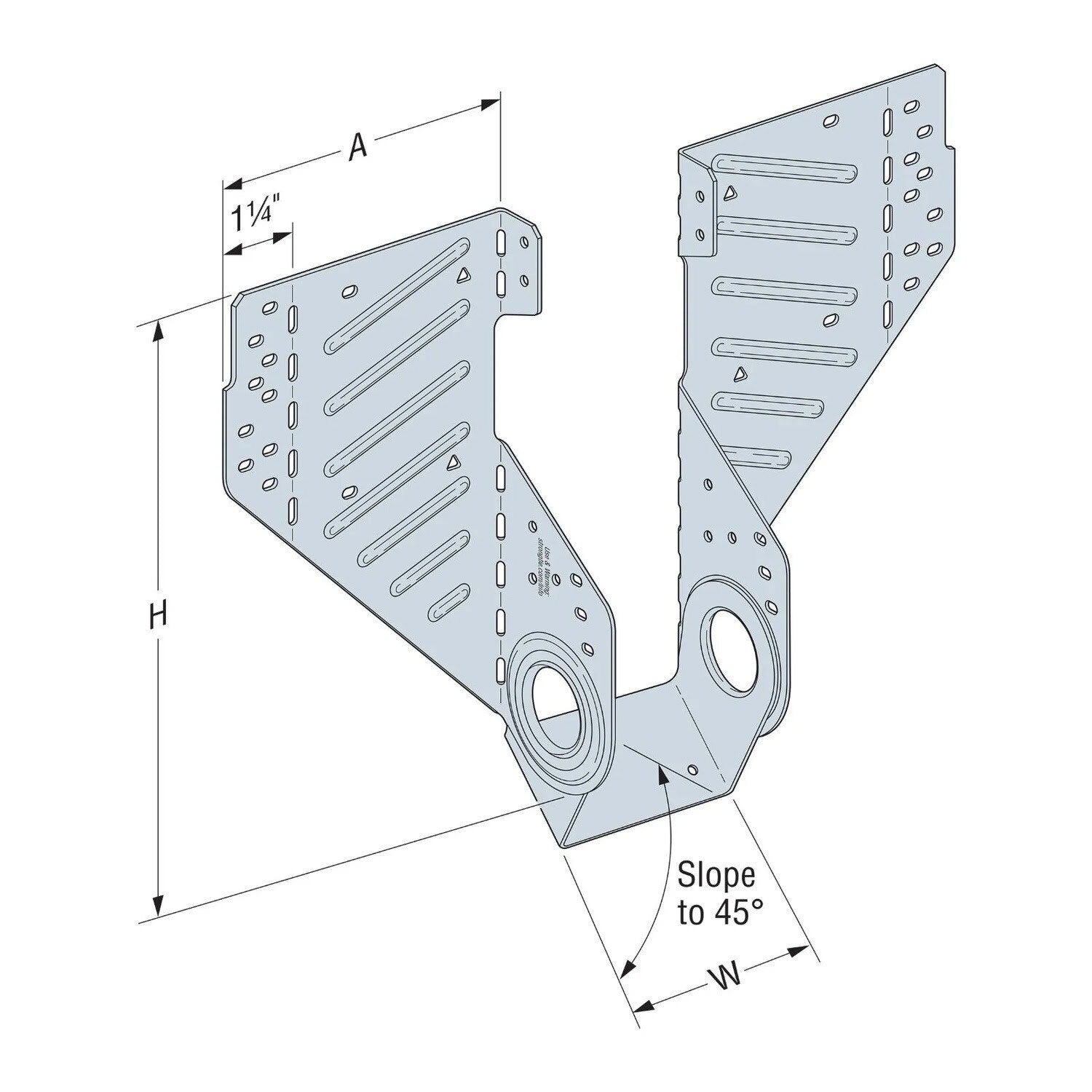

- Slope and Skew Adjustability: Accommodates up to a 45° skew and 45° slope.
- ZMAX Coating: Provides enhanced corrosion resistance.
- Reversible Design: Allows installation on either side of the rafter.
- No Special Tools Required: Simplifies installation with standard framing tools.
- High-Load Capacity: Ensures strong and reliable connections.
Simpson Strong-Tie LSSR210-2Z Applications

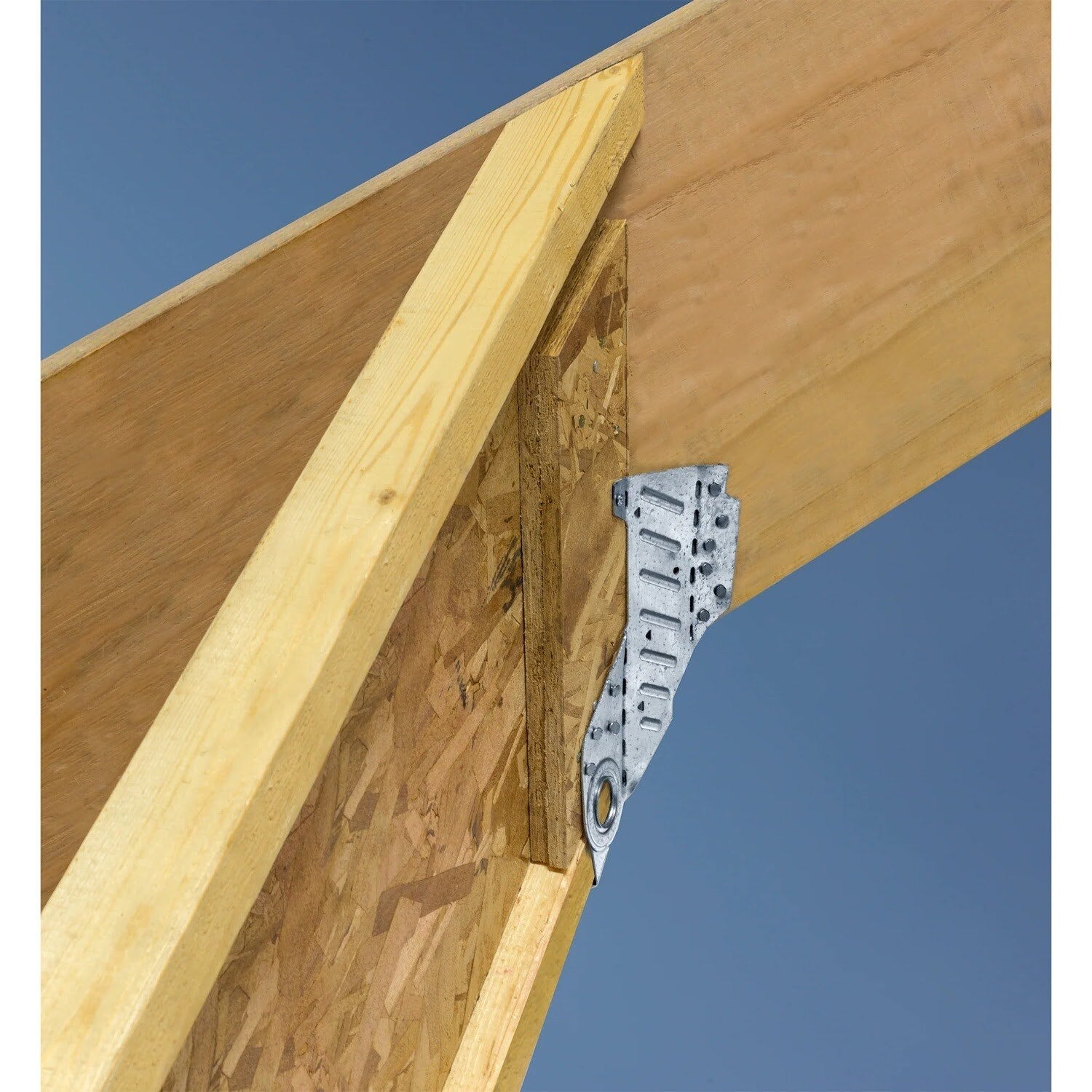

- Roof Framing: Ensures strong rafter-to-wall connections in sloped or skewed roof structures.
- Pergolas & Gazebos: Provides secure connections for outdoor structures.
- Deck Construction: Offers reliable support for rafters and beams.
- Timber Framing: Enhances stability in wood framing applications.
- Carports & Patio Covers: Delivers corrosion-resistant performance in outdoor structures.

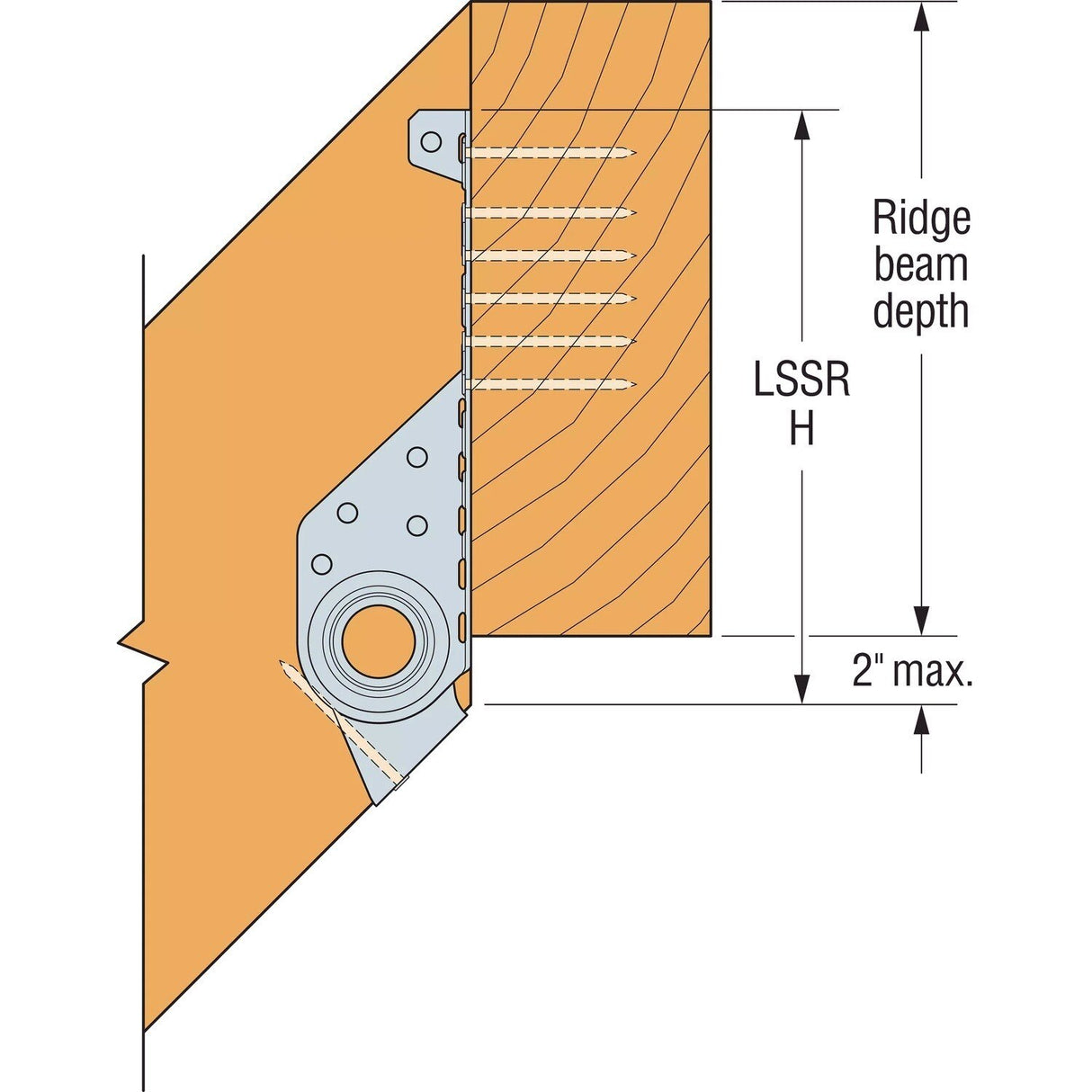

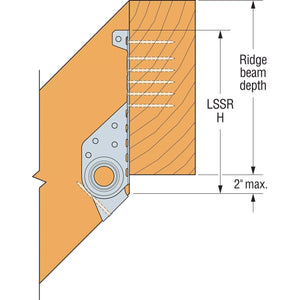

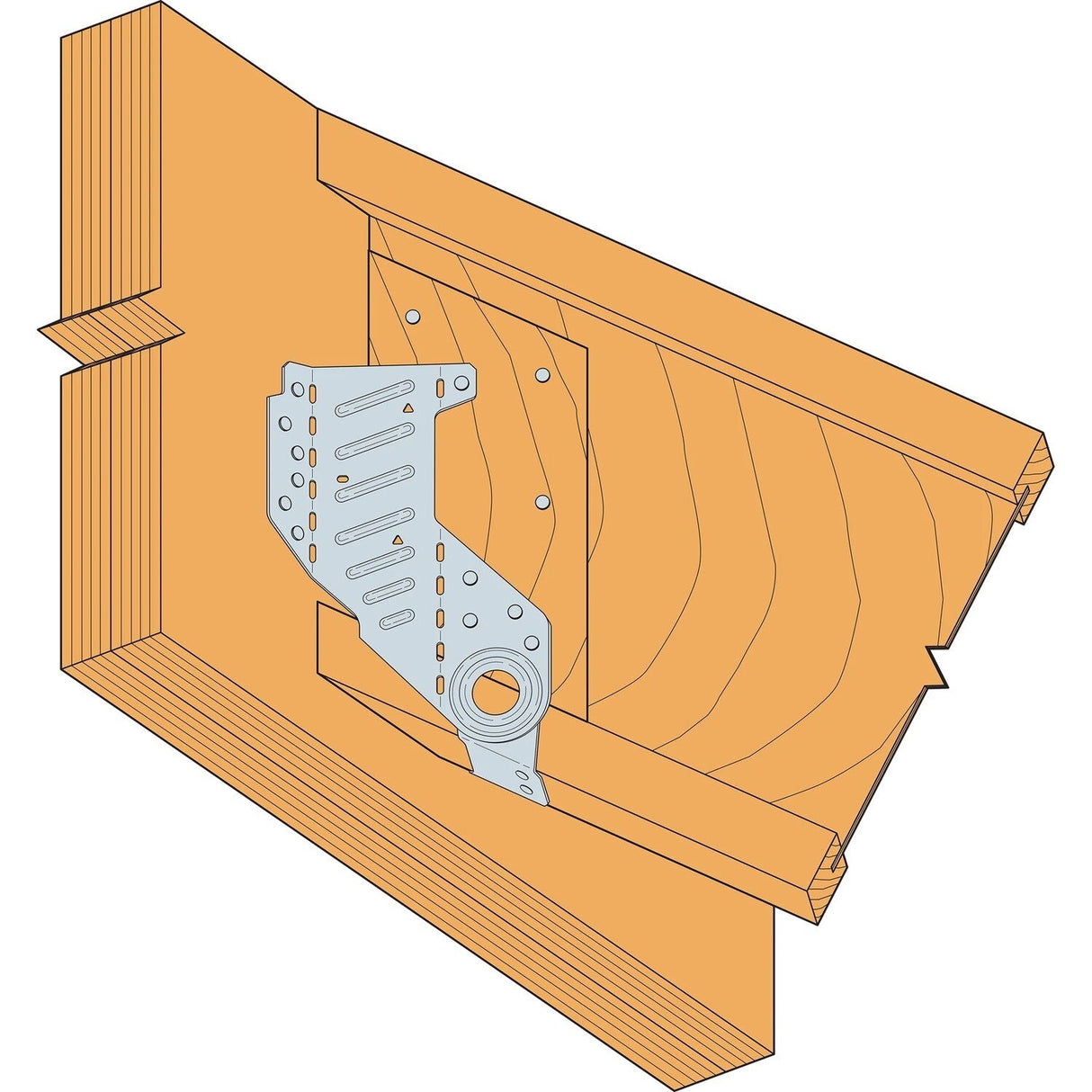

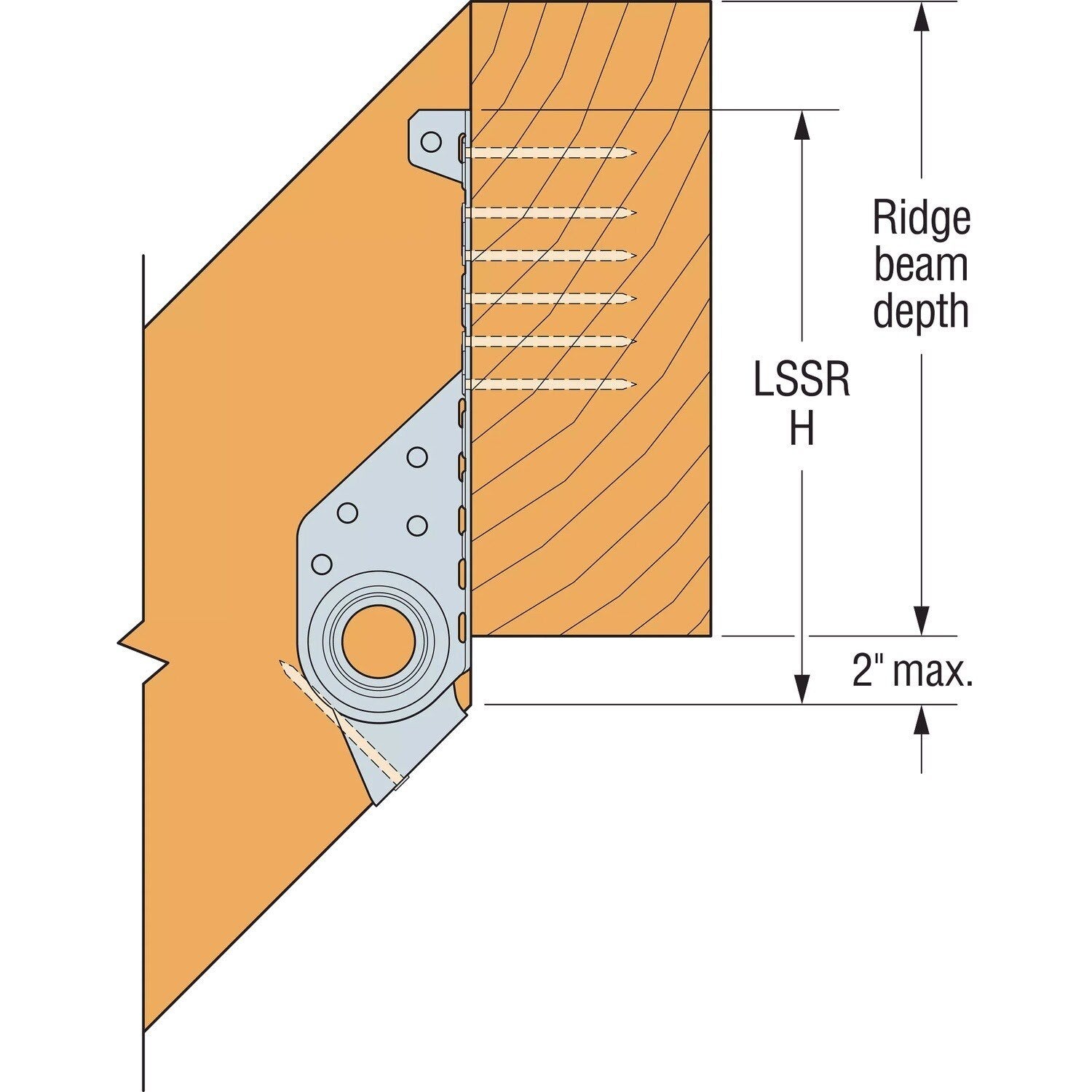

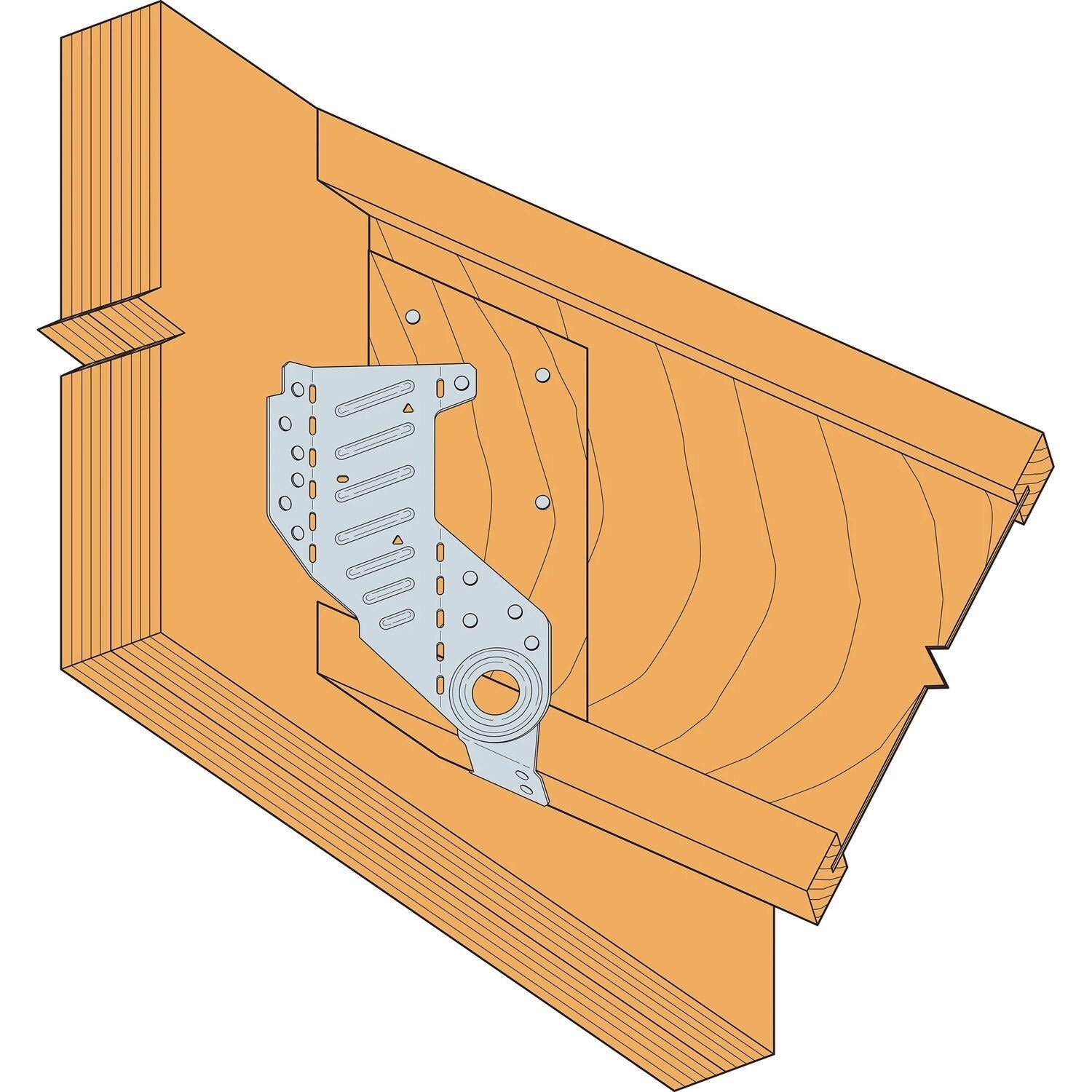

Simpson Strong-Tie LSSR210-2Z Installation Overview
- Use specified Simpson Strong-Tie nails or screws for optimal performance.

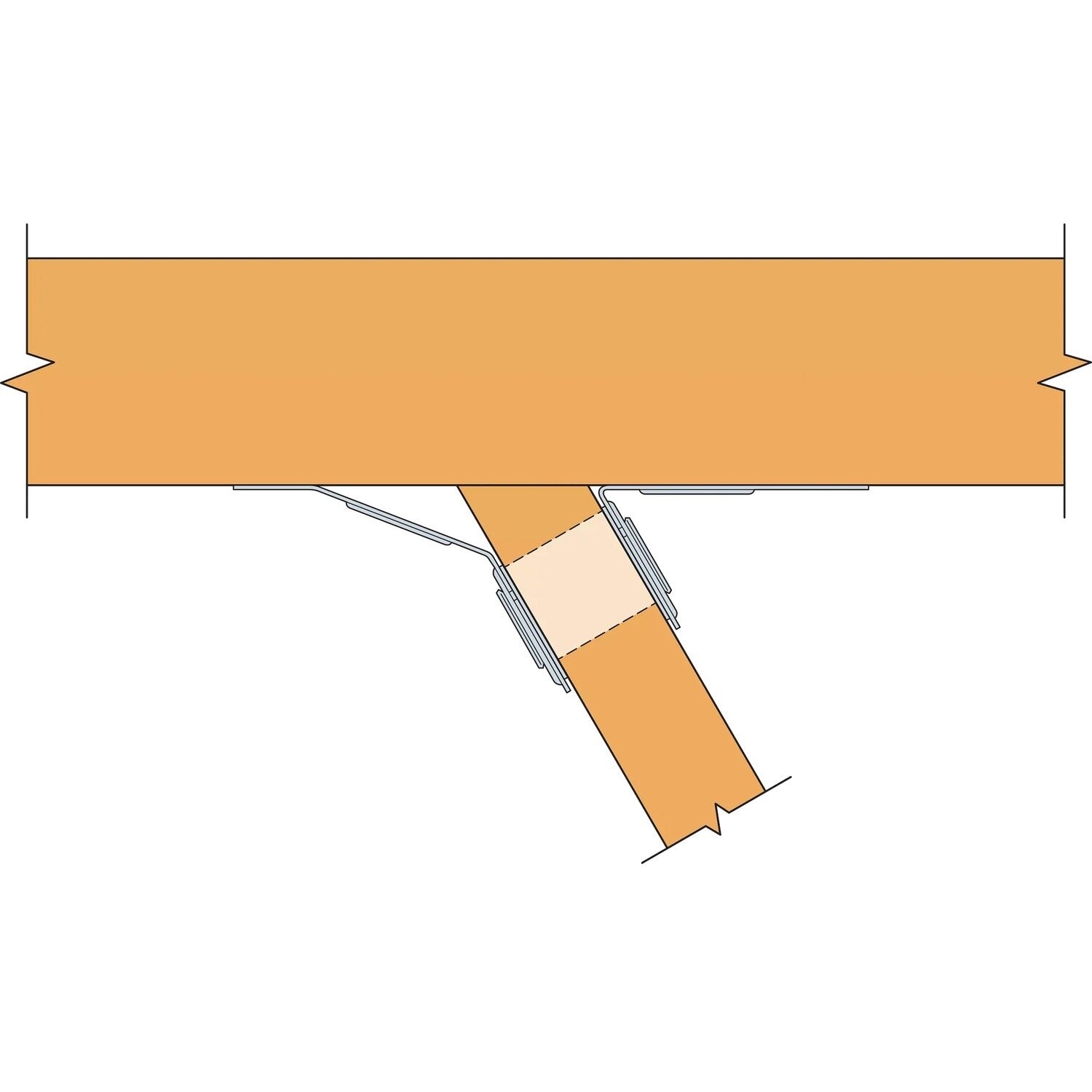

- Adjust flanges up to 45° for slope and skew applications.
- Install on either side of the rafter for versatility.
- Ensure compatibility with solid sawn and engineered wood.
Simpson Strong-Tie LSSR210-2Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (22) 0.162" x 2-1/2" Nails, Joist - (18) 0.162" x 2-1/2" Nails |
| For Treated Lumber | Yes |
| Height | 8-15/16" |
| Joist size | Double 2" X 10" |
| Width | 3-1/4" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
