Simpson Strong-Tie LSSR210Z (1-1/2") 18Ga Light Slopeable/Skewable Rafter Hanger - ZMAX Finish
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Key Specifications
Description
Description
Simpson LSSR210Z Description
The Simpson LSSR210Z Field Adjustable Rafter Hanger is designed for secure rafter connections, offering slope and skew adjustability up to 45 degrees and enhanced corrosion resistance with its ZMAX coating.
Simpson LSSR210Z Includes
- (1) Field Adjustable Rafter Hanger
Simpson LSSR210Z Features
- Slope and Skew Adjustability: Easily adapts to complex angles, accommodating up to a 45° skew and 45° slope.
- ZMAX Coating: Provides enhanced corrosion resistance, making it ideal for exterior and treated-wood applications.
- Reversible Design: Symmetrical construction allows for easy installation on either the left or right side of the rafter.
- No Special Tools Required: The field-adjustable flanges simplify installation with standard framing tools.
- High-Load Capacity: Engineered for strong and reliable rafter-to-wall and beam connections.
Simpson LSSR210Z Applications
- Roof Framing: Ensures strong, code-compliant rafter-to-wall connections in sloped or skewed roof structures.
- Pergolas & Gazebos: Provides secure, adjustable connections for decorative and functional outdoor structures.
- Deck Construction: Offers reliable support for rafters and beams in deck framing.
- Timber Framing: Enhances stability in solid sawn and engineered wood framing applications.
- Carports & Patio Covers: Delivers strong, corrosion-resistant performance in outdoor structures.
Simpson LSSR210Z Installation Overview
- Fasteners: Use specified Simpson Strong-Tie nails or screws for optimal performance and load capacity.

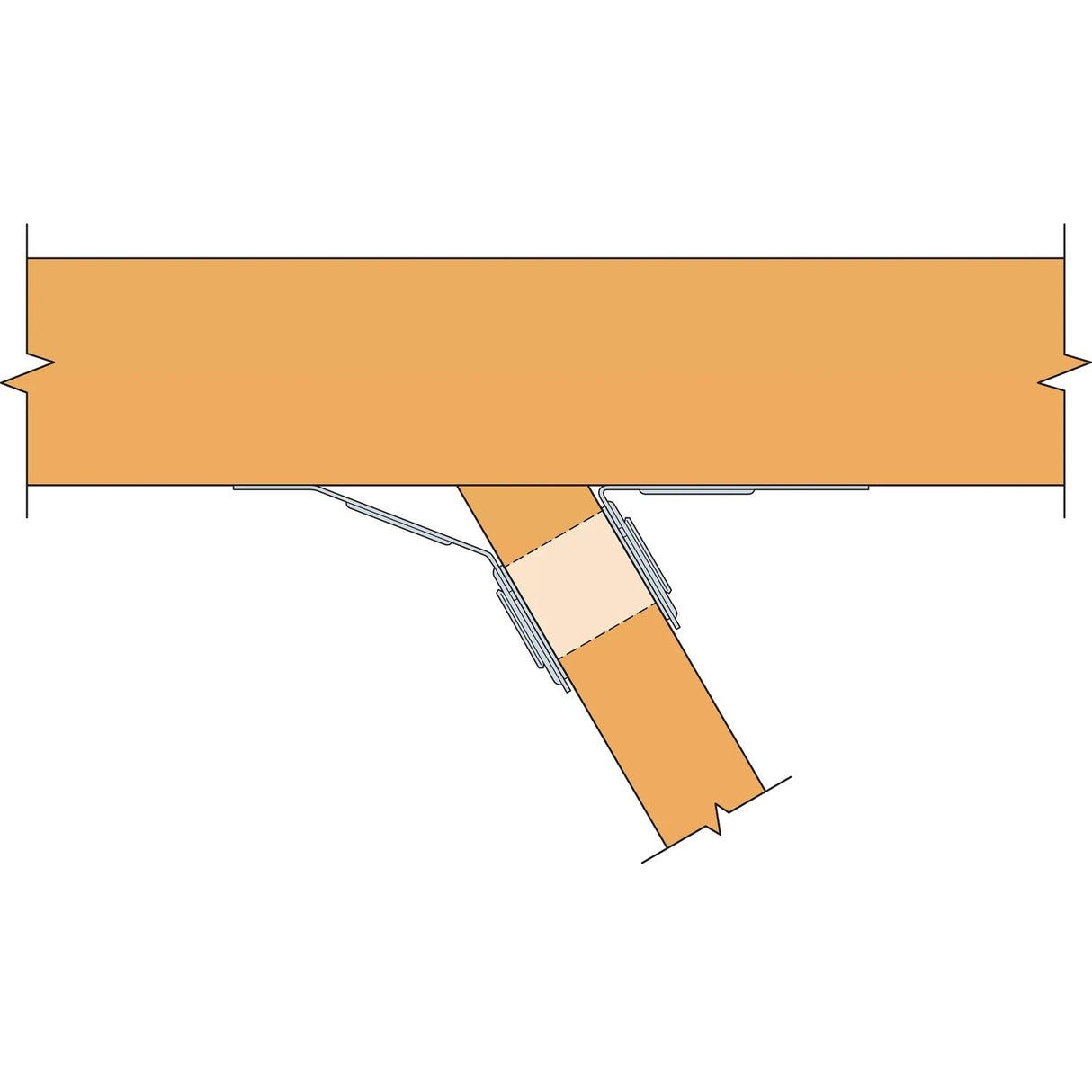

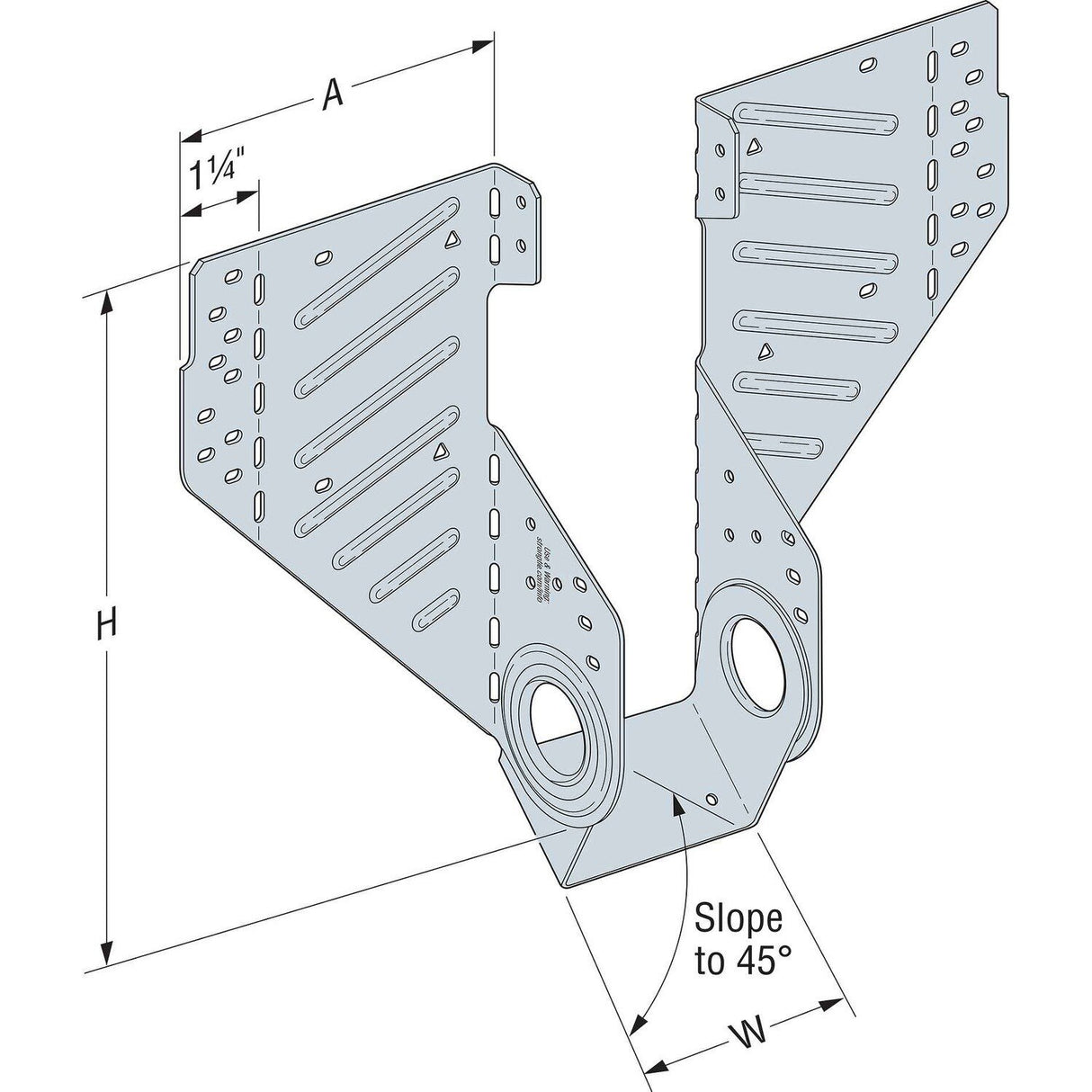

- Adjustability: Flanges can be field-adjusted up to 45° for both slope and skew applications.
- Reversible Orientation: The LSSR can be installed on either the left or right side of the rafter, eliminating the need for multiple part variations.
- Structural Compatibility: Designed for solid sawn and engineered wood, ensuring a secure and compliant connection.
Simpson LSSR210Z Specifications
Finish | ZMAX |
Material | Carbon Steel |
Height | 9-1/8" |
Joist size | 2" X 10" |
Width | 1-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
