Simpson Strong-Tie LUC26Z (2" x 6") Concealed Face Mount Joist Hanger
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie LUC26Z (2" x 6") Concealed Face Mount ...
Key Specifications
Description
Description

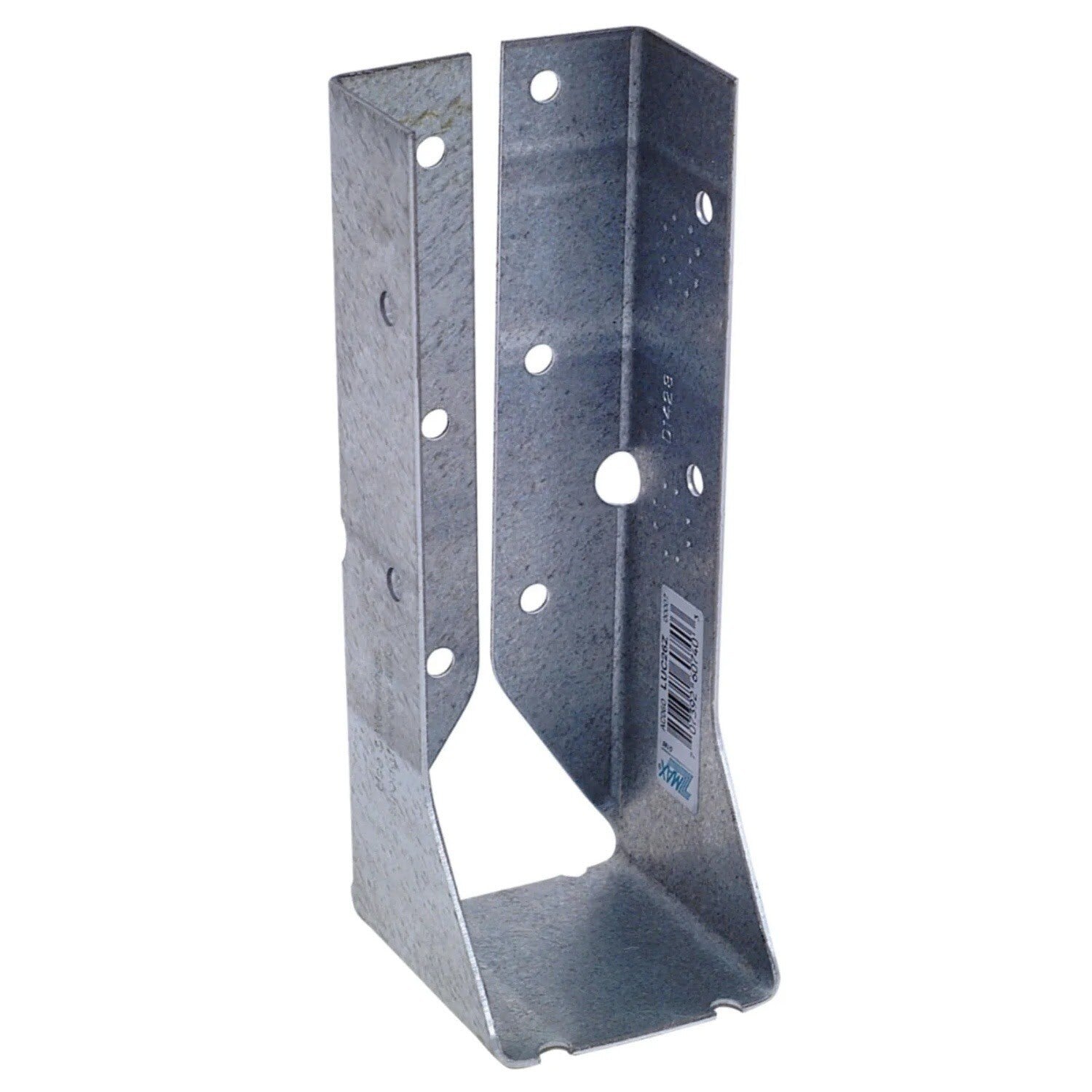

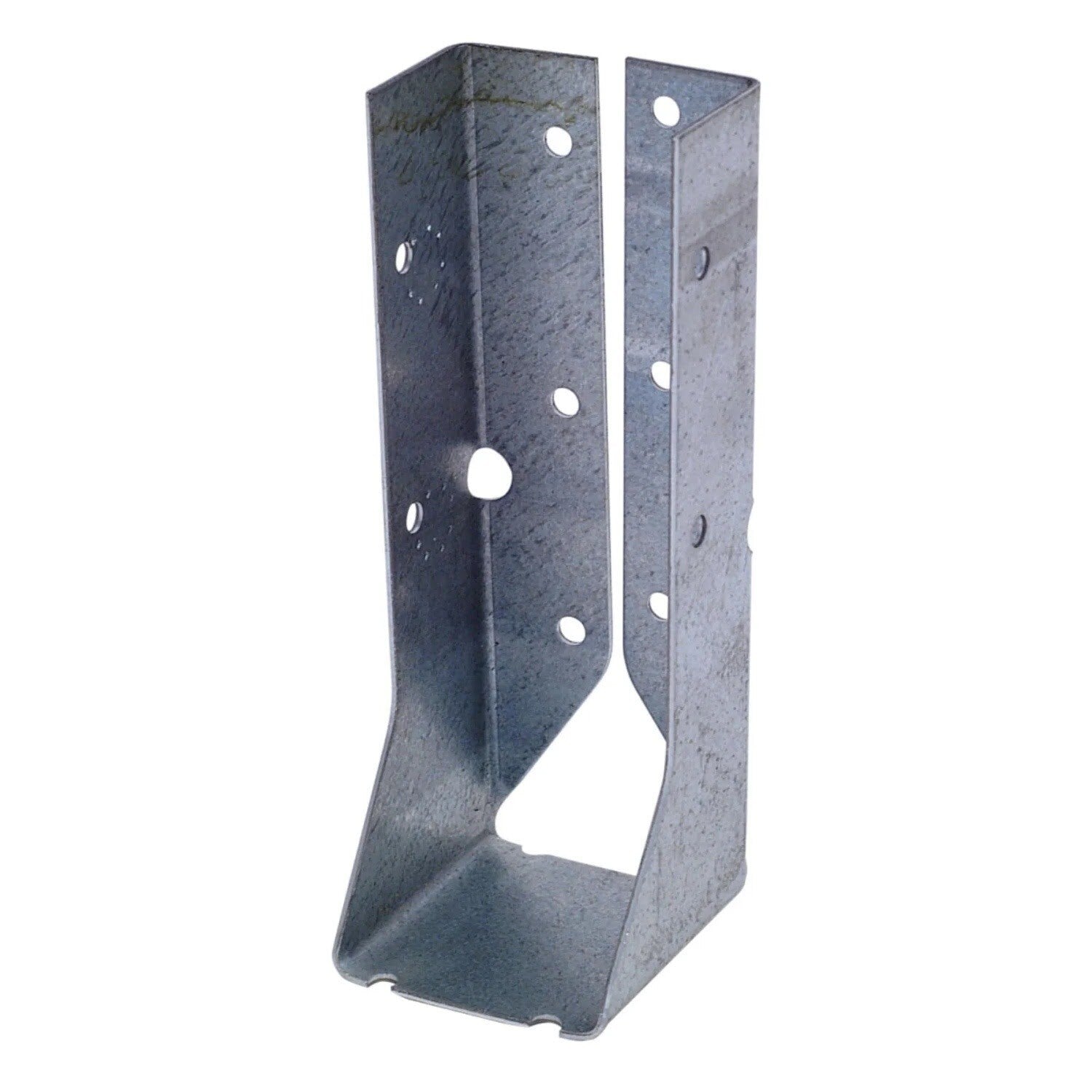

Simpson LUC26Z Description
The Simpson LUC26Z Concealed Face Mount Joist Hanger is designed for 2x6 joists, featuring a ZMAX finish for enhanced corrosion resistance and a concealed flange for a clean look.
Simpson LUC26Z Includes
- (1) Concealed Face Mount Joist Hanger for 2x6
Simpson LUC26Z Features
- ZMAX Coating for Extra Protection
- Concealed Flange Design
- Strong Face-Mount Connection
- Durable Steel Construction
- Versatile Compatibility
Simpson LUC26Z Applications

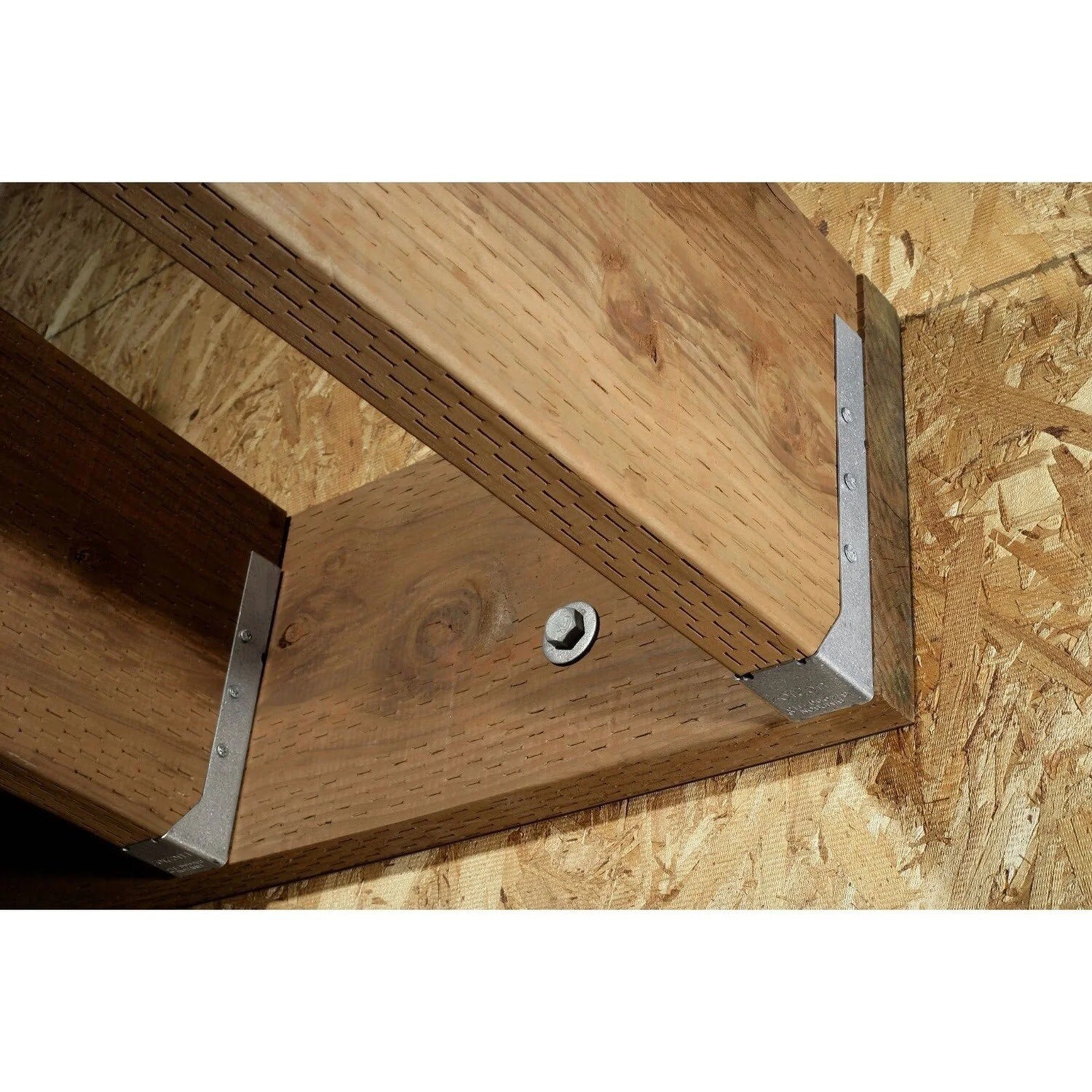

- Deck Construction: Provides a strong, corrosion-resistant connection for deck joists.
- Pergolas & Outdoor Structures: Maintains durability in exposed environments.
- Treated Lumber Framing: Protects against corrosion when used with ACQ, CA, and other pressure-treated woods.
- Fences & Gate Framing: Ensures structural integrity in outdoor applications.

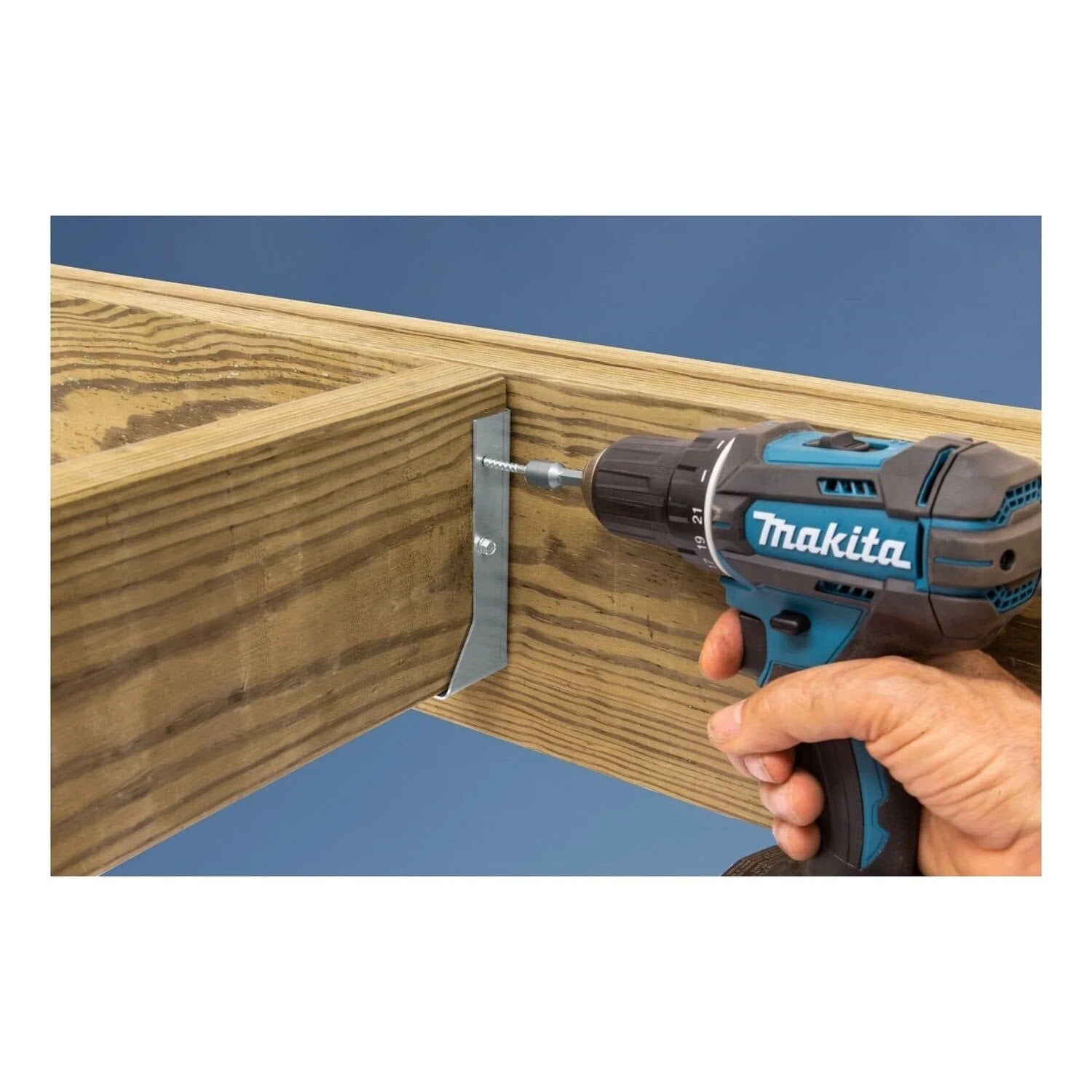

Simpson LUC26Z Installation Overview
- Use hot-dip galvanized nails or Simpson SD Connector Screws to maintain corrosion resistance.
- Ensure the joist hanger is installed flush against the header for maximum load transfer.
- Securely fasten into all pre-punched holes for full strength and structural integrity.
- Specifically designed for pressure-treated wood, exterior framing, and high-humidity environments.
Simpson LUC26Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Header - (6) 0.162" x 3-1/2" Nails, Joist - (4) 0.148" x 1-1/2" Nails |
| For Treated Lumber | Yes |
| Height | 4-3/4" |
| Joist size | 2" X 6" |
| Thickness | 20 Gauge |
| Width | 1-9/16" |
NOTE: Ensure the joist hanger is installed flush against the header for maximum load transfer.
