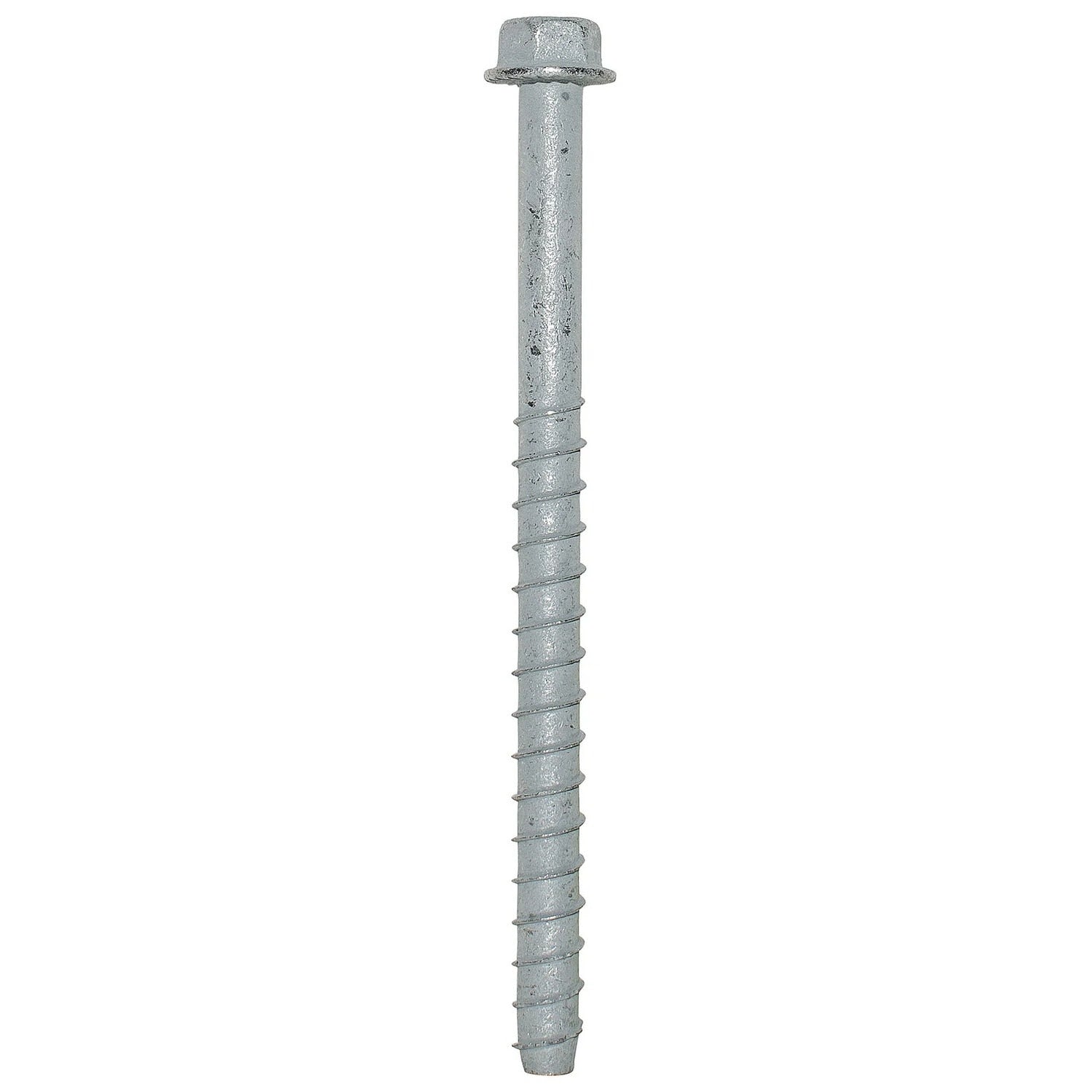

Simpson Strong-Tie THD501200HMG Titen HD (1/2" x 12") Mechanically Galvanized Heavy-Duty Screw Anchor (5 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie THD501200HMG Titen HD (1/2" x 12") Mec...
Key Specifications
Description
Description
Simpson THD501200HMG Description
The Titen HD Screw Anchor is a high-strength, mechanically galvanized anchor designed for easy installation in concrete and masonry.
Simpson THD501200HMG Includes
- (5) 1/2" x 12" Titen HD Screw Anchor
Simpson THD501200HMG Features
- Head-stamped for easy identification
- Serrated teeth on the tip for reduced installation torque
- Thread design efficiently transfers load to base material
- Standard fractional sizes with hole size equal to anchor size
- Specialized heat-treating for tip hardness and ductility
- Hex washer head eliminates need for separate washer
- Fully removable for temporary applications
- Code listed for exterior applications
Simpson THD501200HMG Applications
- Sill plates: Securely fastens sill plates to concrete or masonry
- Ledgers: Provides reliable anchorage for ledger boards
- Post bases: Ensures stable attachment of posts to base materials
- Seating: Suitable for seating applications requiring anchorage
- Holdown applications: Ideal for structural holdown needs
Simpson THD501200HMG Installation Overview
- Drill a hole in the base material using a carbide drill bit matching the anchor diameter.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson THD501200HMG Specifications
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Diameter | 1/2" |
| Length | 12" |
| Drill Bit Size | 1/2" |
| Drive Type | 3/4" Hex |
| Fixture Hole Size | 5/8"-11/16" |
| Head Type | Hex Head |
| Quantity | 5 |
NOTE: Use the correct fasteners installed in the correct position to achieve published load values
