Simpson Strong-Tie THD50600HMGF1 Titen HD (1/2" x 6") Mechanically Galvanized Heavy-Duty Screw Anchor
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie THD50600HMGF1 Titen HD (1/2" x 6") Mec...
Key Specifications
Description
Description
Simpson THD50600HMGF1 Description

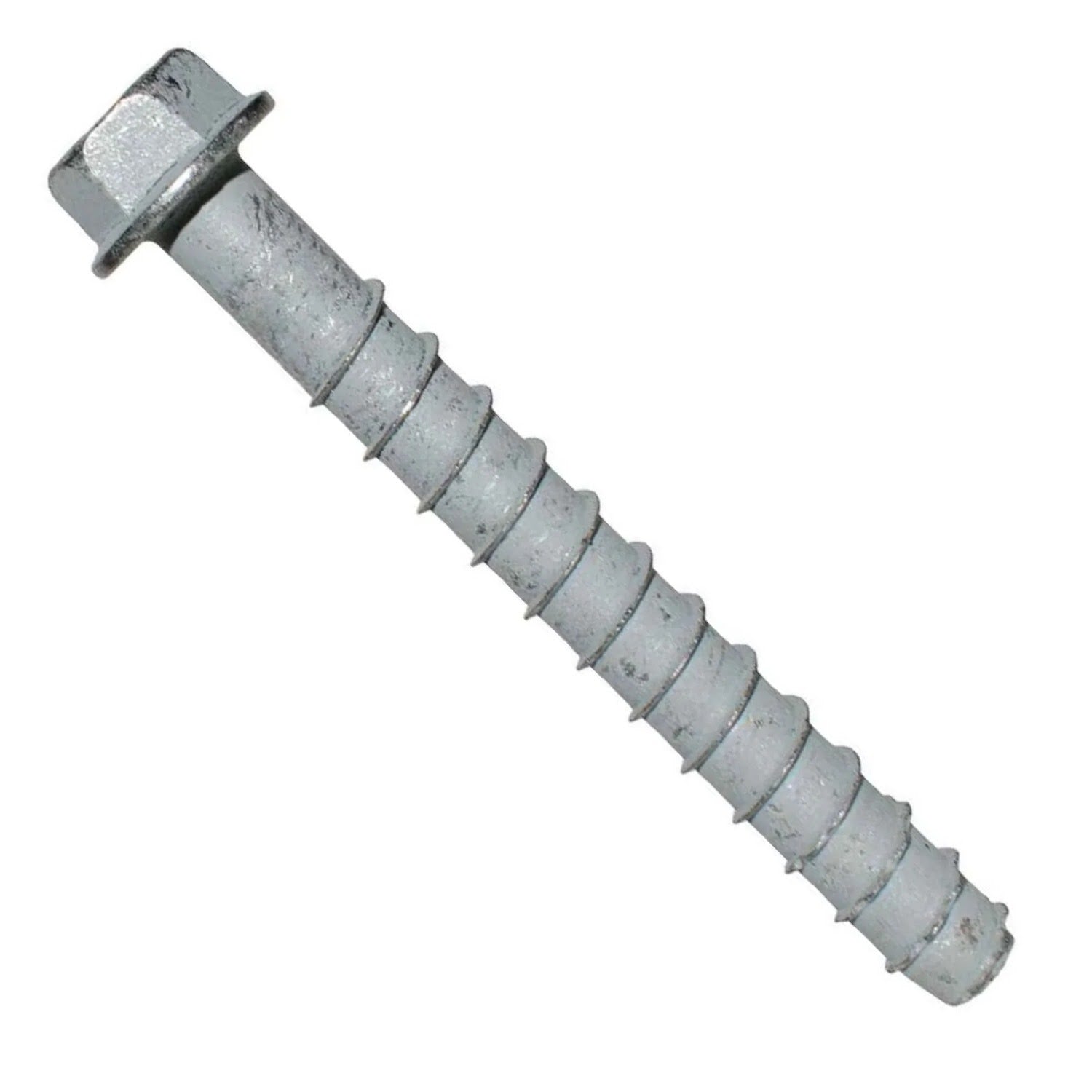

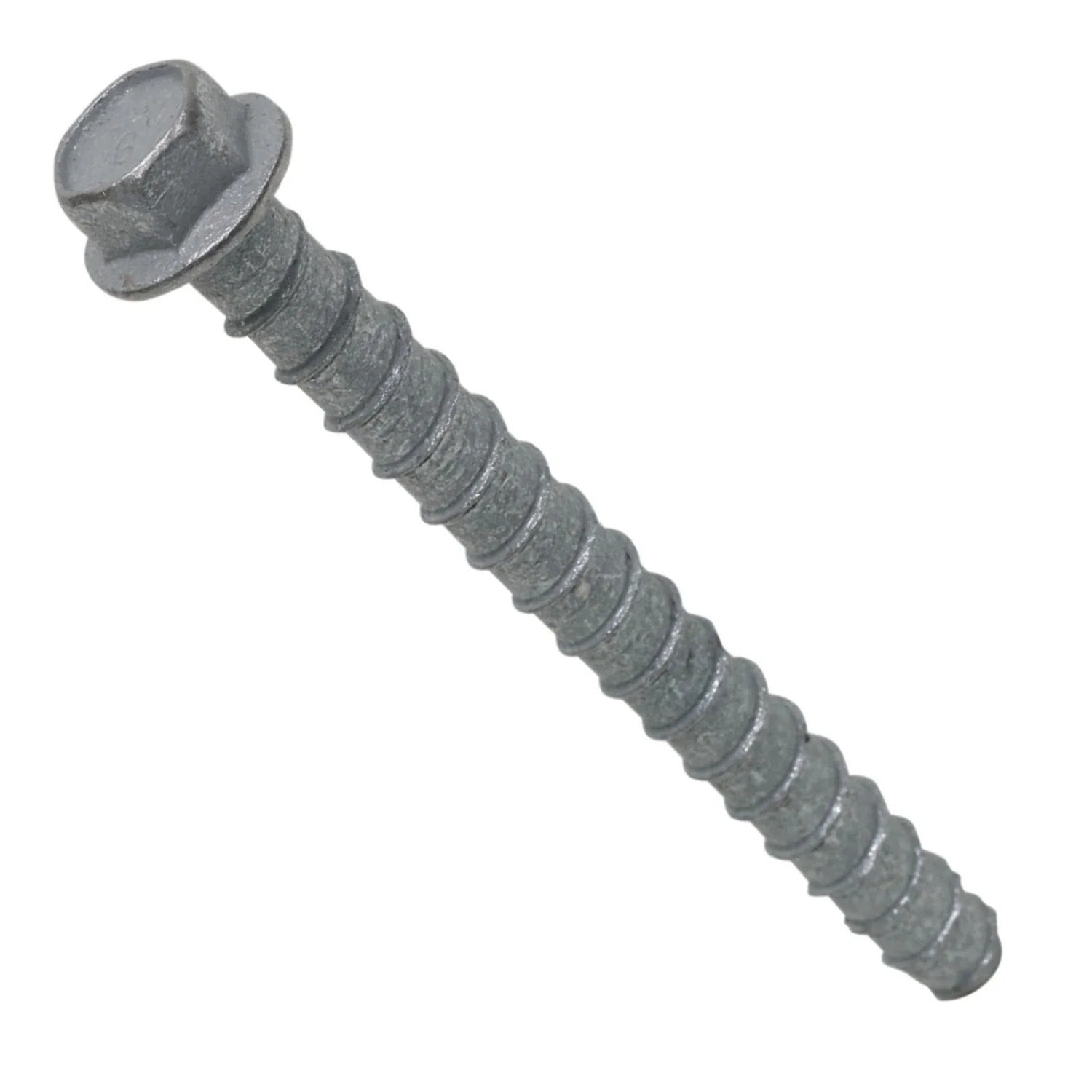

The Titen HD 1/2" x 6" Mechanically Galvanized Heavy-Duty Screw Anchor is designed for high-strength anchoring in cracked and uncracked concrete and masonry.
Simpson THD50600HMGF1 Includes
- (1) Titen HD 1/2" x 6" Mechanically Galvanized Heavy-Duty Screw Anchor
Simpson THD50600HMGF1 Features
- Head-stamped for easy identification

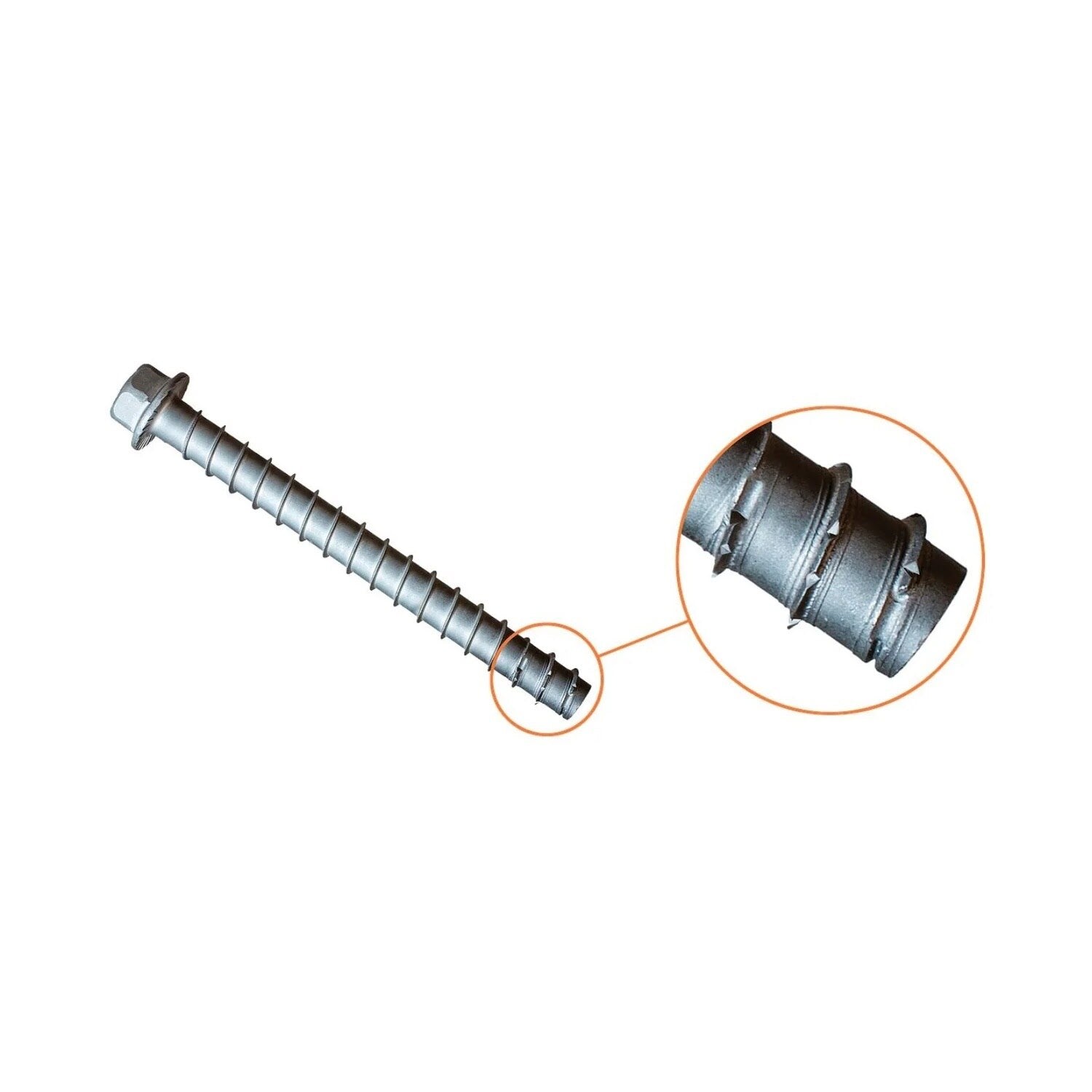

- Serrated teeth on the tip facilitates cutting and reduces installation torque
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional sizes, hole size equals anchor size
- Specialized heat-treating process creates tip hardness for better cutting without compromising ductility
- Hex washer head requires no separate washer, unless required by code
- Fully and easily removable
- Code listed for exterior applications
Simpson THD50600HMGF1 Applications
- Anchorage Solutions: Ideal for securing fixtures in cracked and uncracked concrete and masonry.
- Exterior Applications: Suitable for outdoor use due to its mechanical galvanizing.
- Interior Pressure-Treated Wood Applications: Can be used for sill plates and other wood-based anchoring.
Simpson THD50600HMGF1 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson THD50600HMGF1 Specifications
| Diameter | 1/2" |
| Length | 6" |
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Drill Bit Size | 1/2" |
| Drive Type | 15/16" Hex |
| Fixture Hole Size | 5/8"-11/16" |
| Head Type | Hex Head |
| Quantity | 1 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
