Simpson Strong-Tie MCT1.9X15 (1-9/10 in. x 15 in.) Mass Timber Column Tie for Column-to-Foundation Connections
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie MCT1.9X15 (1-9/10 in. x 15 in.) Mass Timber Colu...
Key Specifications
Description
Description
Simpson Strong-Tie MCT1.9X15 Description

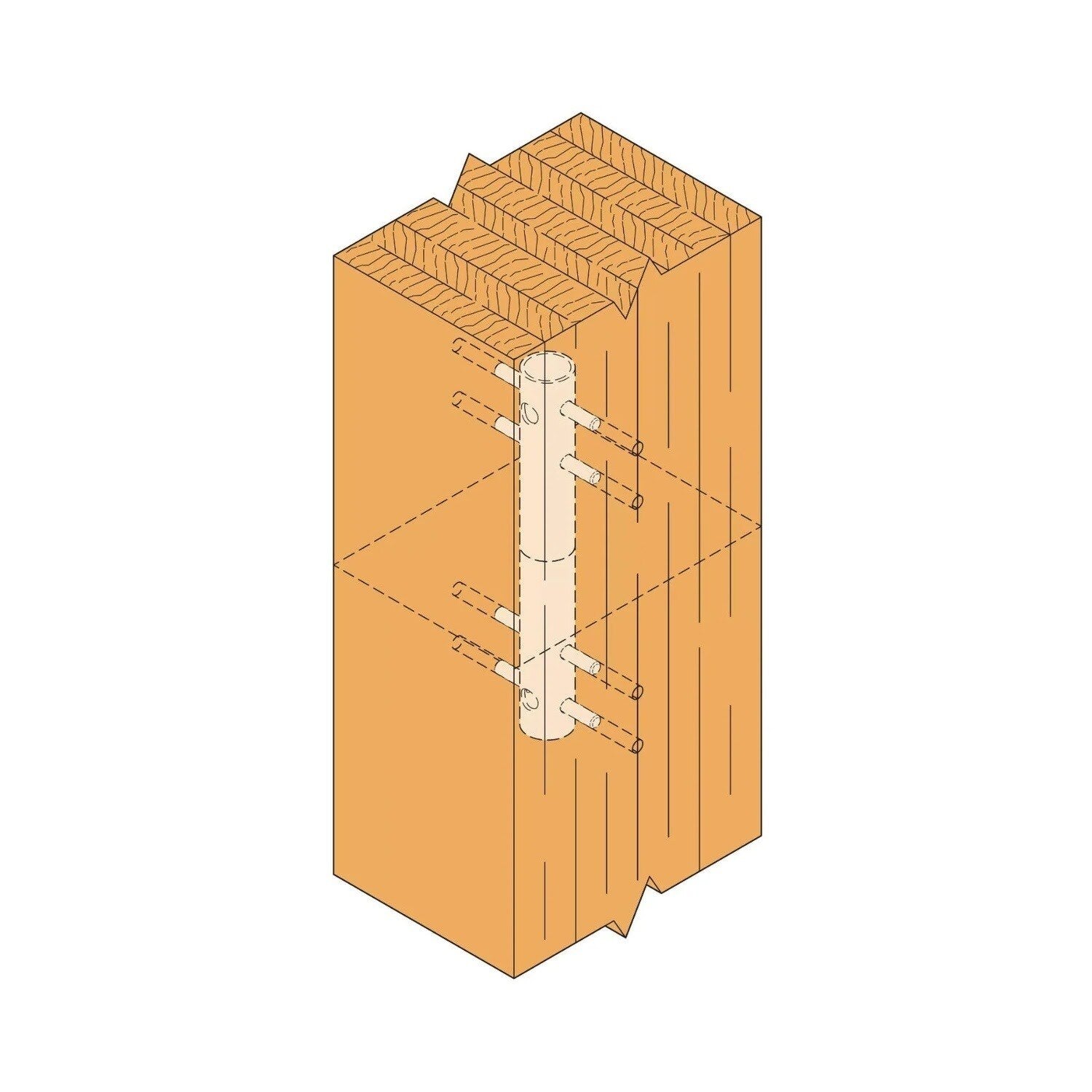

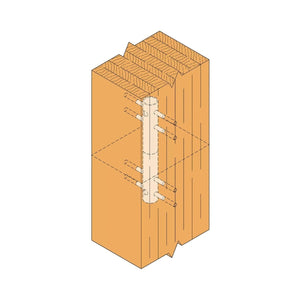

The MCT Mass Timber Column Tie is designed to connect two glulam columns, facilitating vertical load transfer through direct column-to-column bearing. Its concealed design enhances architectural aesthetics and fire protection, making it ideal for post-and-beam style construction.
Simpson Strong-Tie MCT1.9X15 Includes
- (1) Mass Timber Column Tie
Simpson Strong-Tie MCT1.9X15 Features
- Concealed connection for architectural aesthetics and fire protection
- Universal design allows the same connector to be used on a wide range of column sizes
- Simple routing for CNC fabrication of columns

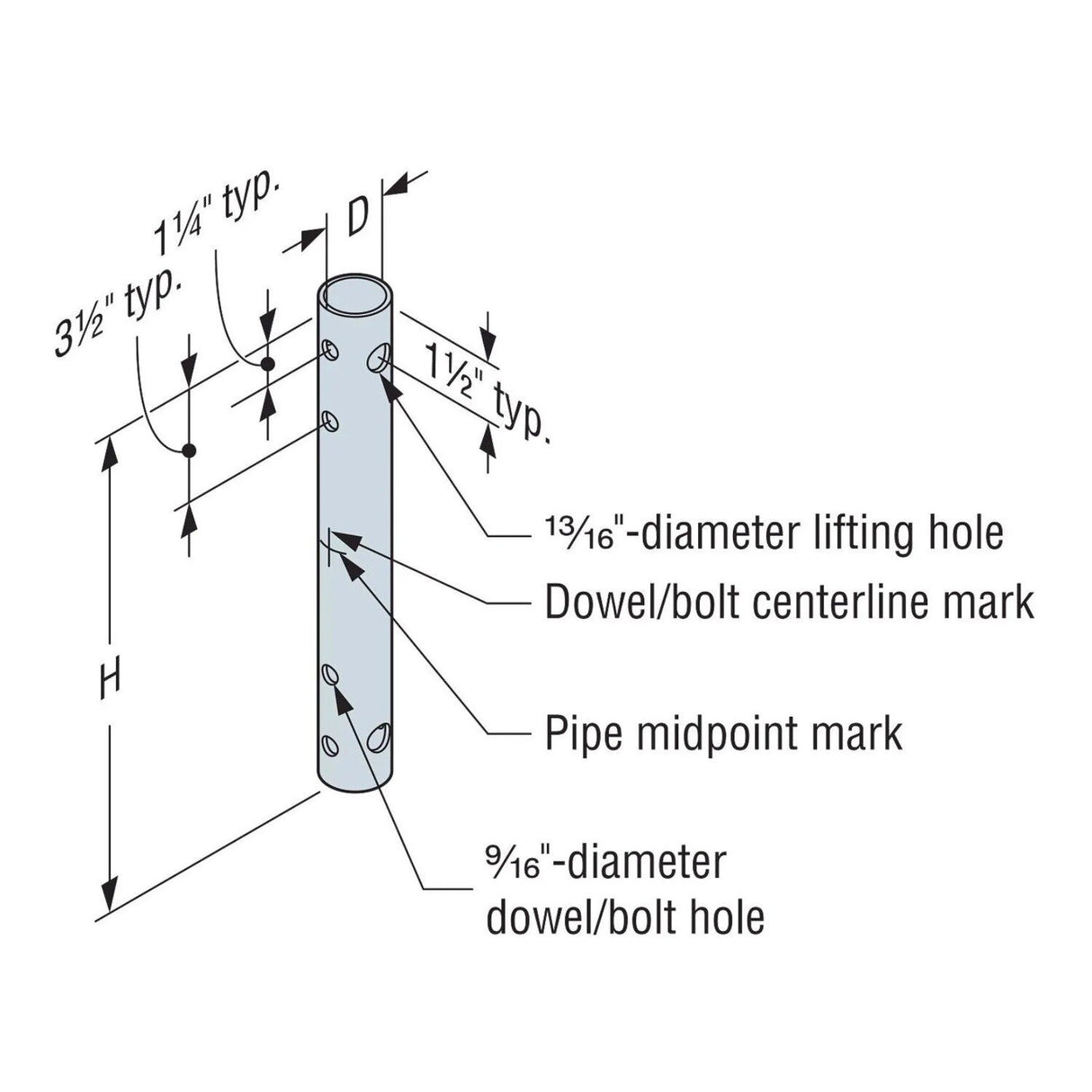

- Integrated lifting hole with tested lifting load values
- Crosshair marks at centerlines of pipe to aid installation

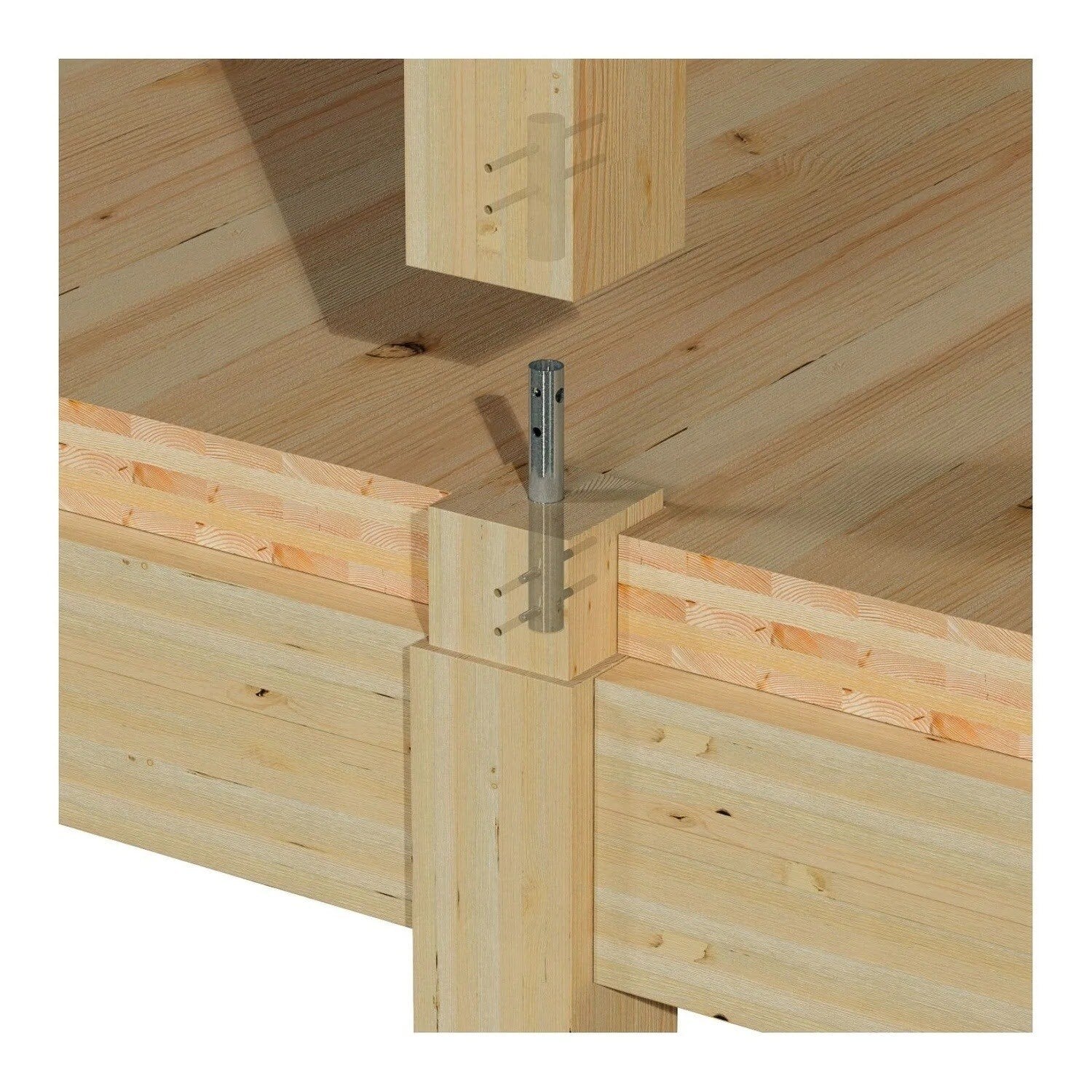

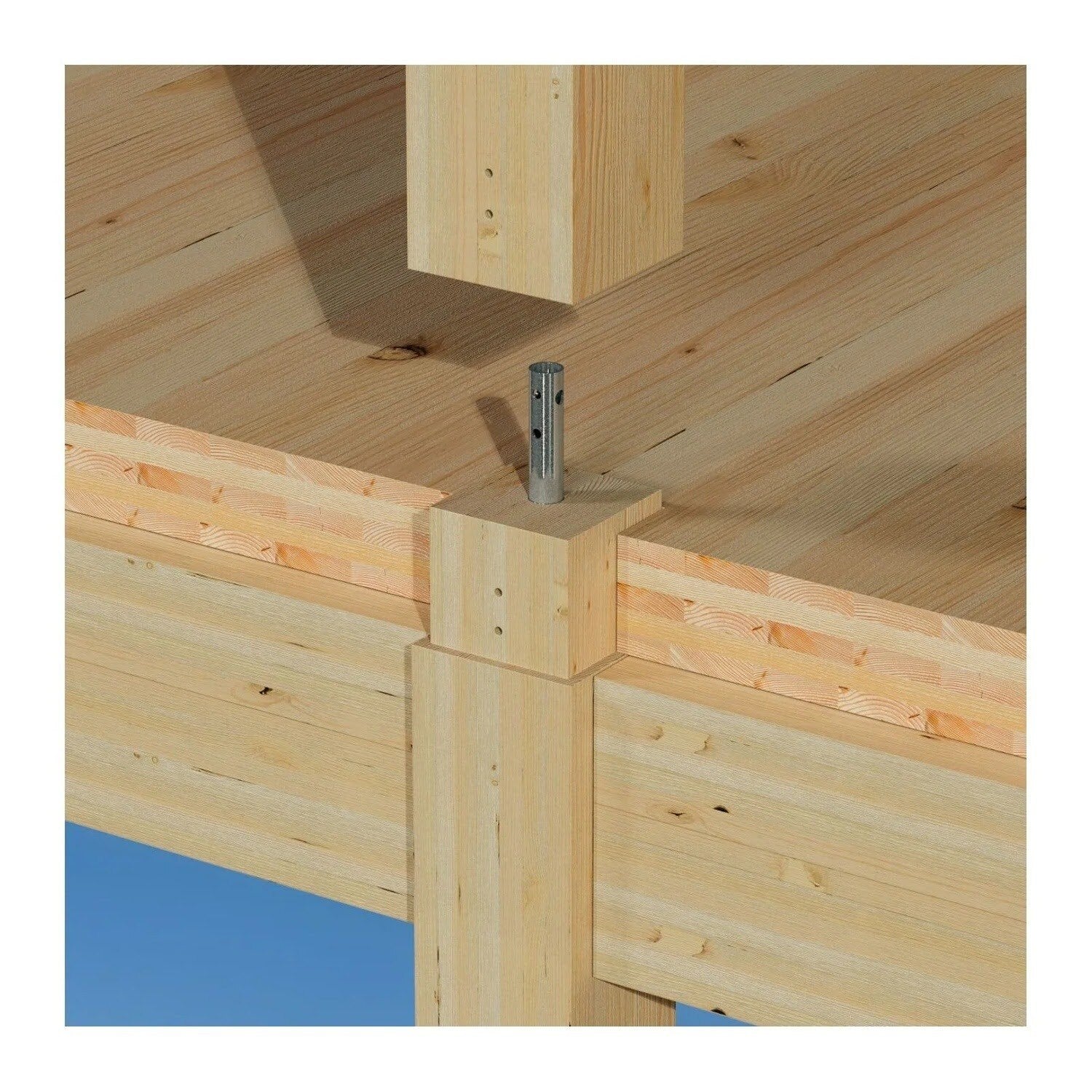

- Recommended for use at column-to-foundation connections in any Seismic Design Category
Simpson Strong-Tie MCT1.9X15 Applications
- Mass Timber / Cross-Laminated Timber
- Post-and-beam style construction
Simpson Strong-Tie MCT1.9X15 Installation Overview
- Use CNC equipment for cutting and drilling to maintain accuracy; if using hand tools, exercise extra care to ensure precision.
- Ensure column ends are cut level to facilitate proper bearing between columns.
- Position dowel and end mill holes on true centerlines of the glulam, maintaining a tolerance of ±1/32".
- Use tight-fit dowels or bolts (not included) with specified strength criteria to complete the connection.
Simpson Strong-Tie MCT1.9X15 Specifications
| Material | Carbon Steel |
| Finish | Electrogalvanized |
| Diameter | 1.9 in. |
| Height | 15 in. |
| Fasteners required | 1/2 in. x 4 3/4 in. (min.) dowel or 1/2 in. bolt |
| Quantity | 1 |
