Simpson Strong-Tie HF34NZ Panelized Construction Hanger - ZMAX Finish
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HF34NZ Panelized Construction Hanger - ZMAX Finish
Key Specifications
Description
Description
Simpson Strong-Tie HF34NZ Description

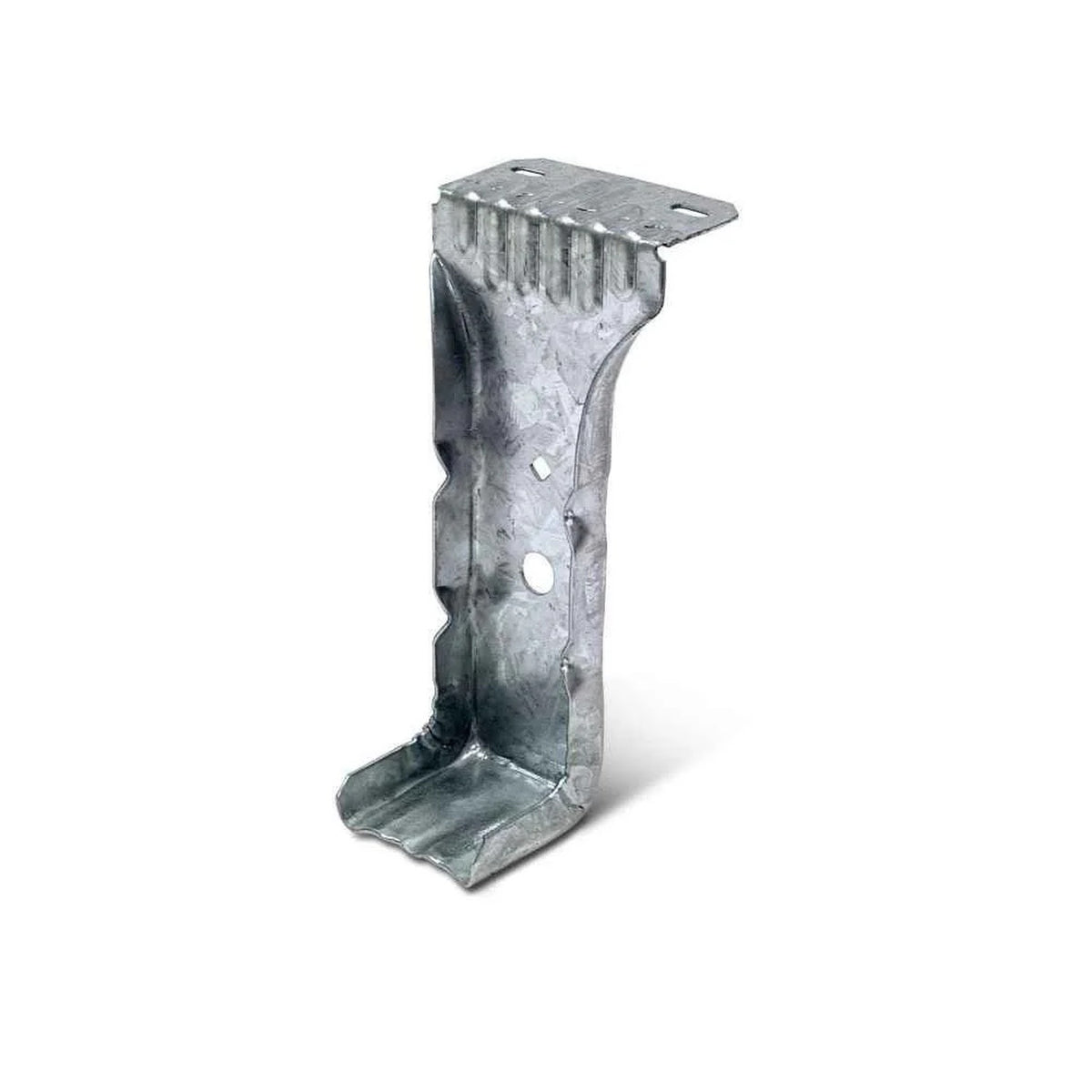

The Simpson Strong-Tie HF34NZ Panelized Construction Hanger ZMAX is designed for reliable connections in panelized wood-frame construction, offering superior corrosion resistance and high-strength performance.
Simpson Strong-Tie HF34NZ Includes
- (1) Panelized Construction Hanger ZMAX
Simpson Strong-Tie HF34NZ Features
- ZMAX Galvanized Coating for enhanced corrosion resistance
- High-strength performance for heavy loads
- Efficient installation with no field modifications required
- Versatile compatibility with various wood types

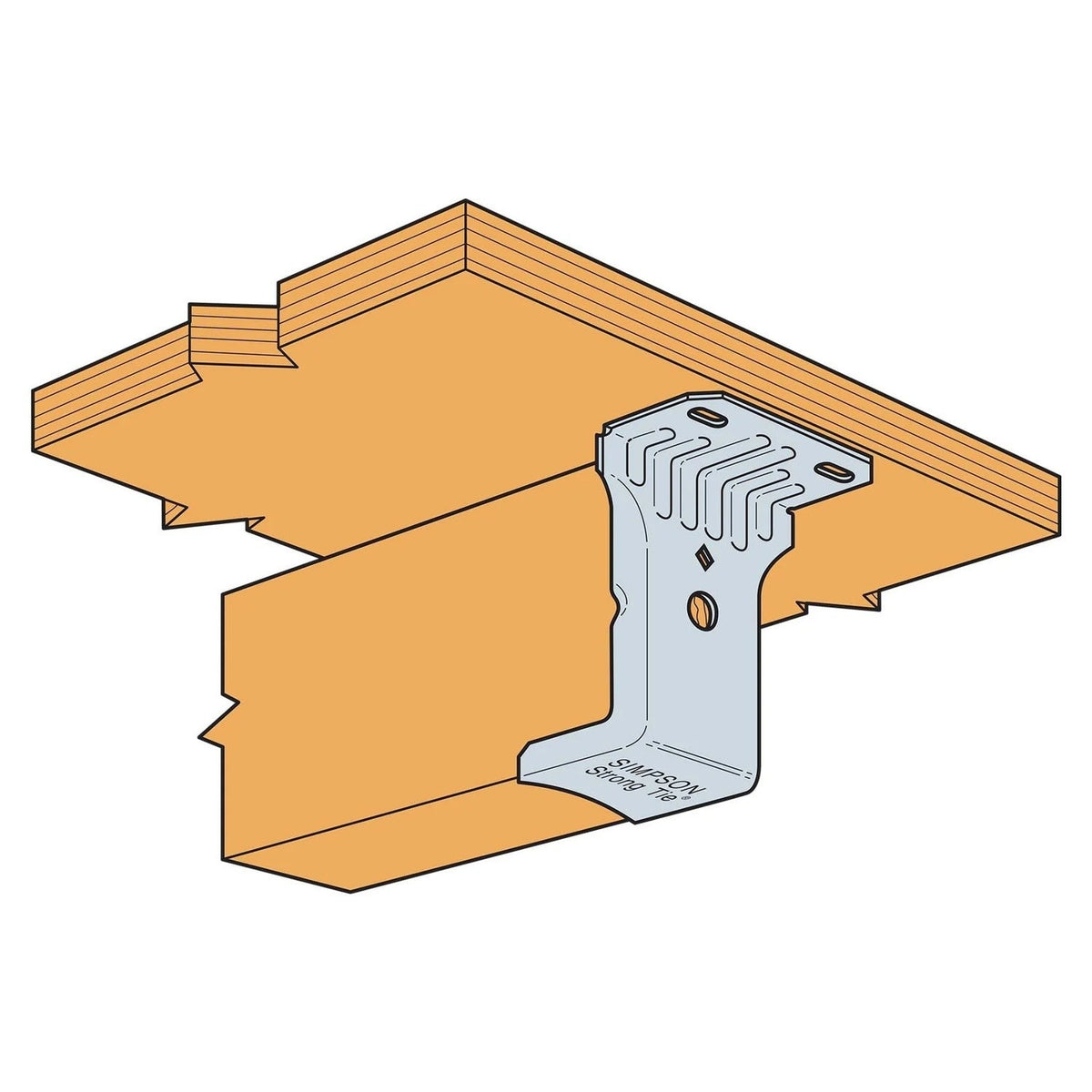

- Reliable structural connection for purlins and supporting members
Simpson Strong-Tie HF34NZ Applications
- Panelized roof systems for strong purlin-to-girder connections
- Solid sawn lumber installations for reinforced wood framing
- Glulam beam construction for handling higher loads

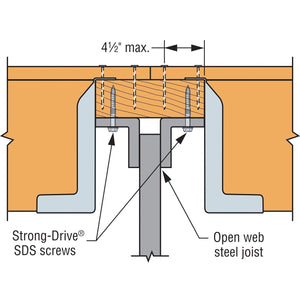

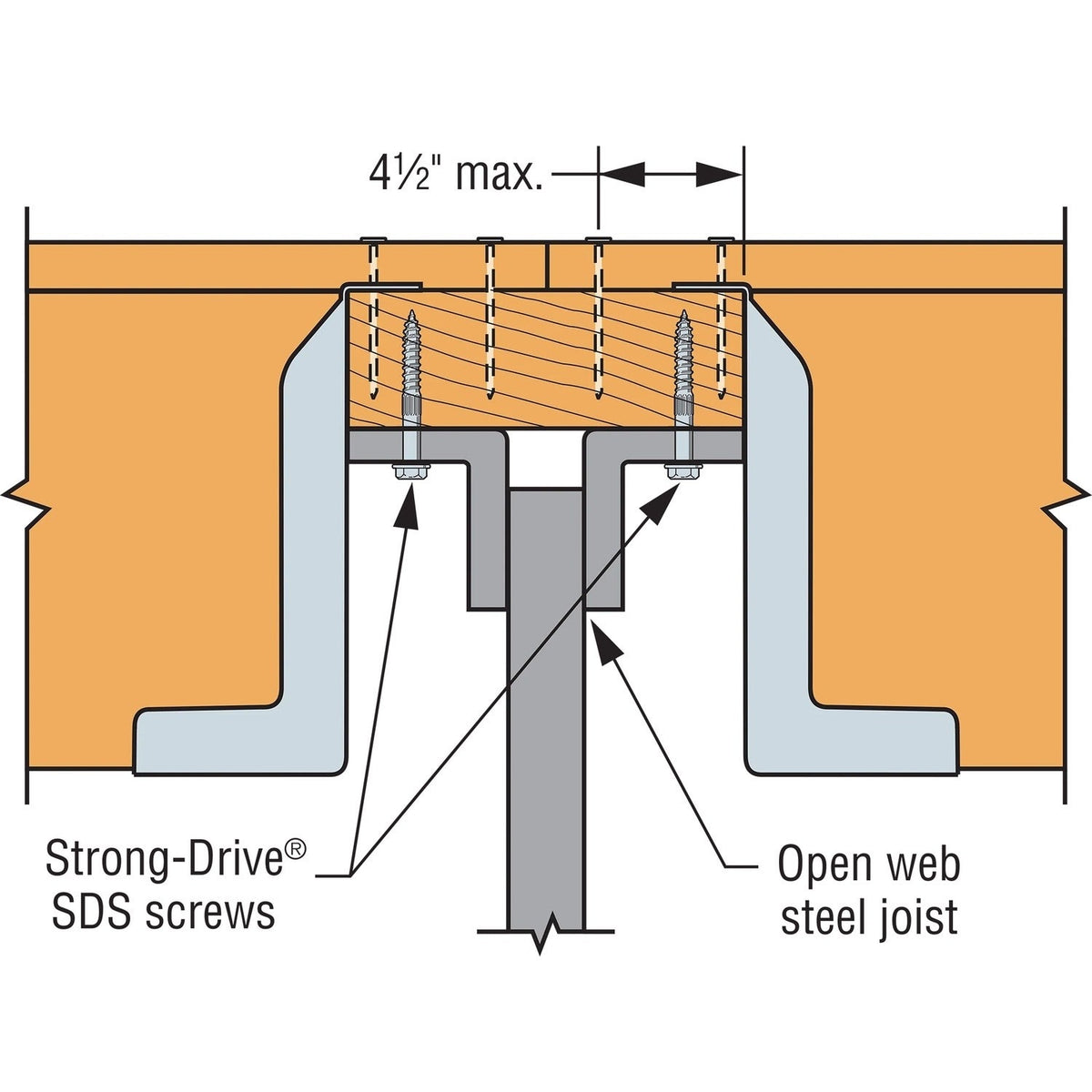

Simpson Strong-Tie HF34NZ Installation Overview

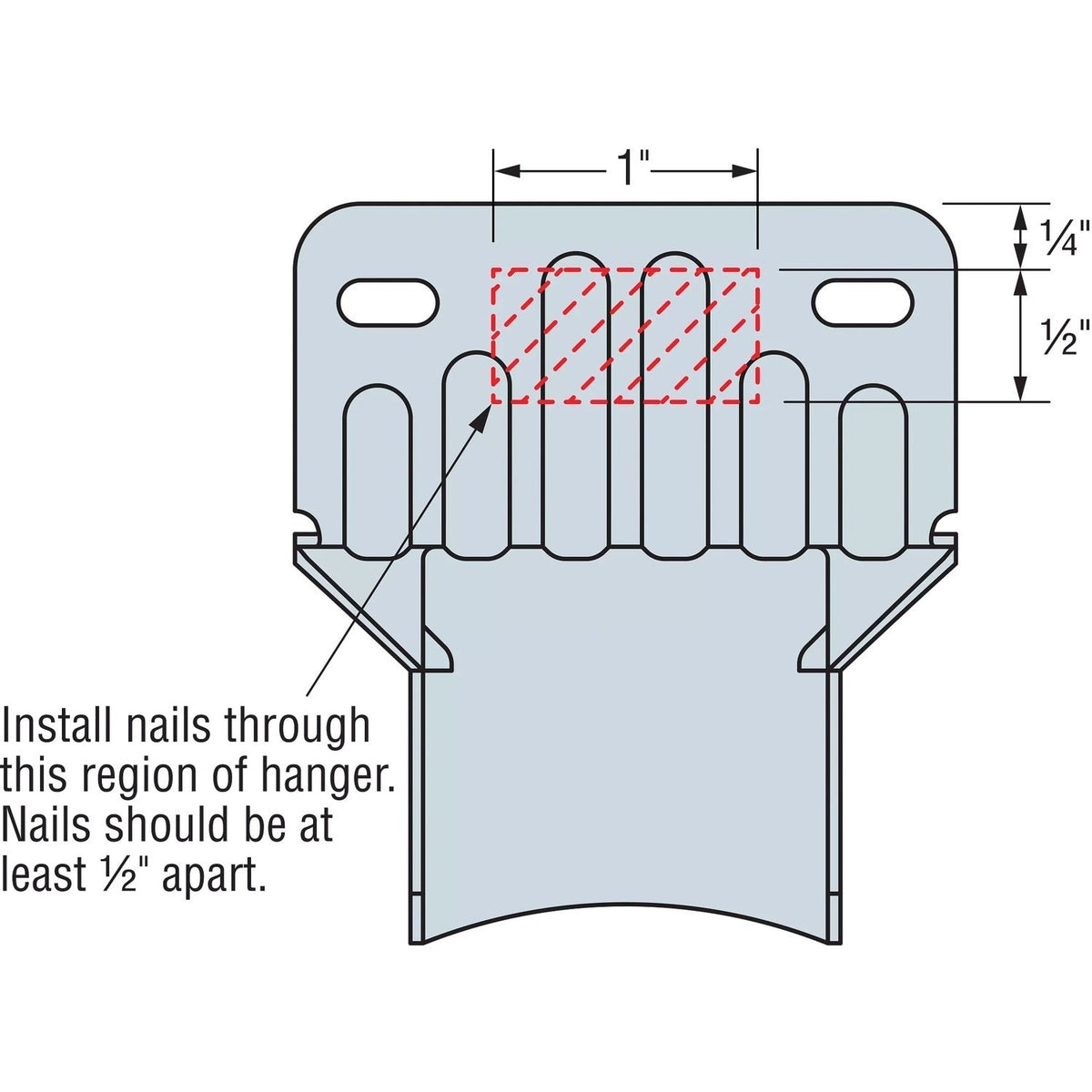

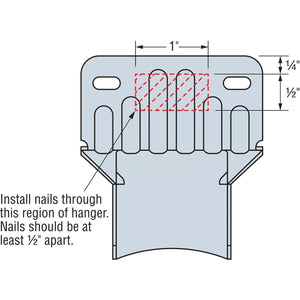

- Use manufacturer-specified nails or screws for secure connections
- Ensure connection points are clean and properly aligned
- Attach the hanger to the supporting beam first, then install the purlin
- Avoid field modifications as the hanger is pre-engineered
Simpson Strong-Tie HF34NZ Specifications
| Finish | ZMAX |
| Material | Galvanized Steel |
| Fasteners required | (2) 0.148 x 2-1/8" |
| For Treated Lumber | Yes |
| Height | 3-3/8" |
| Joist size | 3" X 4" |
| Thickness | 18 Gauge |
| Width | 2-9/16" |
NOTE: Ensure the correct fasteners are used and installed in the specified positions to achieve the published load values.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
