Simpson Strong-Tie CBS44 (5/8" x 4 1/2") CB/CBS Galvanized Column Base Installation Guide
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CBS44 (5/8" x 4 1/2") CB/CBS Galvanize...
Key Specifications
Description
Description
Simpson CBS44 Description
The CBS44 Column Base is a galvanized standoff designed for 4x4 posts, providing structural stability and meeting code requirements.
Simpson CBS44 Includes
- (1) Galvanized Standoff Column Base for 4x4
Simpson CBS44 Features
- Designed to connect columns or posts to concrete foundations
- Provides a 1" standoff to meet building codes
- Made from heavy-gauge steel for durability
- Finished with G90 Galvanized coating
- Transmits structural stresses to the foundation
Simpson CBS44 Applications
- Connecting columns or posts to concrete foundations
- Structural support for 4x4 posts in basements or outdoor settings
- Use in construction projects requiring stress distribution to foundations

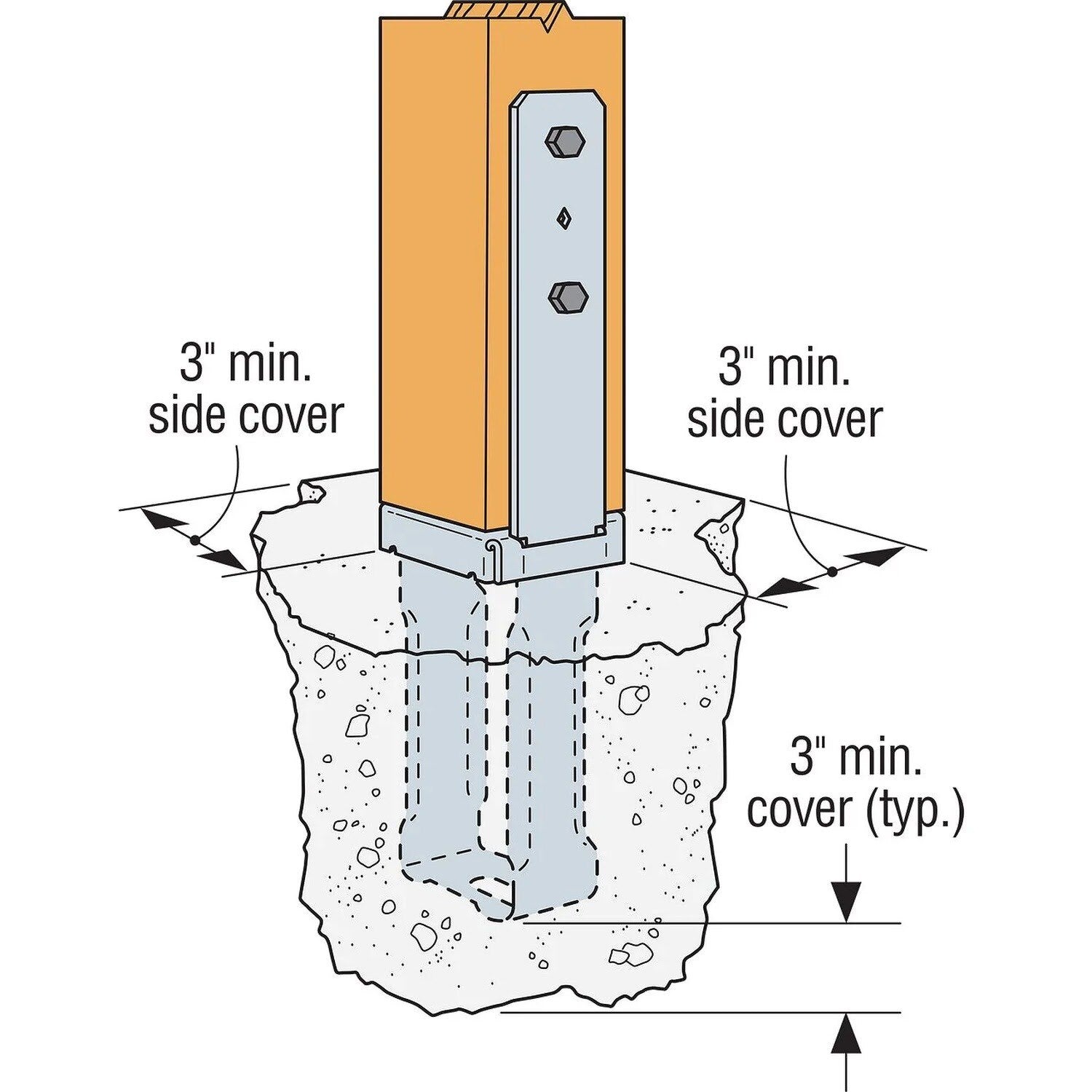

Simpson CBS44 Installation Overview
- Cast-in-place or wet-set into concrete
- Align the column base with the post or column
- Secure using specified bolts (2) 5/8"

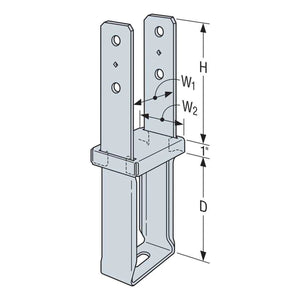

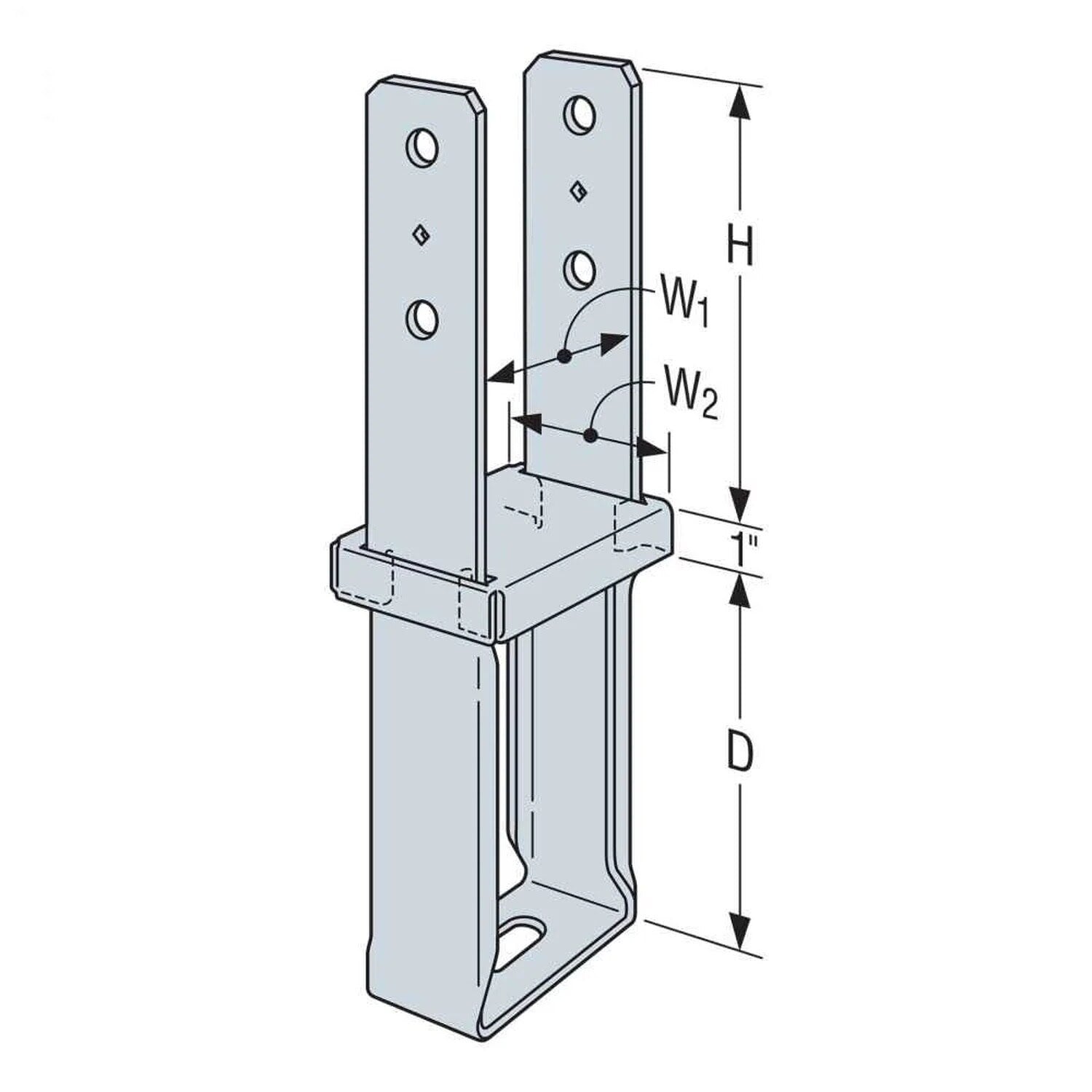

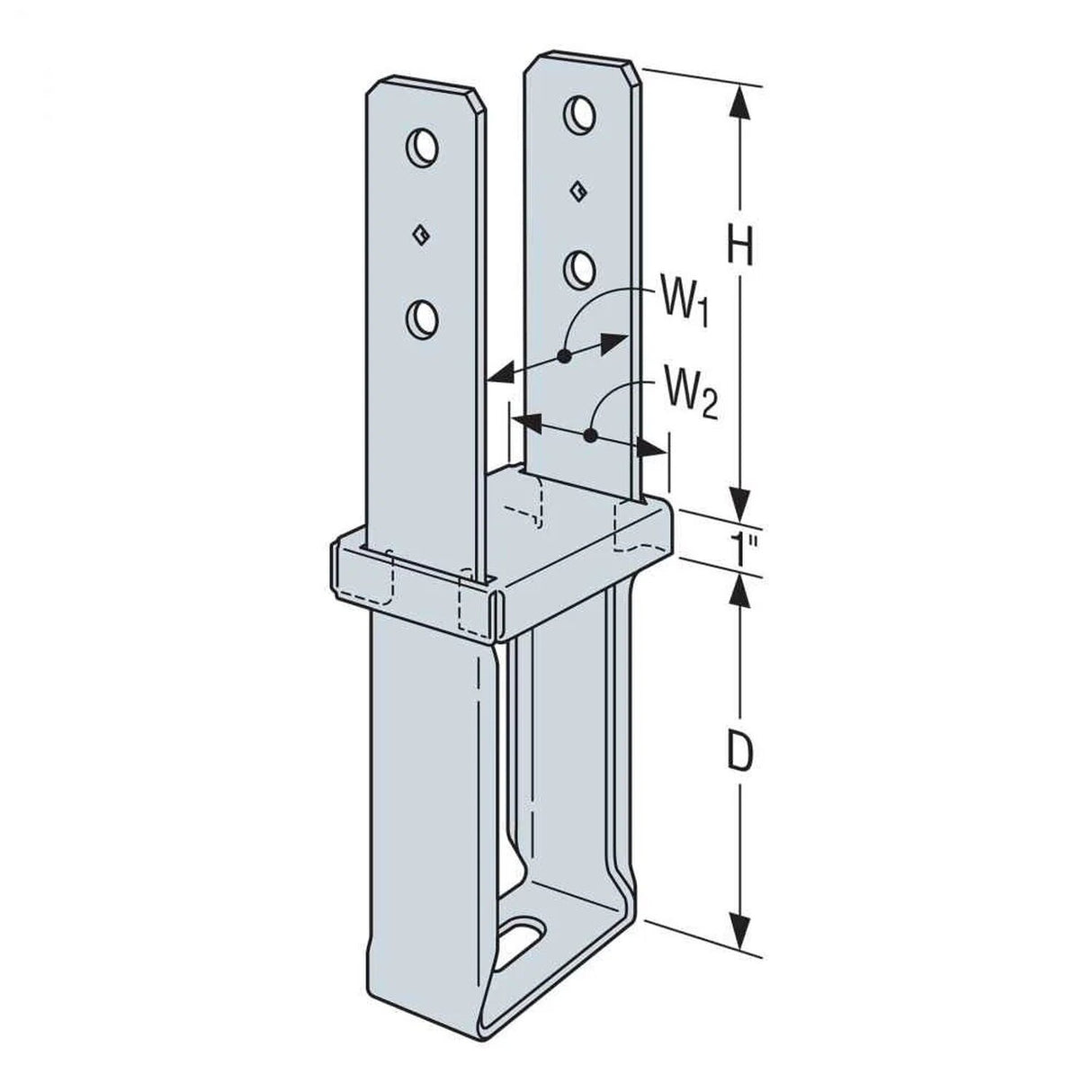

Simpson CBS44 Specifications
| Finish | G90 Galvanized |
| Material | Heavy Gauge Steel |
| Column size | 4X4 |
| Depth | 7-1/8" |
| Fasteners required | Bolts - (2) 5/8" |
| For Treated Lumber | No |
| Post size | 4x4 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
