Simpson Strong-Tie ECC44 (4x Beam, 4x Post) End Column Cap, Gray Paint
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ECC44 (4x Beam, 4x Post) End Column Cap, Gray Paint
Key Specifications
Description
Description

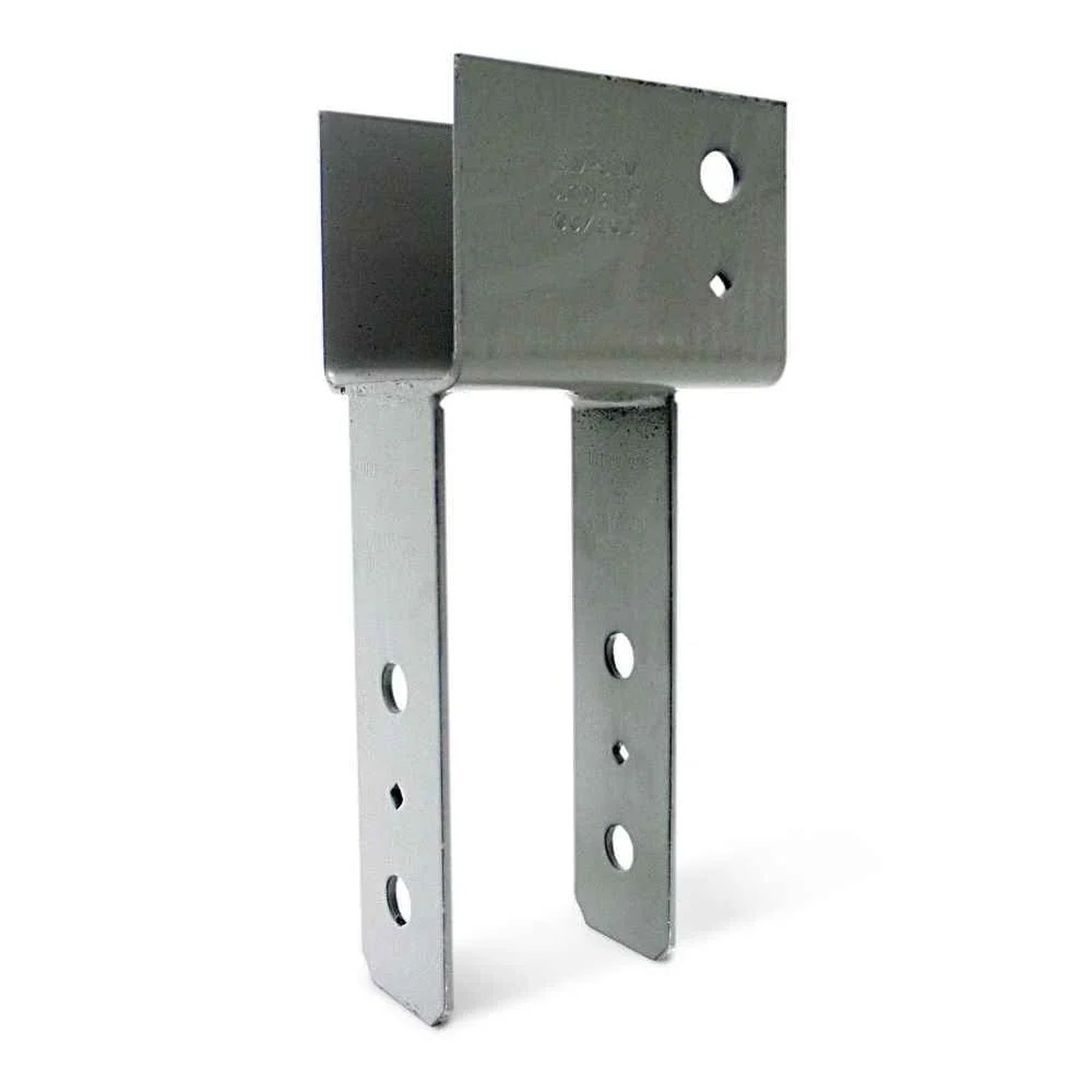

Simpson Strong-Tie ECC44 Description
The Simpson ECC44 End Column Cap enhances the strength and stability of your construction projects, providing durable column-to-beam connections for wood construction.
Simpson Strong-Tie ECC44 Includes
- (1) End Column Cap Gray Paint for 4x Beam and 4x Post
Simpson Strong-Tie ECC44 Features
- Provides strong end-of-beam connection for column-to-beams.
- Extended area of the column seat offers additional surface area of bearing to distribute the load.
- Made from heavy-gauge steel for durability.
- Finished with Gray Paint coating.
- Certified welds for strength and loading.
- Increased uplift loads for earthquake or wind loading.
- Features diamond holes for temporary fastening during installation.
- Bolt spacing meets NDS code requirements.
Simpson Strong-Tie ECC44 Applications
- Column-to-beam connections in wood construction.
- End-of-beam applications for structural support.

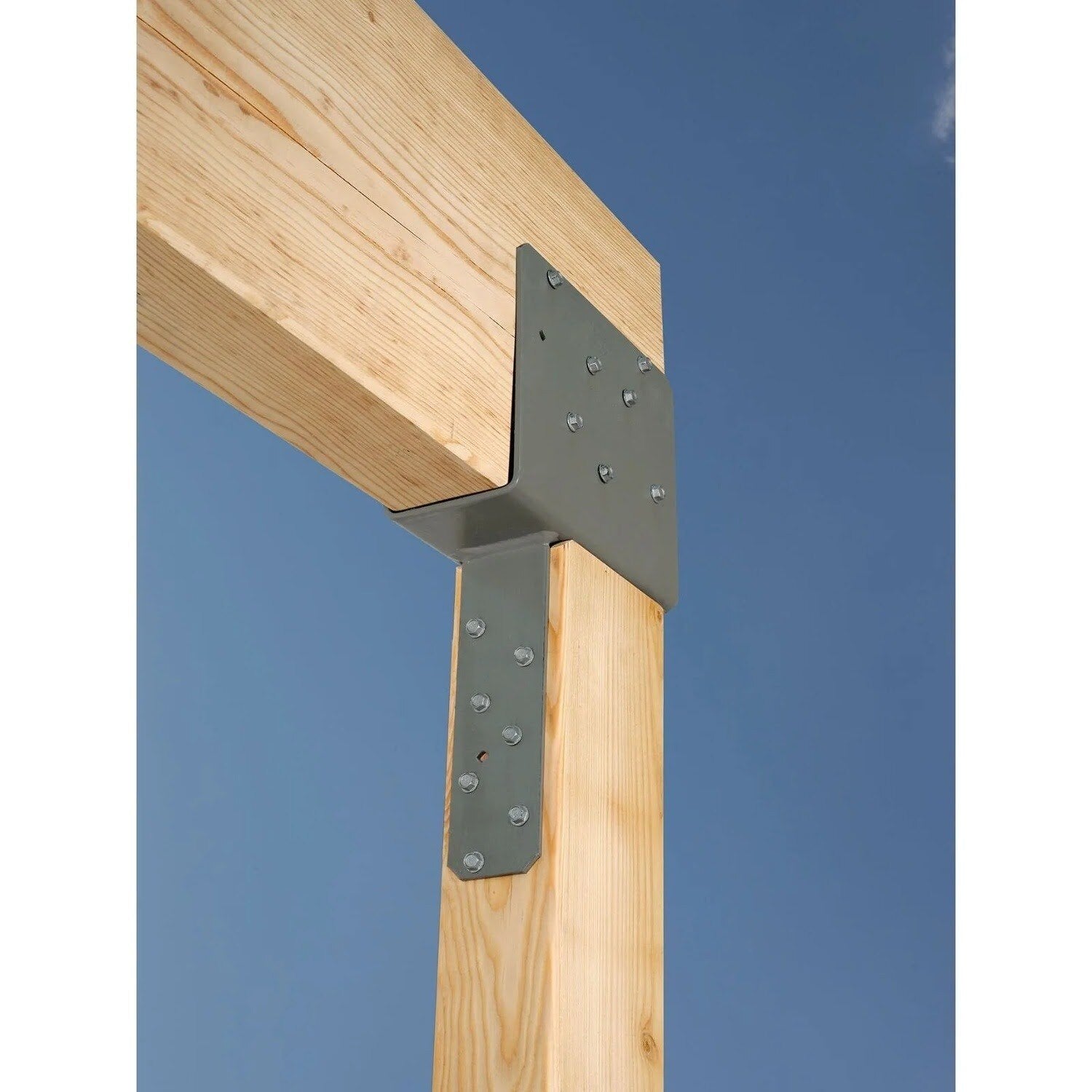

Simpson Strong-Tie ECC44 Installation Overview
- Align the column cap with the beam and post.
- Secure using the specified fasteners: (1) 5/8" Machine Bolt for the beam and (2) 5/8" Machine Bolts for the post.
- Ensure proper alignment and tighten bolts to secure the connection.
Simpson Strong-Tie ECC44 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 4x |
| Fasteners required | Beam - (1) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
| For Treated Lumber | No |
| Post size | 4x |
| Thickness | 7 Gauge |
