Simpson Strong-Tie BC4Z-R (4x) Post Cap - Zmax Finish
Key Specifications
Description
Description
Simpson BC4Z-R Description

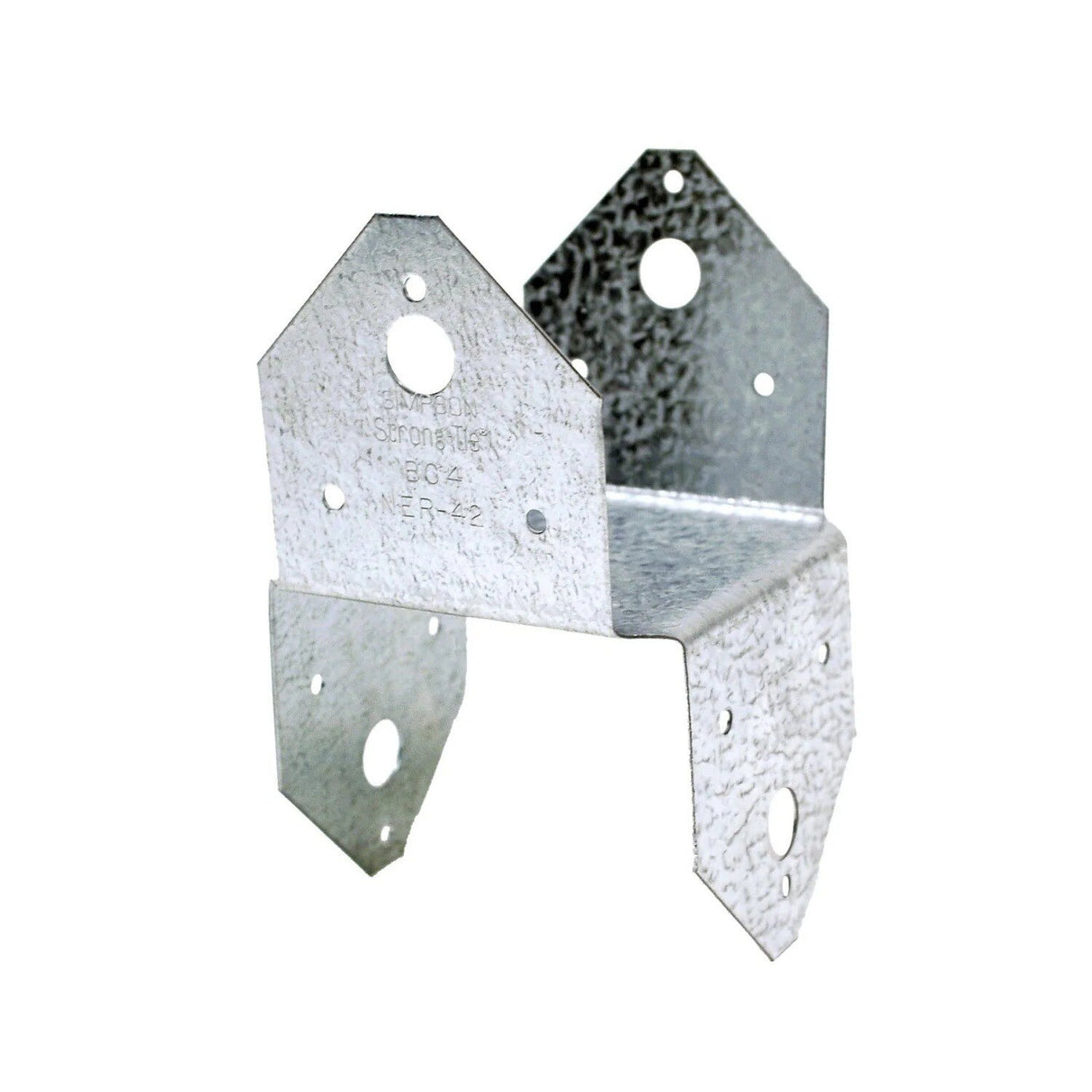

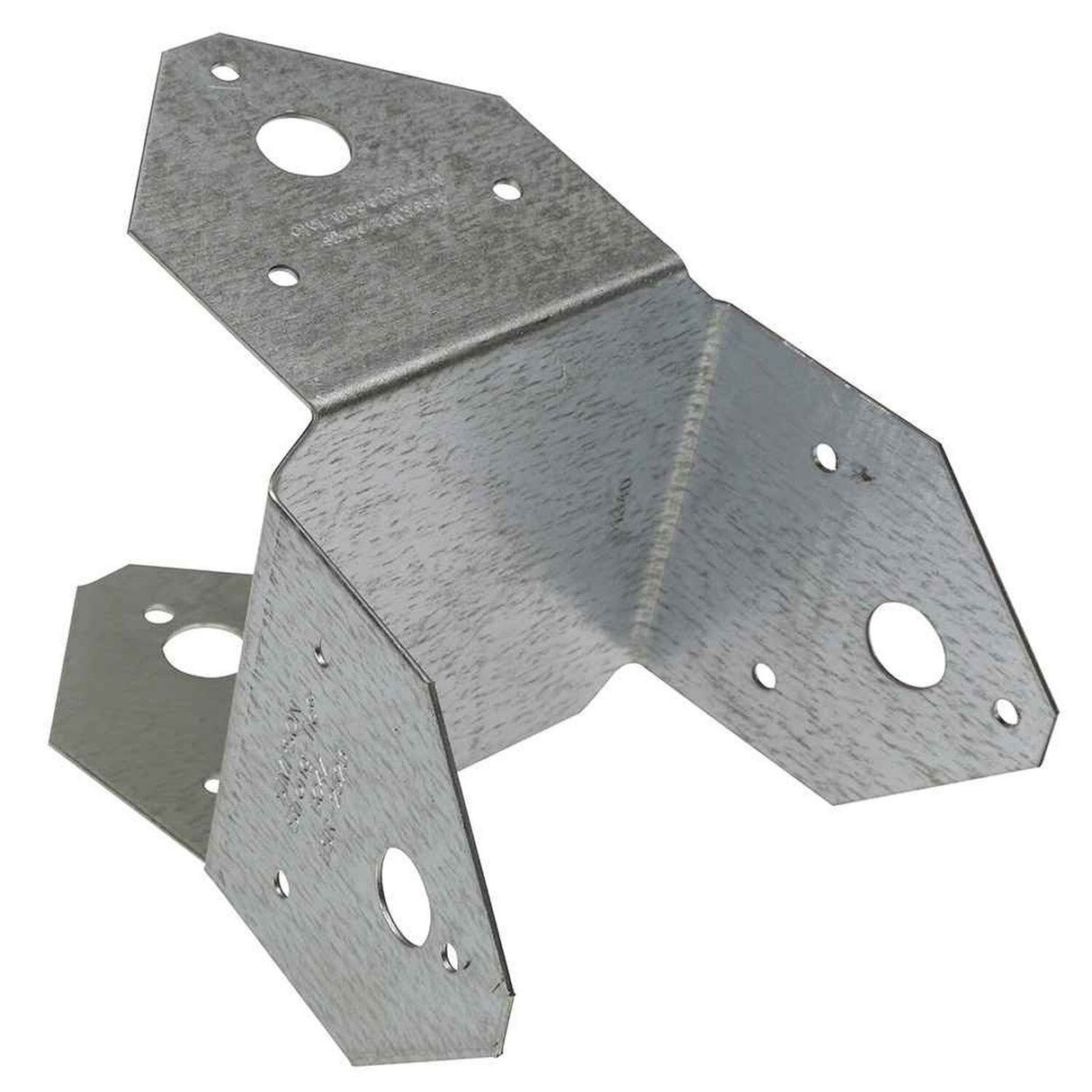

The Simpson BC4Z-R 4x Post Cap ZMAX Finish enhances the strength and stability of your construction projects, providing secure connections for beams to posts.
Simpson BC4Z-R Includes
- (1) 4x Post Cap ZMAX Finish
Simpson BC4Z-R Features

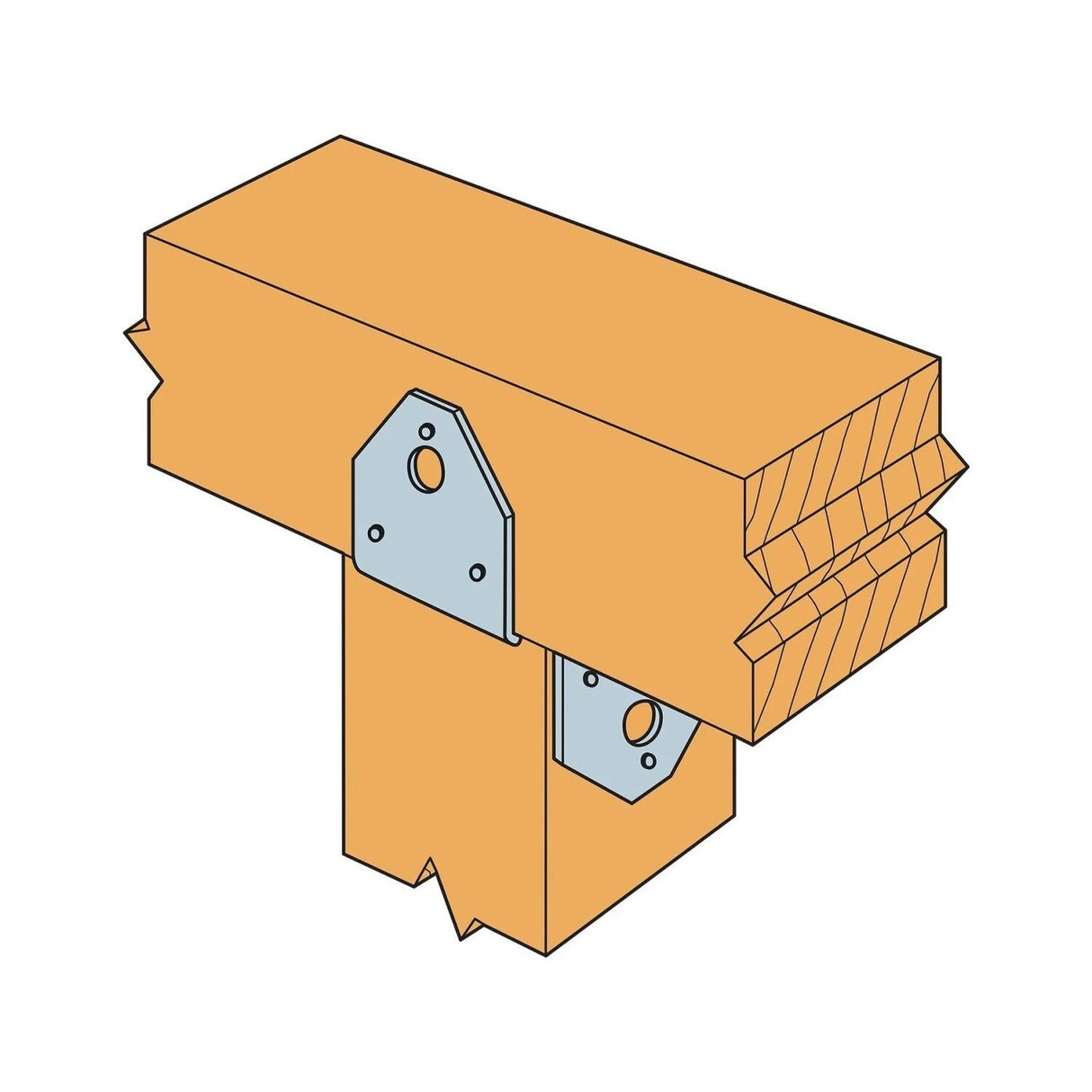

- Designed to connect a beam to a post with opposing flanges for uplift and lateral resistance
- Made from durable 18-Gauge Steel
- Finished with ZMAX coating for enhanced durability
- Attains full allowable load using common or pneumatic nail sizes
Simpson BC4Z-R Applications

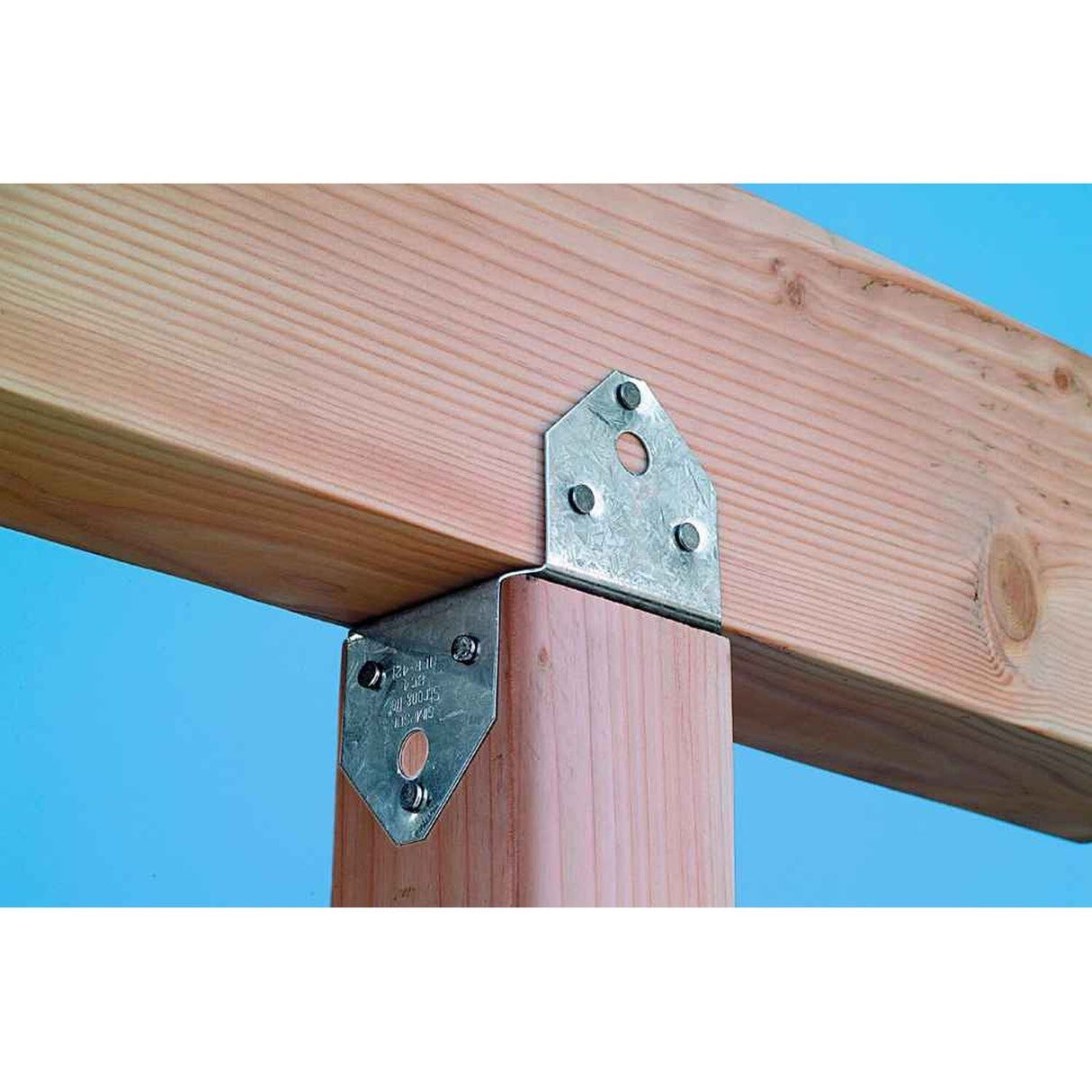

- Beam to post connections in construction projects
- Light-duty connections for 4x posts
- Deck framing and post stabilization
Simpson BC4Z-R Installation Overview
- Use all specified fasteners

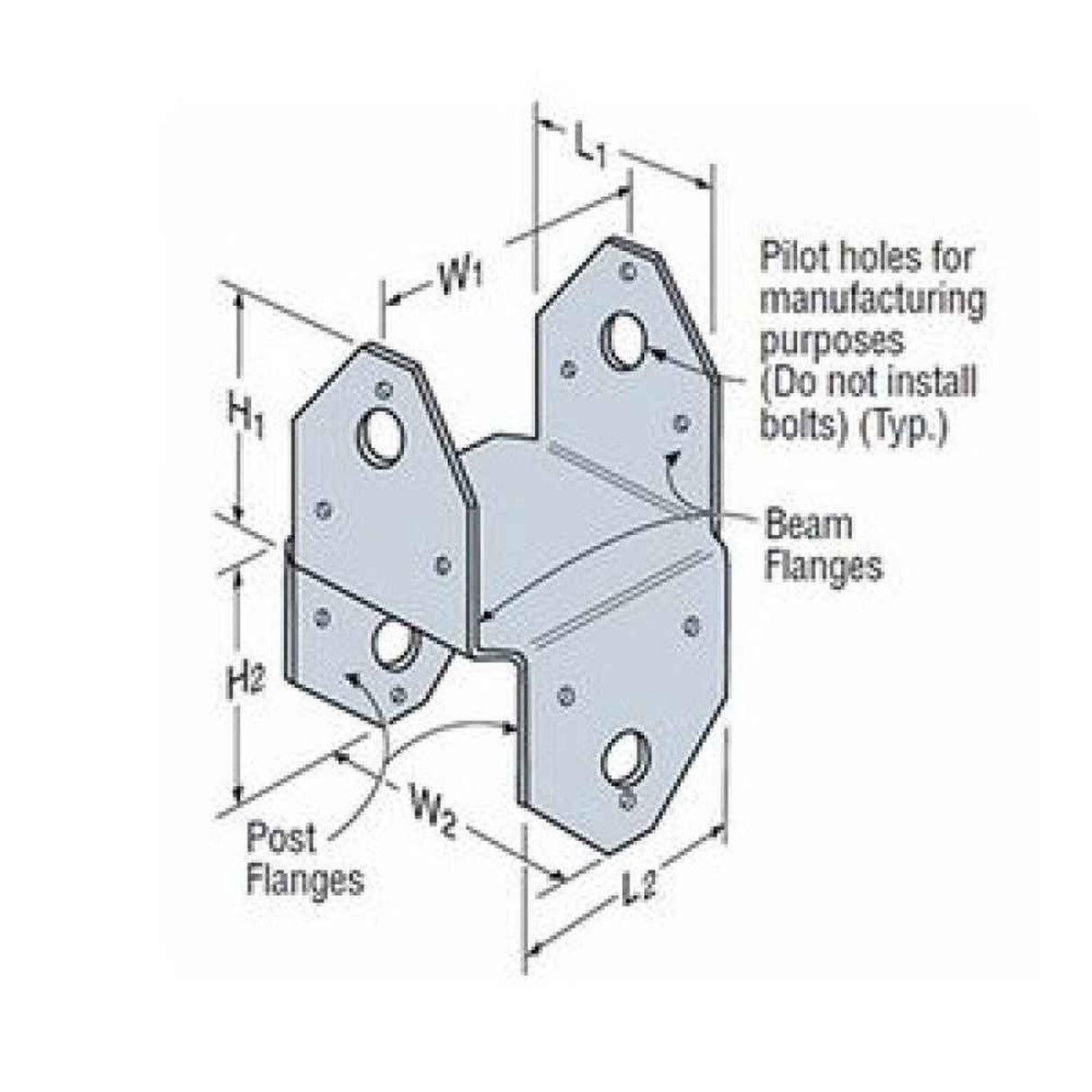

- Do not install bolts into pilot holes
- Install with 16d commons or 16dx2 1/2" joist hanger nails
- Ensure proper alignment and fastening to achieve full load capacity
Simpson BC4Z-R Specifications
| Finish | ZMAX |
| Length | 2-7/8" |
| Material | 18-Gauge Steel |
| Fasteners required | Beam Flange - (12) 0.162 x 3-1/2" Nails, Post Flange - (12) 0.162 x 3-1/2" Nails |
| For Treated Lumber | Yes |
| Height | 3" |
| Post size | 4x |
| Thickness | 18 Gauge |
| Width | 3-9/16" |
NOTE: Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
