Simpson Strong-Tie BCS2-2/4Z ZMAX Galvanized Post Cap for Double 2x Beam, 4x Post
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie BCS2-2/4Z ZMAX Galvanized Post Cap for Double 2x...
Key Specifications
Description
Description
Simpson BCS2-2/4Z Description

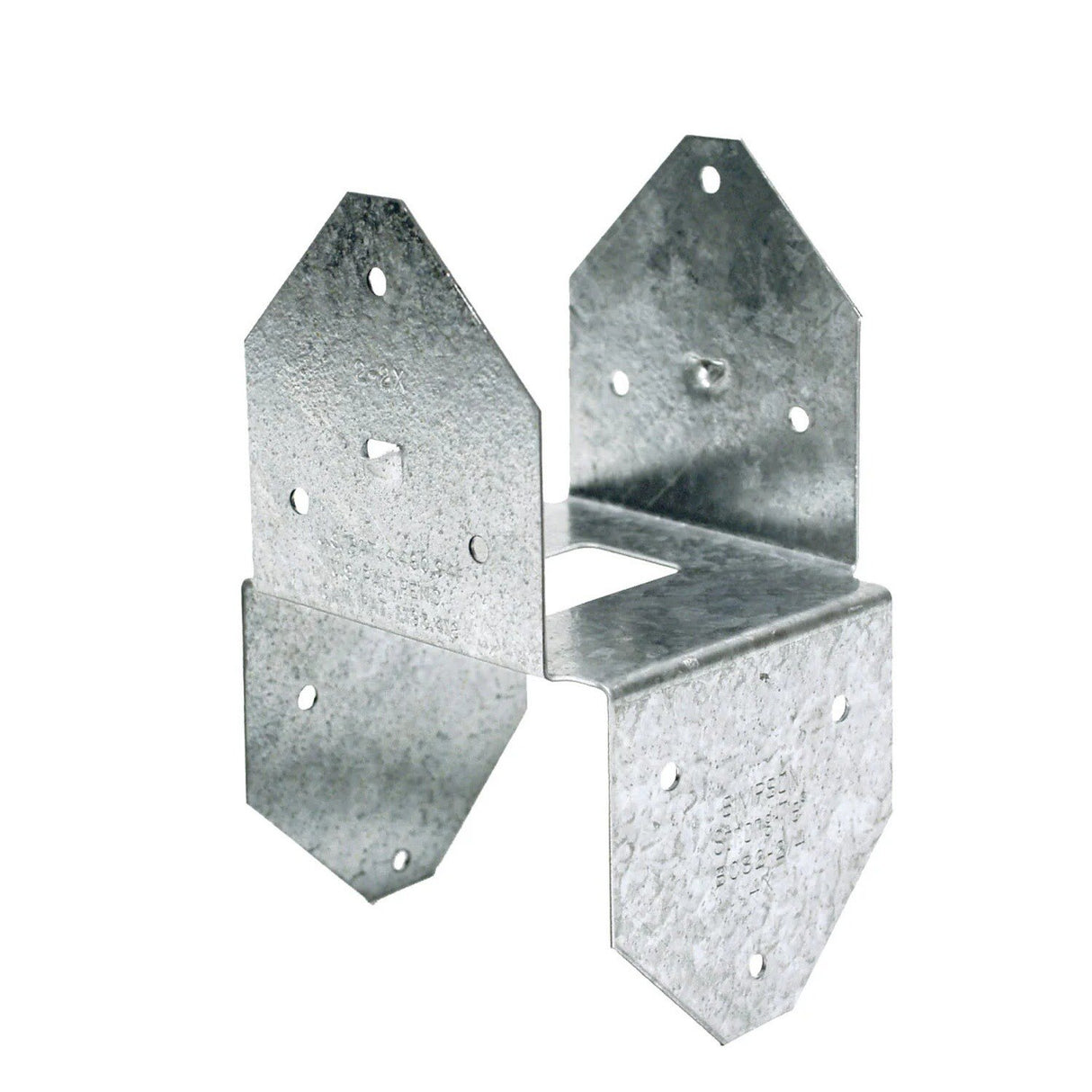

The ZMAX Galvanized Post Cap is designed for connecting double 2x beams to 4x posts, providing robust support and stability.
Simpson BCS2-2/4Z Includes
- (1) ZMAX Galvanized Post Cap for Double 2x Beam, 4x Post
Simpson BCS2-2/4Z Features

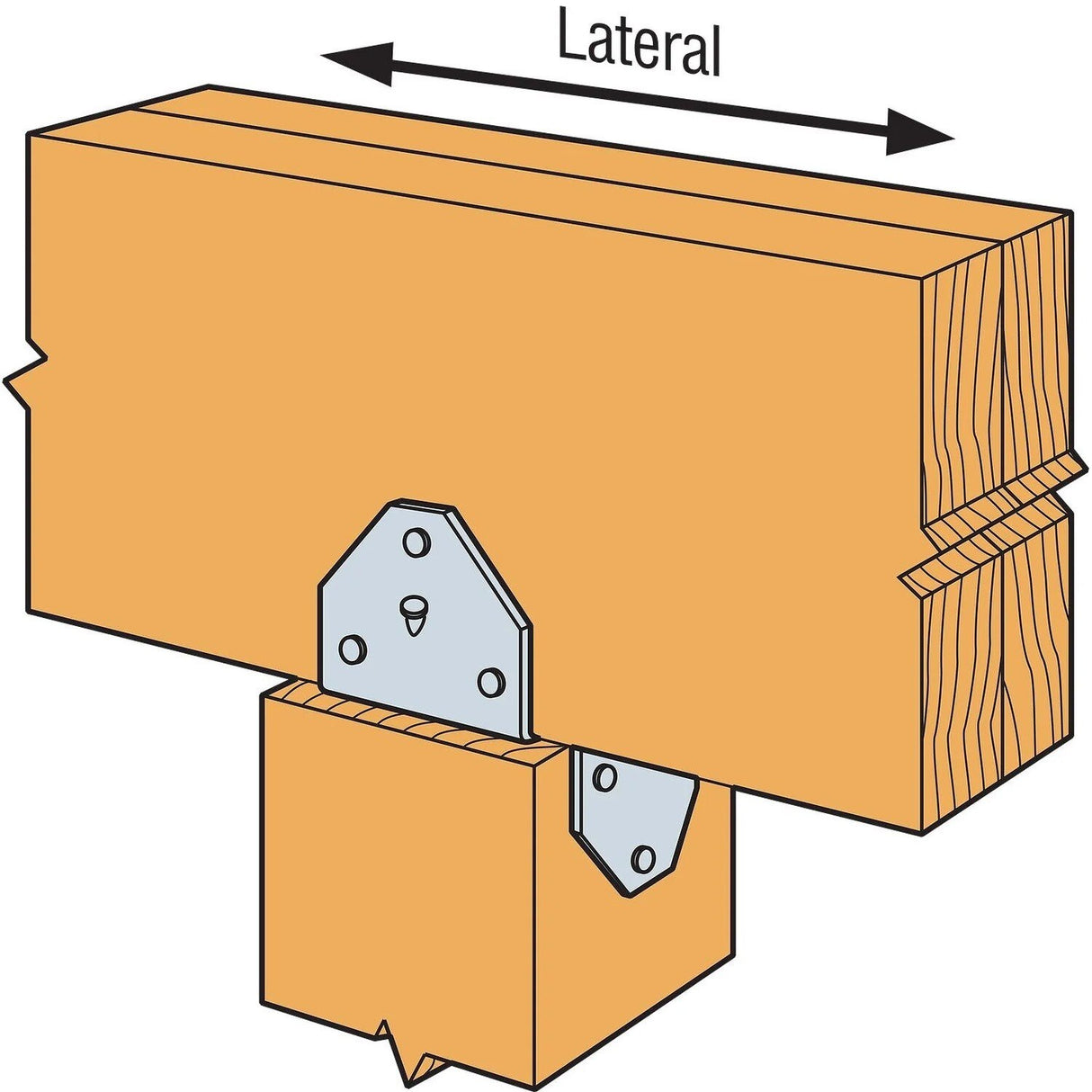

- Opposing flanges provide increased lateral resistance
- Double-shear nailing for optimal strength
- Sized specifically for multi-2x widths
- Made from durable 18-gauge steel
- Finished with ZMAX coating for corrosion resistance
Simpson BCS2-2/4Z Applications
- Wood-to-wood fastening for structural support

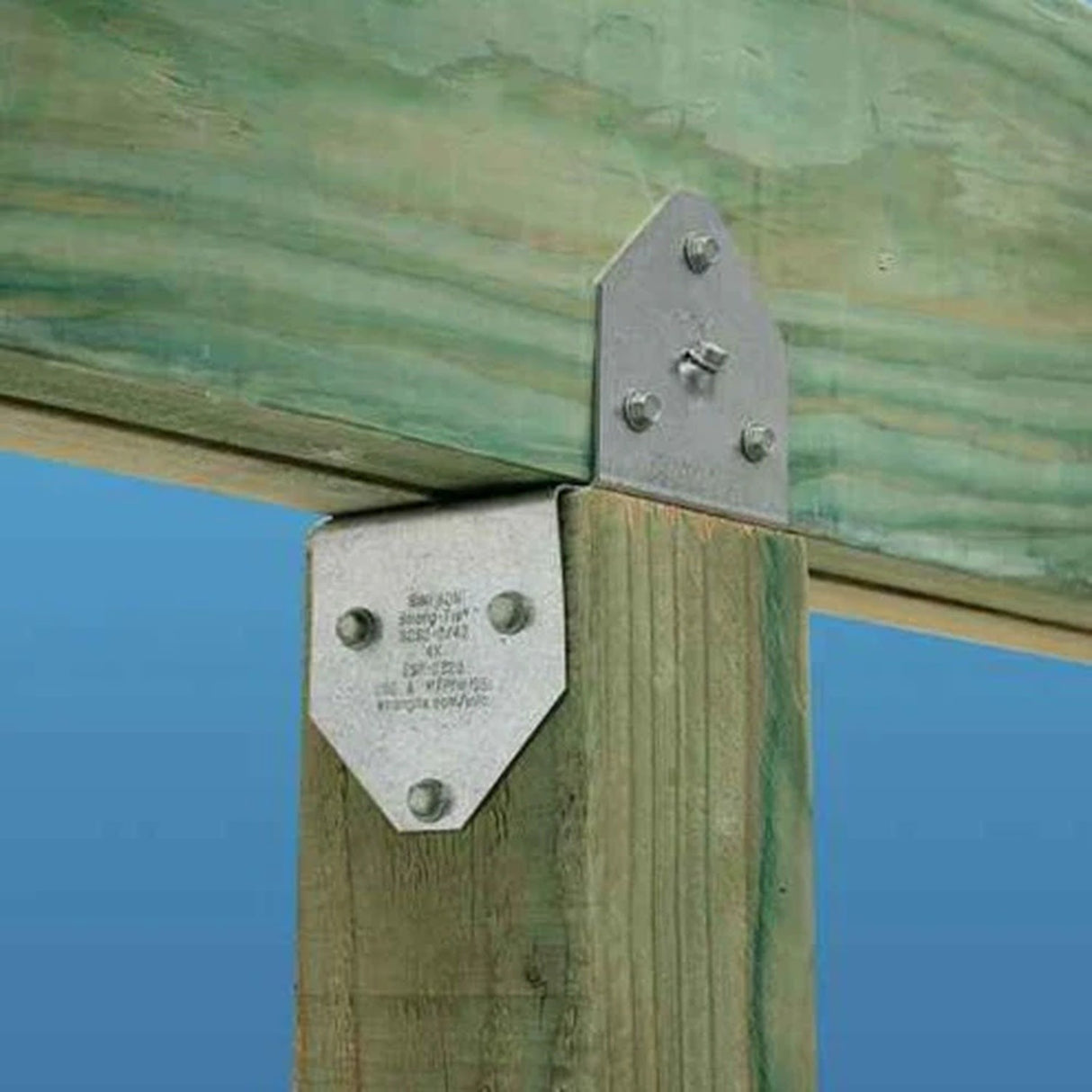

- Connecting double 2x beams to 4x posts
- Deck framing and post connections
Simpson BCS2-2/4Z Installation Overview
- Use all specified fasteners as per guidelines
- Do not install bolts into pilot holes
- Drive nails at an angle through the beam into the post below
- Ensure dome nails are installed on the beam
Simpson BCS2-2/4Z Specifications
| Material | 18-Gauge Steel |
| Finish | ZMAX Coating |
| Beam Size | Double 2x |
| Post Size | 4x |
| Width (1) | 3-1/8" |
| Width (2) | 3-9/16" |
| Length (1) | 2-7/8" |
| Length (2) | 2-7/8" |
| Height (1) | 2-15/16" |
| Height (2) | 2-15/16" |
| Thickness | 18 Gauge |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values
