Simpson Strong-Tie EPC6Z (5-1/2") 16 Gauge End Post Cap, ZMAX Finish
Stock Up & Save
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie EPC6Z (5-1/2") 16 Gauge End Post Cap, ZMAX ...
Key Specifications
Description
Description
Simpson EPC6Z Description

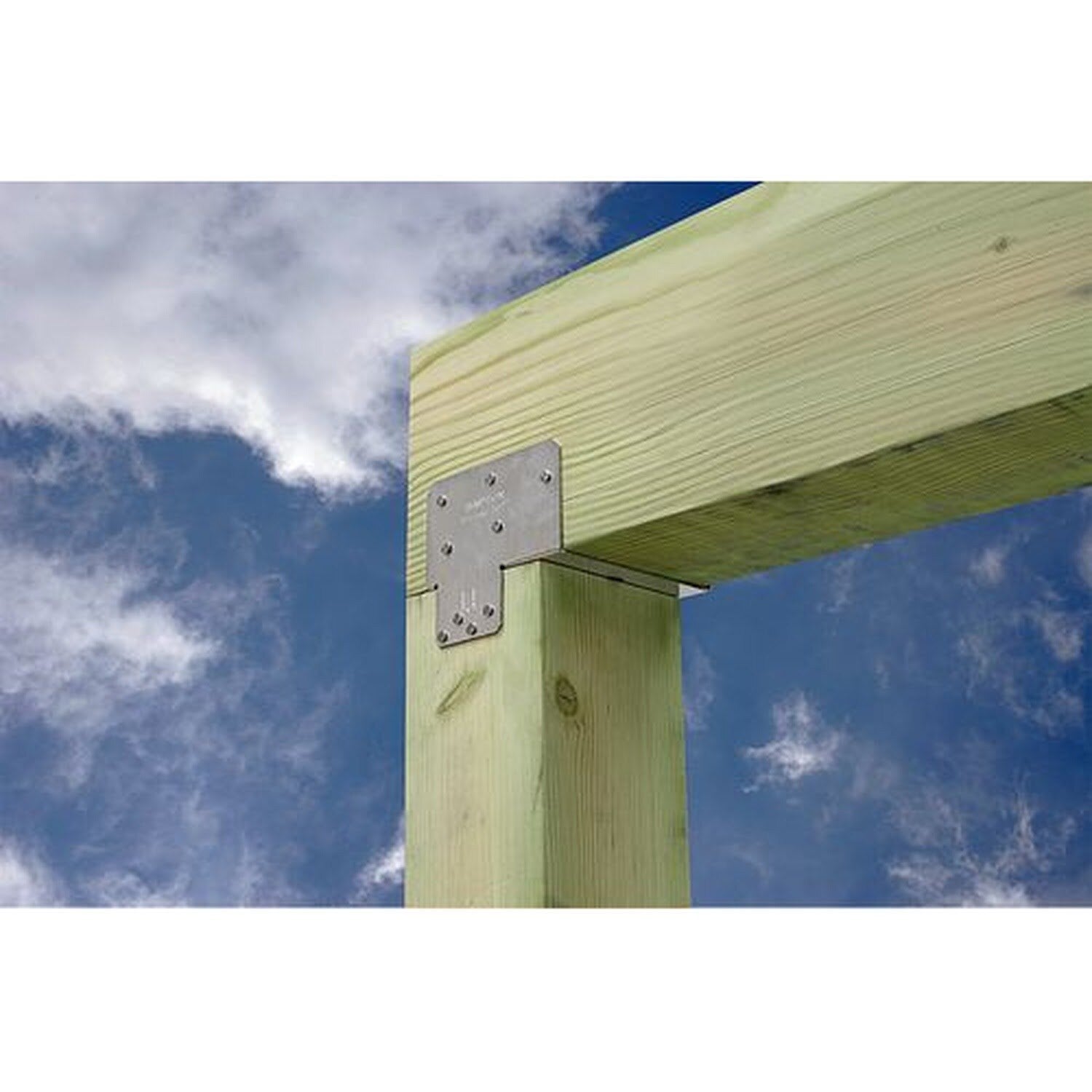

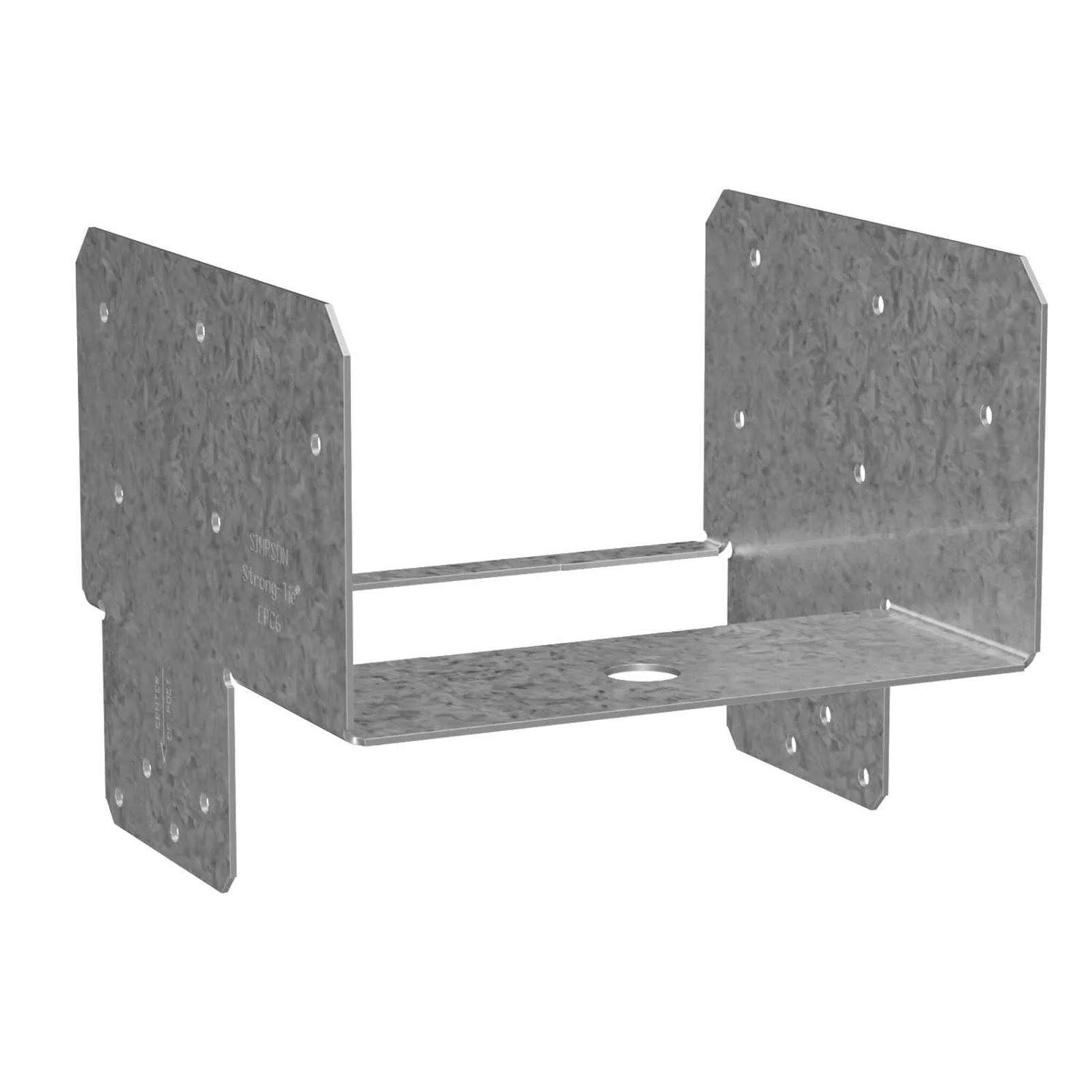

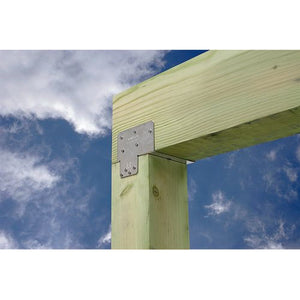

The Simpson EPC6Z 6X End Post Cap features a ZMAX finish and heavy-gauge steel construction, providing a reliable post-to-beam end connection for enhanced stability.
Simpson EPC6Z Includes
- (1) 6X End Post Cap
Simpson EPC6Z Features
- Provides an easy post-to-beam end connection
- Intended for use with 6x posts and beams
- Made from durable heavy-gauge steel
- Finished with ZMAX coating for corrosion resistance
- Certified welds for increased strength and loading
- Enhanced uplift loads for earthquake or wind loading
Simpson EPC6Z Applications
- Post-to-beam connections in construction projects
- Deck framing for enhanced structural stability
- Use with nominal and rough cut lumber
Simpson EPC6Z Installation Overview
- Align the post cap with the beam and post
- Secure using specified fasteners: Beam - (10) 0.148 x 3" Nails OR (10) SD9112 Screws; Post - (8) 0.148 x 3" Nails OR (8) SD9112 Screws
- Ensure all fasteners are properly installed for optimal performance
Simpson EPC6Z Specifications
| Finish | ZMAX |
| Material | Steel |
| Fasteners required | Beam - (10) 0.148 x 3" Nails OR (10) SD9112 Screws; Post - (8) 0.148 x 3" Nails OR (8) SD9112 Screws |
| Post size | 6x |
NOTE: Ensure all fasteners are properly installed to achieve optimal performance and load values.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
