Simpson Strong-Tie PA18 (18-1/2 in.) 12 Gauge Purlin Anchor and Strap-Tie Holdown, G90 Galvanized
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie PA18 (18-1/2 in.) 12 Gauge Purlin Anchor and Str...
Key Specifications
Description
Description

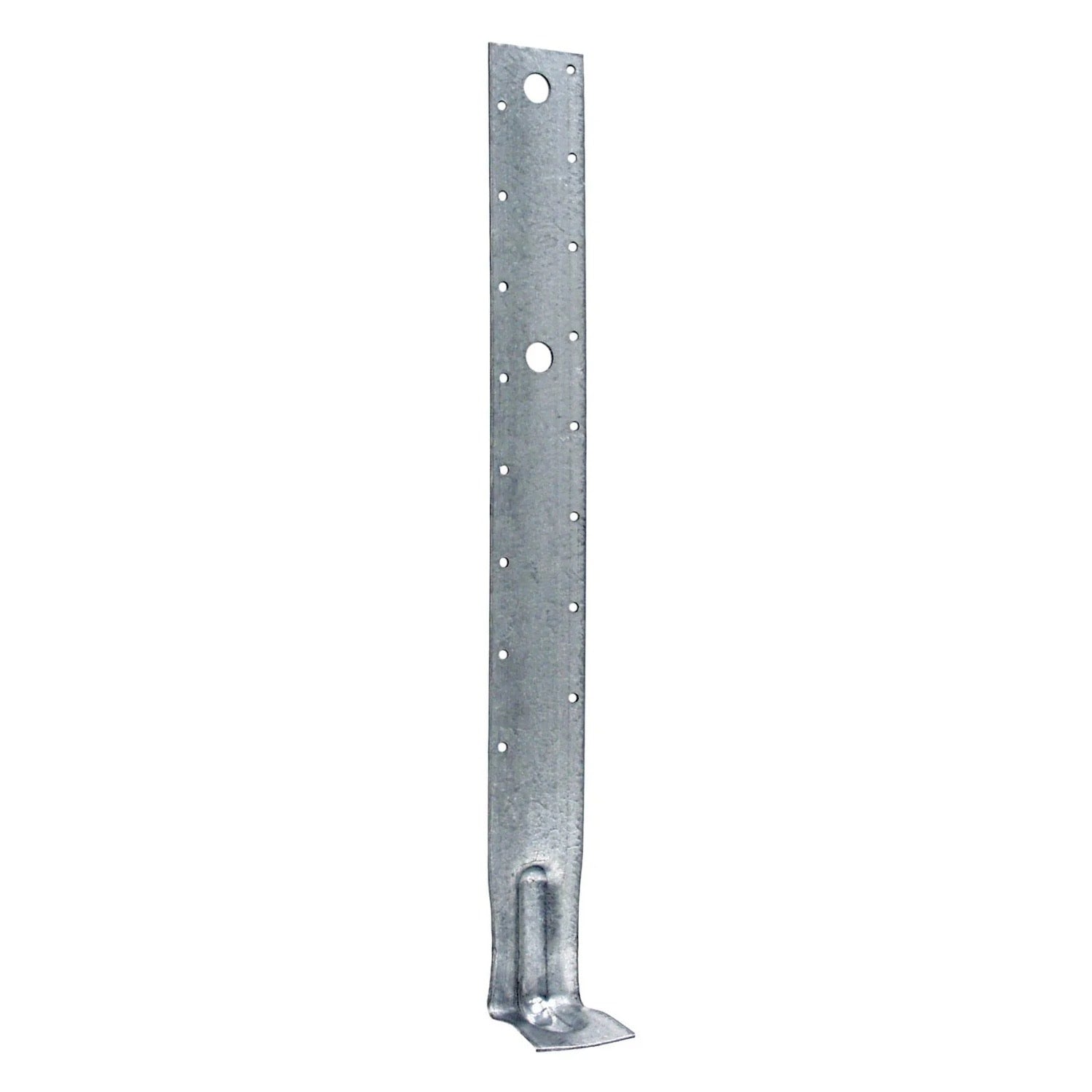

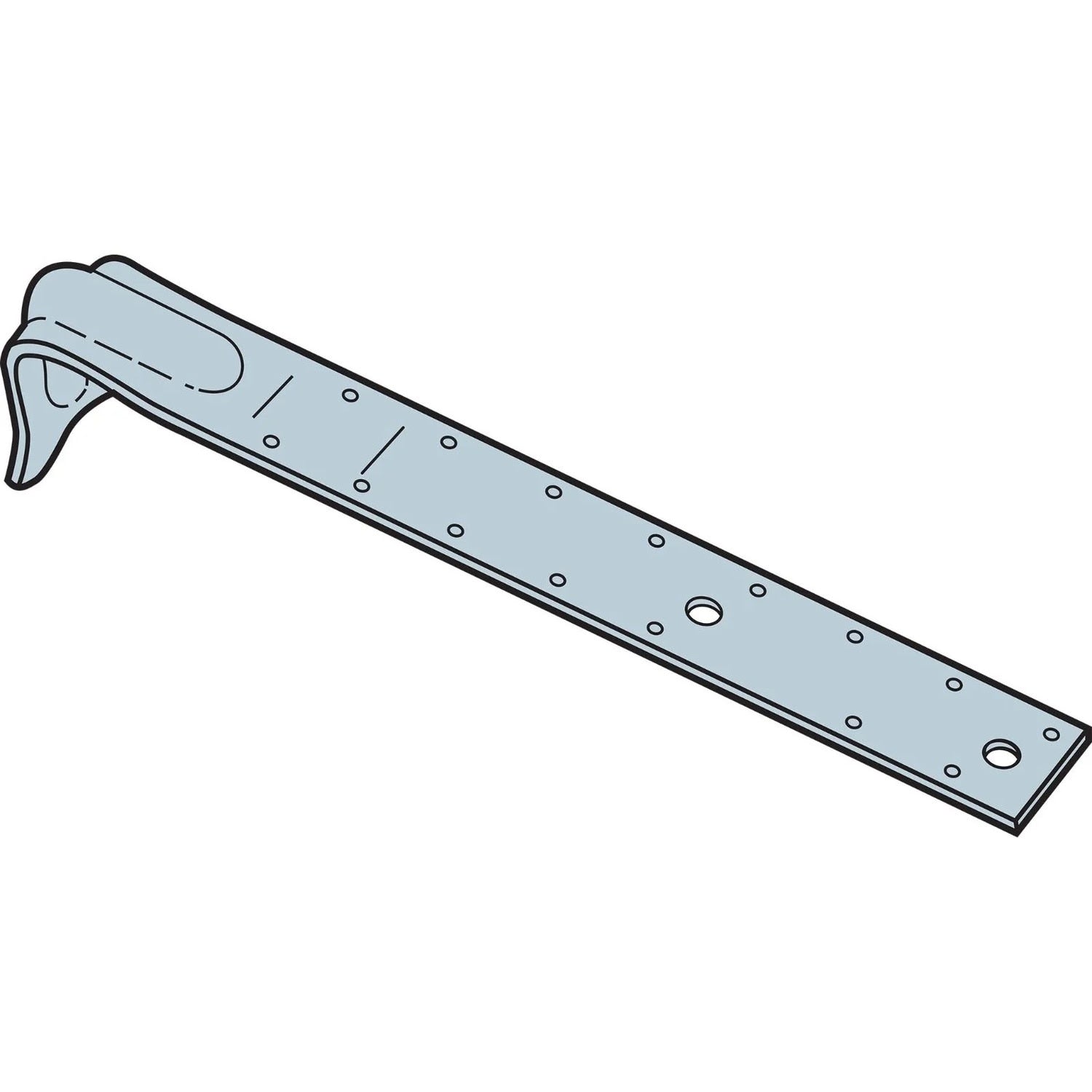

Simpson Strong-Tie PA18 Description
The PA18 Purlin Anchor by Simpson Strong-Tie provides reliable wood-to-concrete and concrete-block connections, meeting code requirements.
Simpson Strong-Tie PA18 Includes
- (1) Purlin Anchor Galvanized
Simpson Strong-Tie PA18 Features
- Dual-embedment design for installation in concrete or concrete block
- Made from durable carbon steel
- Galvanized finish for corrosion resistance
- Compatible with treated lumber
- Allows strap bending for versatile installation
Simpson Strong-Tie PA18 Applications
- Wood-to-concrete connections
- Concrete-block connections
- Horizontal installations into the side of concrete or masonry walls
Simpson Strong-Tie PA18 Installation Overview
- Use all specified fasteners; some models have extra fastener holes
- Ensure the purlin anchor hooks around rebar
- Allowable loads are for horizontal installation into the side of a concrete or masonry wall
- Strap may be bent one full cycle (bent vertical 90 degrees then bent horizontal)
- Refer to technical bulletin PA Foundation Straps for Uplift Resistance for additional information
Simpson Strong-Tie PA18 Specifications
| Length | 18-1/2" |
| Material | Carbon Steel |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | No |
| Manufacturer name | Simpson Strong-Tie |
| Width | 2-1/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
