Simpson Strong-Tie LS30Z (3-3/8") Reinforcing Angle ZMAX Finish
Key Specifications
Description
Description
Simpson Strong-Tie LS30Z Description

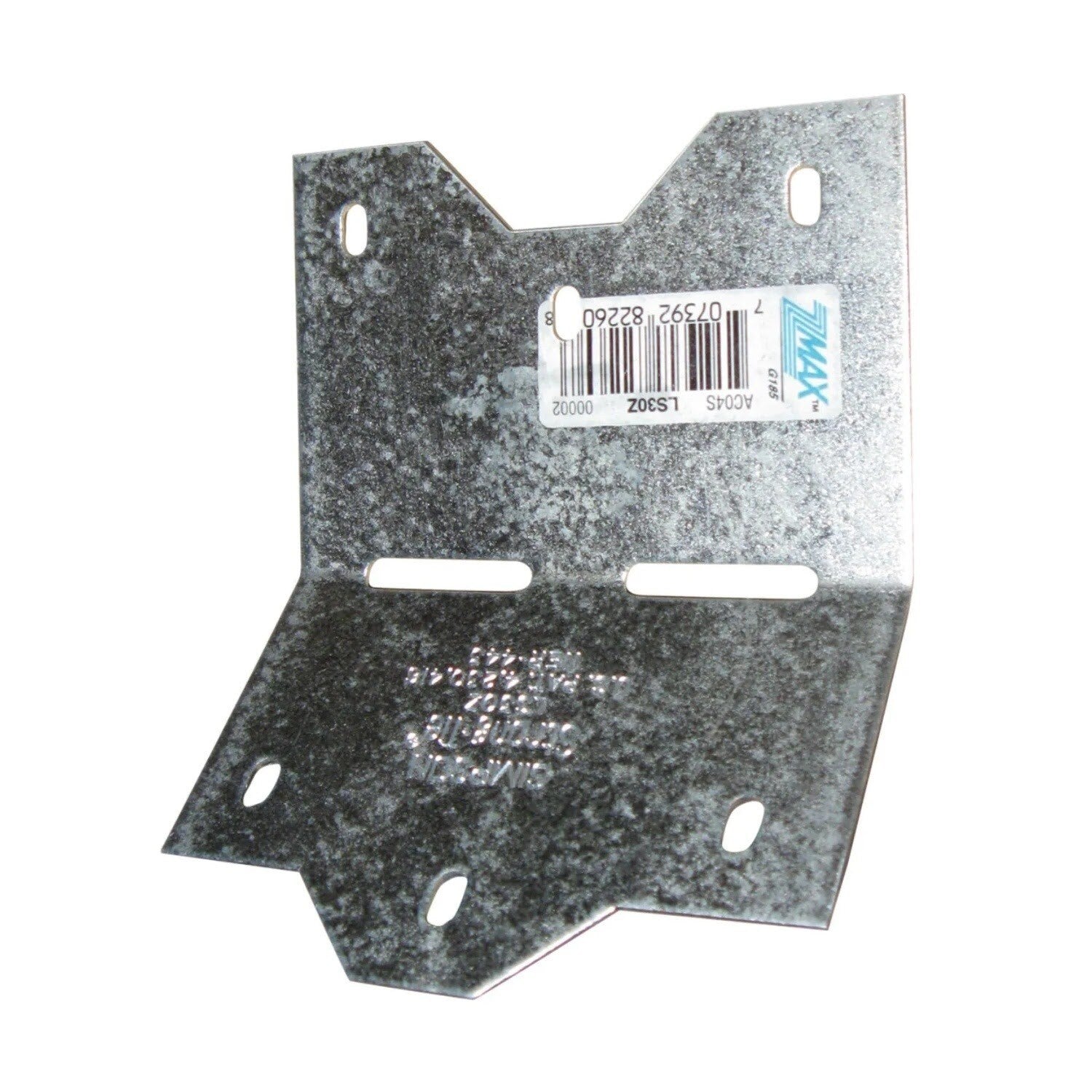

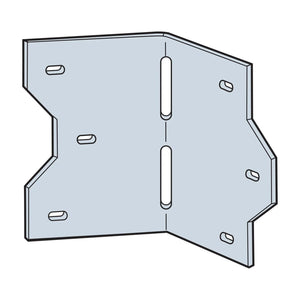

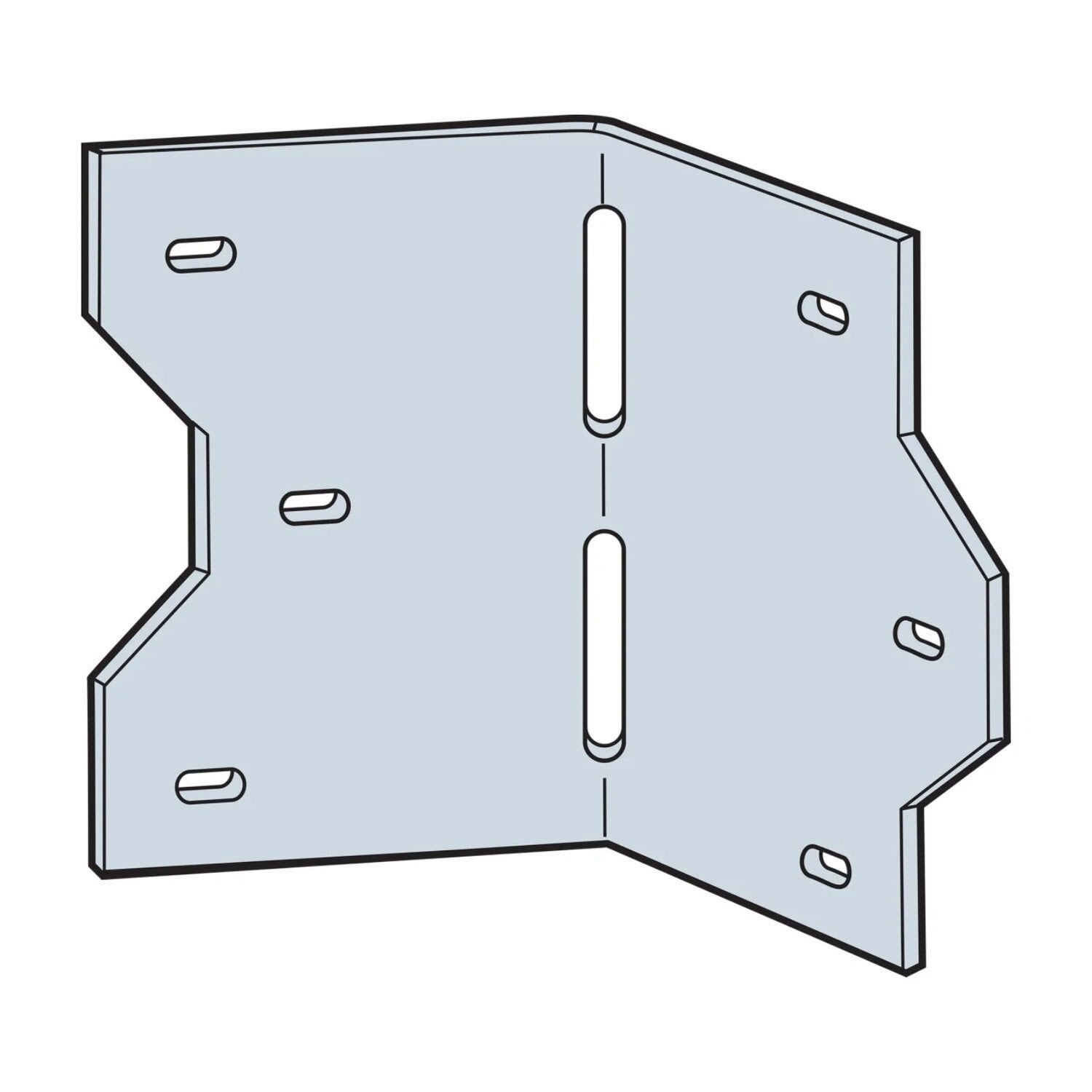

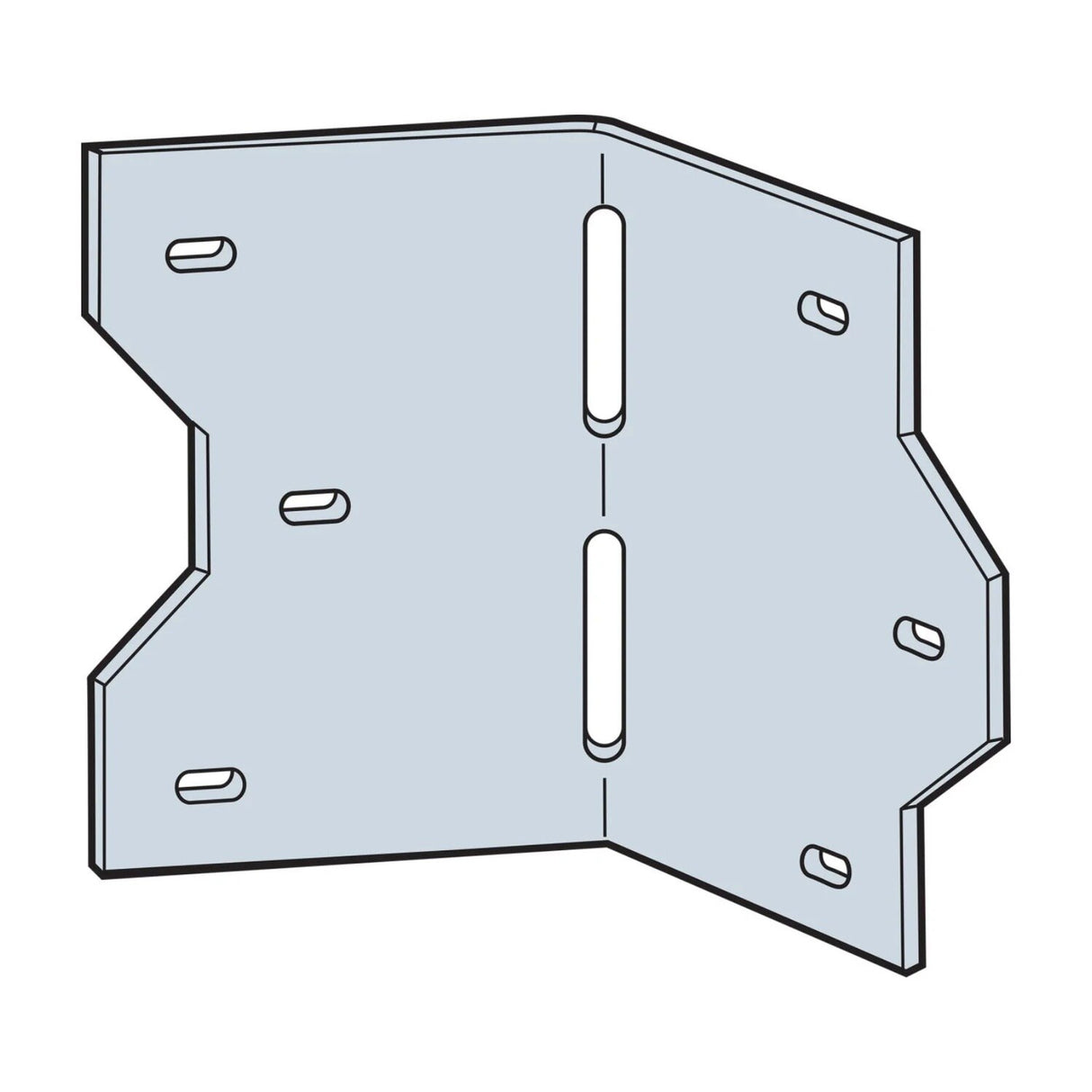

The LS30Z reinforcing angle by Simpson Strong-Tie features a ZMAX galvanized finish for enhanced corrosion resistance and is field adjustable to create angles from 0 to 135 degrees.
Simpson Strong-Tie LS30Z Includes
- (1) LS30Z Reinforcing Angle
Simpson Strong-Tie LS30Z Features

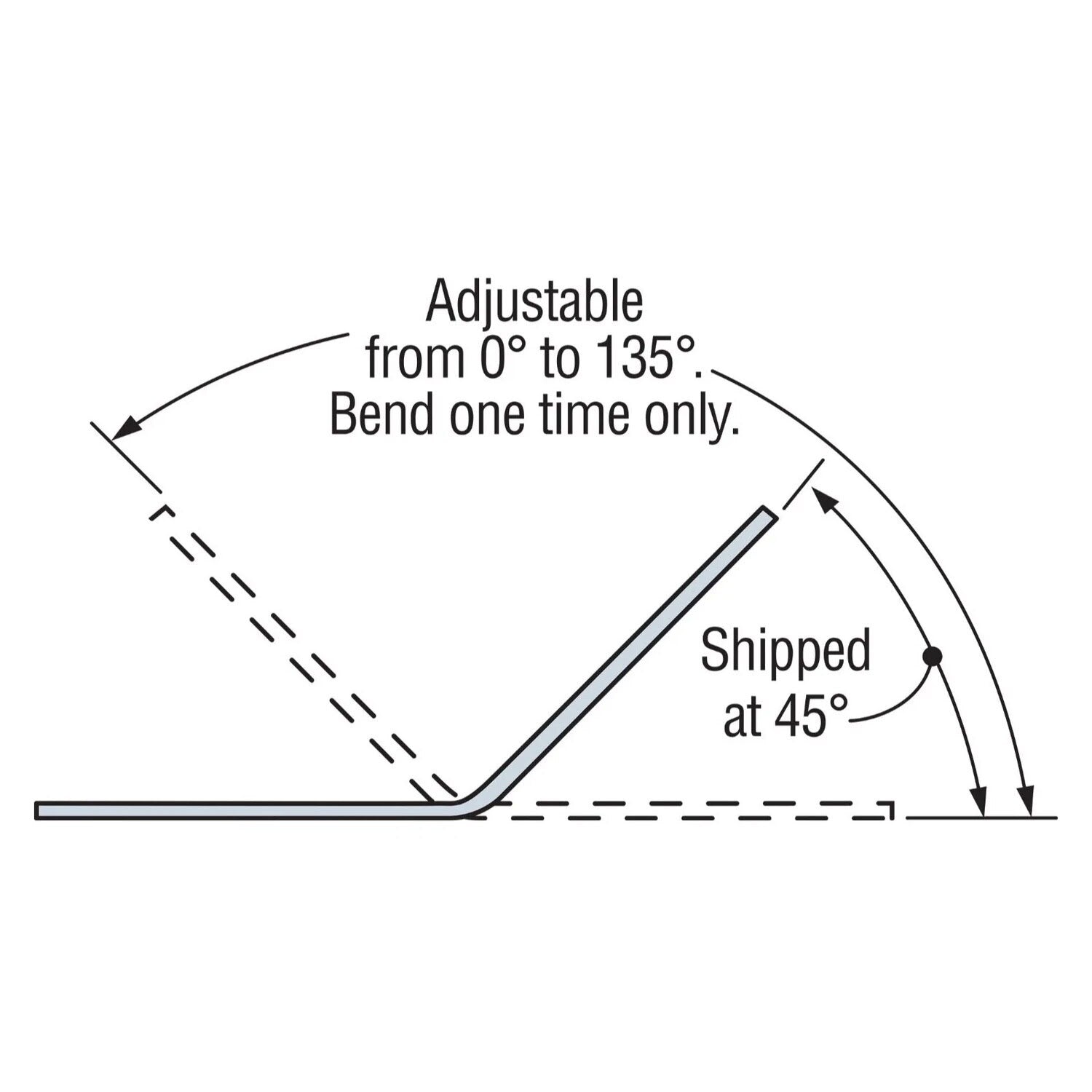

- Field adjustable to create angles from 0 to 135 degrees
- ZMAX galvanized finish for corrosion resistance
- Requires hot-dip galvanized fasteners meeting ASTM A153 specifications
Simpson Strong-Tie LS30Z Applications

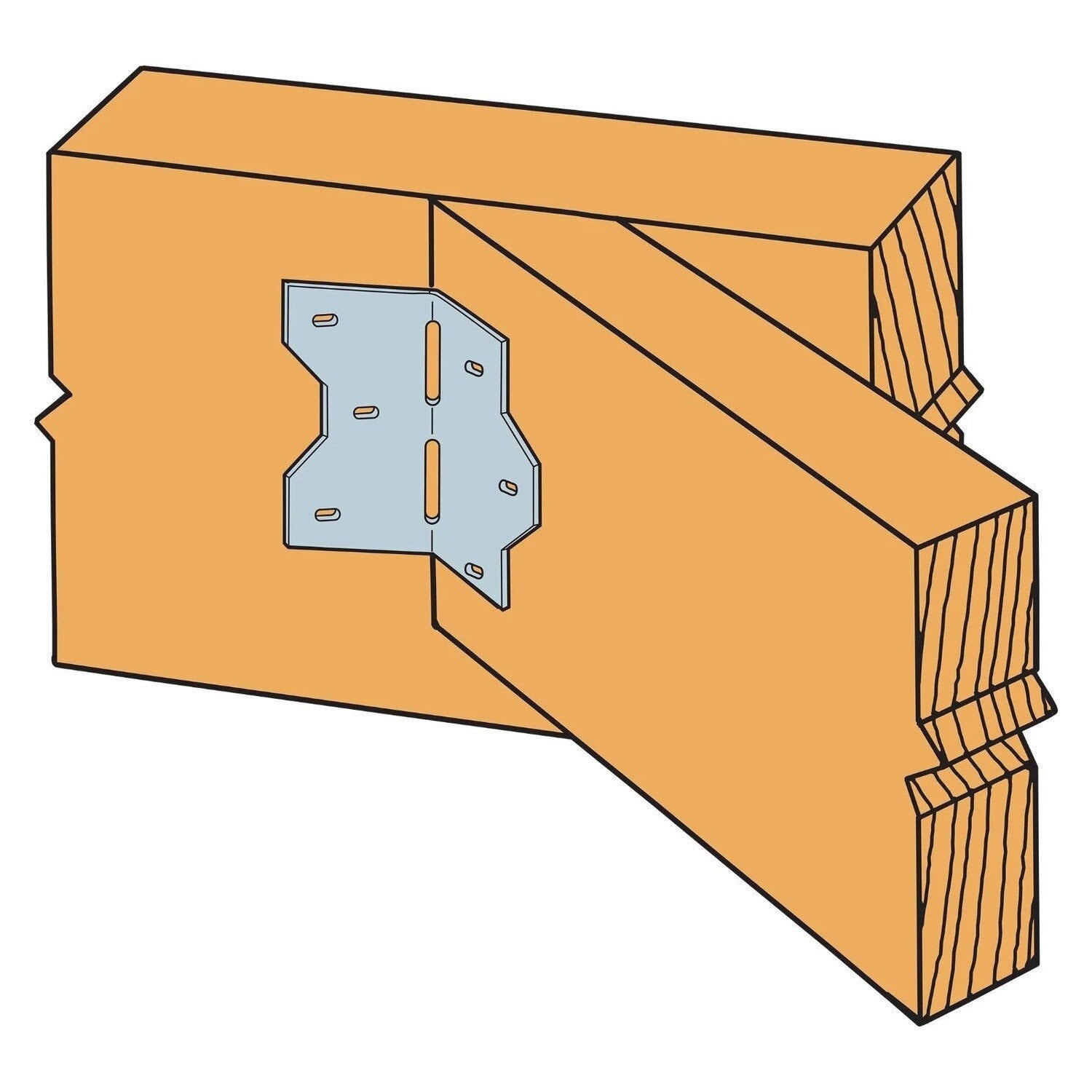

- Reinforcing connections in wood framing
- Adjustable angle applications in construction
- Use in treated lumber projects
Simpson Strong-Tie LS30Z Installation Overview
- Use all specified fasteners
- Use hot-dip galvanized nails with ZMAX and HDG connector products
- Bend LS angles one time only
- Ensure joist is constrained against rotation when using a single LS per connection
Simpson Strong-Tie LS30Z Specifications
| Finish | ZMAX |
| For Treated Lumber | Yes |
| Material | Carbon Steel |
| Weight | 0.2 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
