Simpson Strong-Tie HGUS210-4 (9-3/16") 12Ga Heavy Girder Hanger with Double-Shear Nailing - G90 Galvanized
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Key Specifications
Description
Description
Simpson Strong-Tie HGUS210-4 Description

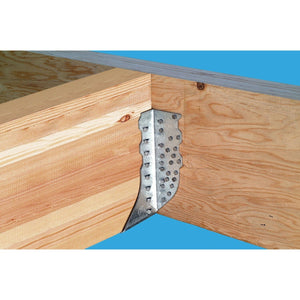

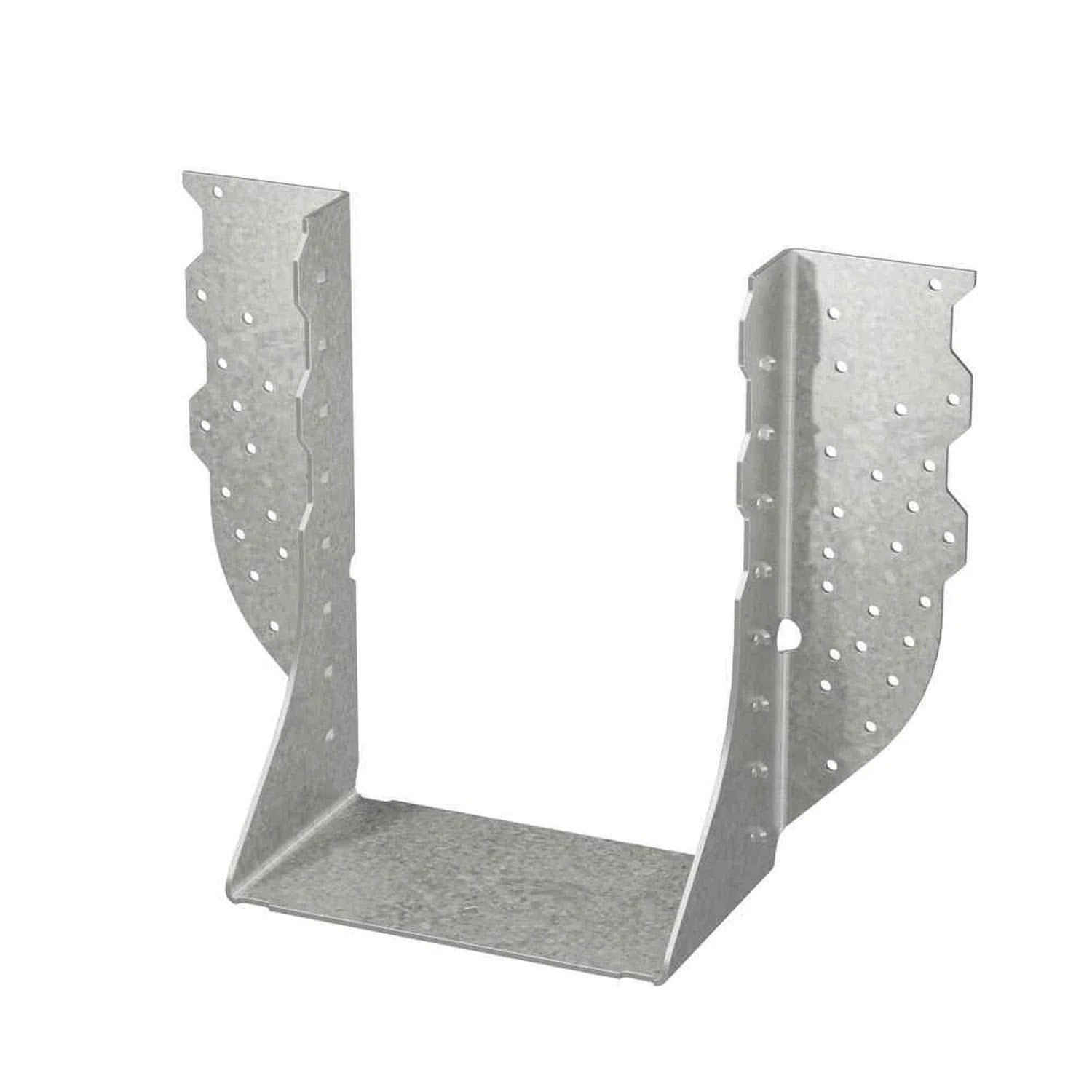

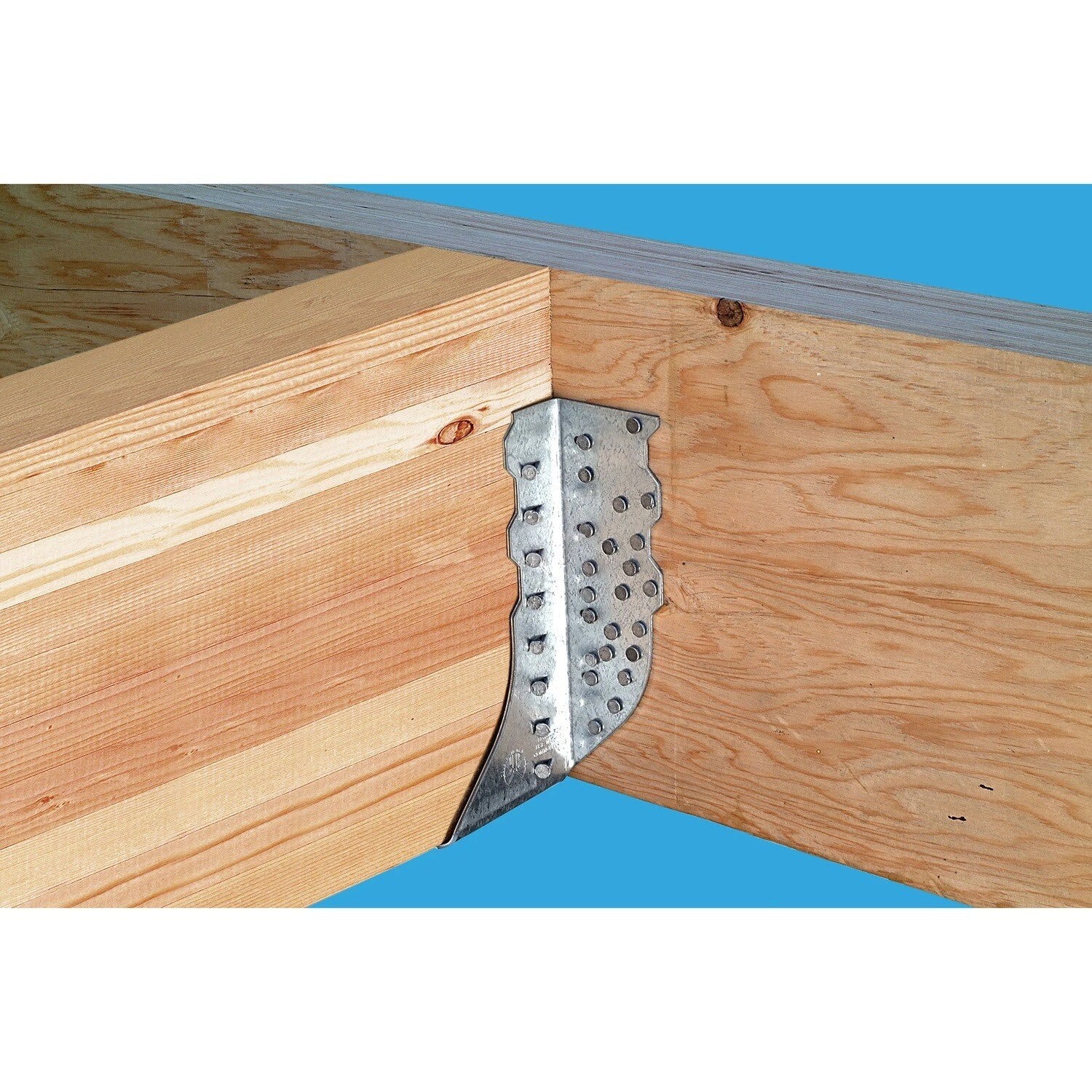

The Simpson Strong-Tie HGUS210-4 is a heavy-duty quadruple 2x10 face mount hanger designed for robust structural support. Made from 12-gauge galvanized steel, it ensures durability and corrosion resistance.
Simpson Strong-Tie HGUS210-4 Includes
- (1) Quadruple 2x10 Face Mount Hanger
Simpson Strong-Tie HGUS210-4 Features
- High Load Capacity: Crafted to support substantial weights, making it ideal for heavy-duty projects.
- Double-Shear Nailing: This design innovation distributes the load through two points on each joist nail, providing greater strength.
- Versatile Installation: Can be installed after the beam is secured in place, offering flexibility during construction.
- Durable Construction: Manufactured from 12-gauge galvanized steel, ensuring durability and corrosion resistance.
Simpson Strong-Tie HGUS210-4 Applications
- Residential Construction: Provides secure connections for beams and girders in homes, enhancing structural integrity.
- Commercial Projects: Supports heavy loads in commercial buildings, ensuring compliance with stringent building codes.
- Deck Construction: Offers reliable support for deck beams, contributing to the safety and longevity of outdoor structures.
- Timber Framing: Ideal for use in timber-framed structures, facilitating strong and stable joints.
Simpson Strong-Tie HGUS210-4 Installation Overview
- Fastener Requirements: Use all specified fasteners as per the manufacturer's guidelines. Typically, this includes 16d nails driven at an angle through the joist or truss into the header to achieve the specified load capacities.
- Compatibility: Not designed for welded or nailer applications. Avoid using double-shear hangers with I-joists.
- Carrying Members: For 3x carrying members, when 0.162" x 3 1/2" nails are specified, use 0.162" x 2 1/2" nails into the header and 0.162" x 3 1/2" nails into the joist with no load reduction.
Simpson Strong-Tie HGUS210-4 Specifications
Finish | G90 Galvanized |
Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
For Treated Lumber | No |
Height | 9-1/8" |
Joist size | Quad 2" X 10" |
Manufacturer name | Simpson Strong-Tie |
Width | 6-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
