Simpson Strong-Tie SDW22300 Strong-Drive (.220 in. x 3") T40 E-coat Truss-Ply Screw, Low Profile Head (950 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie SDW22300 Strong-Drive (.220 in. x 3") T40 E...
Key Specifications
Description
Description
3" Structural Wood Screw Interior SDW22300 Description
The Strong-Drive SDW Truss-Ply screw is a high-strength structural wood screw specifically designed for fastening multi-ply wood members, such as joining plated trusses and solid-sawn lumber. The SDW installs easily with no predrilling and is available in optimized lengths for fastening 2-, 3- and 4-ply trusses. With the SDW Truss-Ply screw, multi-ply trusses and components can be fastened from one side without requiring the lifting and flipping of heavy assemblies. It is code listed under IAPMO-UES ER-192 and meets 2015 and 2018 IRC® and IBC® code requirements for several common wood framing applications with wood and engineered wood.
3" Structural Wood Screw Interior SDW22300 Includes
- (1) Box of 950 Screws
- (2) T40 drive bit tip
3" Structural Wood Screw Interior SDW22300 Features

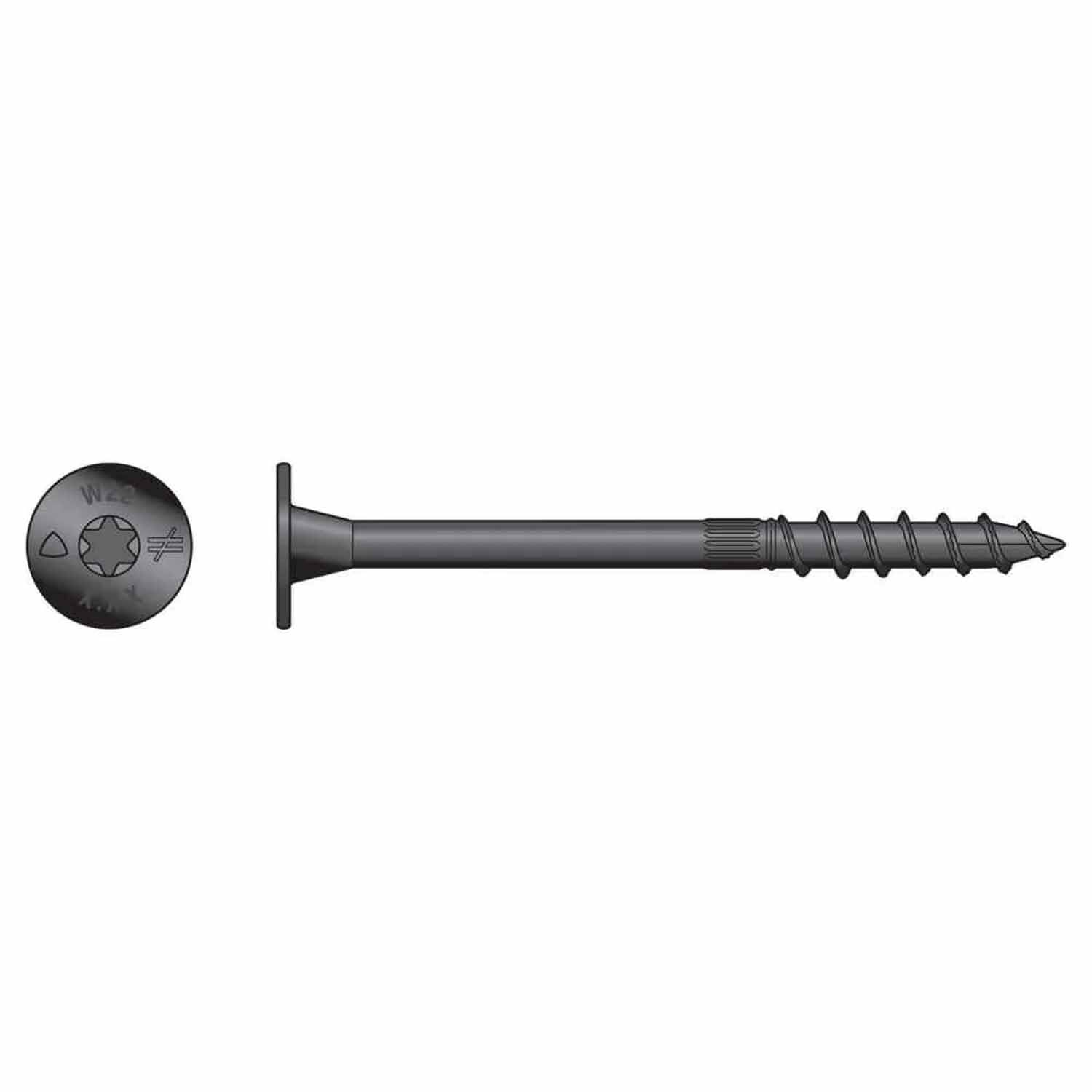

- Large washer head provides maximum bearing area; stamped with the Simpson Strong-Tie “≠” sign and fastener length for easy identification after installation (0.75" head dia.)
- 6-lobe, T40 drive provides positive engagement that makes the screw easy to drive and improves bit life (replacement driver bit — BIT40T-14)
- Low-profile head results in less interference after installation; makes stacking and sliding members easier and allows installation of hardware and finishes to be virtually flush
- Higher shear values than competitive products enable wider spacing, saving time and money
- Bold thread design provides superior holding power and cinches fastened members together for consistent installation
- SawTooth® point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
