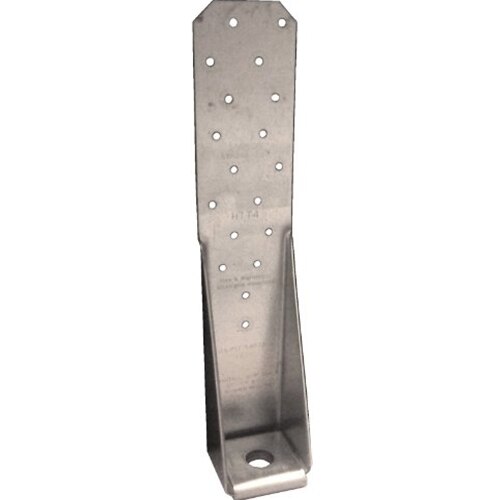

Simpson Strong-Tie HTT4 (12-3/8") Heavy Tension Tie for Wood-to-Concrete Connections
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HTT4 (12-3/8") Heavy Tension Tie for Wood-t...
Key Specifications
Description
Description
Simpson HTT4 Description
The HTT4 Heavy Tension Tie is designed for wood-to-concrete connections, offering high load capacity and durable construction for residential and commercial applications.
Simpson HTT4 Includes
- (1) Heavy Tension Tie for Wood-to-Concrete Connections
Simpson HTT4 Features
- High Load Capacity: Achieves allowable loads up to 7,650 lbs when installed with Strong-Drive SD Connector screws.
- Optimized Design: Features a four-fold seat and tapered base to reduce deflection and enhance strength.
- Versatile Installation: Compatible with standard pneumatic nail sizes and Strong-Drive SD Connector screws.
- Durable Construction: Made from 10-gauge galvanized steel for corrosion resistance.
Simpson HTT4 Applications
- Wood-to-concrete connections in residential buildings.
- Light-frame commercial construction requiring tension resistance.
- Deck framing and structural reinforcement.
Simpson HTT4 Installation Overview
- Install with 0.148" x 2 1/2" or 0.162" x 2 1/2" nails, or #10 x 2 1/2" Strong-Drive SD Connector screws.
- Use a 3/4" diameter anchor bolt and one standard 3/4" cut washer (not included).
- Ensure wood member sizes are at least 3" x 3 1/2".
Simpson HTT4 Specifications
| Length | 12-3/8" |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | No |
| Manufacturer name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
